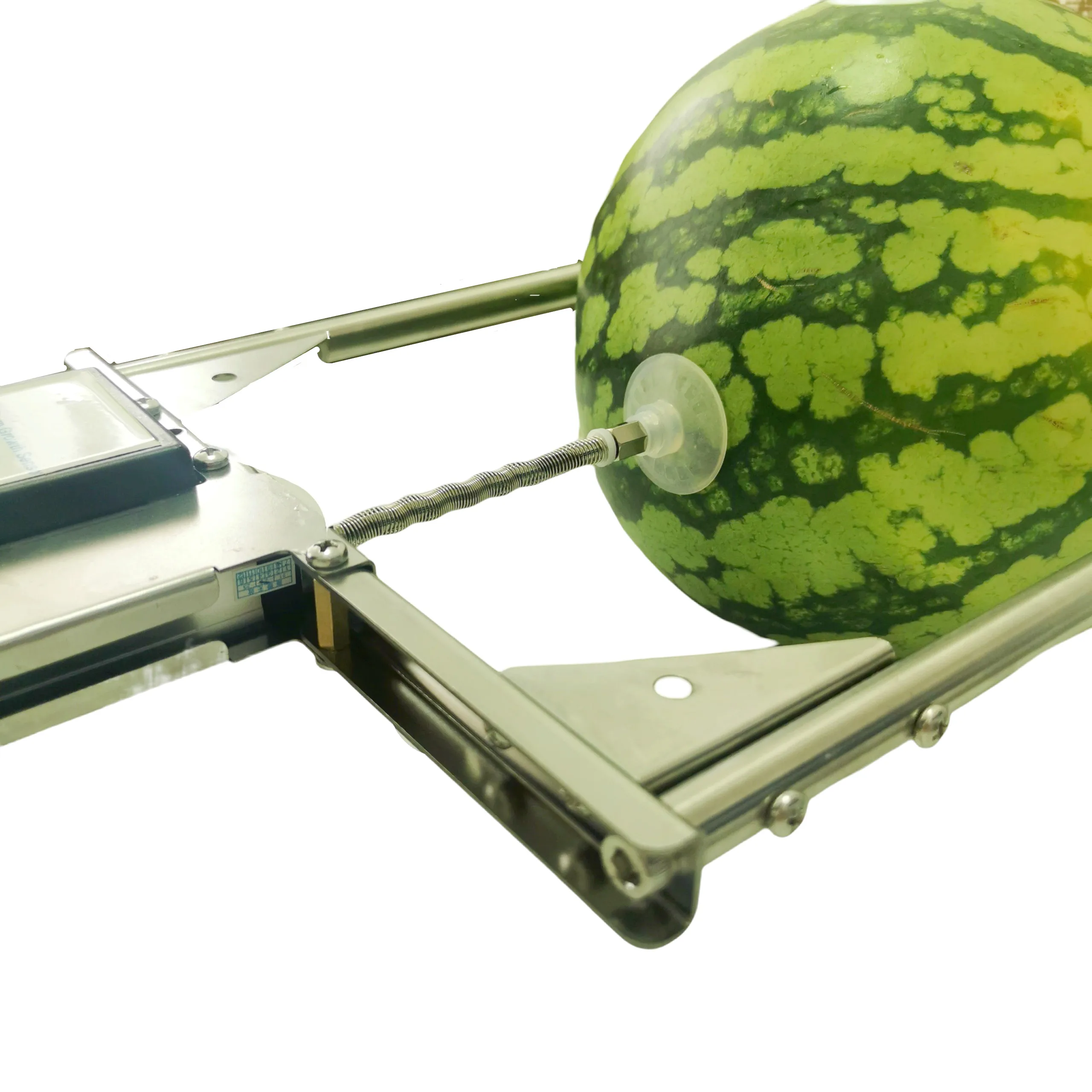

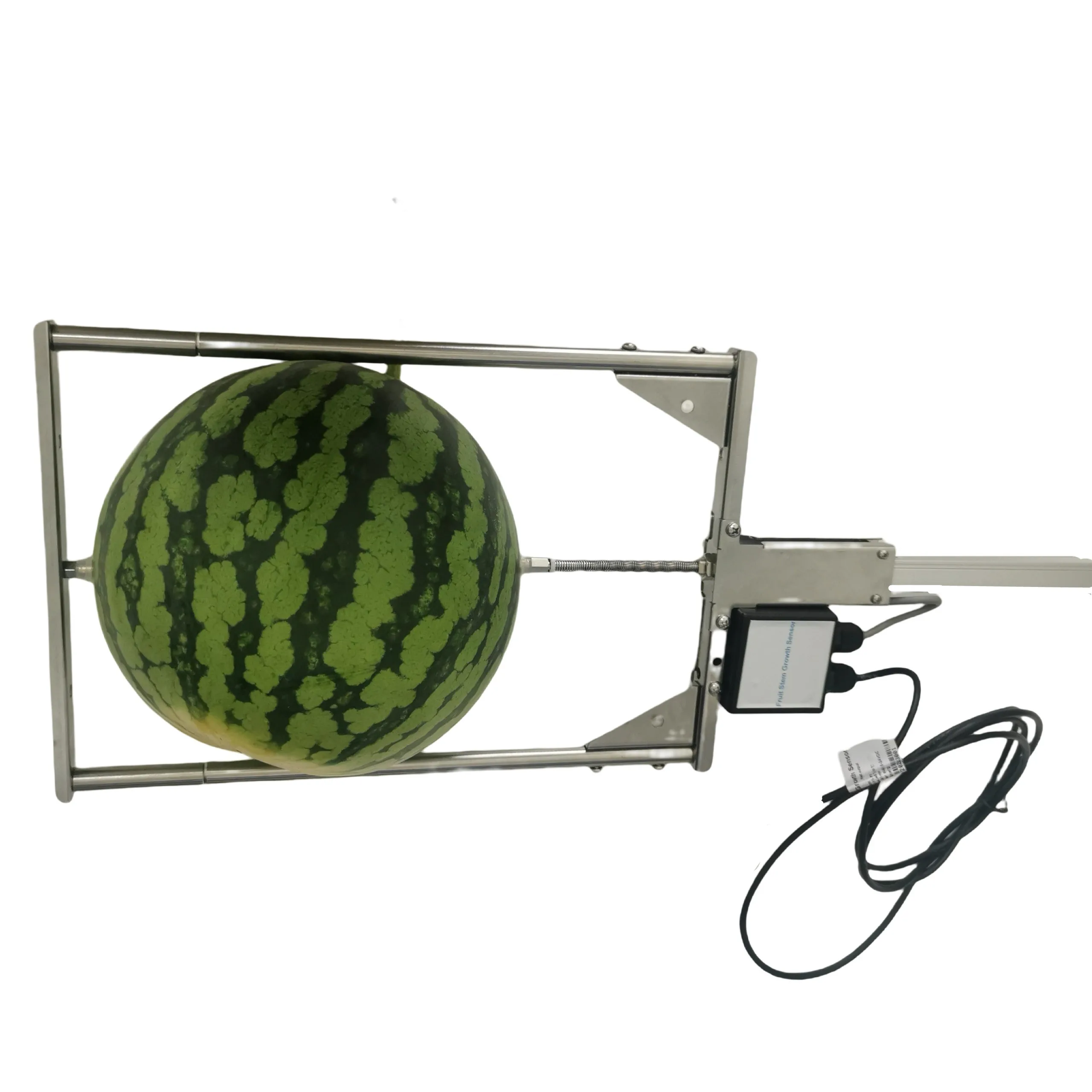

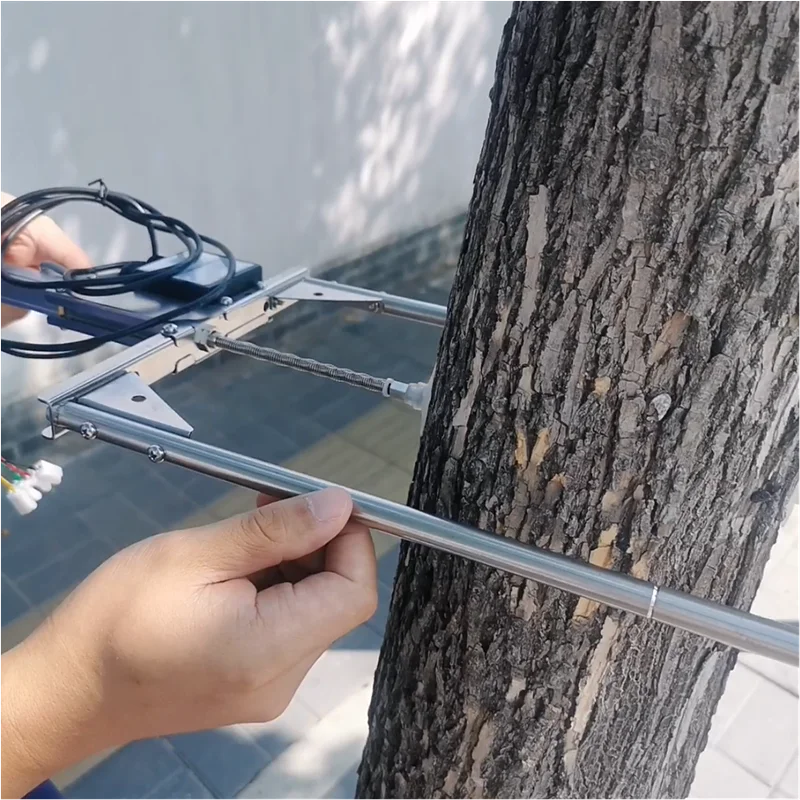

ONLINE MONITORING AGRICULTURE GREENHOUSE FRUIT DIAMETER PLANT STEM GROWTH SWELLING SENSOR
- Category: >>>
- Supplier: Honde Technology Co. Ltd.
Share on (1600405925504):
Product Overview
Description
Product Description
Measure principle
The measurement principle of fruit and stem sensor uses the distance of displacement to measure the growth length of fruit or rhizome of plants. It can be connected to transmission equipment to view the growth data of fruit or rhizome of plants in real time. The data can be viewed anytime and anywhere.
Basic parameters
Measuring ranges | 0 ~ 10mm, 0 ~ 15mm, 0 ~ 25mm, 0 ~ 40mm, 0 ~ 50mm,0 ~ 75mm, 0 ~ 100mm, 0 ~ 125mm, 0 ~ 150mm, 0 ~ 175mm,0 ~ 200mm |
Resolution | 0.01 mm |
Output signal | Voltage signal (0 ~ 2V, 0 ~ 5V, 0 ~ 10V)/4 ~ 20mA (current loop)/RS485 (standard Modbus-RTU protocol, device default address: 01)/ |
Wireless modules | 4G, NB-lOT, WiFi, LoRa, LORAWAN,Ethernet (RJ45 port) |
Power supply voltage | 5 ~ 24V DC (when output signal is 0 ~ 2V, RS485) |
12 ~ 24V DC (when the output signal is 0 ~ 5V, 0 ~ 10V, 4 ~ 20mA) | |
Linear accuracy | ± 0.1% FS |
Repeatability accuracy | 0.01 mm |
Maximum working speed | 5m/s |
Use temperature range | -40 ℃ ~ 70 ℃ |
Cloud server and software | We can supply the matched server and software to see real time data in the PC end |
Product Applications
Widely used in national scientific research projects, modern farms, meteorological systems, modern agricultural greenhouses, automatic irrigation and other production and scientific research fields that need to measure the growth length of plant fruits or plant roots

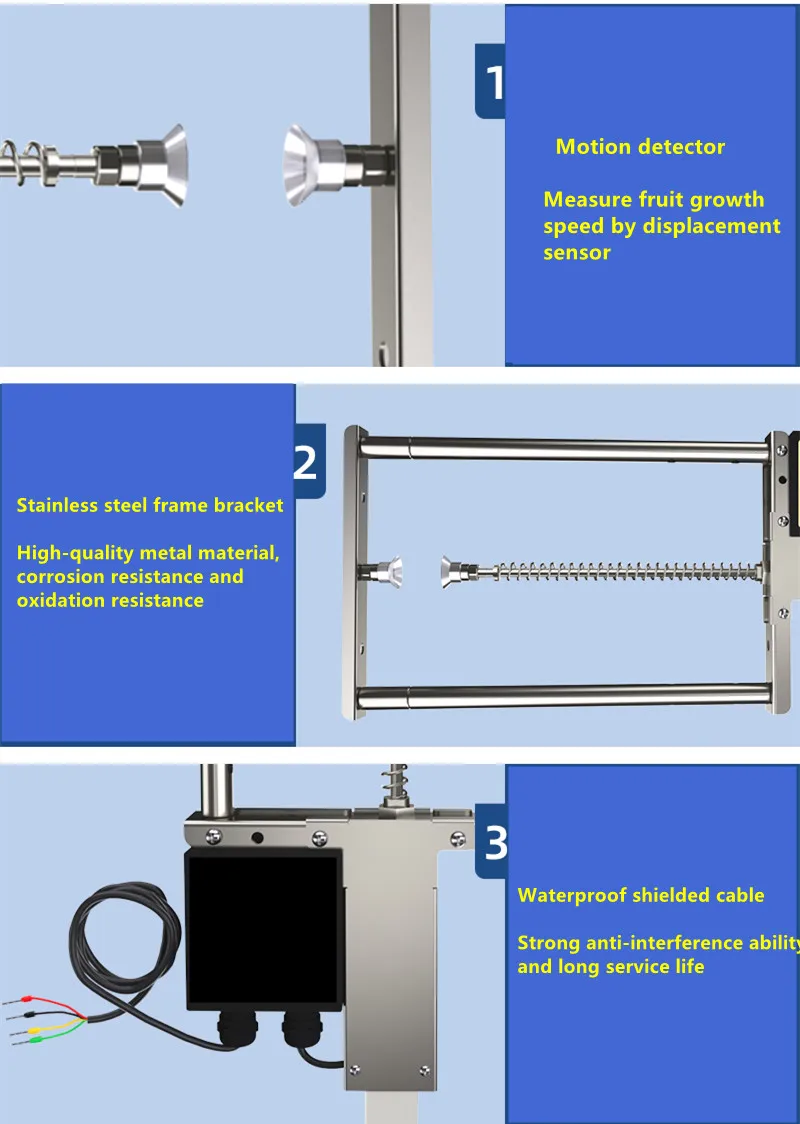

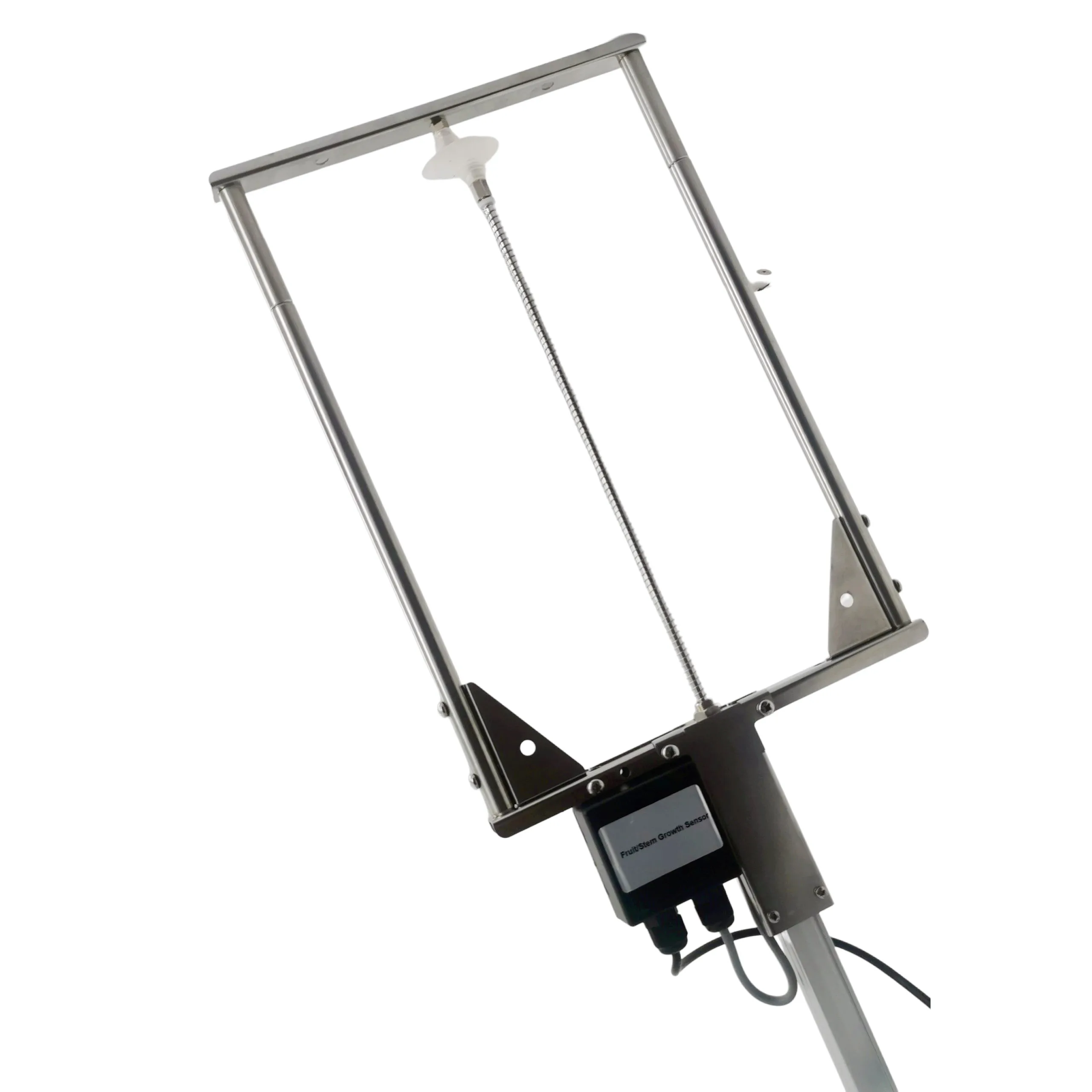

Details Images

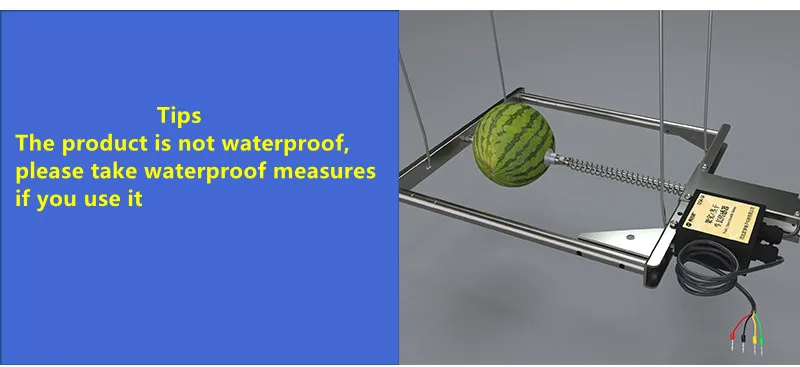

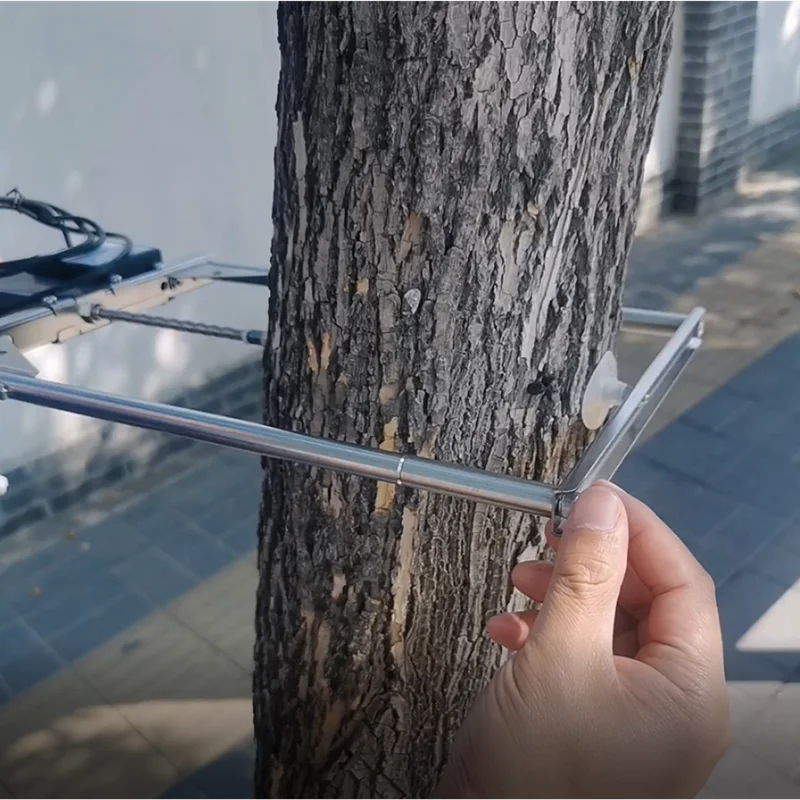

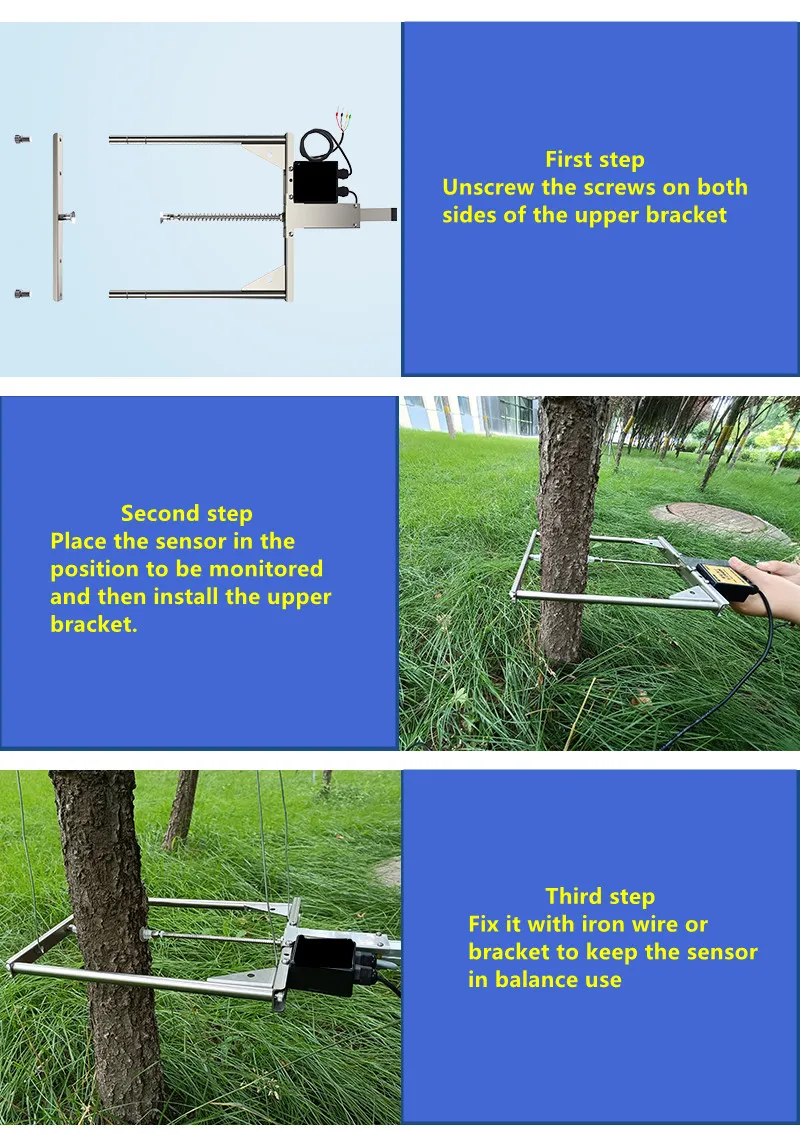

Installation Instructions

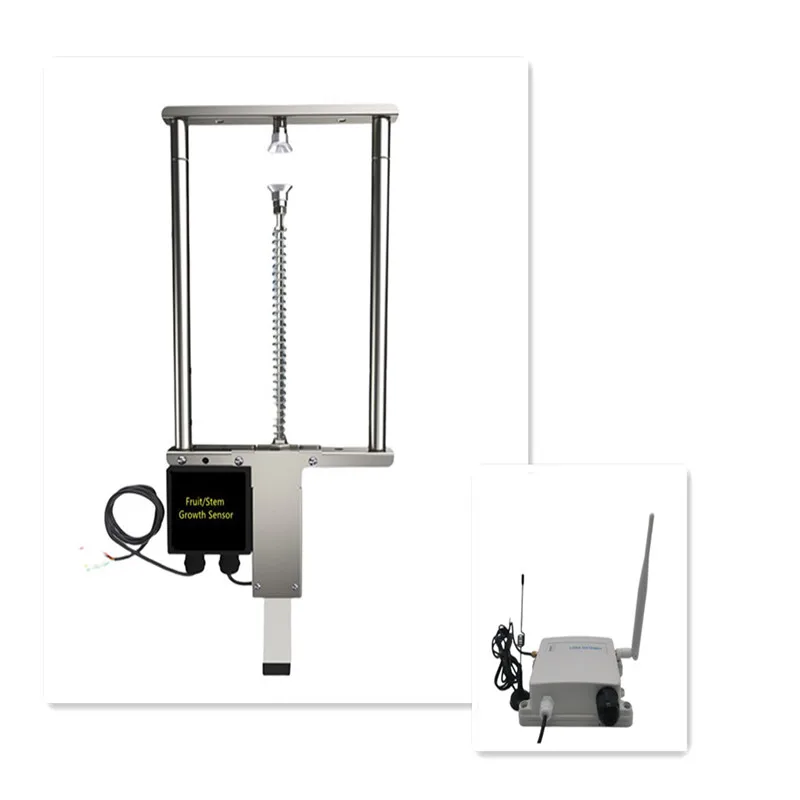

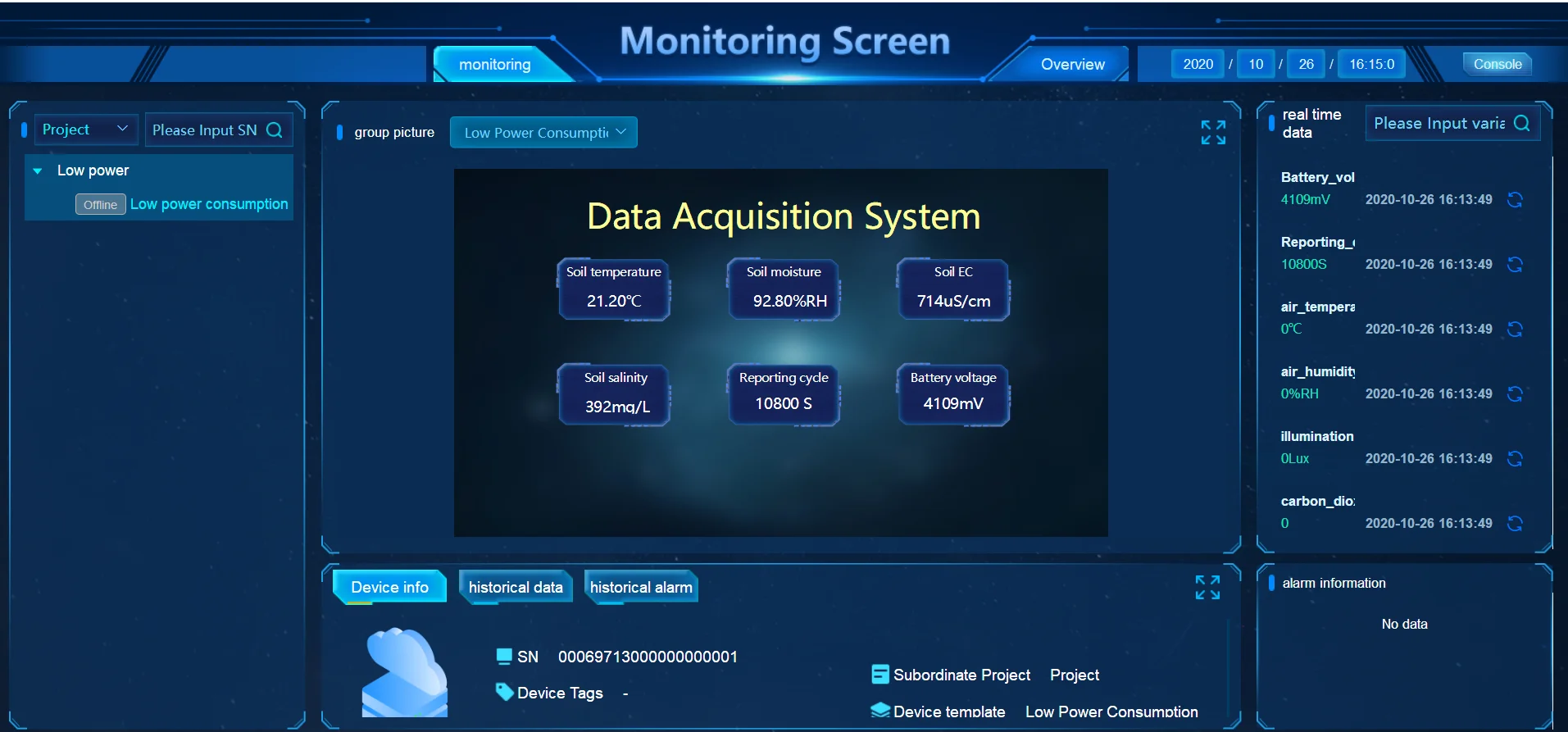

Wireless module & cloud server and software
It can integrated all kinds wireless module including the GPRS, 4G., WIFI, LORA, LORAWAN
We can custom made the matched cloud server and software,and real-time data can be viewed on the computer in real time
Packing and shipping
Company introduction
Honde Technology CO.,LTD founded in the year of 2011, adheres to the business philosophy of technology making our life better. Our company is an IOT company dedicated to the R&D, production, sales of smart water equipment, smart agriculture equipment and smart environmental equipment and the related solutions provider.The products sell well in more than 70 countries, serve thousands of customers around the world, and have received unanimous praise.
We are looking forward to working with you to make our life better due to the blessing of science and technology.
We are looking forward to working with you to make our life better due to the blessing of science and technology.
FAQ
Q: How can I get the quotation?
A: You can send the inquiry on Alibaba or the below contact information, you will get the reply at once.
A: You can send the inquiry on Alibaba or the below contact information, you will get the reply at once.
Q: What's the main characteristics of this sensor?
A:The measurement principle of fruit and stem sensor uses the distance of displacement to measure the growth length of fruit or rhizome of plants.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q: What’s the common power supply and signal output?
A: 5 ~ 24V DC (when output signal is 0 ~ 2V, RS485), 12 ~ 24V DC (when the output signal is 0 ~ 5V, 0 ~ 10V, 4 ~ 20mA)
Q: How can I collect data?
A: You can use your own data logger or wireless transmission module if you have , we supply the RS485-Mudbus communication protocol.We can also supply the matched LORA/LORANWAN/GPRS/4G wireless trnasmission module if you need.
Q: Can you supply the matched server and software?
A: Yes, we can supply the matched server and software to see the real time data in the PC end.
Q: What's the standard cable length?
A: Its standard length is 2 m. But it can be customized, MAX can be 1200 meters.
Q: What's the lifetime of this Sensor?
A: At least 3 years or more.
Q: May I know your warranty?
A: Yes, usually it’s 1 year.
Q:What's the delivery time?
A: Usually, the goods will be delivery in 1-3 working days after receiving your payment. But it depends on your quantity.
