2023 New High Speed Automatic Paper Cup Making Machine
US $5500-$7800
Fully Automatic High Speed Printing Disposable Cups Paper Cup Production Line Making Machine
- Category: Paper Product Making Machinery >>>
- Supplier: Zhengzhou,Perfect,Co.,Ltd.
Share on:
Product Overview
Description

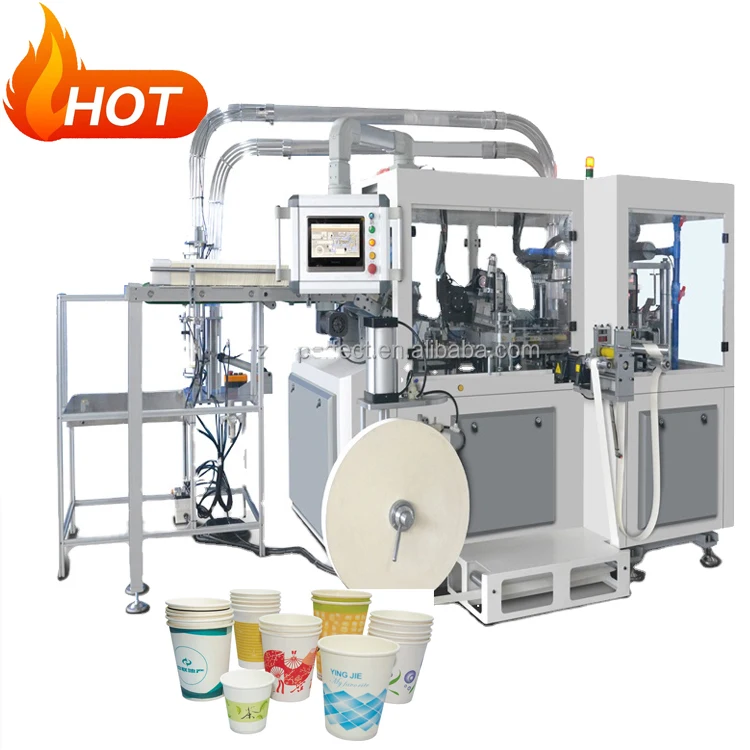

Fully Automatic High Speed Printing Disposable Cups Paper Cup Production Line Making Machine
- Ultrasonic sealing
- 4-16 oz or customized size
- 140-160 pcs/min
- PLC control
- paper cup detection systems
- paper cup collection
What buyers need to know before buying a paper cup machine:
- the paper weight of the paper cup you want to produce, single PE (hot drink cup) or double PE (cold drink cup or ice cream cup)?
- the maximum and minimum dimensions of your paper cup (cup height, cup mouth diameter, and cup bottom diameter)?
- what is your output (what speed is required)?
Product Description
♦Application♦
Fully Automatic High Speed Printing Disposable Cups Paper Cup Production Line Making Machine is our most recently developed product, which is an ideal equipment both for making both hot and cold drinking paper cups for (coffee, tea, ice cream, juice, beer, soup, food, snacks, etc). This machine throughout the entire machine, Servo drives work independently to control each station with remarkable accuracy and work together to coordinate the synchronized motion. It replaced the market almost gear / chain transmission and cam design paper cup machine.
♦Technical Parameters♦
| Type | PF-OC100 |
| Cup size | 4-16 oz (other customized size) |
| Production capacity | 140-160 pcs/min |
| Cup material | 170-380 gsm single or double PE/PLA/ coated paper aluminum foil paper (0.25-0.5 mm) |
| Power source | 380V 3- phase 50HZ 34kw Running consumption is 14kw (please inform us your power in advance) |
| Air Supply | 0.6 Mpa,(running consumption 0.4Nm3/min) |
| Weight | 3000KG |
| Machine size | 2.46*1.62*1.78 m |
| H.S code | 8441309000 |
♦Features♦
1) Adopts crankshaft and servo motor control instead of traditional cam transmission, no oil, lubricant, which solved the negative effects of cam and bearing wearing and impacting while, machine running at high speed.
2) This machine uses servo indexing mechanism, replaced the traditional paper cup machine which uses the Geneva indexing mechanism. It's new in paper cup machine manufacture field.
3) Adopts the most advanced blank shuttle & rotary placer mechanism, replaced traditional up and down movement suction feeding way to avoid paper move problem.
♦Details♦
sample room
Related Products
| 50 pcs per min paper cup making machine | 150 pcs per min paper cup making machine |
 |  |
| double wall paper cup making machine | with handle Paper cup making machine |
 |  |
| Salad soup craft paper bowl machine | Baking paper cup making machine |
 |  |

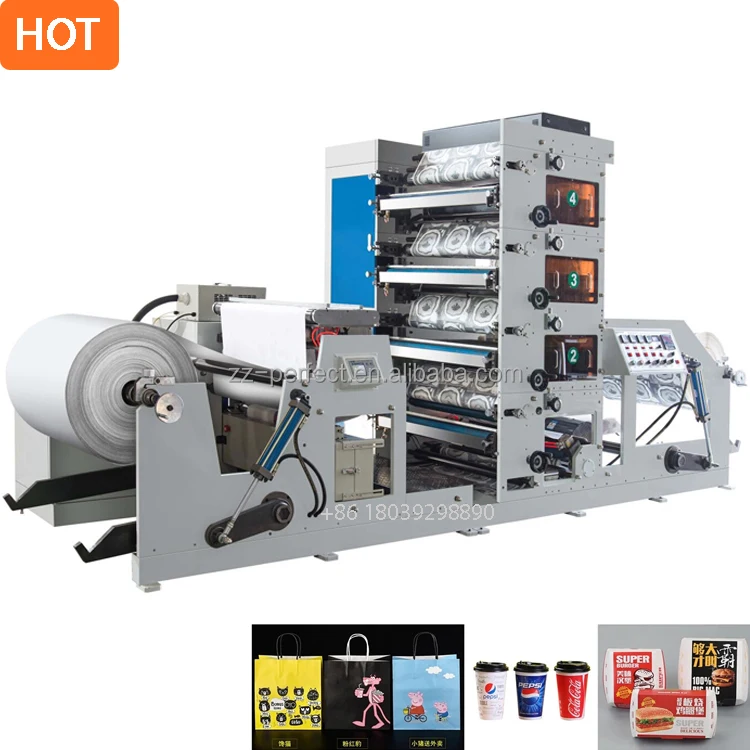

| Paper cup printing machine | Paper cup cutting machine |
 |  |
| Takeaway round paper box machine | Paper lunch burger box making machine |
 |  |
Packaging & Shipping
| Package detail | Wooden case/ Fully Automatic High Speed Printing Disposable Cups Paper Cup Production Line Making Machine |
| Package size | 2.48*1.64*1.88 m |
| Gross weight | 5000KG |
Our Services
Company Information
Zhengzhou Perfect Co., Ltd. is a manufacturer of packaging and printing machinery with well-equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used for external packaging materials’ printing, coating, die cutting, slitting, embossing and others on the products including cigarettes and wines, food, cosmetics, and other industries.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
FAQ
Q1: Are you manufacturer or trading company?
A: We have our own factory and export team, welcome to visit our factory, we can pick you up at the airport.
Q2 : Do you have relevant certificate?
A: Yes, so far, we have CE, ISO, etc. we also can issue CO, Form E, etc if you need.
Q3 : What payment terms are accepted?
A: TT(Telegraphic Transfer), Western Union, MoneyGram, LC, etc.
Q4 : Do you inspect the finished machines?
A: Sure, we test every machine before packing and provide test video.
Q5 : When can the machine be shipped after order is placed?
A: It depends on machine model and quantity, some stock machines can be shipped within 3 working days after payment, other customized machines start production after deposit arrived, please contact our staff for detail info.
Q6: How about the warranty and after-sale service?
A: Our machines have two years warranty and lifetime technical support. Help is always just one call or email, and then we can provide a suitable solution within 8 hours after analyzing and estimating the problem. Remote training and door-to-door service is available.
