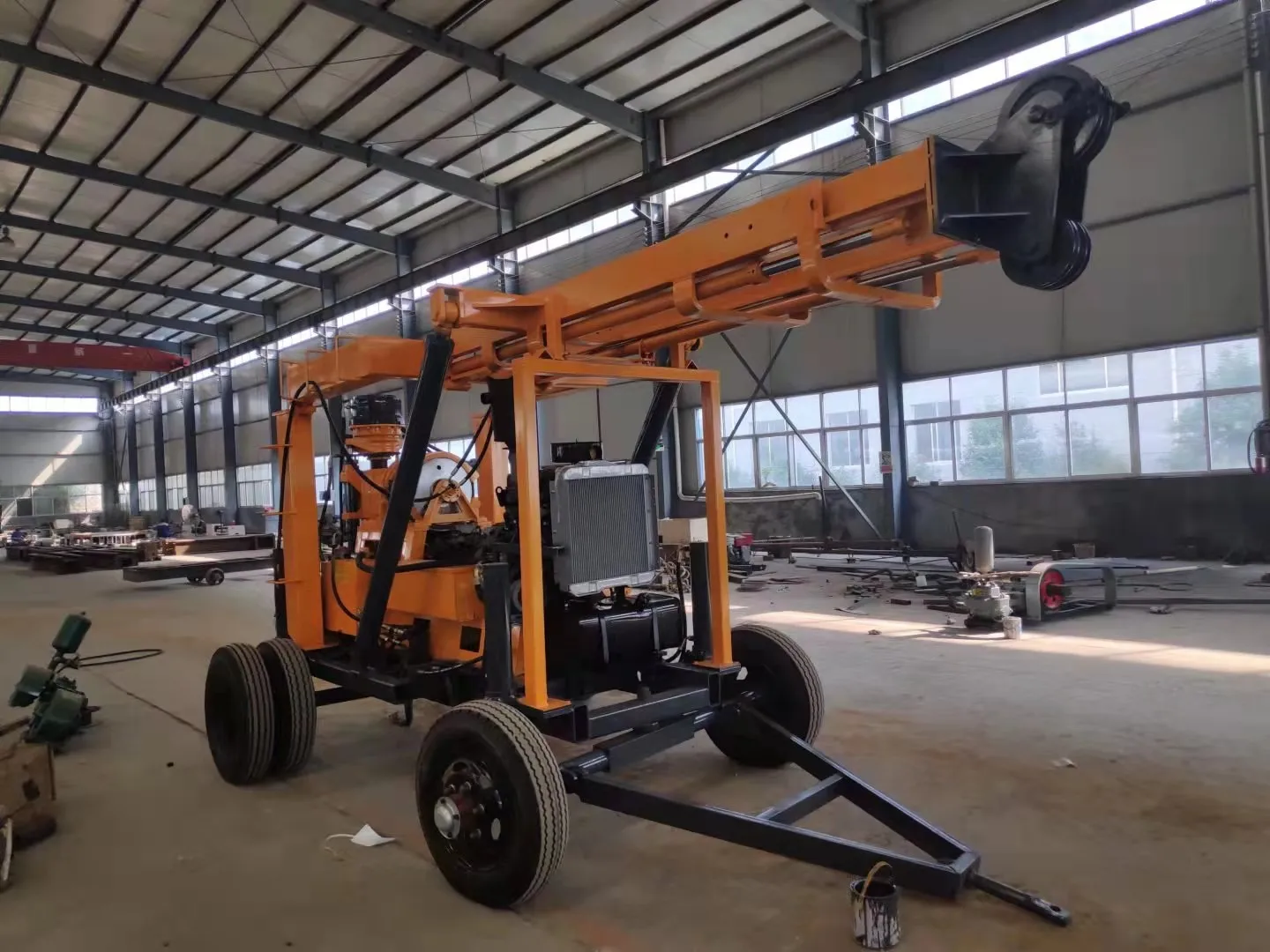

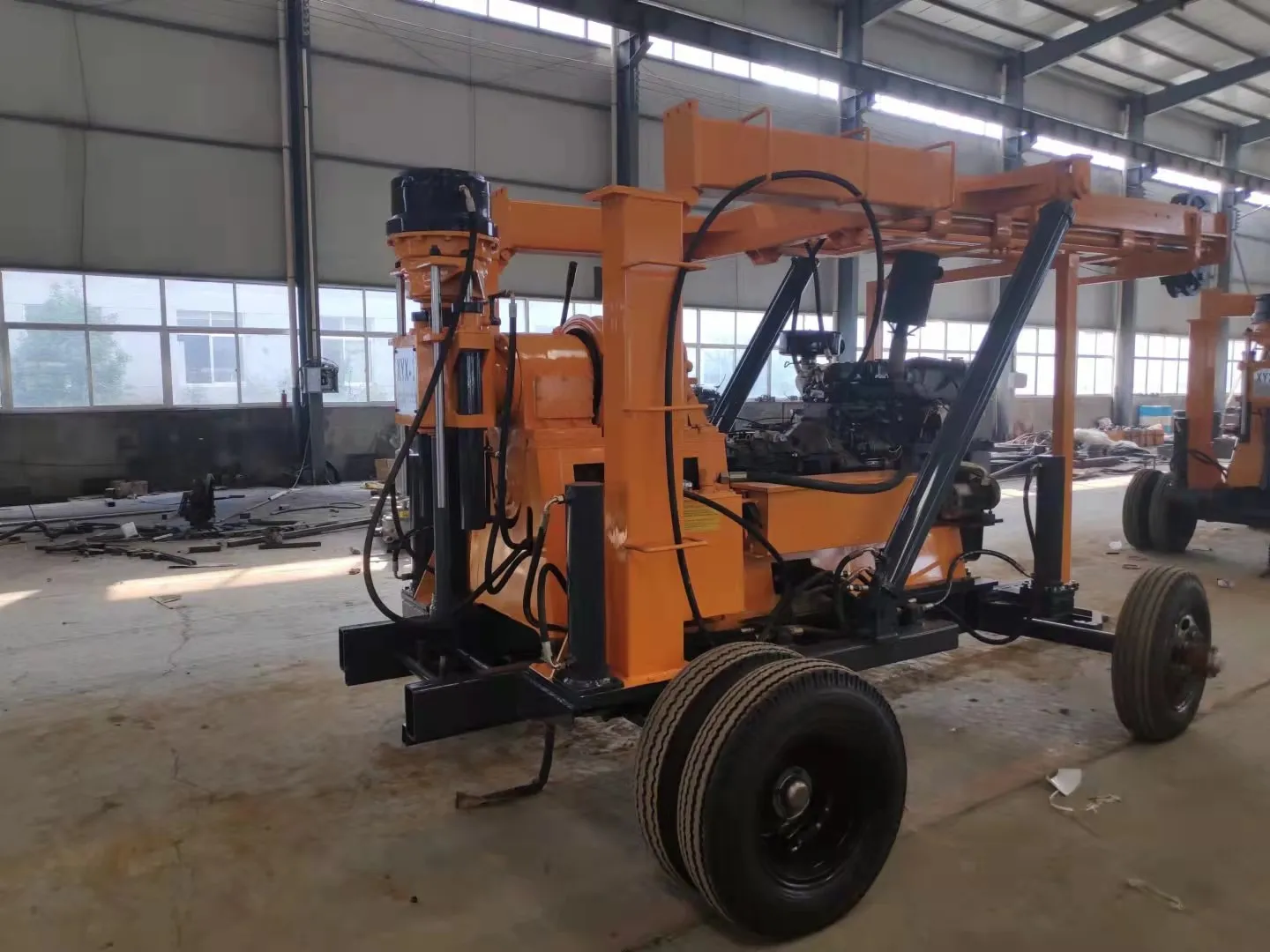

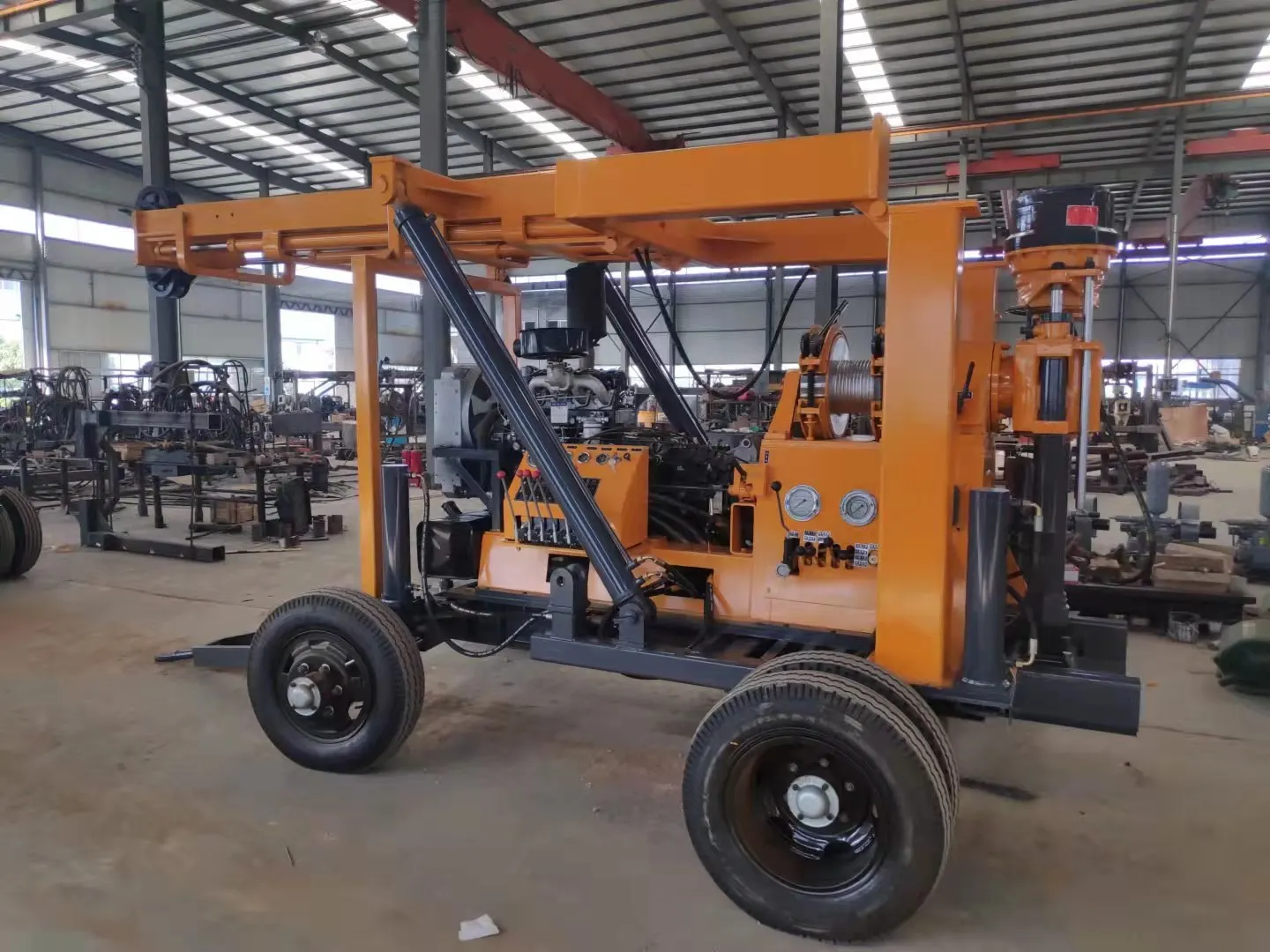

Hydraulic soil sampling diamond core wheeled portable water well drilling rigs machine

Share on (1600406200401):


Price:$14,520.00

Quantity:


Product Overview

Description

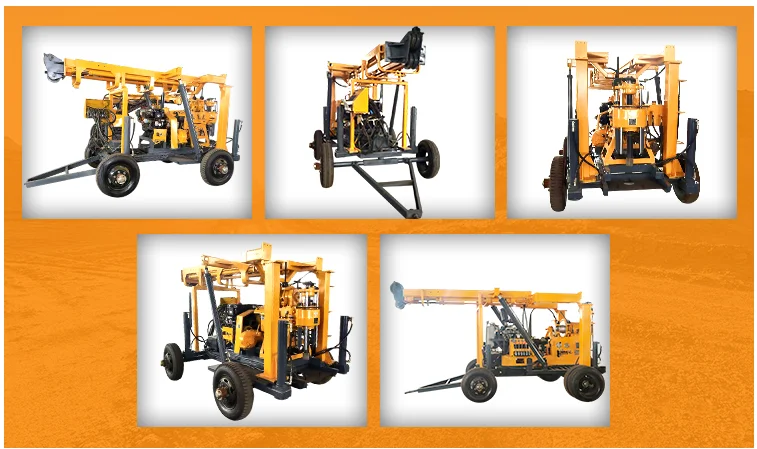

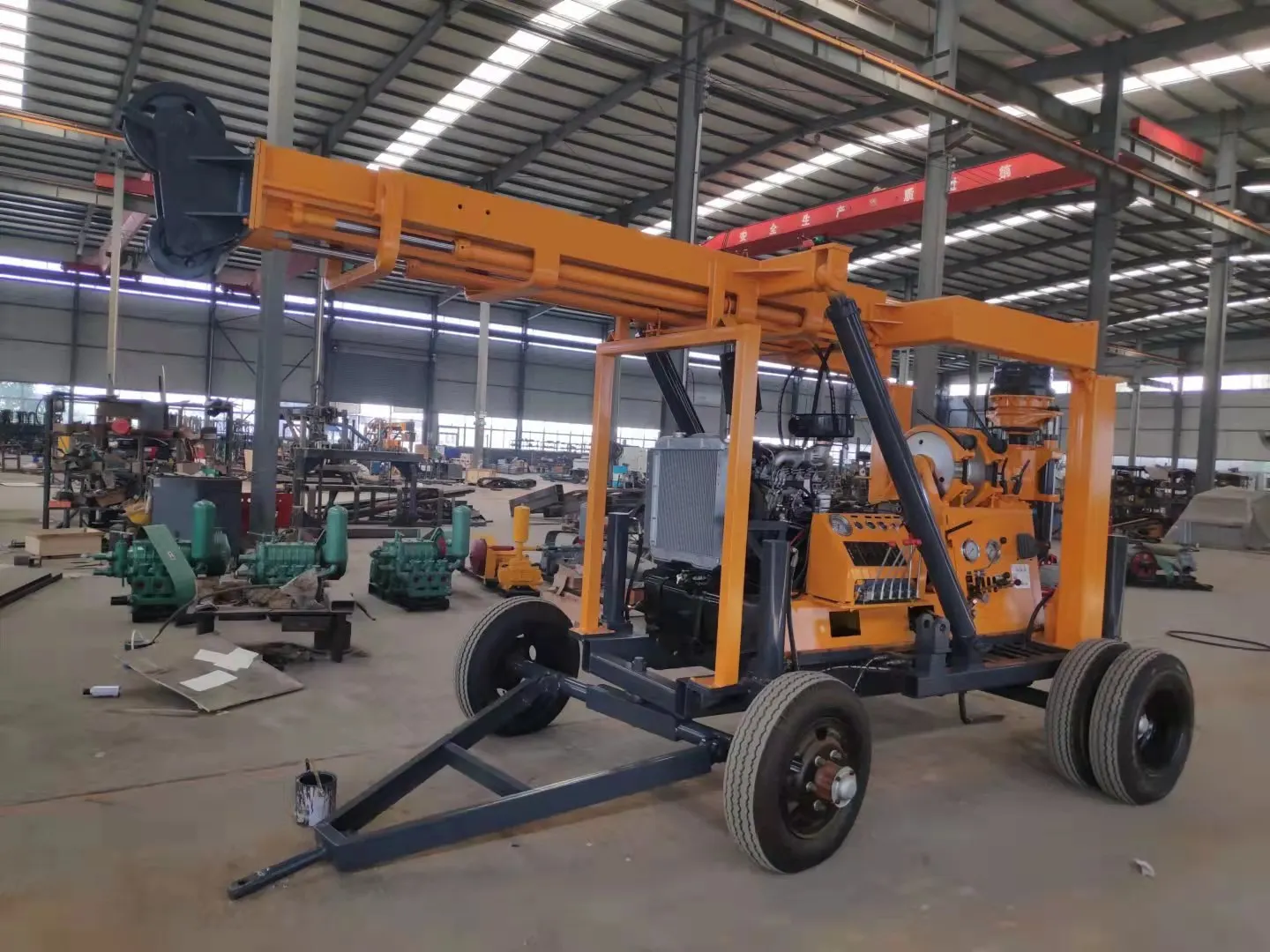

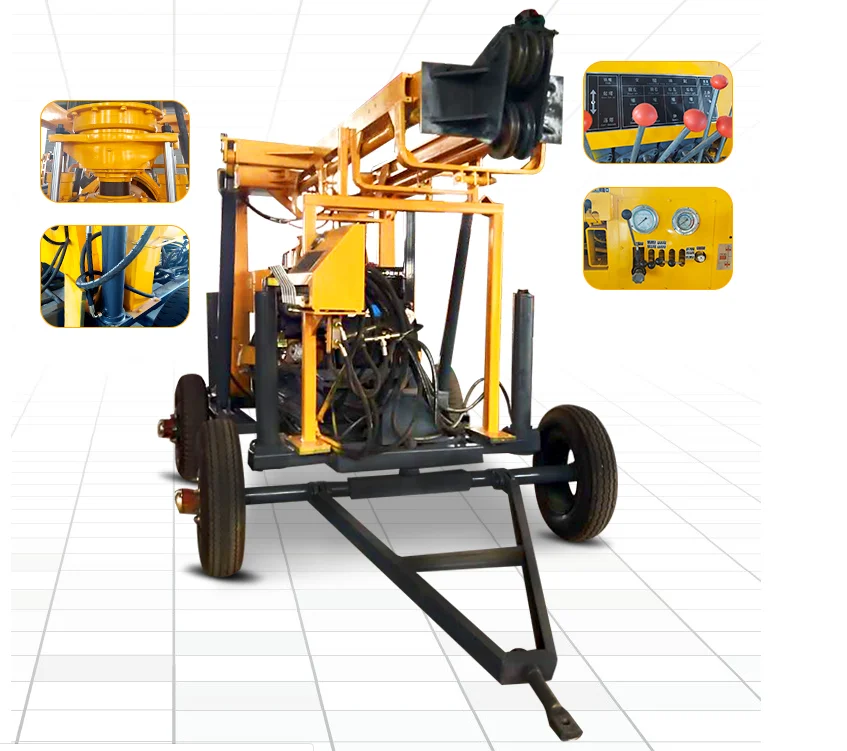

300 m deep XYX-3 geological  wheeled tractor water well drilling machine
















Product description

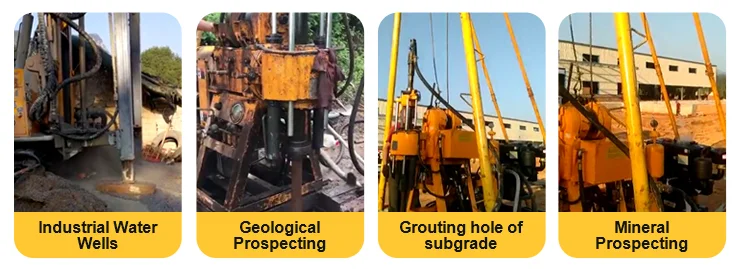

XYX-3  dth water drilling machine for sale philippines is mainly used for geological general investigation and exploration,kinds of hole in concrete structure,road and tall building foundation exploration,river levees,subgrade grouting hole drilling and direct grouting,civil wells and earth temperature central air conditioner,etc.



feature of dth water drilling machine for sale philippines


Feature


1.Hydraulic cylinder,high efficiency.


2.Wheel walking mechanism,very convenient for transport and adjusting the drilling rig level.


3.Pressure gauge display the condition of the bottom of the drill hole.


4.Diesel engine with electric starter,convenient and reduce the labor itensity.


5.Equipped with BW 250 mud pump.



parameter of dth water drilling machine for sale philippines


Technical parameter












































































































The whole machine parameters



Model



XYX-3



XYX-200



Drill hole depth



600m



200m



Maximum opening diameter



300mm



300mm



Final hole diameter



75mm



75mm



Drill pipe diameter



50,60mm



50,60mm



Borehole inclination



90- 65



90- 75



Power(diesel engine)



38/2400kw/r/min



15/2200kw/r/min



Vertical shaft



Vertical spindle speed



30-1050r/min



64-557r/min



Vertical stroke



600mm



450mm



Hoist



Single line lifting capacity



30KN



24KN



Single rope lifting speed



0.5-1.9m/s



0.12-0.95m/s



Diameter of wire rope



12.5mm



13mm



Wire rope capacity



65m



35m



Mud pump



Model



BW250



BW160



Flow



250L/min



160L/min



Maximum pressure



17Mpa



1.2Mpa



Reciprocating frequency



93times/min



93times/min



Water to exit diameter



50mm



32mm















Company info




Kaishan group Co., Ltd was founded in 1956.There are 31 members of the company, the company's total assets are 6 billion yuan, more  than 6,000 employees and sales revenue is 4.5 billion yuan in 2011,Kaishan group Co., Ltd is the world's largest drilling machine manufacturing enterprises the largest in Asia, the world's third air compressor manufacturing enterprises, and the largest drilling equipment manufacturers.Good Service, competitive price, high quality, fast shipping and perfect pre-sale and after-sale service.





 Specialized in air compressor / pump/ rig/drill carriage/ project design


   Through years development, Shaanxi kaishan had become a comprehensive form of complete equipments enterprise that combine sales,installation,repair &maintenance as one,and can provide all kinds and model of industrial screw ,piston , scroll air compressor rang from 1.1 kw to 335 kw to satisfy demand at the working condition of diverse customers and mobile compression air equipment in the blasting hole process.at same time,offer a complement Compression air purification equipment and spare parts,The company have long been cooperate with Zhejiang kaishan compressor Co.,Ltd. Which is exclusive distributor of kaishan brand equipments at northwest region.the company is now dedicate to provide a special compress air technique solution, ,top class products and perfection after-sales service,in line with customers demand-orientation ,and saving customers production efficiency as the object.
















Packaging & Shipping


   6. package and shipping





    Package way: container or as customers' request





      Shipping way: by sea or air , railway etc





       Delievery time ;15-20 days after the payment.

















Faq


Why choose us?


1),  100% spare parts can be supplied.


We can supply all spare parts: for air compressor, we can supply air filter, oil filter, oil core, belt and so on. for drilling rig, we can supply drill bit, drill rod, dth hammer, motor, joint etc, diesel engine parts. (Low Pressure, Middle Pressure, High Pressure)





2), Training is Free to every customer. Wherever you need us, for installation, maintainance, or proper use of our company machines, we will be right there for you. In addition, we provided one year warrantee to make sure your machine runs consistently.


3), We will recommend a suitable type for you and send you a best quotation.


      A: What is the working pressure ( Mpa, Bar, PSI)?


      B: What is the volume flow ( m3/min, CFM)?


      C: What is the volume flow ( m3/min, CFM)?


      D: What is the Power supply ( KW, HP)?











How to place an order:


1), Send inquiry


2), We will contact to you


3), Tell us your require model quantity or ask us other question you need to know


4), Send you the invoice


5), Wait for your deposit


6), Prepare your products, pack your products, delivery


7), Send you document for custom


8), After sale service
