Industrial Tower Filling Catalyst Bed Support Media Ceramic Balls Catalyst Bed Support
- Category: >>>
- Supplier: Pingxiang Super Packing Mall Co. Ltd.
Share on (1600406239641):
Product Overview
Description
Product Description

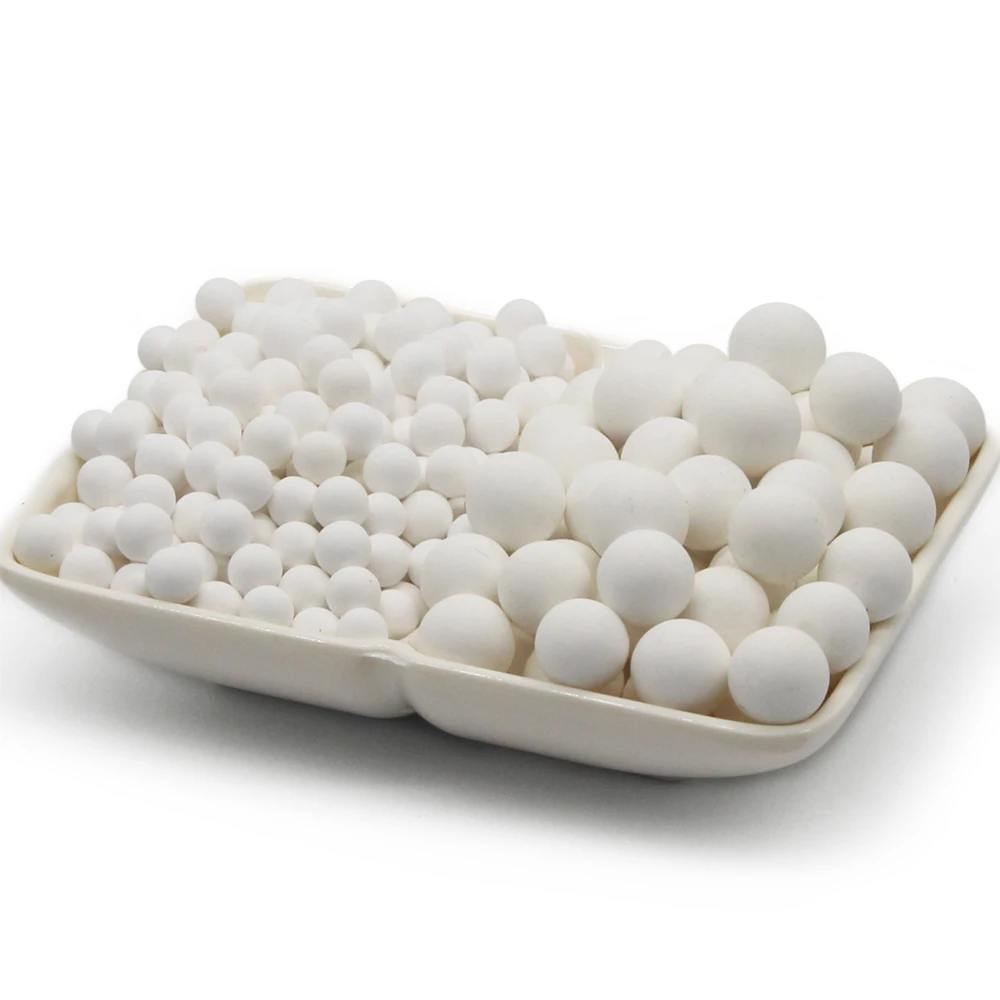

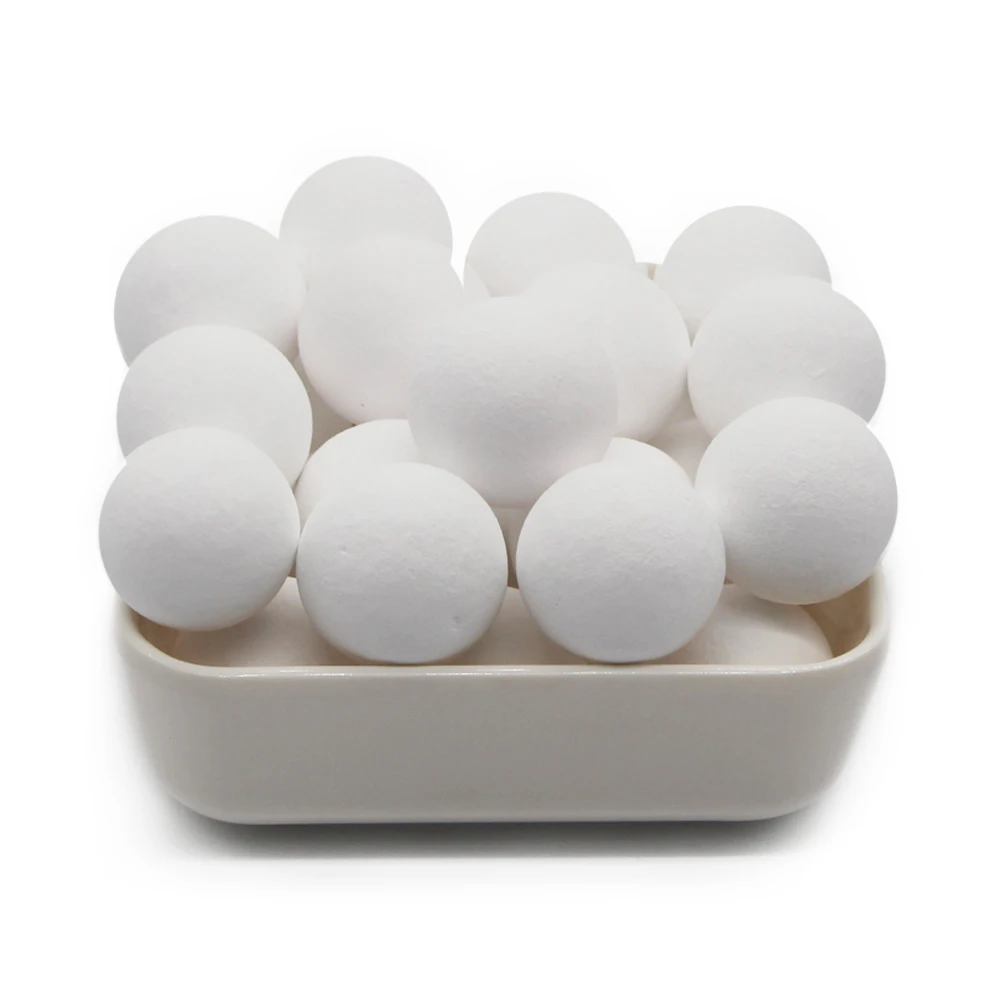

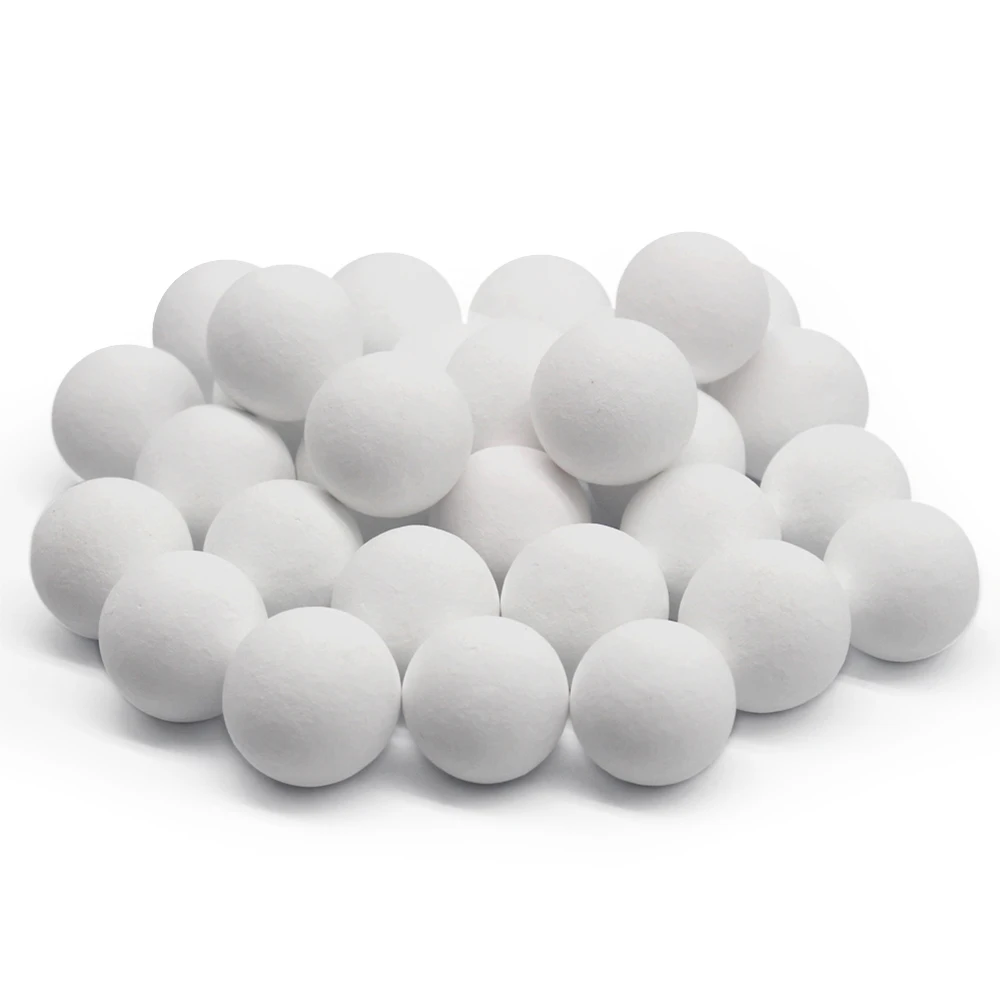

Inert Alumina Ceramic Ball
"Packing Mall" Ceramic Ball, is the most widely used support media in the world because of their excellent consistence and reliability.
It is manufactured from very high quality chemical-porcelain clay materials, which has quite excellent stability, high mechanical strength and resistance to thermal shock.
This makes them all ideal choice for support of all types of catalyst.
It is manufactured from very high quality chemical-porcelain clay materials, which has quite excellent stability, high mechanical strength and resistance to thermal shock.
This makes them all ideal choice for support of all types of catalyst.
17%-30%
47-75%
90%-95%
Alumina cearmic ball classified according to the Aluminum(Al2O3) content，Aluminum content ranged from 17-99%.
Sizes Available in 0.8-50mm.
Application
Inert Alumina Ceramic Ball Application:
Be mainly used in the petroleum, chemical industry, fertilizers, natural gas,environmental protection and other industries. It plays a role of supporting and compacting the packing of the tower.
Product Package
25kg plastic bag 25kg plastic bag Super bag Metal drum
Specification
Diameter(mm) | 3 | 6 | 10 | 13 | 16 | 19 | 25 | 38 | 50 |
Nominal Size(inch) | 1/8 | 1/4 | 3/8 | 1/2 | 5/8 | 3/4 | 1 | 1.5 | 2 |
(lbs) | 77 | 187 | 352 | 572 | 726 | 1672 | 1980 | 2090 | 8800 |
Crush Strength Min. (kg) | 35 | 85 | 160 | 260 | 330 | 760 | 900 | 950 | 4000 |
(N/PC) | 343 | 885 | 1570 | 2540 | 3234 | 7448 | 8830 | 9310 | 39200 |
Model | 17%-99% Inert Alumina Ceramic Ball | ||||||
Color | Light Gray to White | ||||||
Shape | Beads | ||||||
Chemical composition | Min. % | Usual % | Max. % | ||||
Al2O3 | 17-30 | 47-56 | 90-99 | ||||
Al2O3 + SiO2 | >92 | >93 | >94 | ||||
CaO | <1.5 | <2 | <4 | ||||
Fe2O3 | <1 | <1.0 | 0.2 | ||||
TiO2 | <0.5 | <0.1 | <0.1 | ||||
CaO | / | 0.5 | 0.42 | ||||
MgO | / | 0.5 | 0.38 | ||||
Na2O | / | 2 | 1.12 | ||||
K2O | / | 3.5 | 3.28 | ||||
Physical properties | Leachable Iron (%) | ≤0.0001 | |||||
Apparent Porosity by Weight (%) | D≥10mm | ≤0.4 | |||||
D=6mm | ≤1.0 | ||||||
D=3mm | ≤3.0 | ||||||
Water absorption (wt.%) | ＜0.5 | ||||||
Acid resistance (%) | ＞99.8 | ||||||
Alkaline resistance (%) | ＞85 | ||||||
Bulk Density | (g/cm3) | 1.35 | |||||
(lb/ft3) | 84 | ||||||
Specific density | (kg/m3) | 2300 | |||||
(lb/ft3) | 144 | ||||||
Moh’s hardness (scale) | ＞6.5 | ||||||
Thermal conductivity (w/m2.k) | 0.9-1.0 | ||||||
Specific heat (J/kg.℃) | 628-837 | ||||||
Max. Operating Temperature | (℃) | 1050 | |||||
(℉） | 1922 | ||||||
Thermal expansion (%) (500℃) | 0.20 | ||||||
Thermal Shock Stability (times) (500 ℃ then water cooling) | 10 | ||||||
Company Profile
Pingxiang Super Packing Mall Co.,Ltd
"Packing mall" is a one-stop chemical packing mall Co.,ltd.All kinds of chemical fillers,molecular sieves, active alumina, catalysts and other products can be purchased online in packing mall. the products have been widely used in the national electric power, petroleum,chemical, metallurgy, environmental protection,pharmaceutical, aerospace, aviation and other industries, and sold overseas. We promote the“Packing-mall”App, and already establishing a warehouse center of 50,000 m2 to serve the mall.
"Packing mall" is a one-stop chemical packing mall Co.,ltd.All kinds of chemical fillers,molecular sieves, active alumina, catalysts and other products can be purchased online in packing mall. the products have been widely used in the national electric power, petroleum,chemical, metallurgy, environmental protection,pharmaceutical, aerospace, aviation and other industries, and sold overseas. We promote the“Packing-mall”App, and already establishing a warehouse center of 50,000 m2 to serve the mall.
64m2 manufacture square
samples room
QC room
Professional R&D team
International sales team
Professional technical team
