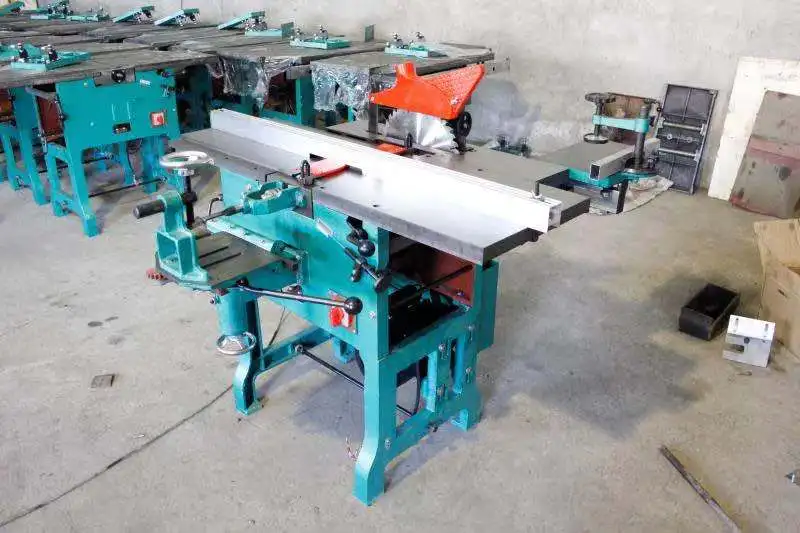

ML393A European Quality Combination Multifunction Universal Woodworking Carpentry Machines
- Category: >>>
- Supplier: Qingdao Jinyunxi International Trade Co. Ltd.
Share on (1600406450370):
Product Overview
Description
Product Description
Feature of Woodworking combined table saw 220v electric wood planer thicknesser
1. Sharpening, Drilling round hole, tenon making, Planing, cutting mouth, cutting mouth chamfering, Grinding saw blade, sawing, Chop spring, kinds of woodworking combined.
2. Pure copper motor, wear resistant, efficient and stable, long service life.
3. Cast iron countertops, 120mm, 200mm, 250mm, 300mm, 400mm width for you choose.
4. Full cast iron table, can drilling circle hole, adjustable up and down
5. The upper and lower drive shafts rotate synchronously, and the feeding is powerful and powerful. It can move forward and backward freely, and there will be no stuck wood and no advance or retreat.
6. excellent waterproof design, so that the spindle is completely waterproof when working, do not burn saw blades.
7. the use of ultra-thin small size saw blade, small load, saving materials and power.
8. through the dynamic balance of professional testing, vibration, voice is smaller.
2. Pure copper motor, wear resistant, efficient and stable, long service life.
3. Cast iron countertops, 120mm, 200mm, 250mm, 300mm, 400mm width for you choose.
4. Full cast iron table, can drilling circle hole, adjustable up and down
5. The upper and lower drive shafts rotate synchronously, and the feeding is powerful and powerful. It can move forward and backward freely, and there will be no stuck wood and no advance or retreat.
6. excellent waterproof design, so that the spindle is completely waterproof when working, do not burn saw blades.
7. the use of ultra-thin small size saw blade, small load, saving materials and power.
8. through the dynamic balance of professional testing, vibration, voice is smaller.

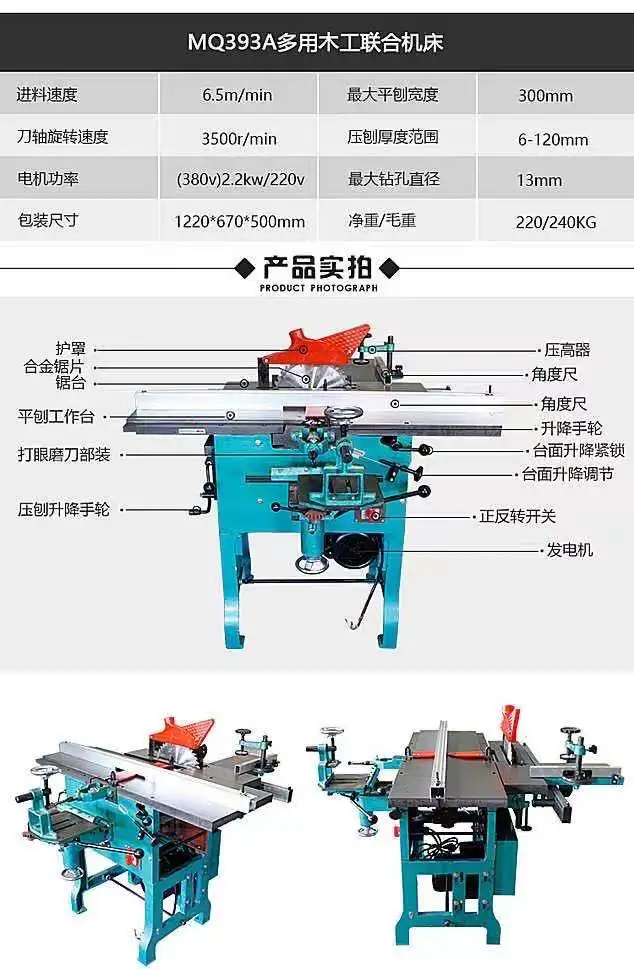

Specification
Product name | combination multi wood planer heavy type |
Model | ML393 |
Max. Planing width | 310mm |
Max. Planing thickness | 3mm |
Press planing thickness range | 6~120mm |
Max. Sawing thickness | 120mm |
Cutting mouth depth | 10mm |
Max. Mortise size | 16*16mm |
Max. Mortise depth | 120mm |
planer shaft diameter | 78mm |
Thicknesser feeding speed | 6.5m/min |
Circular saw blade diameter | 300mm(12inch) |
Type | Turbine pole single screw / Turbine pole double screw |
Spindle speed | 4200r/min |
Motor power | 2.2kw, 220V/380V, 50Hz |
Dimension | 1200*900*800mm |
Weight | 235kg/290kg |
Woodcase dimension | 1360x760x570mm |
Function | Sawing, planing and jointing, thicknessing, sharpening saw blade and planing blade, drilling square or round hole(mortise), chop spring, grooving, cutting mouth, tenoning |
Optional | Mobile pushing table, blade cover,backing ruler, we give 1 piece 10inch saw blade,for extra you need purchase. |
