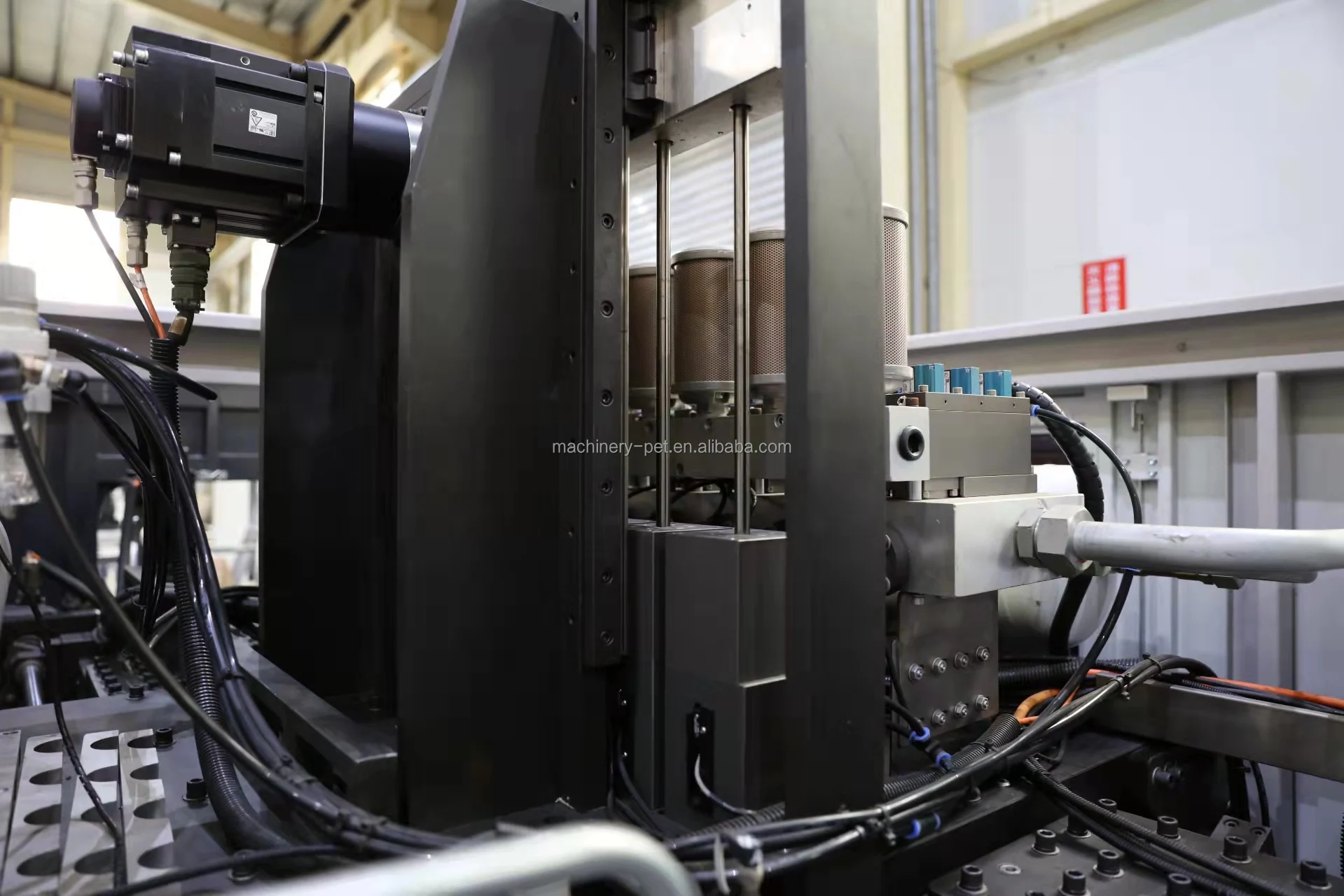

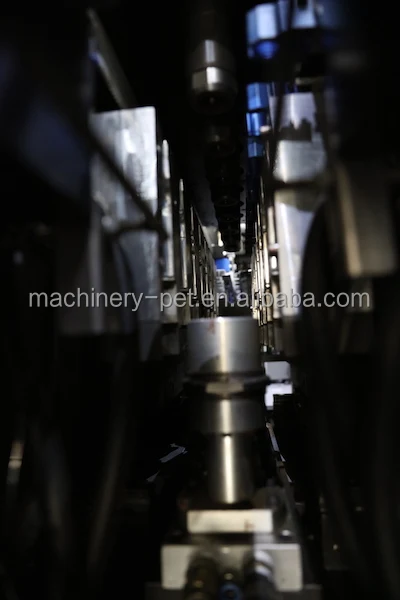

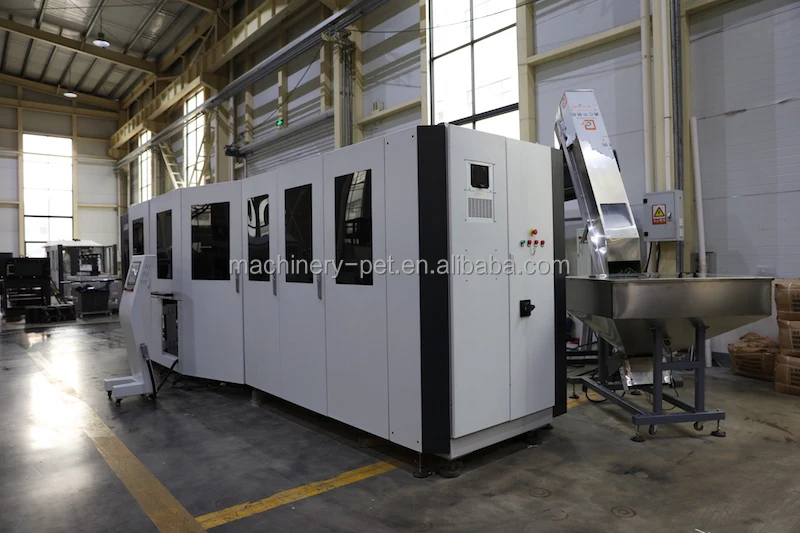

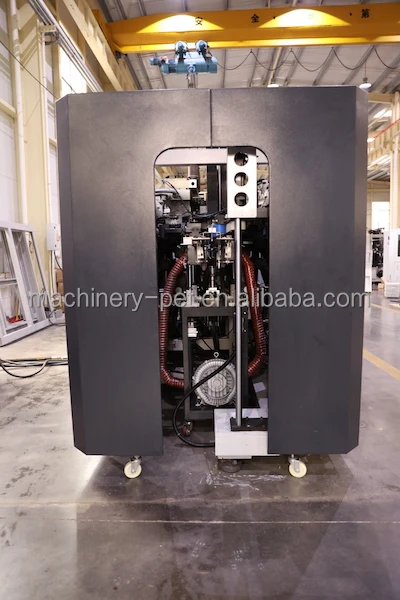

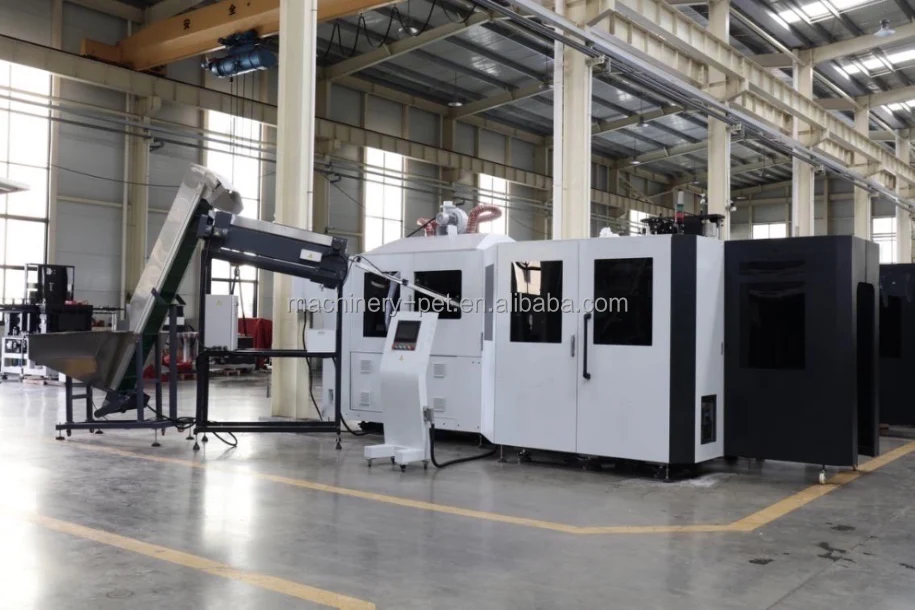

Carbonated Water Suda Water Bottle Making Machine Plastic Blow Moulding Machine
- Category: >>>
- Supplier: Taizhou Huangyan Pet Machinery Factory
Share on (1600406477290):
Product Overview
Description
Good price Full automatic stretch blow molding machine / pet bottle blowing machine price

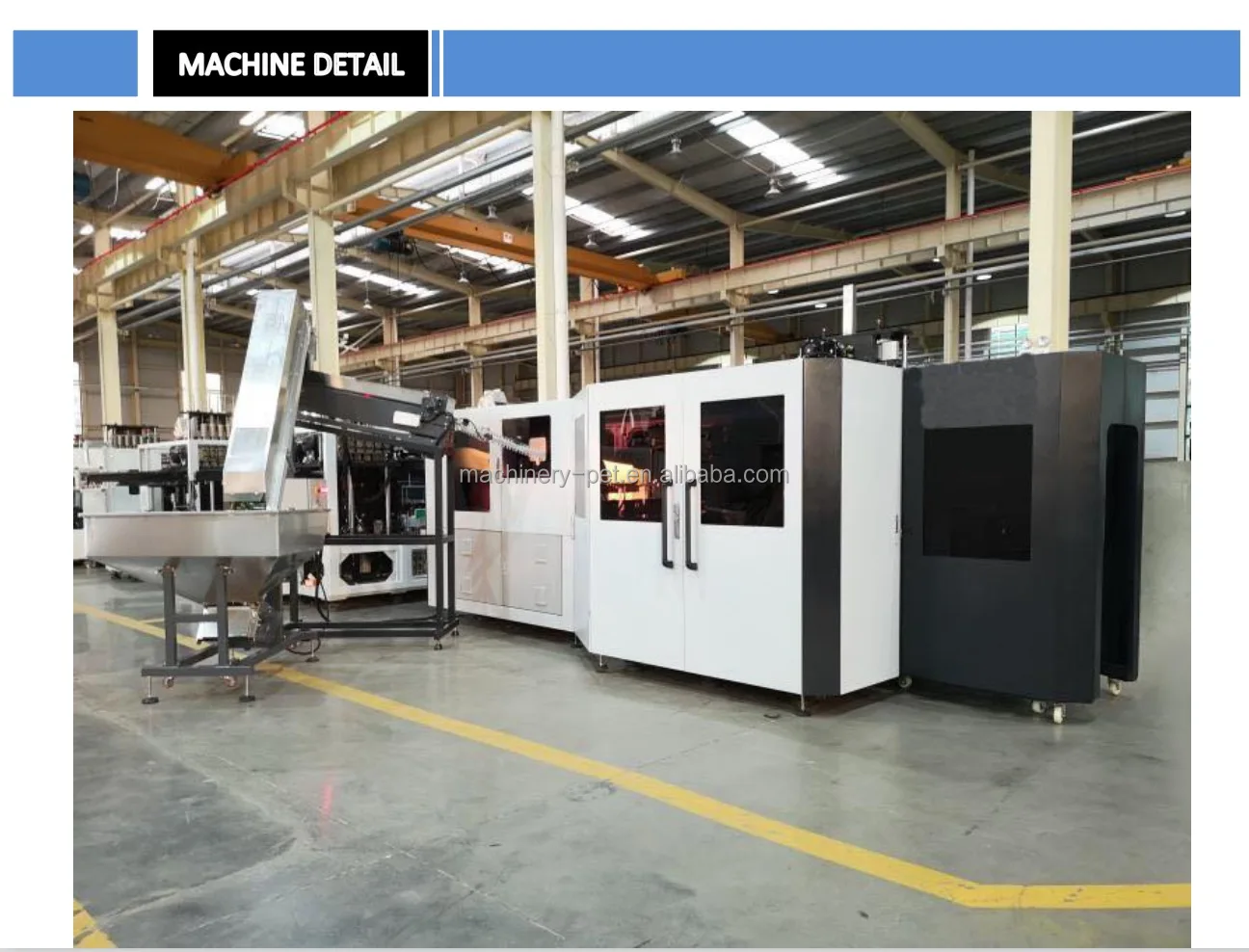

Model | Unit | PET- RL8 | |
Clamping System | Number of cavity | cavities | 8 |
Mold stroke | mm | 0-130 | |
Stretch stroke | mm | 340 | |
Bottom stroke | mm | 50 | |
Cavity pitch | mm | 114.3 | |
Heating pitch | mm | 50.8 | |
Number of holder | PCS | 128 | |
Container | Max.container volume | ltr | 1.0 |
Max. neck diameter | mm | 30/38 | |
Max. preform height | mm | 120 | |
Max.container diameter | mm | 95 | |
Max.container height | mm | 320 | |
theoretical output | B.P.H | 10000-12000 | |
Electrical System | heating oven | UNITS | 8 |
box*channel | storey | 10 | |
Number of lamp | pcs | 80 | |
heating power | KW | 96 | |
AVERAGE POWER | KW | 38 | |
installed power | KW | 108 | |
voltage | Voltage | 220v/380V/3phase | |
| operating pressure | kg/cm2 | 10 |
blowing pressure | mpa | 3.8 | |
high pressure air consuming | L/min | 12000 | |
| temperature | °C | 10-15 |
pressure | Mpa | 0.4 | |
flow rate | L/min | 80 | |
heating power | HP | 5 | |
Machine | (L×W×H) (machine dimension) | M | 4.5*2.0*2.0(heating) |
2.5*2.0*2.5(machine) | |||
| machine weight | KG | 10000 |
We are waiting to cooperated with you.
