HFSecurity FR05 New arrival Biometric Android Industrial Tablet Fingerprint Scanner Machine Cheap Finger Time Attendance Machine
- Category: >>>
- Supplier: Shenzhen Bio Technology Co. Ltd.
Share on (1600406879367):
Product Overview
Description
HFSecurity FR05 New arrival Biometric Android Industrial Tablet Fingerprint Scanner Machine Cheap Finger Time Attendance MachineIntroduction

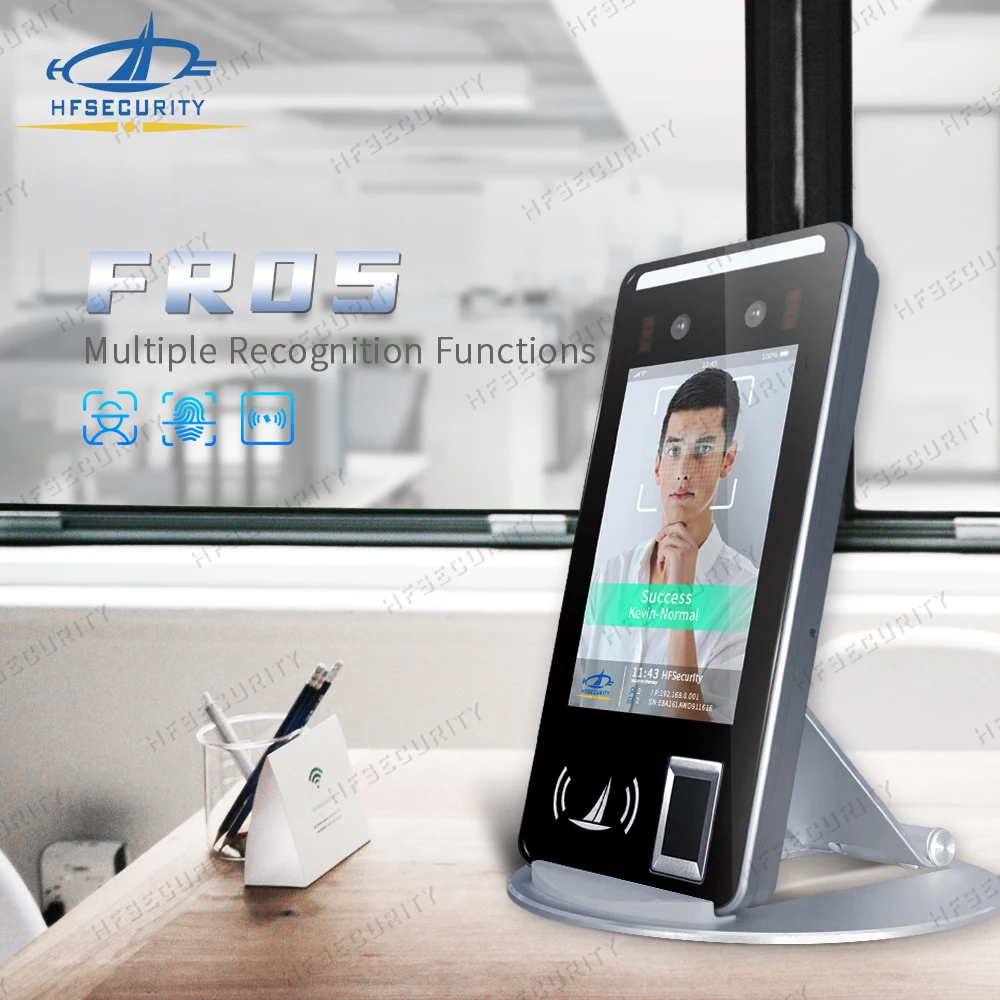

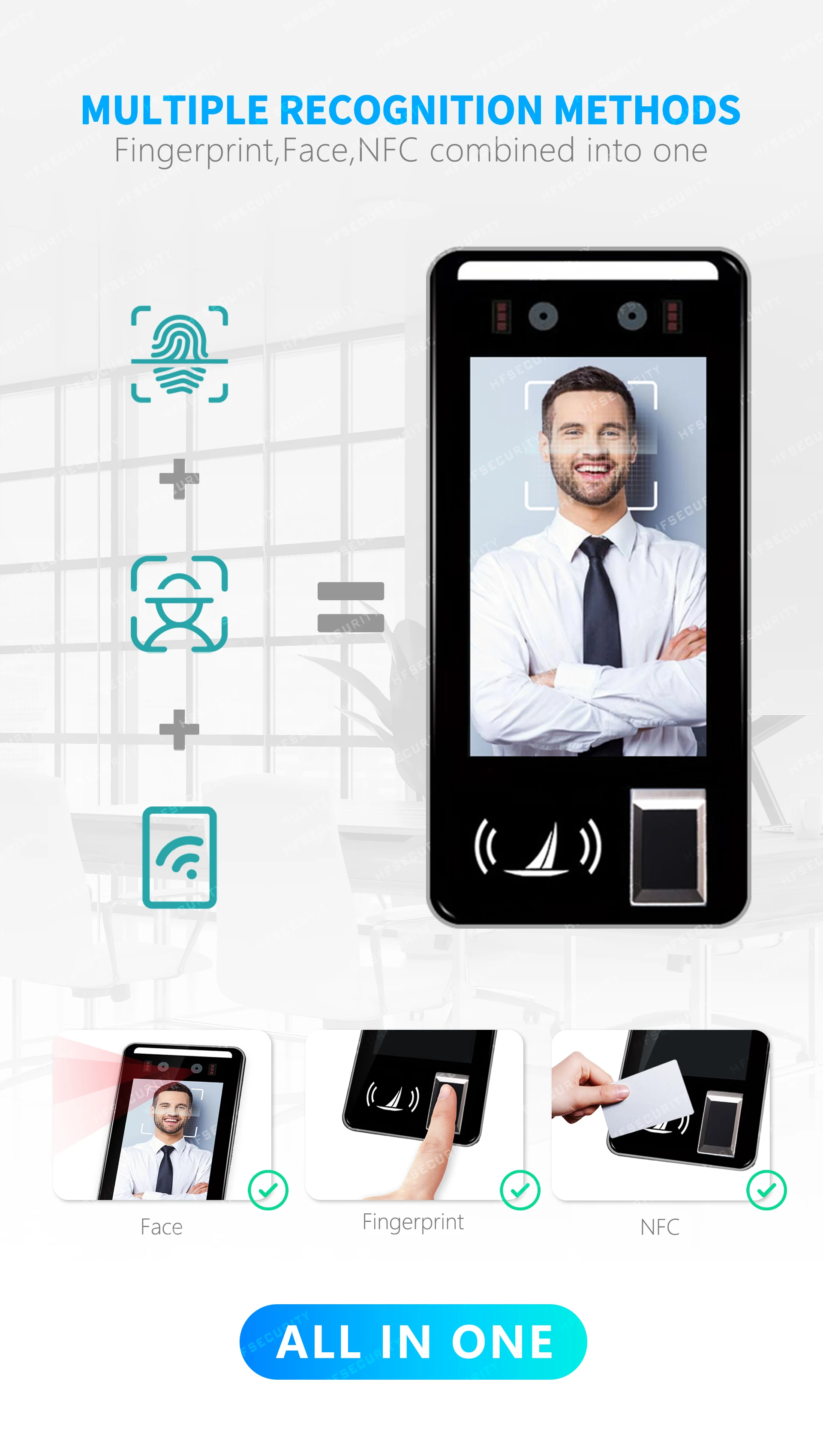

FR05 is a 5-inch facial fingerprint recognition access control machine developed by Huifan Technology,
FAP10 fingerprint head, data 1:1 recognition pairing, Face++ facial algorithm, facial precision recognition.
| Screen | |
| Dimension | 5 inch Touch Screen |
| Resolution | 1280×800 |
| Touch Screen | Optional |
| LCD Screen | Full view angle, IPS LCD screen |
| Camera | |

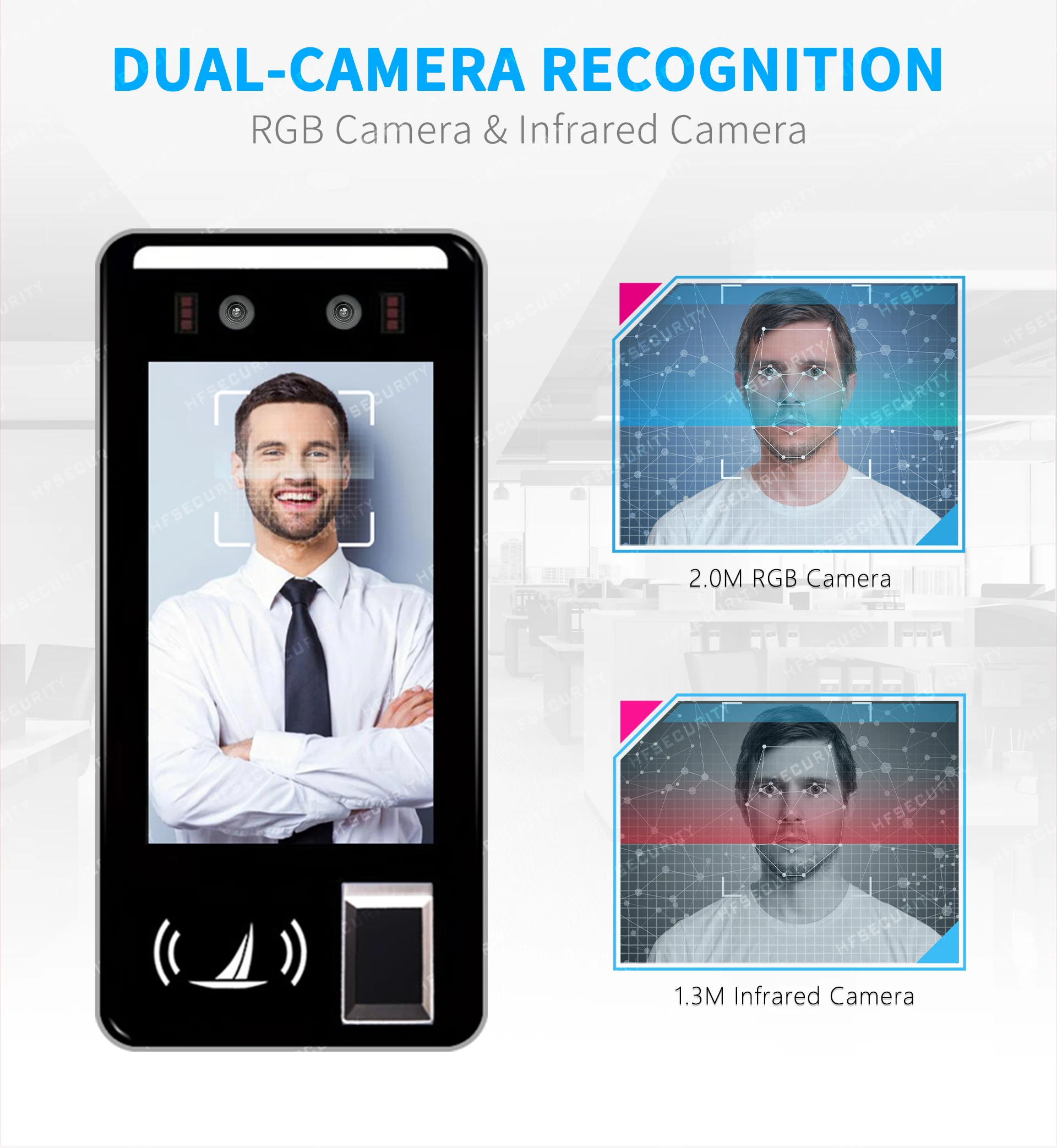

| Dual Camera | 2.0M (RGB Camera) ; 1.3M (Infrared Camera) |
| Type | Wide dynamic camera |
| Aperture | 4mm |
| Focal Length | 0-2m |
| White Balance | Automatic |
| Wide Dynamic | Automatic |
| Core Parameter | |
| CPU | AMLOGIC S905D3 |

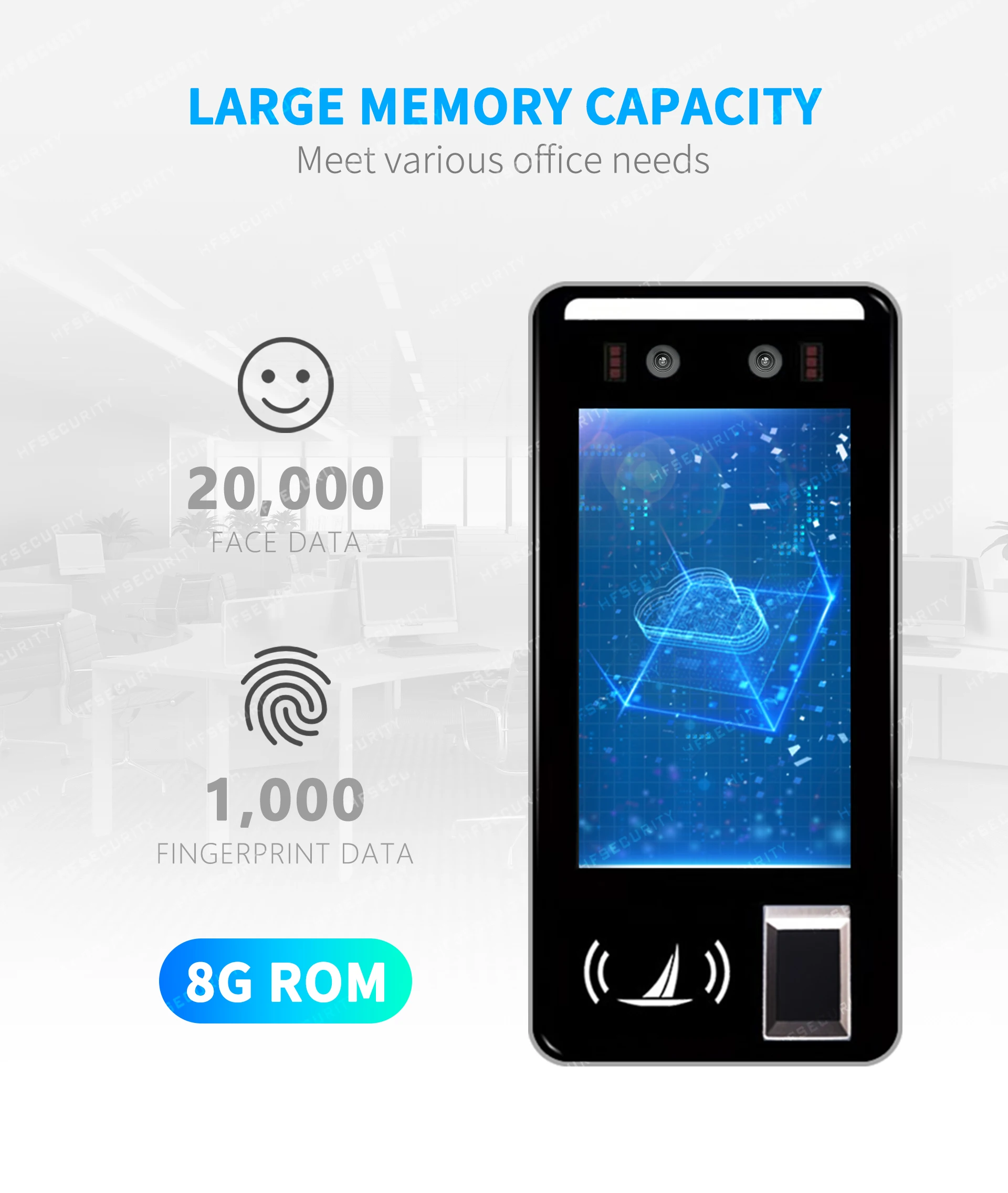

| Memory | 1GB RAM, 8GB ROM(optional 16G, 24G, 32G) |
| Accessories | |
| Filling Light | LED filling light |

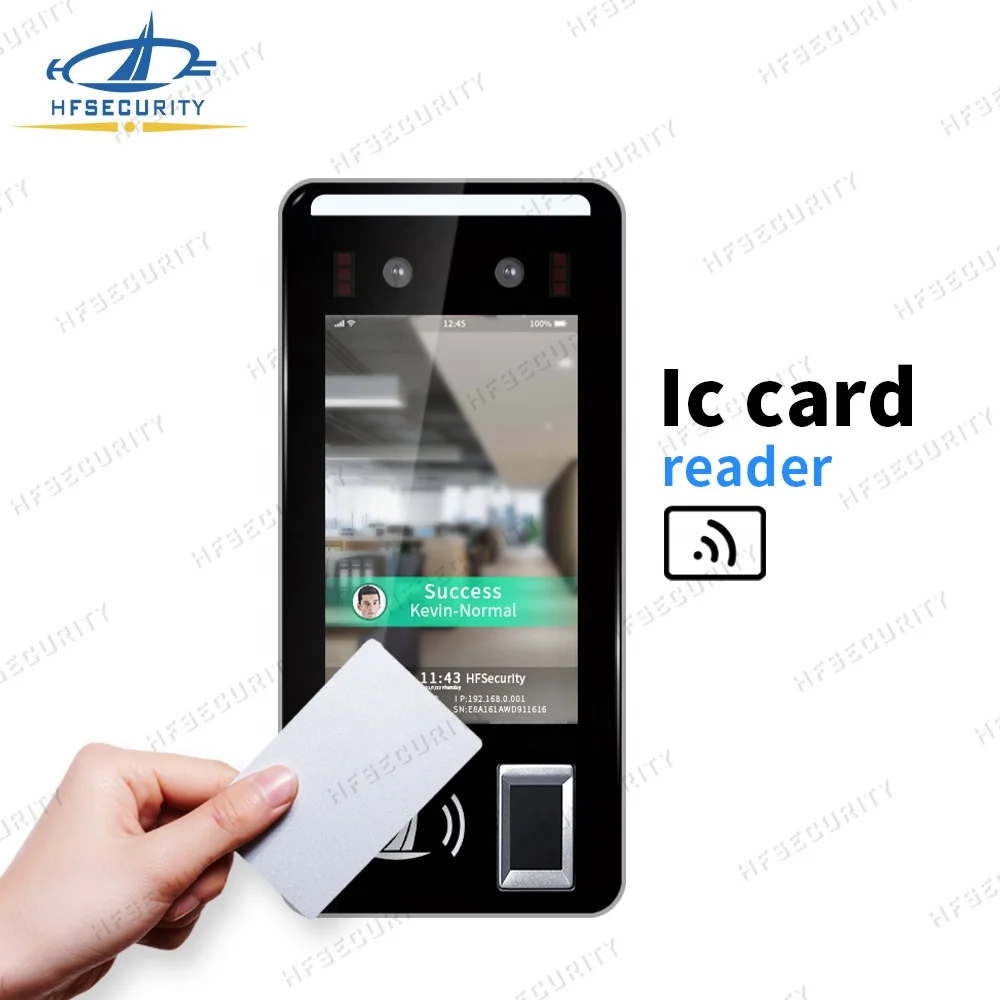

| Card Reader | Support |
| Network Module | Support wired, wireless (2.4G Wi-Fi) |
| Interface | |
| Serial Communication Interface | RS232 |
| Relay Output | NC,NO and COM |
| Wiegand Interface | Support Wiegand 26/34 input /output |
| Reset Interface | Yes |
| RJ45 | Support |
| Optional | |
| QR Code | Optional |
| Face Function | |
| Face Capacity | 50000 |
| Face Detection | Support detecting and tracking 5 people at the same time |
| 1:N face recognition | Support 1 in 10,000 false recognition rate, 99% pass rate |
| 1:1 fingerprint and face recognition | fingerprint module can achieve |
| Stranger detection | Support |
| Recognition distance recognition | Support |
| Recognize Distance | Support(0.5-4 meters) |

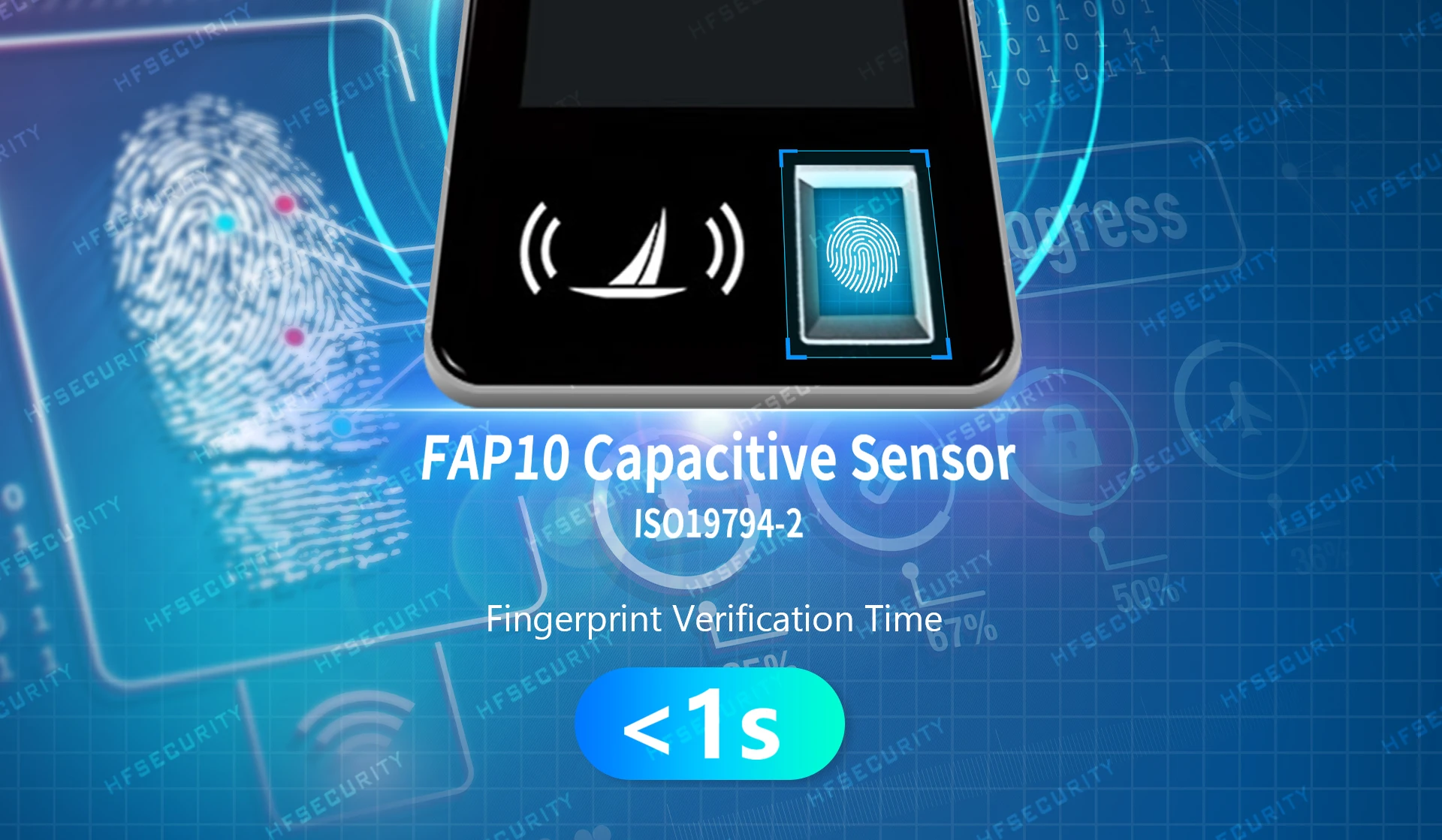

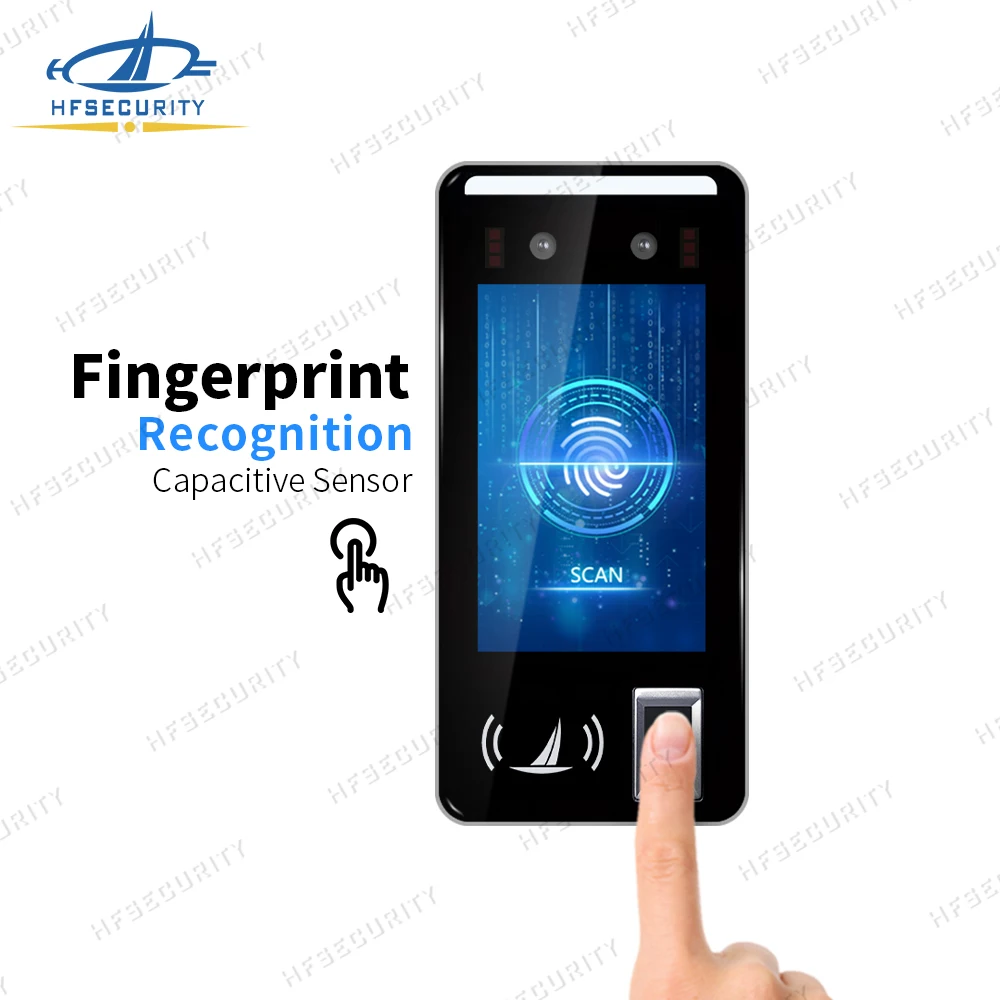

| Fingerprint Sensor | |
| Sensor | Image Size |
| FRR | 0.01% |
| FAR | 0.0001% |
| Fingerprint Verification Time | 1S |
| Image Size | 256*360 pixels |
| Image Resolution | 508DPI |
| Fingerprint Standard | ISO19794-2 |
| General Parameters | |
| Protection class | IP56, support waterproof and dustproof, support outdoor use |
| Power supply | DC12V |
| Working temperature | -10°~60° |
| Working humidity | 10%~90% |
| Static electricity | 4K/8K |
| Electromagnetic radiation | No frequency point exceeds the standard |
| Power consumption | 5W MAX |
| Installation method | wall-mounted |
| Weight | About 0.85KG |
| Equipment size | 196.7*92*19mm |

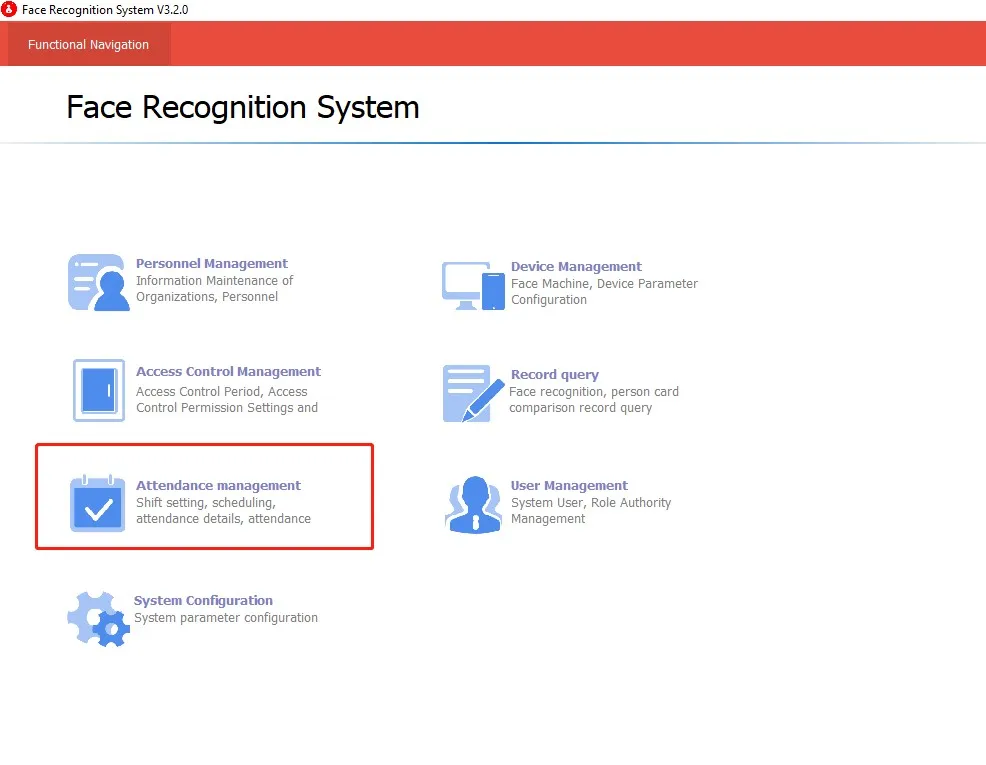

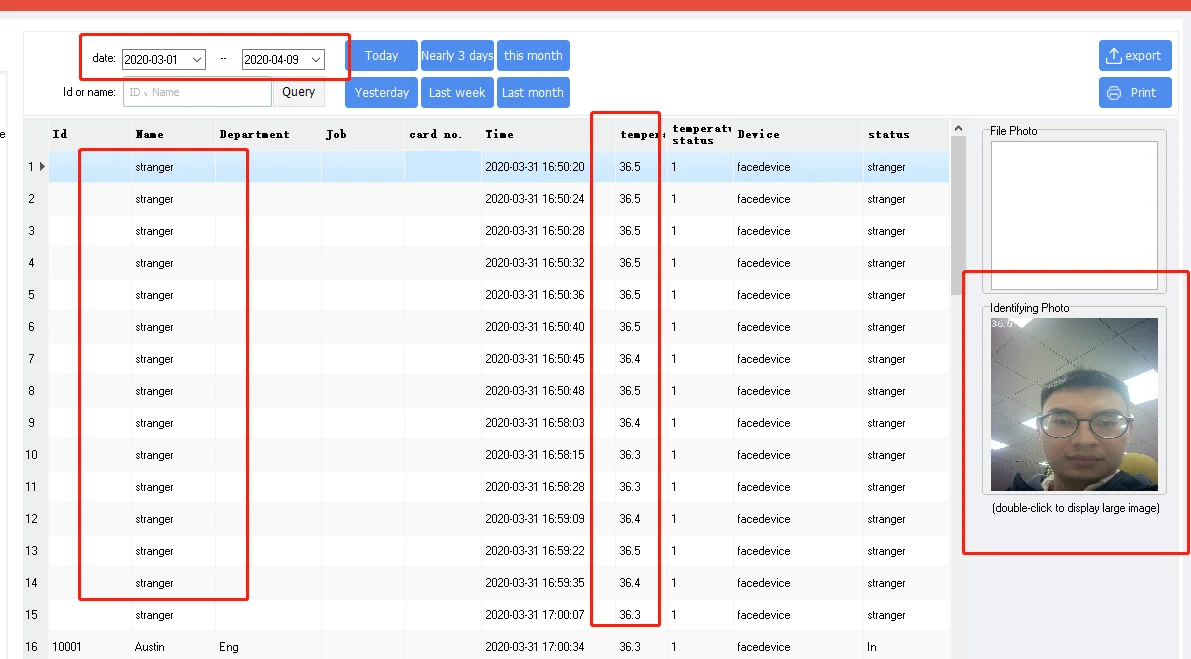

Software
Software
Recommend Products
Recommend Products
Company Profile
Company Profile
FAQ
FAQ
F:Do you offer warranty for the device?
Q:Yes,we offer one year warranty,also life soan technical support
F:What is your MOQ
Q:MOQ is 2pcs
F:What is your payment term?
Q:Paypal,T/T(Bank Transfer),Western Union,Cash,Visa and Credit Card
F:How to get software and SDK?
Q:Software and SDK is free.Will send download link after you place order. e for the society.
