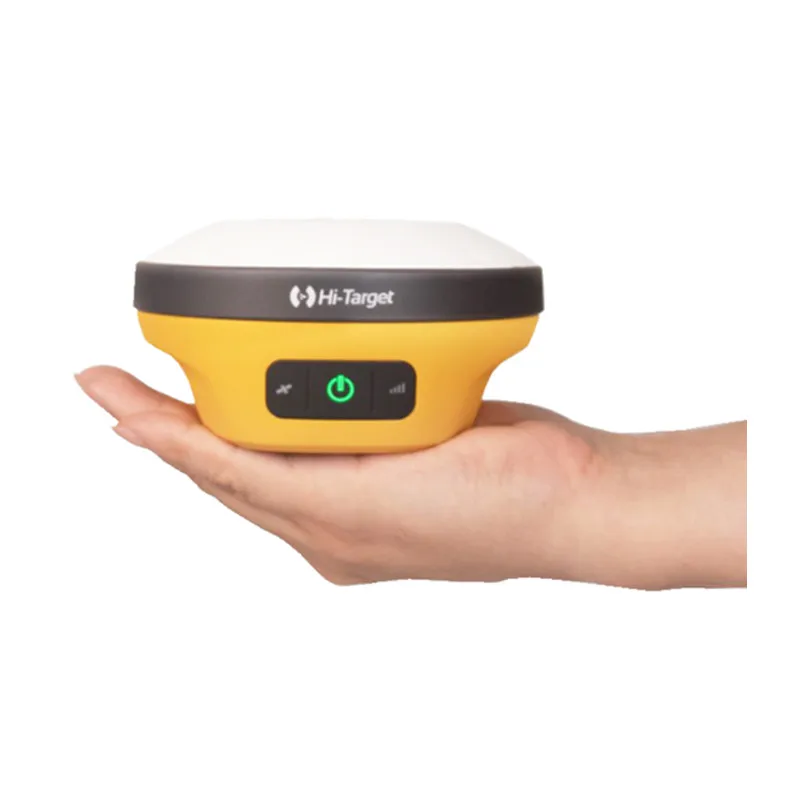

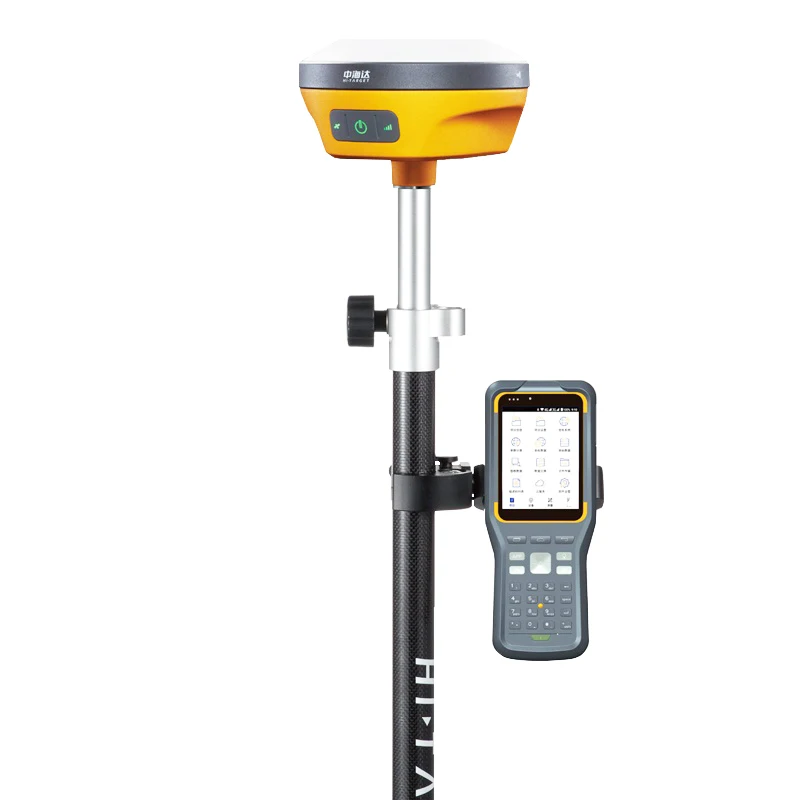

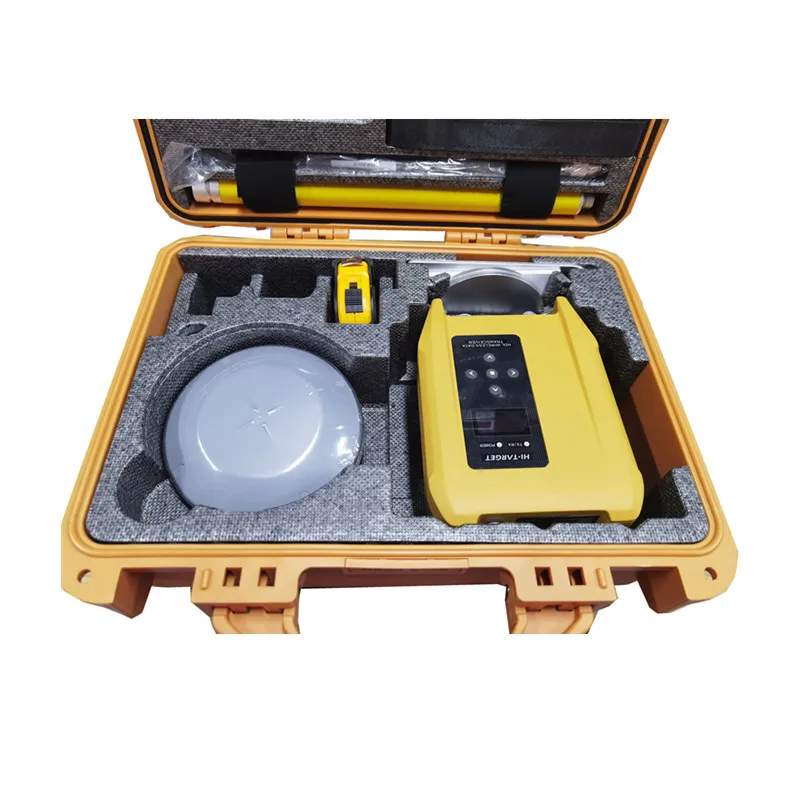

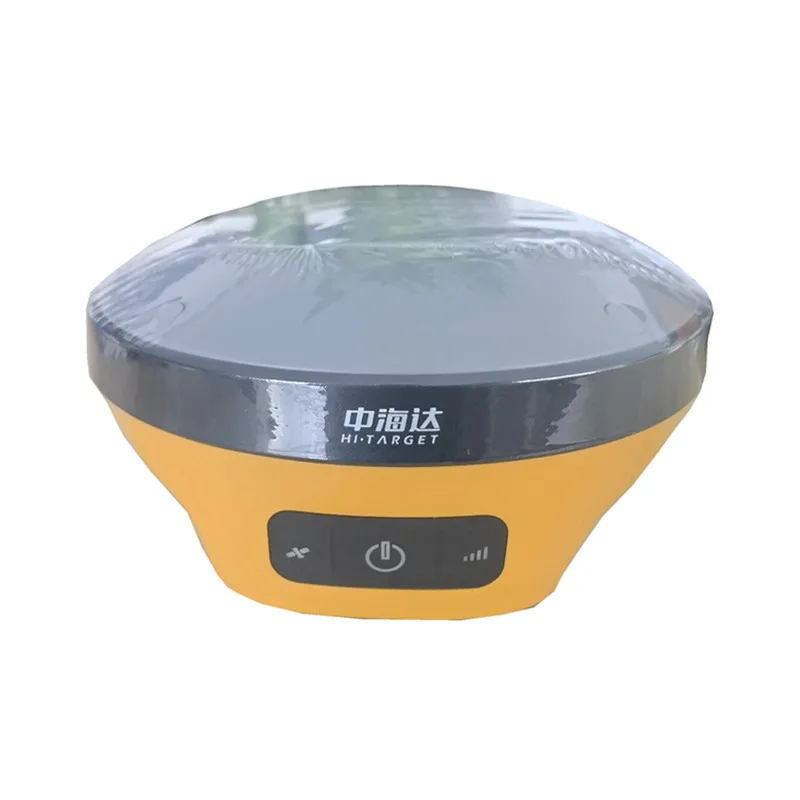

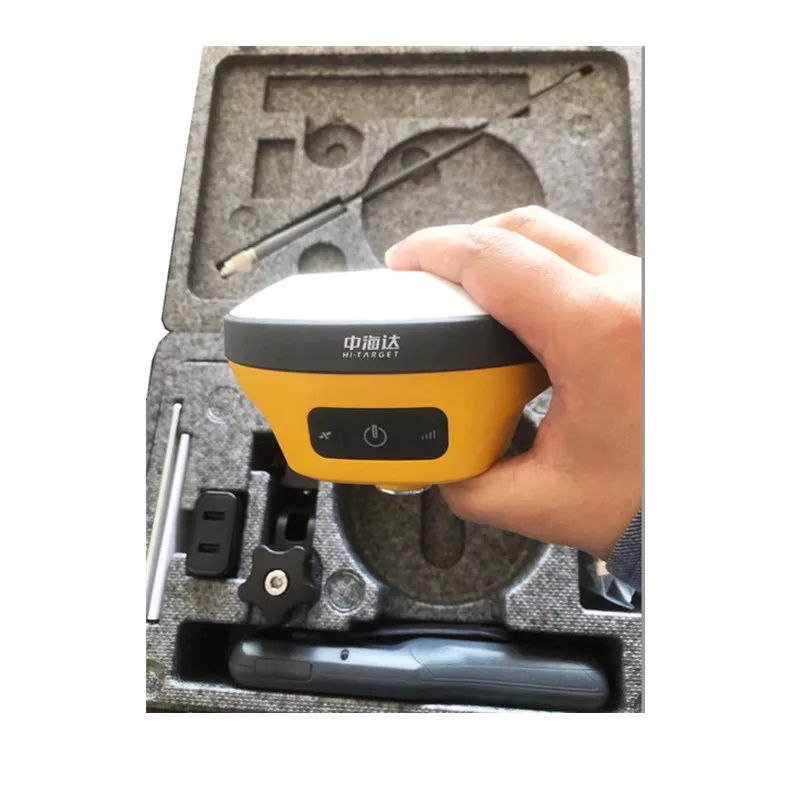

Gps Land Survey Equipment Gnss Rtk Receiver Base And Rover

Key Features :

1. The new IMU can be measured by shaking it

2. Built-in integrated battery

3. Fast charging, can be fully charged in 1 hour

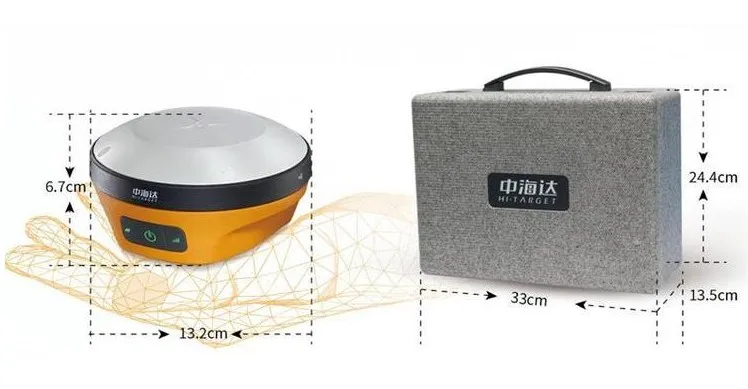

4.Small size, easy to carry

Detail advantage functions:

1 Multi-constellation Tracking

1) 555 tracking channel(optional)

2) NGS approved full-wave GNSS antenna

3) Supports GPS,GlONASS,GALILEO,BDS,SBAS

4) Supports a wide range of satellite signals

5) A large receiving area designed for multipath mitigation

6) Air dielectric is light and stable

1)Network
Fully integrated, fully sealed internal WCDMA, compatible with GPRS, GSM
Wifi frequency is 2.4G, supports 802.11b/g/n protocol
Network RTK (via CORS) range20-50km

2)HI-TARGET Internal UHF Radio
Frequency : 450~470MHz with 116 channels
Transmitting power : 0.5W, 1W, 2W adjustable
Transmitting speed : 9.6Kbps, 19.2Kbps
Working range : 5km typical, 8~10km optimal

3)HI-TARGET External UHF Radio
Frequency : 460MHz with 116 channels
Transmitting power : 5W, 10W, 20W, 30W adjustable
Transmitting speed : Up to 19.2Kbps
Working range : 8~10km typical, 15~20km optimal

4)Pacific Crest XDL Micro Internal UHF Radio (optional)
Frequency : 403~473MHz
Transmitting power : 0.1W, 1W adjustable
Transmitting speed : 9.6bbps,19.2Kbps
Support most of radio communication protocol
Working range : 3~5km typical, 8~10km optimal

5)Pacific Crest ADL Vantage Pro External UHF Radio (optional)
Frequency : 390~430MHz or 430~470MHz
Transmitting power : 4W to 35W adjustable
Transmitting speed : Up to 19.2Kbps
Support most of radio communication protocol
Working range : 8~10km typical, 15~20km optimal

Q1. Are you a factory or a trading company?
A: We are an industrial and trade integrated enterprise.

Q2.What kind of products do you offer?
A:We supply pll kinds of surveying products, including total station, electronic theodolite, electronic distance meter, automatic level, laser level, reflector prism, surveying accessory, GPS receiver, mapping software, etc.

Q3.How can I get the quotation or send my inquiry to?
A: Send your inquiry to us by the inquiry from on the right-side or the bottom of this page.

Q4. How to ensure product quality?
A: We have a professional test team and test platform. We will perform functional tests before delivery and provide a 90-180 day warranty.

Q5.How is the price?
A:As we believe the quality is the most important,we will provide the best quality products we can with reasonable price.

Q6.Could I get samples?
A: Yes,we have materials in stock to help you to get the samples as soon as we can.

Q7. Delivery time?
A: Usually, if you need more than one sample, it takes about 4~7 working days. For batch orders, the delivery time is usually about 20~35 days according to the quantity and requirements of your order.
