Xpower 601535 3.7v With 250mah Long Pouch Lithium Polymer Ion Battery Kc Battery For Sports Wireless Speaker
- Category: >>>
- Supplier: Xpower Solution Technology Co. Limited
Share on (1600406948799):
Product Overview
Description
Specification

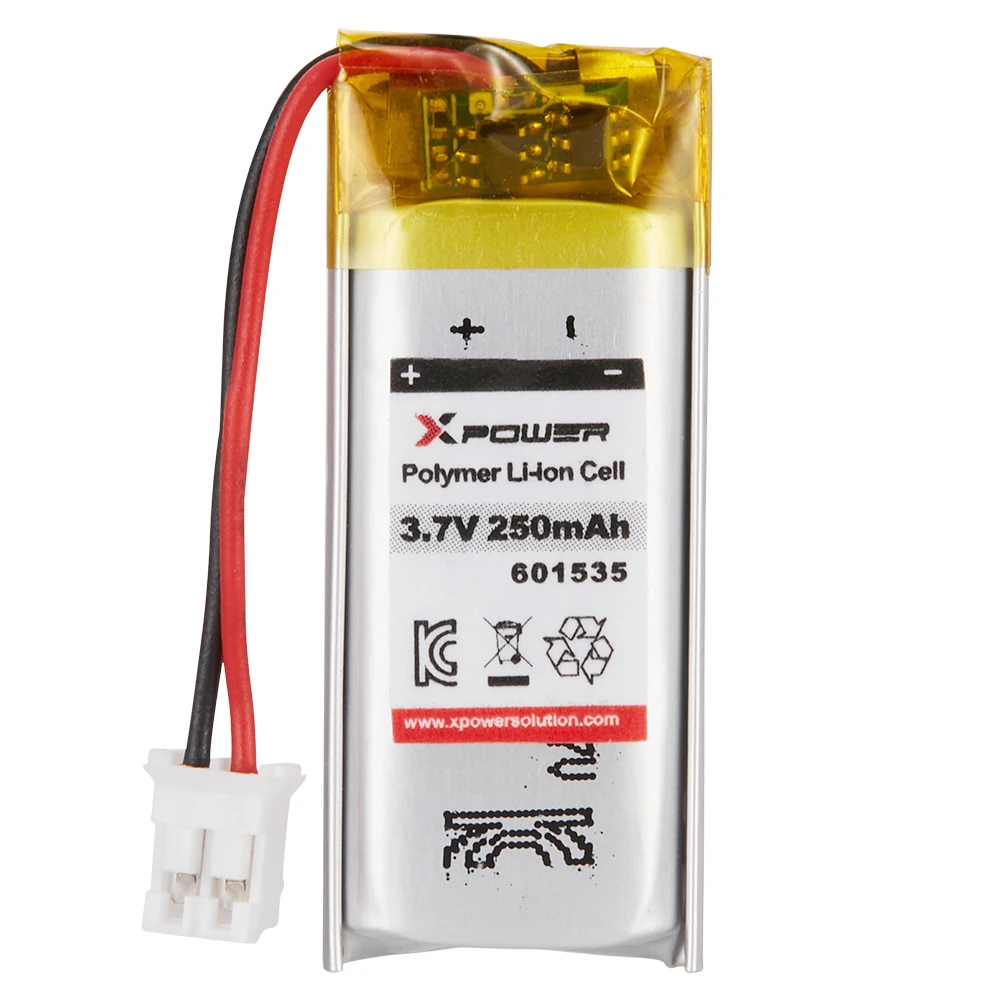

Lithium Polymer Battery Pack 601535 250mAh 3.7V with Protection Circuit Module (PCM)
This data sheet describes the requirements and properties of lithium polymer rechargeable
battery pack manufactured by XPOWER.

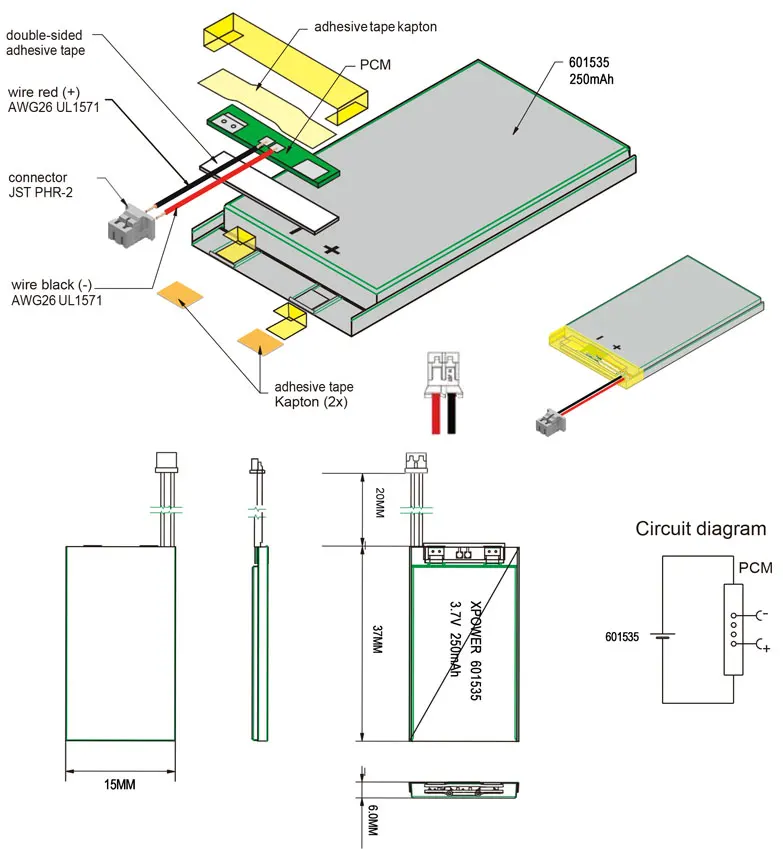

Mechanical Characteristics
Cell : 601535
PCM :Yes
NTC : No
Configuration : 1S1P
Weight : appr 12g
Connector :JST PHR-2

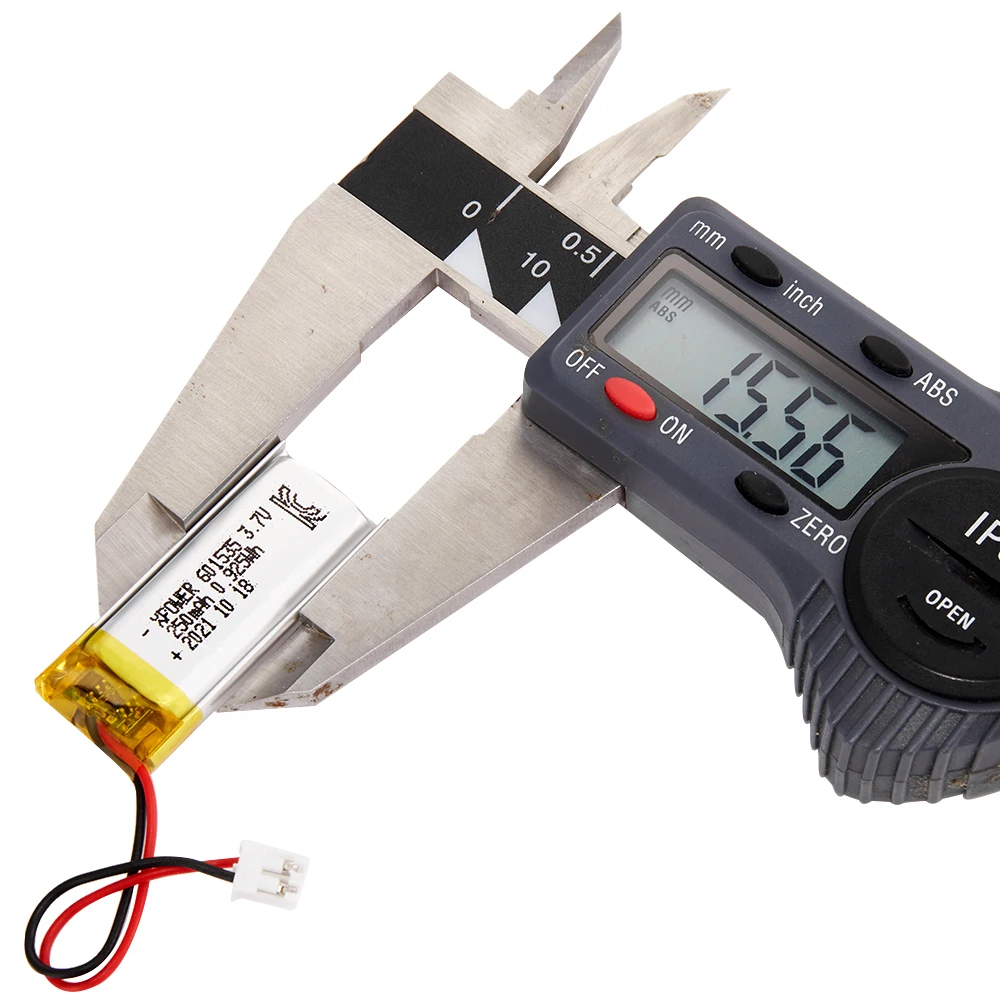

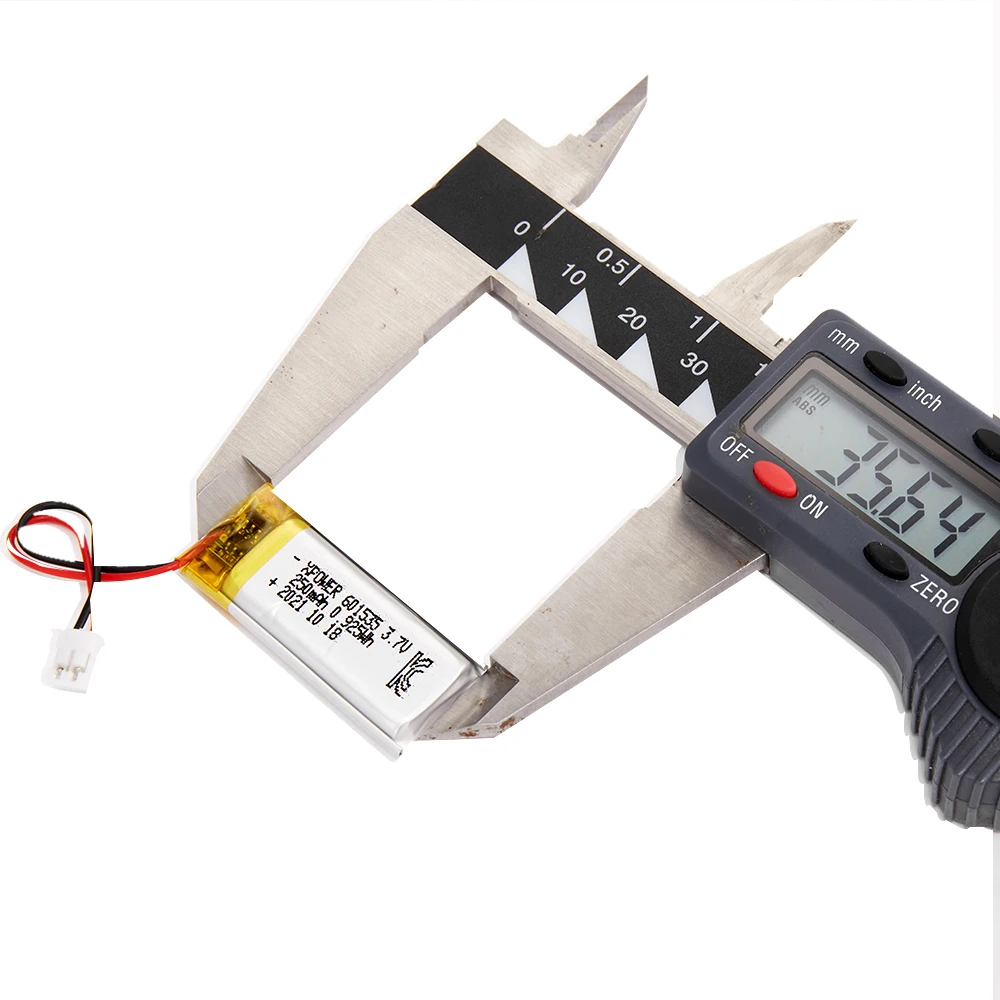

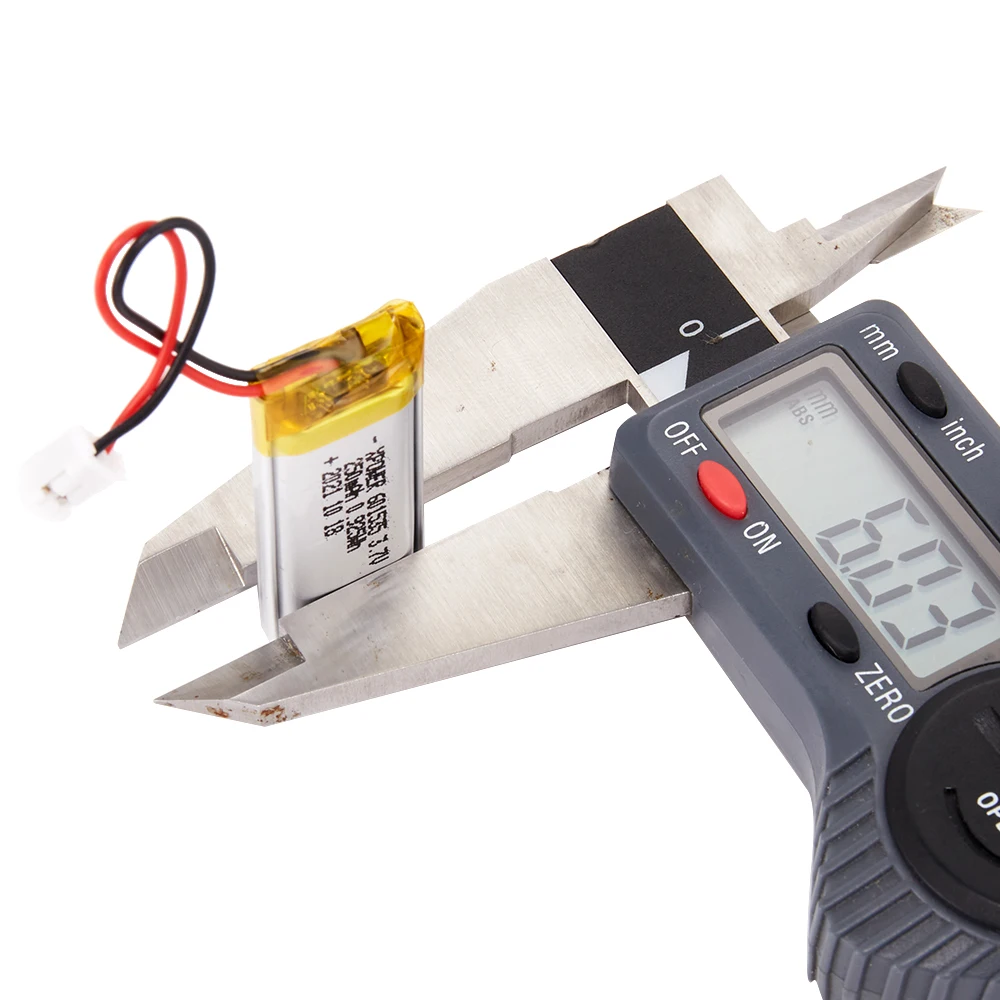

Dimension:Thickness 6.0 * Width 15* Length 37mm (Including PCB)
Electrical Specification
Rated Capacity: 250mAh
Nominal Voltage :3.7V
Watt Hour : 0.925Wh
Max Operating Voltage Range : 2.75V~4.2V
Max Charge Voltage: 4.2V±50mV
Max Charge Current :125mA (0.5C)
Standard Charge Current: 50mA (0.2C)
Max Continuous Discharge Current: 250mA (1C)
Standard Discharge Current: 50mA(0.2C)
Discharge Cut-off Voltage: 2.75V
Initial Cell Impedance: ≤150mΩ
Expected Cycle Life (0.5C|0.5C, 23±5℃):300 cycles ≥ 80% Capacity
Cell Protection
Over Charge Detection: 4.280±50mV (0.08~0.2sec delay, release 4.08±50mV)
Over Discharge Detection: 2.4V±100mV (0.04~0.12sec delay, release 3V±100mV)
Over Current Detection: 3.2A to 4.5A
Short Circuit Protection: Available (Delay time: 500µs)
Working and Storage Condition
Charge Temperature Range:10 to +45℃
Discharge Temperature Range: -20 to +60℃
Storage Temperature Range: <1 month: -20℃~+45℃, >3 months: -10℃~+45℃
Recommend Storage Temperature: 15℃~35℃
Humidity: 85%~90% RH Max.
Voltage | Capacity | Thickness (mm) | Width (mm) | Length (mm) | KC | Other Certificate | |
601235 | 3.7V | 180mAh | 6.0 | 12 | 37 | / | / |
501535 | 3.7V | 200mAh | 5.0 | 15 | 37 | KC | / |
502025 | 3.7V | 200mAh | 5.0 | 20 | 27 | KC | / |
701330 | 3.7V | 200mAh | 7.0 | 13 | 32 | KC | UL/CE/ROHS |
502030 | 3.7V | 250mAh | 5.0 | 20 | 32 | KC | UL/CE |
601535 | 3.7V | 250mAh | 6.0 | 15 | 37 | KC | / |
601730 | 3.7V | 250mAh | 6.0 | 17 | 32 | / | ROHS |
382730 | 3.7V | 280mAh | 3.8 | 27 | 32 | / | / |
501447 | 3.7V | 280mAh | 5.0 | 14 | 49 | KC | / |
402535 | 3.7V | 300mAh | 4.0 | 25 | 37 | / | / |
502035 | 3.7V | 300mAh | 5.0 | 20 | 37 | KC | / |
602030 | 3.7V | 300mAh | 6.0 | 20 | 32 | KC | UL1642/CE |
701435 | 3.7V | 300mAh | 7.0 | 14 | 37 | / | / |
702025 | 3.7V | 300mAh | 7.0 | 20 | 27 | KC | UL/CE |
