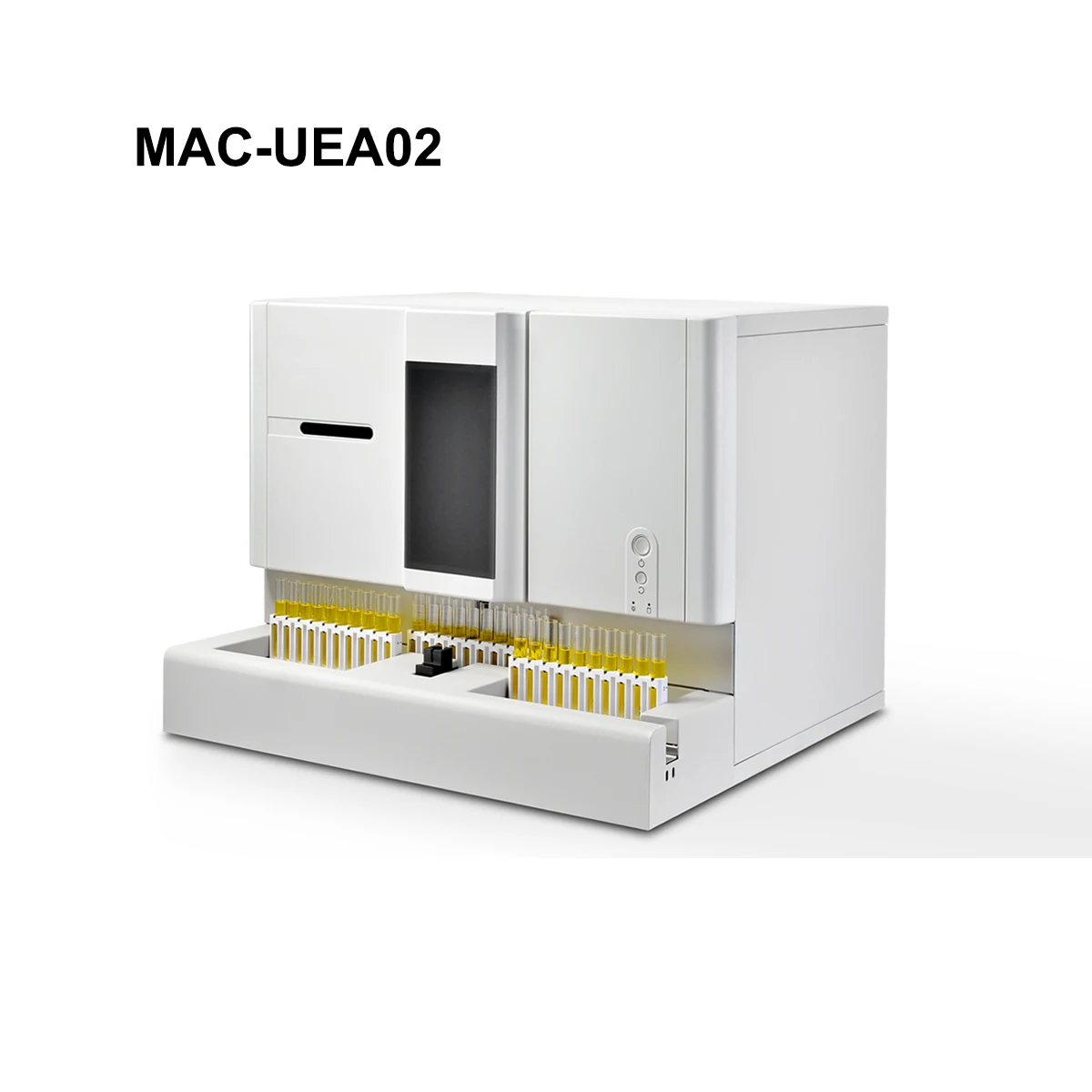

laboratory Urine Formed Elements Analyzer Combinable with automatic urine analyzers
- Category: >>>
- Supplier: Ningbo Maxcare Import & Export Co. Ltd.
Share on (1600406972994):
Product Overview
Description
Product Description
Model UEA02
Parameters Detected
* All types of Urine Formed Elements are classified and counted, with automatic erythrocytes morphological analysis available and real images and statistical diagrams displayable and printable;
* It is connectable to Automatic Urine Analyzers and a comprehensive report is generated;
* Urine physical indexes are reportable;
* All types of Urine Formed Elements are classified and counted, with automatic erythrocytes morphological analysis available and real images and statistical diagrams displayable and printable;
* It is connectable to Automatic Urine Analyzers and a comprehensive report is generated;
* Urine physical indexes are reportable;
Work Principle
Use automated morphological microscopy technology to capture real images of urine formed elements, and then locate and track, recognize, classify and count them.
Use automated morphological microscopy technology to capture real images of urine formed elements, and then locate and track, recognize, classify and count them.
Product Features
* Made strictly according to ISLH Recommended Reference Procedure for the Enumeration of Particles in Urine;
* Un-centrifuged urine samples at cutoff concentration level of 3-5cell/µl are detectable;
* Automatic sampling system with liquid level detection;
* Automatic recognition, classification and quantitation of urine formed elements;
* Precise erythrocytes morphological analysis helps to determine the source of hematuria;
* Real whole view-field microscopic images of urine formed elements are presented;
* Automatic notice of verification and on-screen verification, no additional microscopic review needed;
* Characteristic parameters of urine formed elements are available for further clinical research;
* Standardized and confirmatory analysis report with both images and diagrams available;
* Self-learning ability continuously improves the recognition accuracy;
* Unique morphological quality control available;
* Unidirectional or bidirectional interface with LIS/HIS;
* Software and language upgrades by USB stick;

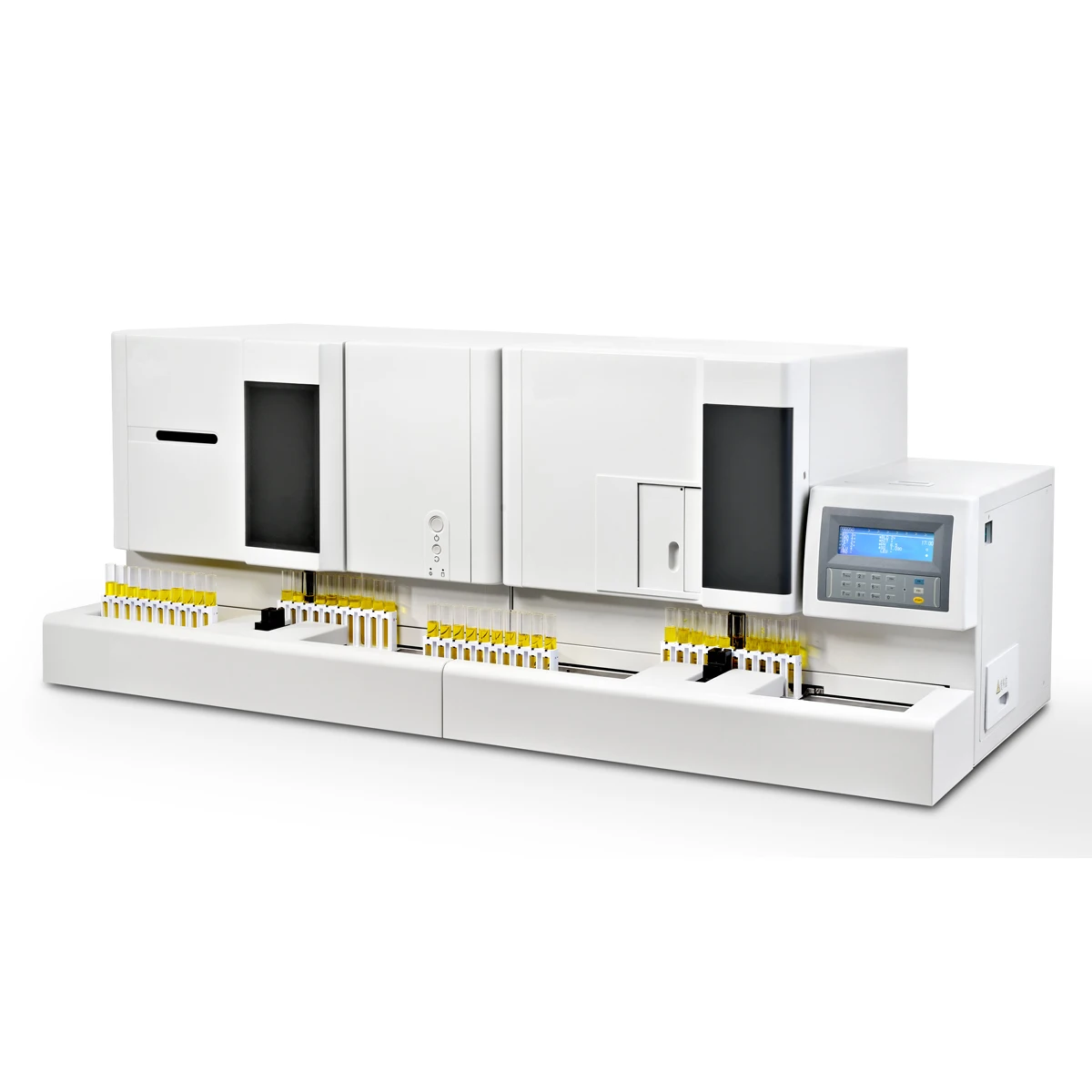

* Combinable with automatic urine analyzers, customized for medium or large-sized laboratories;
* Made strictly according to ISLH Recommended Reference Procedure for the Enumeration of Particles in Urine;
* Un-centrifuged urine samples at cutoff concentration level of 3-5cell/µl are detectable;
* Automatic sampling system with liquid level detection;
* Automatic recognition, classification and quantitation of urine formed elements;
* Precise erythrocytes morphological analysis helps to determine the source of hematuria;
* Real whole view-field microscopic images of urine formed elements are presented;
* Automatic notice of verification and on-screen verification, no additional microscopic review needed;
* Characteristic parameters of urine formed elements are available for further clinical research;
* Standardized and confirmatory analysis report with both images and diagrams available;
* Self-learning ability continuously improves the recognition accuracy;
* Unique morphological quality control available;
* Unidirectional or bidirectional interface with LIS/HIS;
* Software and language upgrades by USB stick;
* Combinable with automatic urine analyzers, customized for medium or large-sized laboratories;
Technilcal Parameters
Auto-detected Urine Formed Elements: Normal red blood cells (NRBC), Abnormal red blood cells (ARBC), White blood cells (WBC), Casts (CAST), Epithelial cells( EPI), Yeast (YST), Crystals (CRYS), Mucus (MUC) and Bacteria (BAC).Further sub-classification is available with manual on-screen verification!
Magnification: Standard 10X & 40X images
Memory: Min. 200,000 results (including all images captured)
Min. Sample volume: 2.0 ml
Sample level detection: Yes
Max. Sample loading number: 6 racks of 10 tubes
Throughput: Up to 80 tests / hour (764A), up to 100 tests / hour (764C), up to 120 tests / hour (764B)
Built-in Computer: Yes
Built-in Barcode reader: Yes
Printer: Laser, external, optional
Interfaces: USB, RS232, LAN
Dimensions (main unit): 680 x 650 x 545mm (L x D x H)
Weight (main unit): 59kg
Power (main unit): 100-240V~50/60Hz, 450VA
Magnification: Standard 10X & 40X images
Memory: Min. 200,000 results (including all images captured)
Min. Sample volume: 2.0 ml
Sample level detection: Yes
Max. Sample loading number: 6 racks of 10 tubes
Throughput: Up to 80 tests / hour (764A), up to 100 tests / hour (764C), up to 120 tests / hour (764B)
Built-in Computer: Yes
Built-in Barcode reader: Yes
Printer: Laser, external, optional
Interfaces: USB, RS232, LAN
Dimensions (main unit): 680 x 650 x 545mm (L x D x H)
Weight (main unit): 59kg
Power (main unit): 100-240V~50/60Hz, 450VA
Specification
item | value |
Type | Urine Analysis System |
Brand Name | MAXCARE |
Model Number | MAC-UEA02 |
Place of Origin | China |
Zhejiang | |
Instrument classification | Class I |
Warranty | 1 Year |
After-sale Service | Online technical support |
Product name | laboratory Urine Formed Elements Analyzer |
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2007,We are a professional company with rich experience in bidding and exporting medical devices and items. We have own factory and brother factory to produce the products.and we also have professional team to support the bussiness and control the quality,and also for the after sales.Looking forward to working with you.
We are based in Zhejiang, China, start from 2007,We are a professional company with rich experience in bidding and exporting medical devices and items. We have own factory and brother factory to produce the products.and we also have professional team to support the bussiness and control the quality,and also for the after sales.Looking forward to working with you.
2. how can we guarantee quality?
We can offer the sample for most of the products,and all the products we will provide 1~3 years guarantee.
3.what can you buy from us?
We are a One stop medical shopping,you can choose items including Medical Equipment,Laboratory Equipment,Hospital Furniture,Operation Room Equipment,Medical Consumables and all of the medical items in china.
4. why should you buy from us not from other suppliers?
This is a professional company engaged in the export and sales of medical devices and supplies. Since its establishment for more than 10 years, the company has developed good business contacts with more than 500 customers in more than 90 countries.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,DDP；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,PayPal,Western Union;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We can offer the sample for most of the products,and all the products we will provide 1~3 years guarantee.
3.what can you buy from us?
We are a One stop medical shopping,you can choose items including Medical Equipment,Laboratory Equipment,Hospital Furniture,Operation Room Equipment,Medical Consumables and all of the medical items in china.
4. why should you buy from us not from other suppliers?
This is a professional company engaged in the export and sales of medical devices and supplies. Since its establishment for more than 10 years, the company has developed good business contacts with more than 500 customers in more than 90 countries.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,DDP；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,PayPal,Western Union;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
