Automatic Cable Feeding Winding Tying Binding Machine for USB/Data/Electrical/Power cable machine
- Category: Cable Manufacturing Equipment >>>
- Supplier: Dongguan,Hooha,Electrical,Machinery,Company,Limited
Share on:
Product Overview
Description
Specification
Model | HH-30A | HH-35A | HH-40A |
Voltage | AC 220V/110V;50Hz/60Hz | AC 220V/110V;50Hz/60Hz | AC 220V/110V;50Hz/60Hz |
Power | 80W | 80W | 80W |
Winding diameter | 50-200mm (Max.300mm) | 50-200mm (Max.300mm) | 50-200mm (Max.300mm) |
Coil size | 220mm | 220mm | 220mm |
Winding speed | 1-30 levels | 1-30 levels | 1-30 levels |
Winding circle | 1-999 circles | 1-999 circles | 1-999 circles |
Twist bundle length | 60-140mmmm | 120-200mm | 150-260mm |
Binding diameter | Dia.5-40mm | Dia.5-45mm | Dia.30-60mm |
Binding circle | Adjustable (Suggest 2-6 circles) | Adjustable (Suggest 2-6 circles) | Adjustable (Suggest 2-6 circles) |
Twist speed | 1-2 levels (suggest level 2) | 1-2 levels (suggest level 2) | 1-2 levels (suggest level 2) |
Twist ties | Encased iron core PE material | Encased iron core PE material | Encased iron core PE material |
Twist Shape | Round O&long&8 shaped | Round O&long&8 shaped | Round O&long&8 shaped |
Weigth | 35KG | 43KG | 45KG |
Dimension | 450x390x580mm (L*W*H) | 450x390x580mm (L*W*H) | 450x390x580mm (L*W*H) |
Product Description

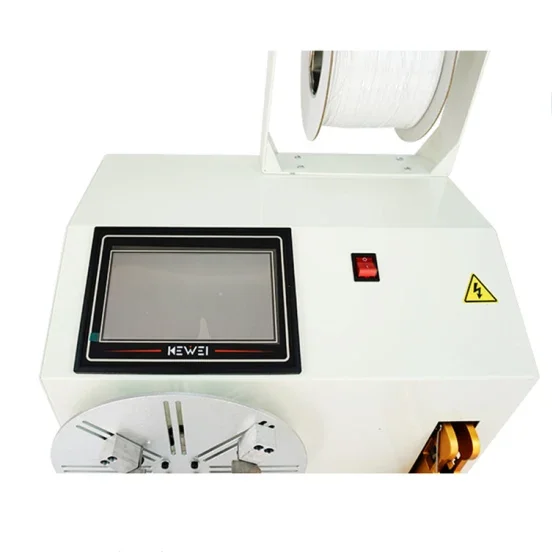

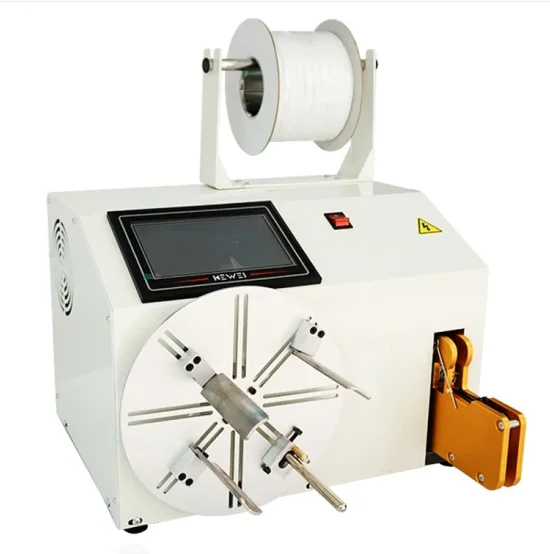

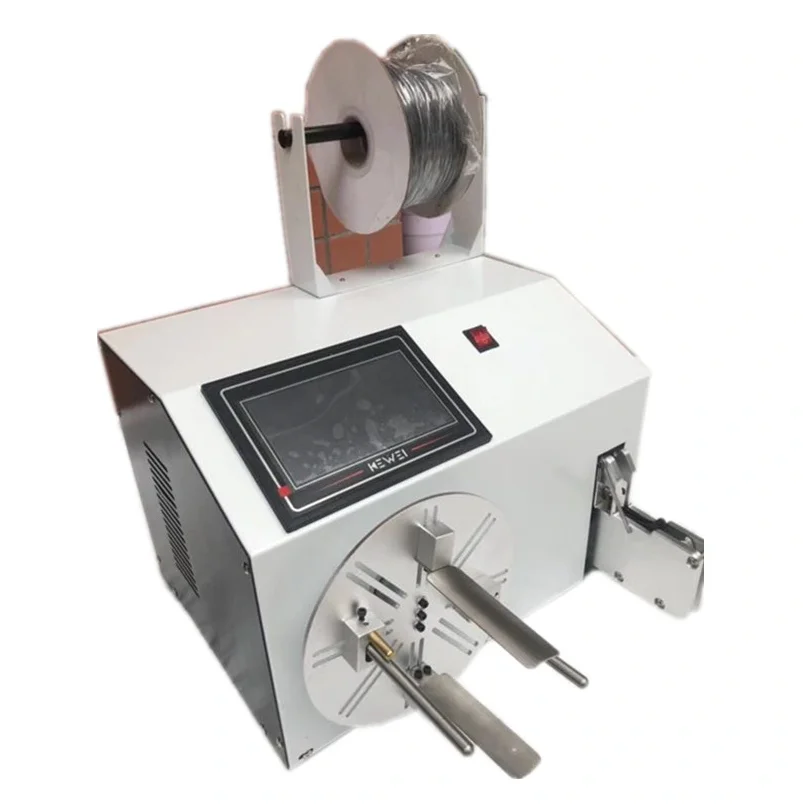

Automatic Cable Feeding Winding Tying Binding Machine for USB/Data/Electrical/Power Wire
Applictaion:
This machine is designed for winding and binding AC / DC power cord, video signal lines, network cable, data cable, headphone cable and other types cable.
Features:
This semi automatic wire twist tie machine is suitable for winding and tying USB cable, headphone cable, AC/DC power cable, network cable, telephone cable, audio/video cable, HDMI cable, etc. It can customize the number of coils, the number of ties and the length of the cable tie.
* This semi automatic wire twist tie machine is suitable for winding and tying USB cable, headphone cable, AC/DC power cable, network cable, telephone cable, audio/video cable, HDMI cable, etc.
* PLC program control, LCD text parameter setting, easy to operate.
* Using stepper motor, the worker only needs to put the wire on the winding port and step on the foot pedal once to start the automatic winding, and then put the winded wire at the tying port, and the machine can automatically tie the wire.
* This machine can customize the number of coils, the number of ties and the length of the cable tie.
* The motor is equipped with brake control, and the reel can be turned and stopped at a fixed point, which is very convenient for next operation.
This semi automatic wire twist tie machine is suitable for winding and tying USB cable, headphone cable, AC/DC power cable, network cable, telephone cable, audio/video cable, HDMI cable, etc. It can customize the number of coils, the number of ties and the length of the cable tie.
* This semi automatic wire twist tie machine is suitable for winding and tying USB cable, headphone cable, AC/DC power cable, network cable, telephone cable, audio/video cable, HDMI cable, etc.
* PLC program control, LCD text parameter setting, easy to operate.
* Using stepper motor, the worker only needs to put the wire on the winding port and step on the foot pedal once to start the automatic winding, and then put the winded wire at the tying port, and the machine can automatically tie the wire.
* This machine can customize the number of coils, the number of ties and the length of the cable tie.
* The motor is equipped with brake control, and the reel can be turned and stopped at a fixed point, which is very convenient for next operation.

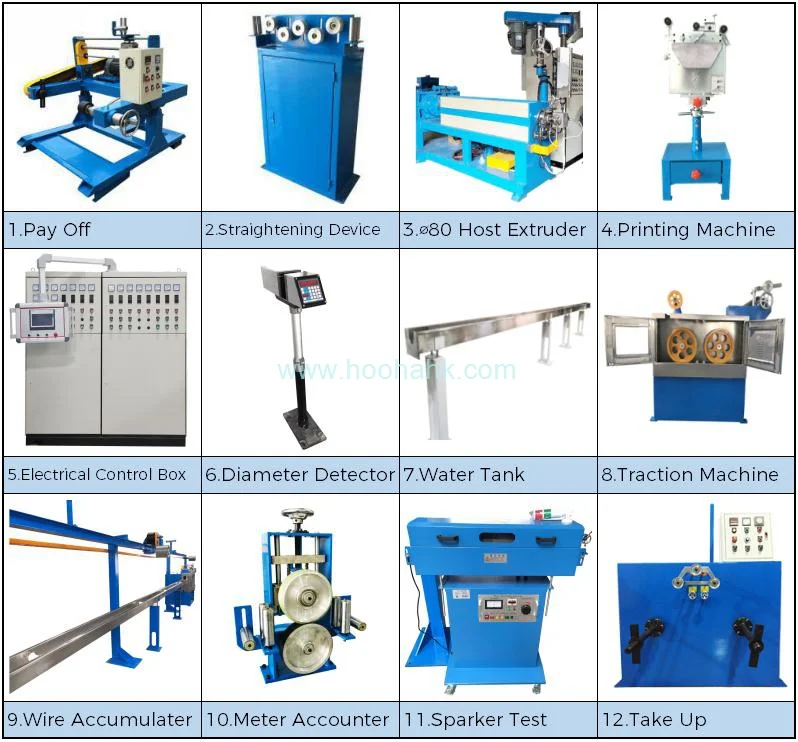

Cable and wire production line:
333

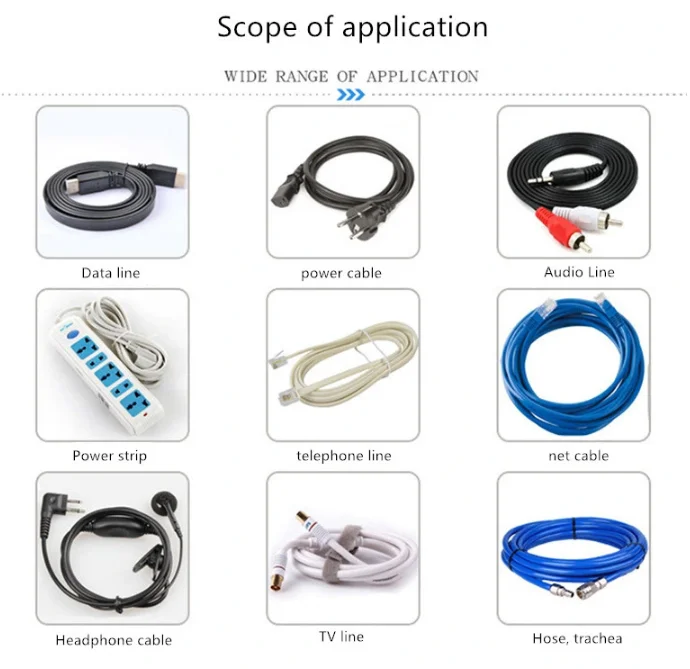

The Wire Samples
Company Profile
Hu Machine Designer
20 years engineering design experience
Bi Head Engineer
Responsible for project engineering
Chen Senior Engineer
Machine design for 30 years
Certificates and Exhibitions
CE Certification Incorporation Certification Cabex Certification SGS Certification
Customer Cases
Packing & Delivery
FAQ
1. who are we?
We are based in Guangdong, China, start from 2017,
We are based in Guangdong, China, start from 2017,
sell to Africa(17.00%),
Mid East(17.00%),
Southeast Asia(16.00%),
Eastern Asia(13.00%),
South Asia(10.00%),
South America(8.00%),
Eastern Europe(4.00%),
North America(3.00%),
Northern Europe(3.00%),
Southern Europe(3.00%),
Oceania(2.00%),
Western Europe(2.00%),
Central America(2.00%).
There are 5-10 professional worker in HOOHA.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Drawing Machine,Stranding Machine,Cabling Machine,Extrusion Machine,Bunching Machine
4. why should you buy from us not from other suppliers?
1.10 year R&D working experience with over sea service
2.5 big LV/MV cable project over 5 million working experience
3.After service team has 30 country working experience
4. HOOHA team focus on the cable making and use solution supply chain.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Drawing Machine,Stranding Machine,Cabling Machine,Extrusion Machine,Bunching Machine
4. why should you buy from us not from other suppliers?
1.10 year R&D working experience with over sea service
2.5 big LV/MV cable project over 5 million working experience
3.After service team has 30 country working experience
4. HOOHA team focus on the cable making and use solution supply chain.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
