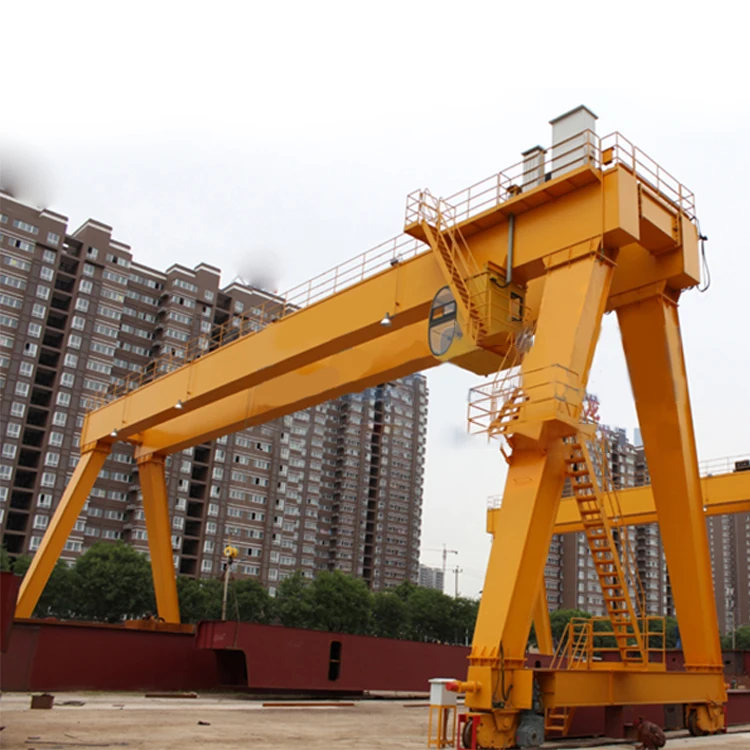

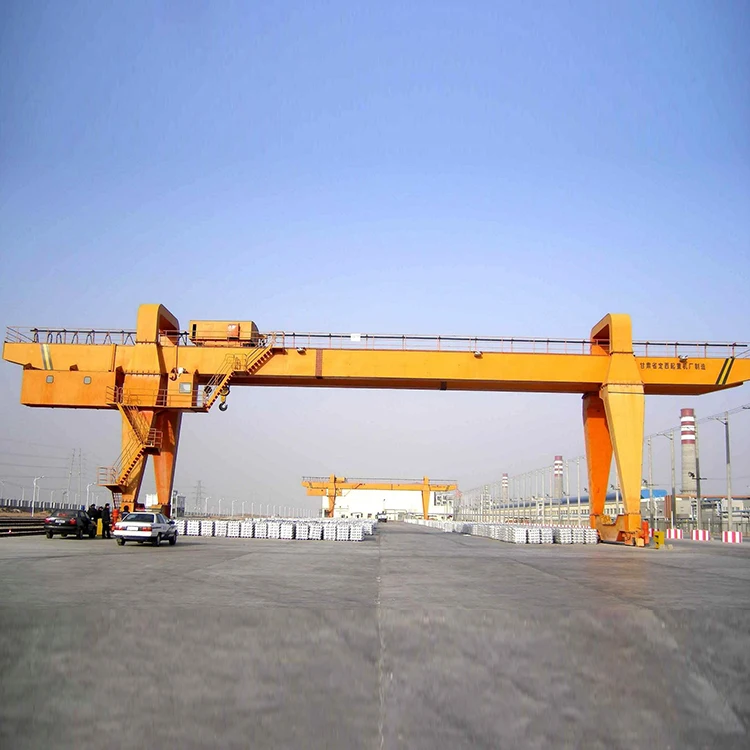

container gantry crane 50t l type gantry crane with hoist
MG double girder gantry crane is ideal for outdoor applications where lifting facilities are provided without the cost of a building or any supporting steelwork. They are also suited to indoor applications where existing building structures are not suitable to take overhead cranes, Tianqiao can be constructed with a cantilever to allow handling outside the rail centers.
Specification:
- Lifting capacity up to 100ton
- Span is 18m to 35m
- Lifting height up to 13m
- Working-class: ISOA5-A7/FEM2M-4M
Mechanical:
- Double box beam with steel legs moving through the ground beam as a crane traveling system
- The camber of the main beam will be designed as Span*1-1.4/1000.
- Steel Material: Q235 or Q345
- Shot-blasting Sa2.5 for the main girder and supporting beam
- Epoxy zinc rich high-quality painting.
- Electrification and outfitting
- Brand: CHINT SIEMENS Schneider
- Conductor power supply: Cable Reel or busbar.
Parameter:
| Cap | Main | t | 32 | 50 | |||||||||
| Aux. | 5 | 10 | |||||||||||
| Span | m | 18 | 22 | 26 | 30 | 35 | 18 | 22 | 26 | 30 | 35 | ||
| Lifting Height | 10 | 12 | 10 | 12 | |||||||||
| 10.79 | 12.79 | 10.95 | 12.95 | ||||||||||
| Duty | A5 | A5 | |||||||||||
| Speed | Main | m/min | 7.5 | 5.9 | |||||||||
| Aux. | 12.7 | 13.2 | |||||||||||
| Crab traveling | 37 | 38.5 | |||||||||||
| Trolley traveling | 38 | 37.8 | 44 | ||||||||||
| limit dimension | L1 | mm | 7500 | 10000 | 8000 | 10500 | |||||||
| L2 | 7500 | 10000 | 8000 | 10500 | |||||||||
| L | 980 | 1195 | |||||||||||
| C1 | 5000 | 7500 | 5000 | 7500 | |||||||||
| C2 | 5000 | 7500 | 5000 | 7500 | |||||||||
| Main dimension | H | mm | 15158 | 15258 | 15358 | 17258 | 17358 | 15760 | 15860 | 15960 | 17920 | 17924 | |
| H1 | 10000 | 12000 | 10000 | 12000 | |||||||||
| H2 | 790 | 950 | |||||||||||
| H3 | 590 | 646 | 646 | 700 | |||||||||
| B | 9656 | 10522 | 10522 | 11496 | |||||||||
| K | 2500 | 2500 | |||||||||||
| W | 6500 | 7000 | 7000 | 7500 | |||||||||
| Max. Wheel Loading | KN | 240 | 250 | 260 | 285 | 295 | 335 | 345 | 355 | 380 | 395 | ||
| Total Power | KW | 95.3 | 113.3 | 141.5 | 157.5 | ||||||||
| Crane Rail Recommended | 43kg/m | QU80 | QU80 | ||||||||||
| Power Supply | 3-Phase A.C.50Hz 380V | 3-Phase A.C.50Hz 380V | |||||||||||
Accessories:
Packaging & Shipping
Main Products
Company Information
With more than 30 years of experience in the crane industry, our company started its activities in 2009 with the power and confidence of our valued customers is one of the leading companies in the sector is moving forward with confident steps.
Tianqiao Heavy Machinery is ISO 9001:2015 certified, and committed to a rigorous, ongoing process of quality control for all our processes. Our 36,000 square meter state-of-the-art manufacturing facility allows us to manufacture our products in the most efficient and cost-effective manner possible.
Customer Feedback
FAQ
Q. Are you manufacturer?
A: Yes, we are professional manufacturer of boiler and pressure vessels in Henan, China.
Q: Do you have any Certificate?
A: Yes. Our boiler have got China GB ISO certificates and CE certificate of EU. We also can provide ASME, GHOST and other necessary certificates if you need.
Q: How can I pay you?
A: T/T, Western Union, Money Gram and Ali Trade Assurance is better.
Q. What about installation?
A: We provide 1 or 2 technicians overseas services for installation, debugging and training.
Q: How can you ensure the quality?
A: Before delivery, every product will be made test. You are also warmly welcomed to come to our factory to make inspection.
Q: How about the delivery time?
A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;
Q: What is the MOQ?/What is your MOQ?
A: 1 Set. We can accept sample orders for trial order.
Q: Can I get your crane products with customized personalized service?
A: Yes, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
Q: How about the warranty?
A: All Tianqiao’s products enjoy 2 years’ warranty, and we provide after sales service and technical support, when find any questions in installing, feel free to contact us.
Q: The space of my workshop is limited, can the crane ok for me?
A: For low headroom workshop, we have special products. The details demension our engineer will be design for you.
Q: What’s the Safety device
A: Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
