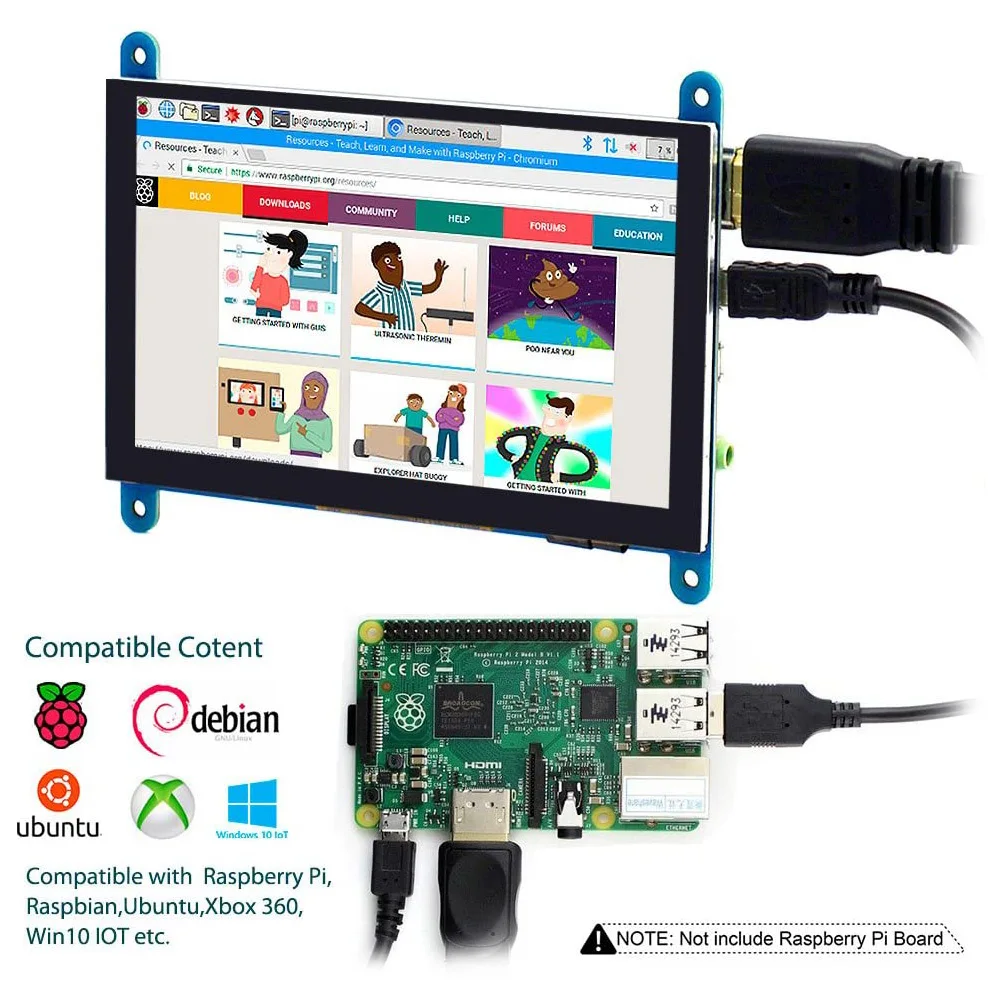

Raspberry Pi Touch screen Monitor 5 inch HDMI LCD Screen Display 800x480 Compatible with Raspberry Pi Windows 10 8 7
- Category: >>>
- Supplier: Bofeng intelligent (Shenzhen) Co. Ltd
Share on (1600407128705):
Product Overview
Description
About this item
5inch standard display, hardware resolution 800×480, resolution can be configured through software (/available/high support 1920X1080)
With capacitive touch screen, support 5-point touch control, USB touch, drive-free
Built-in OSD menu adjustment function (adjustable contrast/brightness/switching machine, etc.)
Compatible with mainstream mini PCs such as Raspberry Pi, BB Black, Banana Pi, etc.
When used as a Raspberry Pi display, it supports Raspbian, Ubuntu, WIN10 IOT and other systems, single-touch, no driver
When used as a computer monitor, it supports Windows 7/ 8/ 8.1/ 10, five-point touch, no driver
Supports common game consoles such as Microsoft Sony PS4, XBOX360 and Nintendo
This product has passed CE, RoHS certification
- |
Product Description

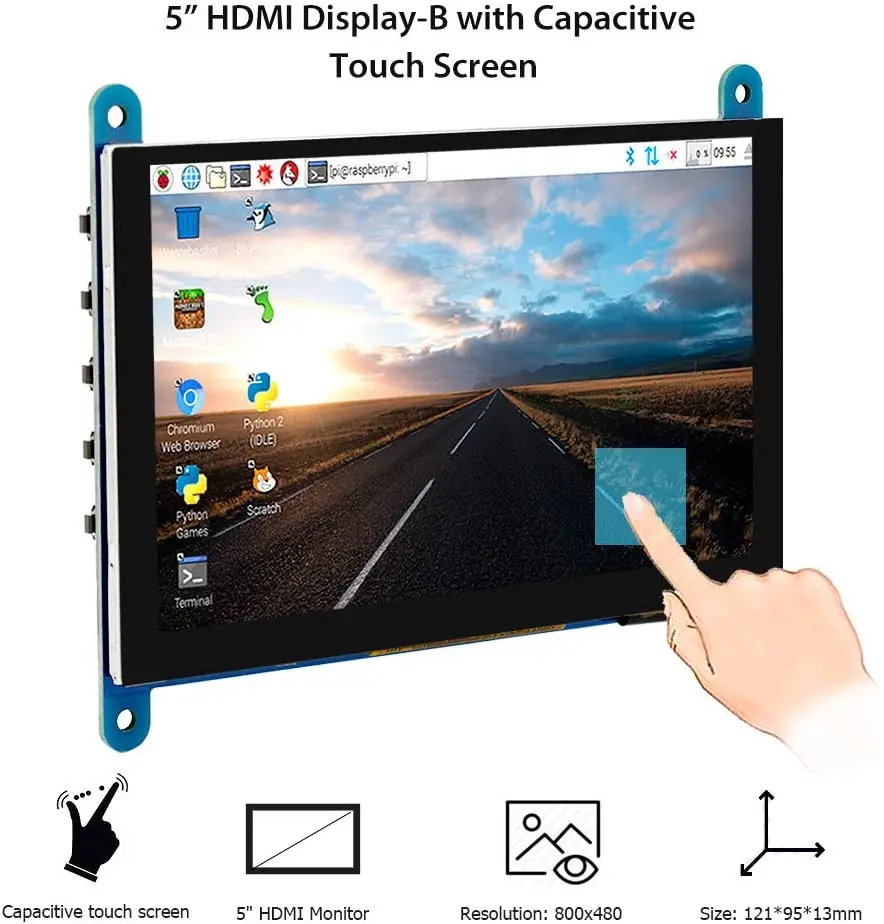

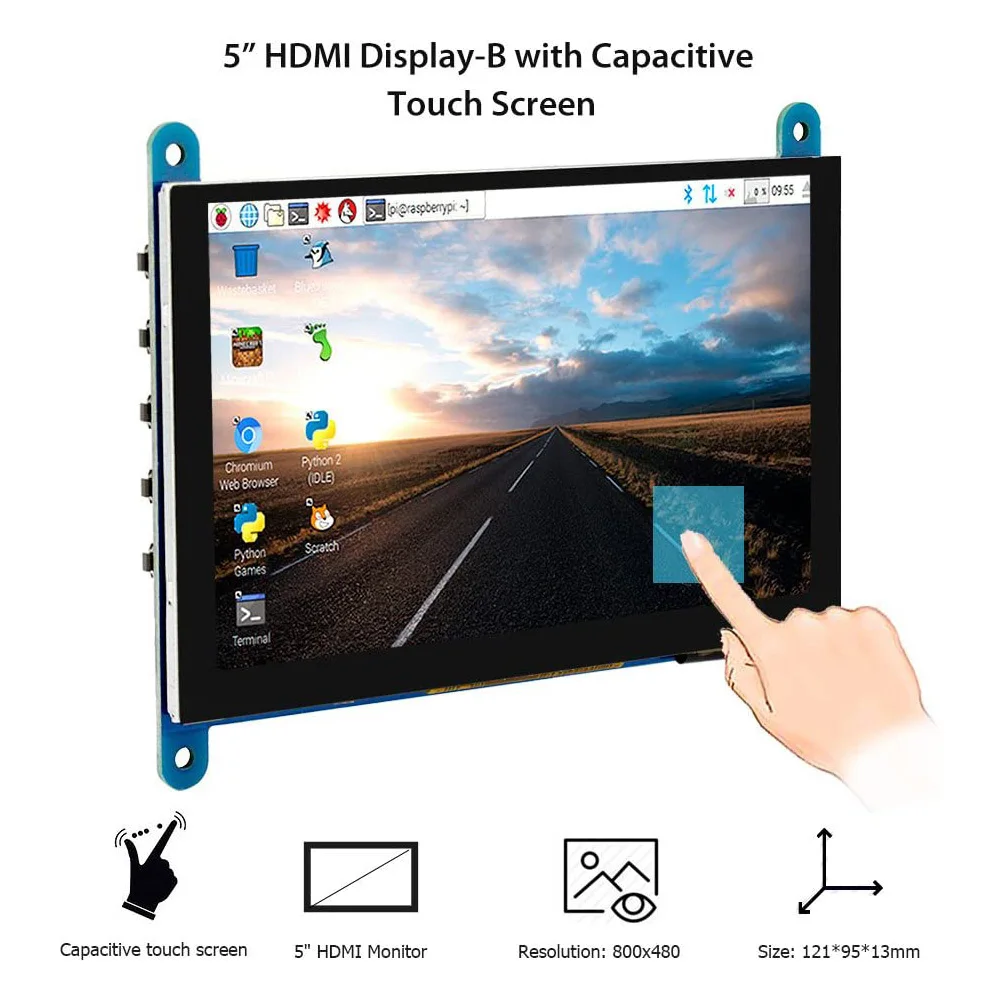

This 5 inch small HDMI capacitive touch screen LCD supports various systems with resolution of 800×480. Broadly you can apply it to mini PC (Raspberry Pi/BB Black/Banana Pi), desktop PC and game console.
Wide Applications

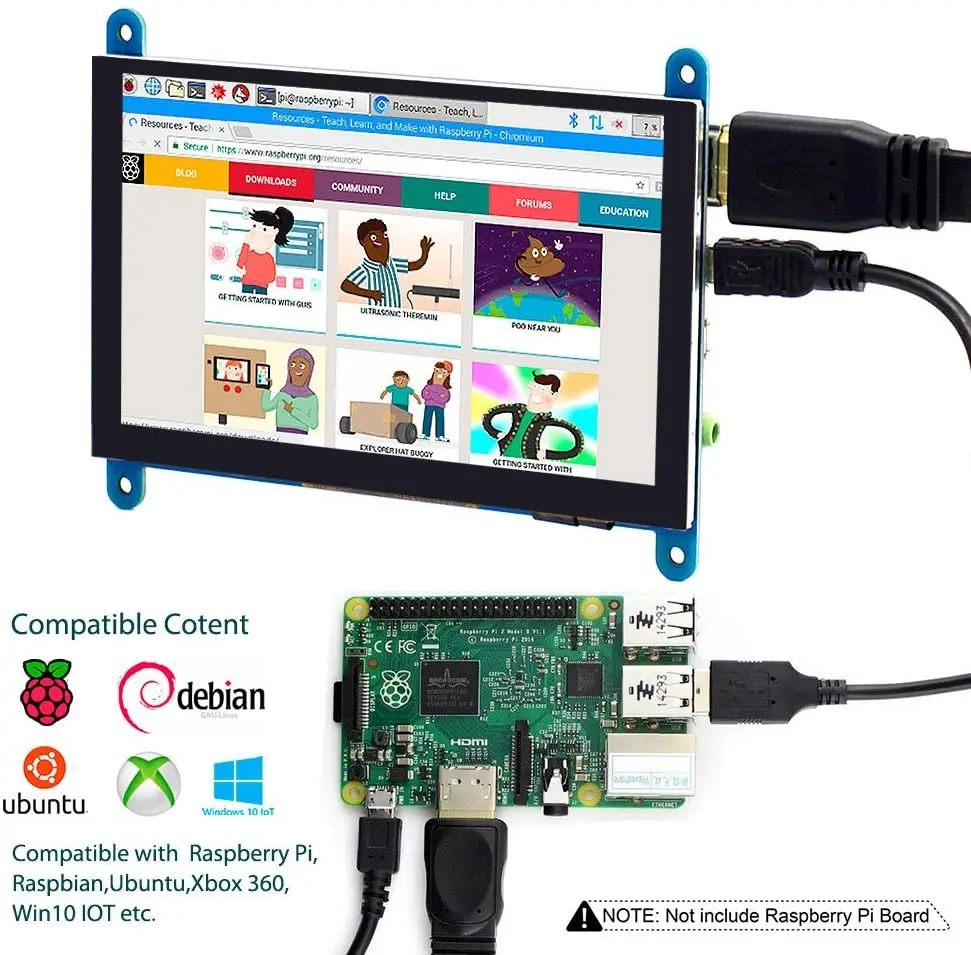

* When works with Raspberry Pi, supports Raspbian, Ubuntu, Kodi, Win10 IOT, single touch, free driver.
* When work as a computer monitor, supports Windows 10/8/7, 5 point touch (XP and older version system: single-point touch), free driver.
* Supports popular game consoles, compatible with XBOX, PS, Switch etc, no touch.

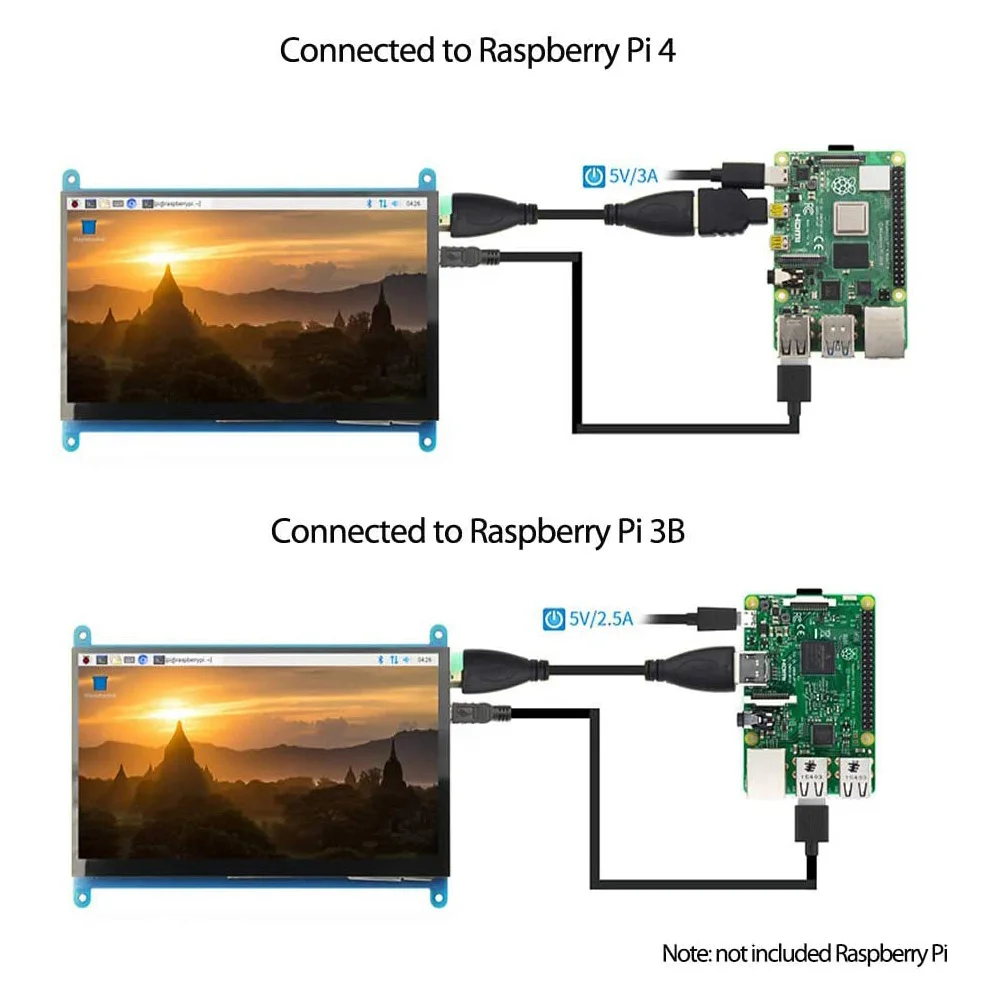

* When working with Raspberry Pi 4, please connect to HDMI 0 port, and comment out by adding # in the front of "dtoverlay = vc4-fkms-V3D" or delete this line directly in the config.txt file.

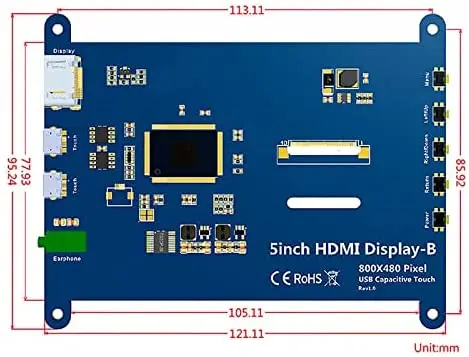

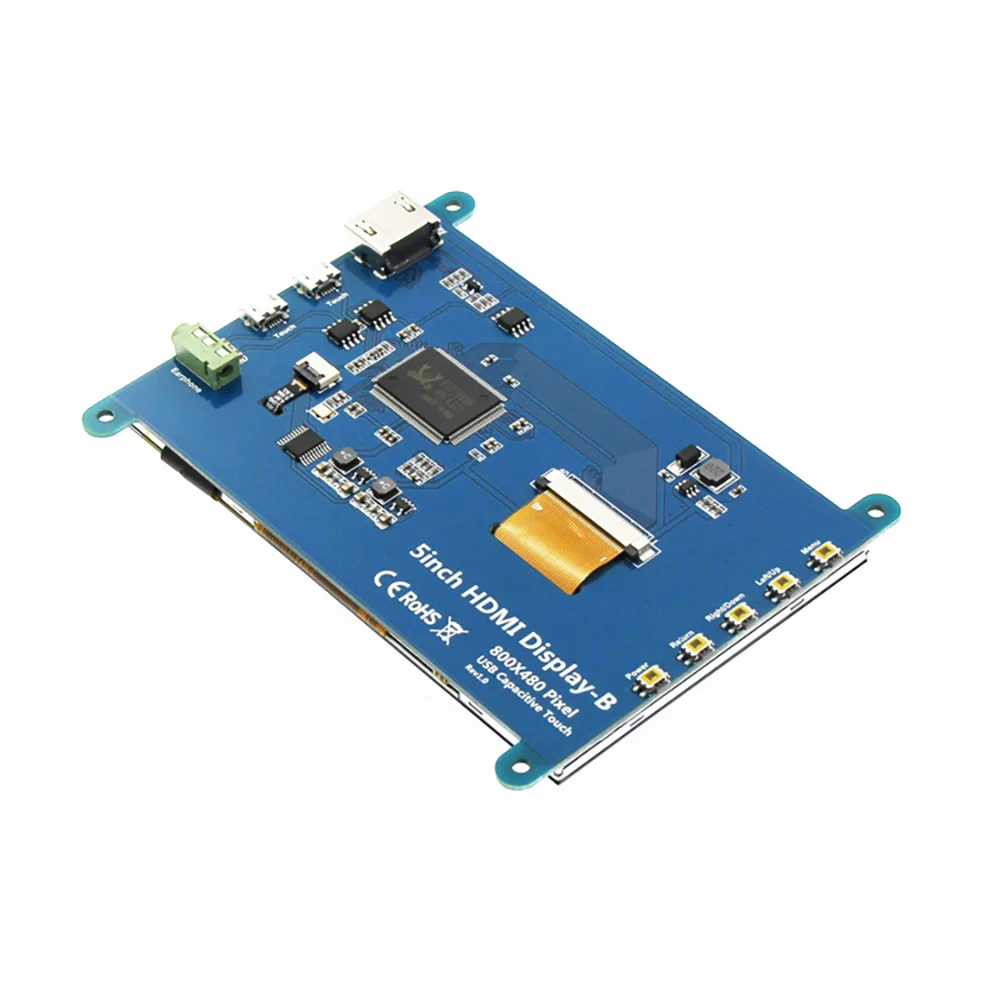

Hareware Description
Earphone: 3.5mm audio outputinterface
Touch: USB connector for power supply & touch output
HDMI interface: For signal transmission
Power: Controls the backlight to save power
Return: Return (Only valid in the OSD menu)
Up/Down: Direction & Backlight shortcut
Menu: Open the OSD/Select (Only valid in the OSD Settings menu)

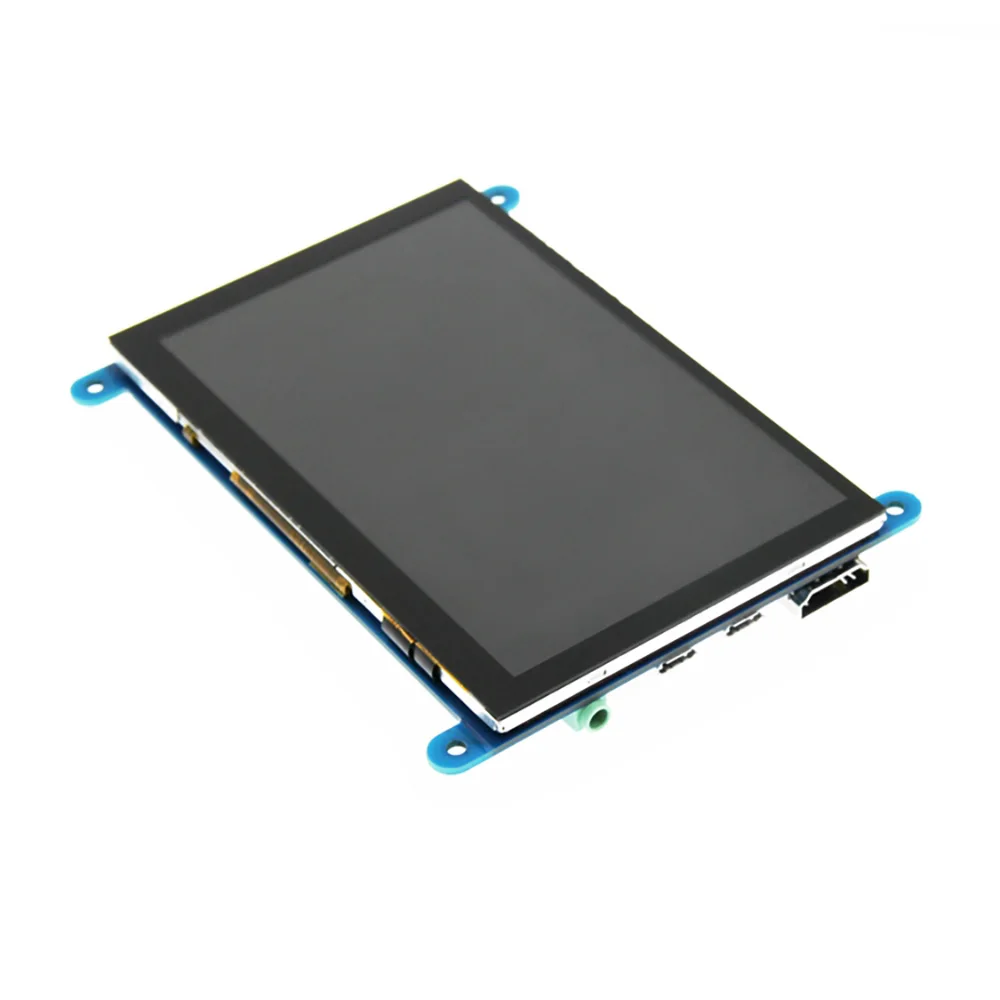

Small HDMI Screen
It's a 5 inch tiny screen equipped with a very useful HDMI port.
Generally it works with most device with standard HDMI interface, but please note that the touch function is just for windows and raspberry pi system.
