Tantalum Capacitor XJ Original Factory 3000uF 3000MFD 20% 30V Military Hybrid Tantalum Capacitors
- Category: Passive Components >>>
- Supplier: Shenzhen,Xiangyee,Electronics,Co.,Ltd.
Share on:
Product Overview
Description
Military Tantalum Capacitors
Tantalum Case Non-solid Hybrid Tantalum Capacitors | ||||||||
Standard | Series | Voltage Range (V) | Capacitance Range (µF) | Features | ||||

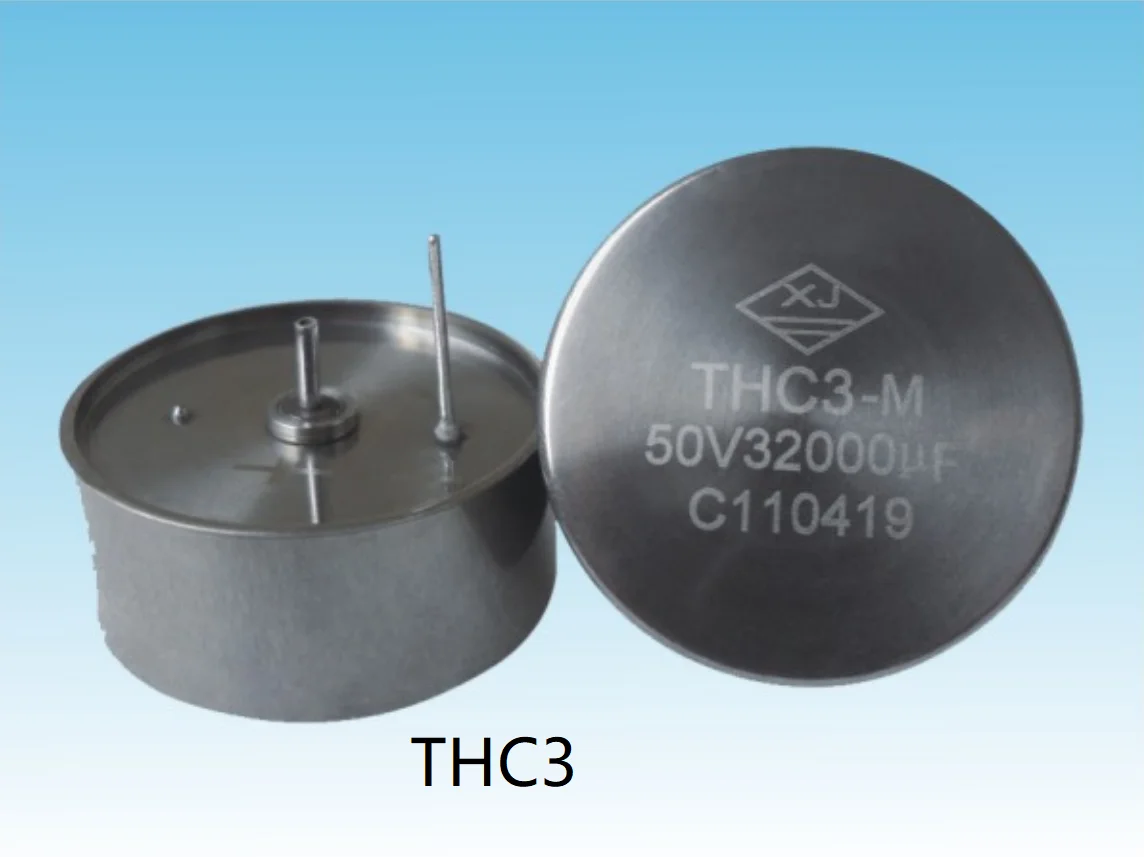

National Military Standards | THC* | 10~125 | 160~230000 | Cylindrical, Radial, Heteropolarity, Super Large Capacitance, All-tantalum Outer Case | ||||
THC*W | 10~125 | 560~230000 | Cylindrical, Radial, Heteropolarity, Super Large Capacitance, All-tantalum Outer Case, With Screws Structure | |||||

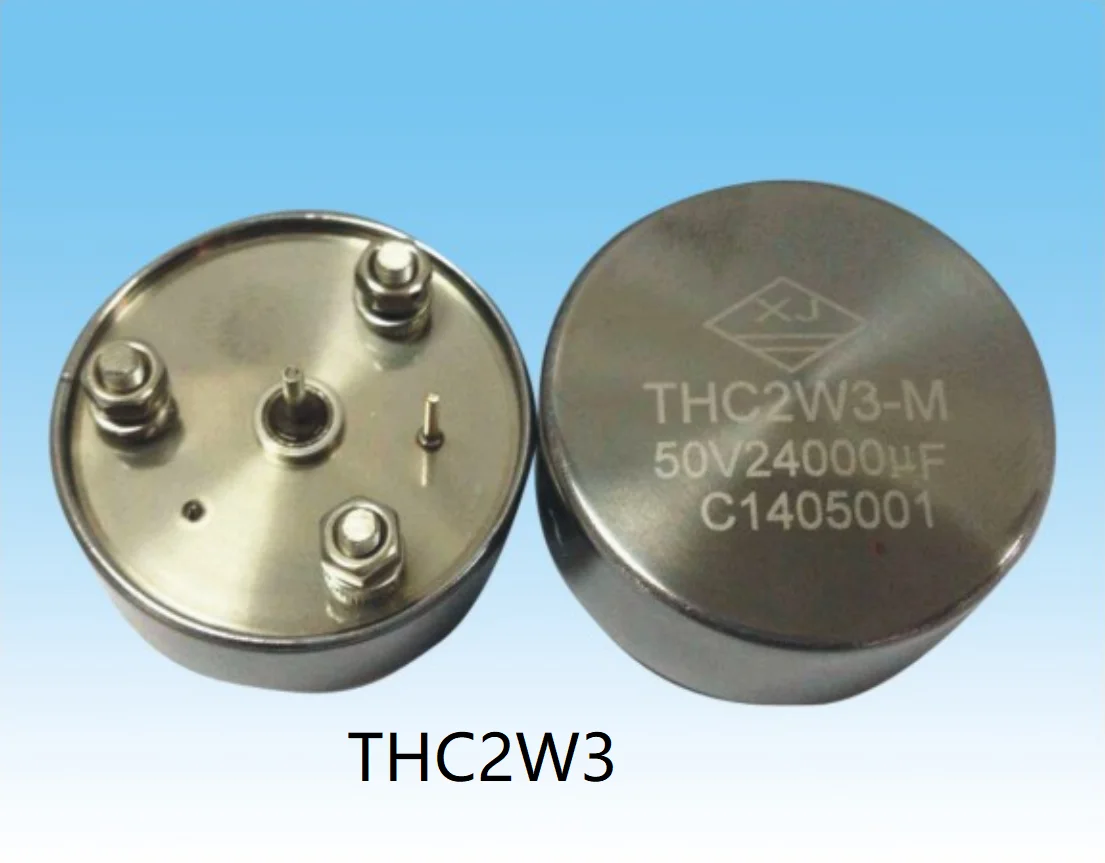

THC2W3 | 50~80 | 3000~24000 | Cylindrical, Radial, Heteropolarity, Three Screws with 120° angle Structure, Hermetically Sealed, All-tantalum Outer Case | |||||

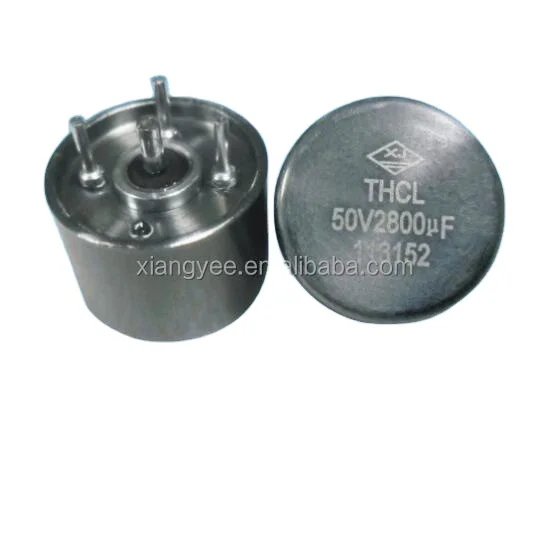

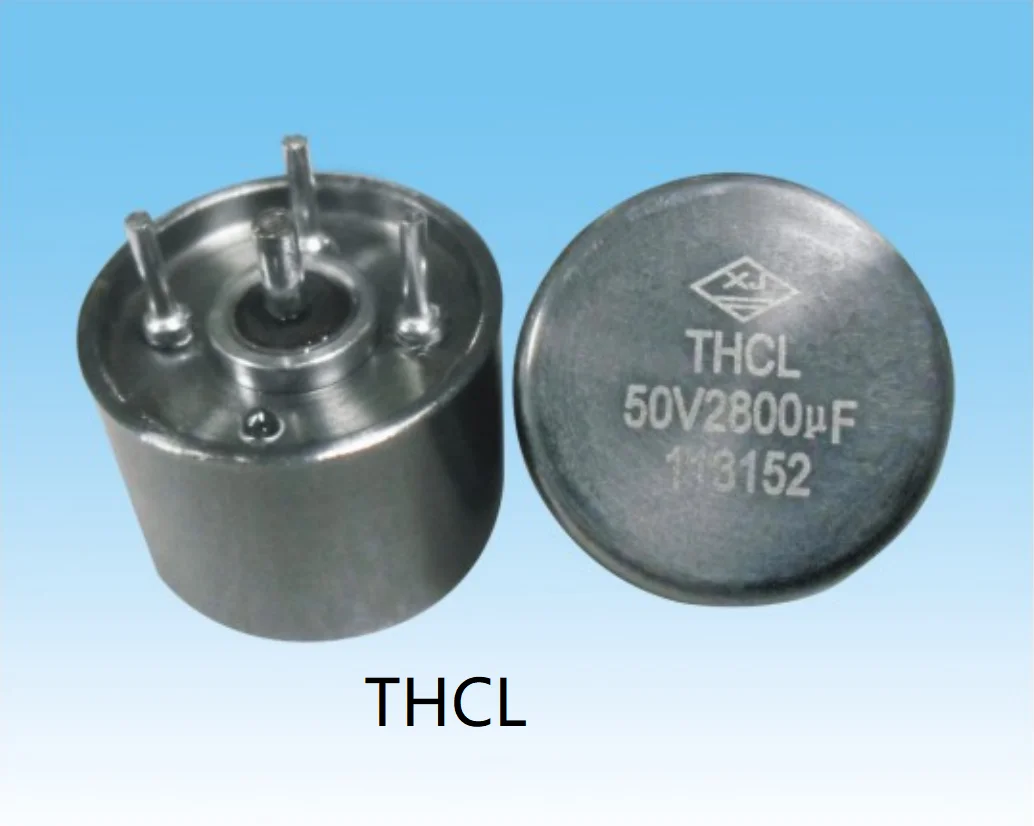

THCL | 10~125 | 68~22000 | Cylindrical, All-tantalum Outer Case, Super Large Capacitance, Heteropolarity, Radial, Small size | |||||

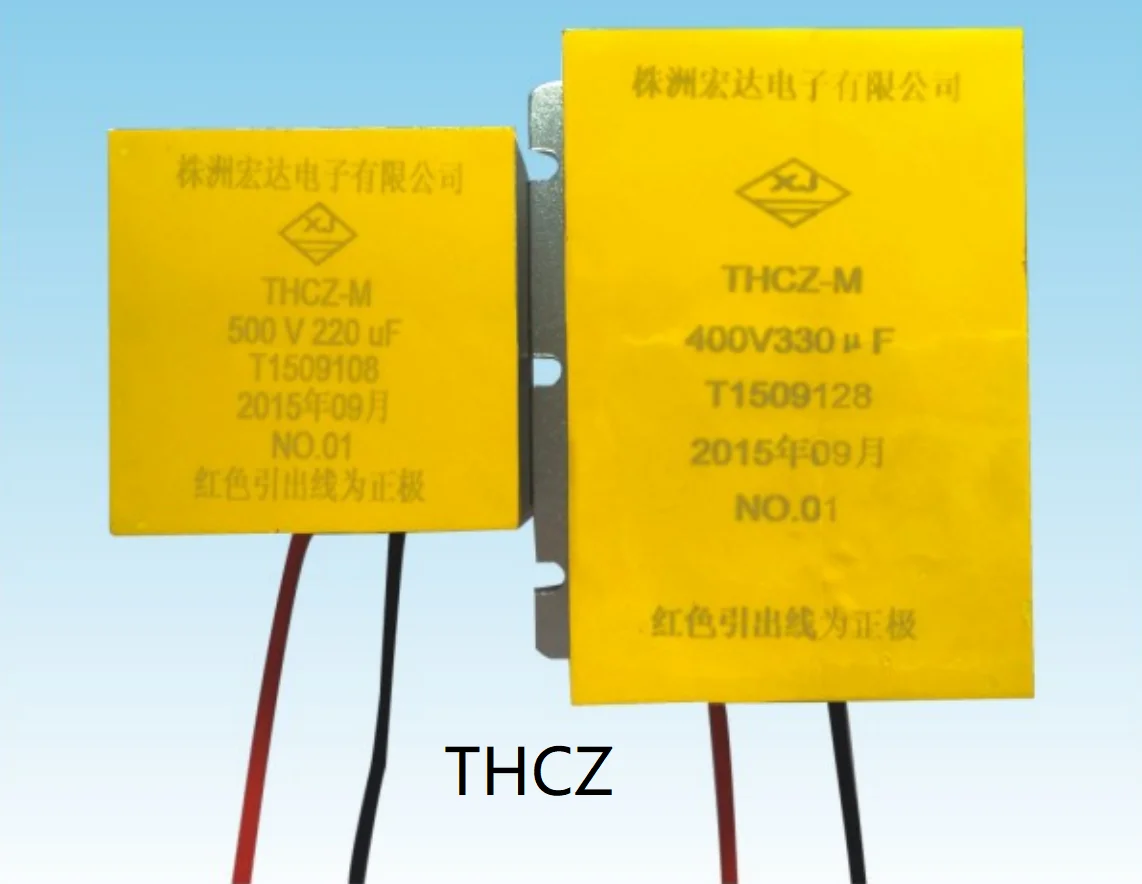

THCZ | 300~500 | 90~4700 | Rectangle, Combined Structure, High Voltage, Large Capacitance, Soft Line Leads, Heteropolarity | |||||

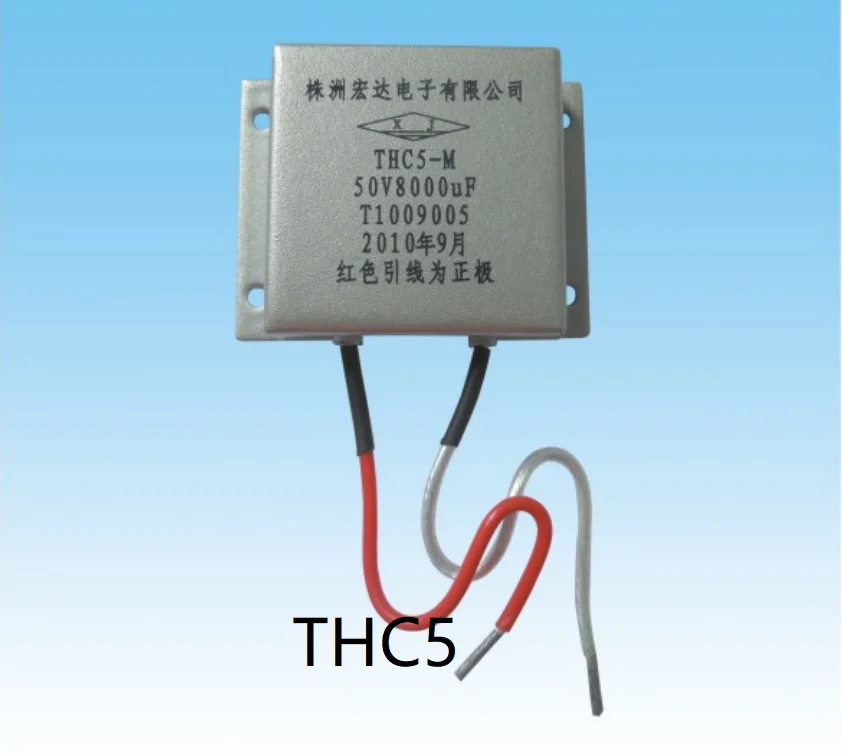

THC5 | 50 | 8000~11000 | Square, Metal Case Package, Super Large Capacitance, Soft Line Leads, Heteropolarity | |||||

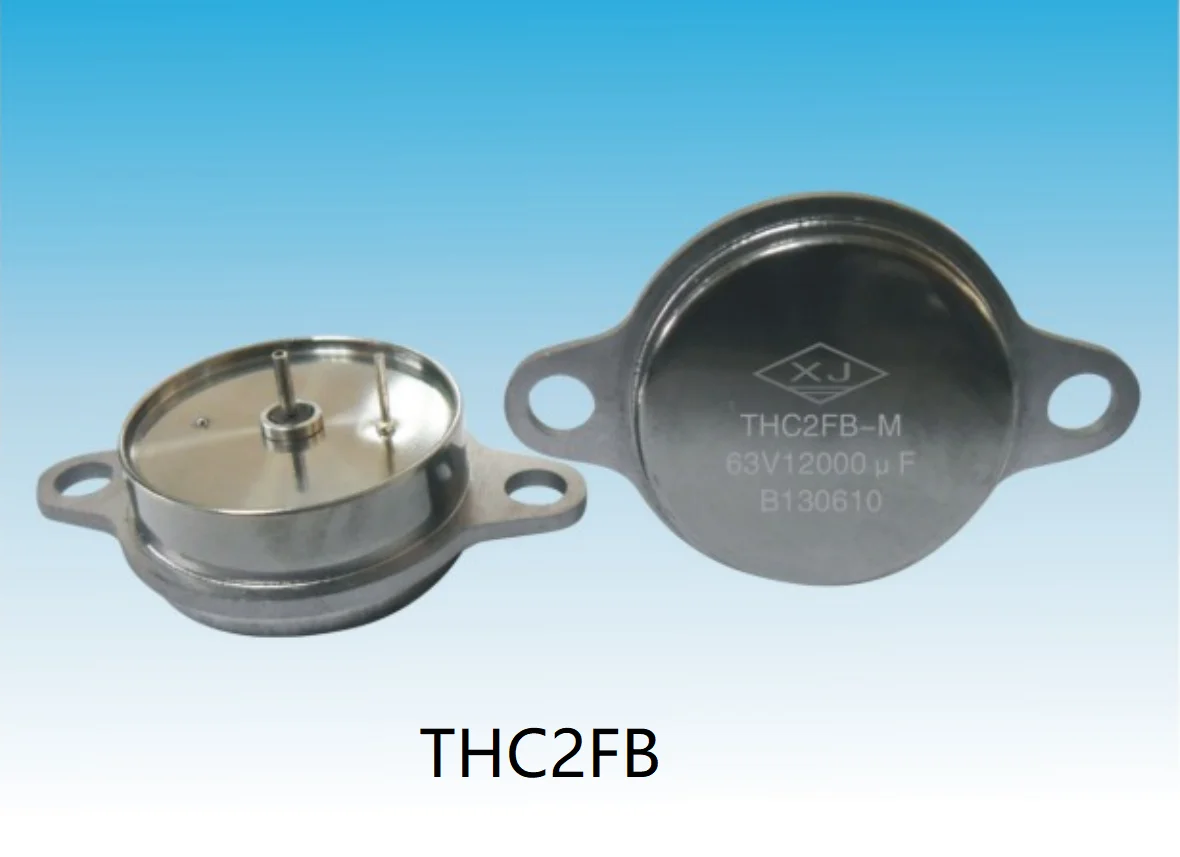

THC2F* | 10~125 | 560~230000 | All-tantalum Outer Case, Cylindrical, Hermetically Sealed, Heteropolarity, Radial, With Flange Structure | |||||

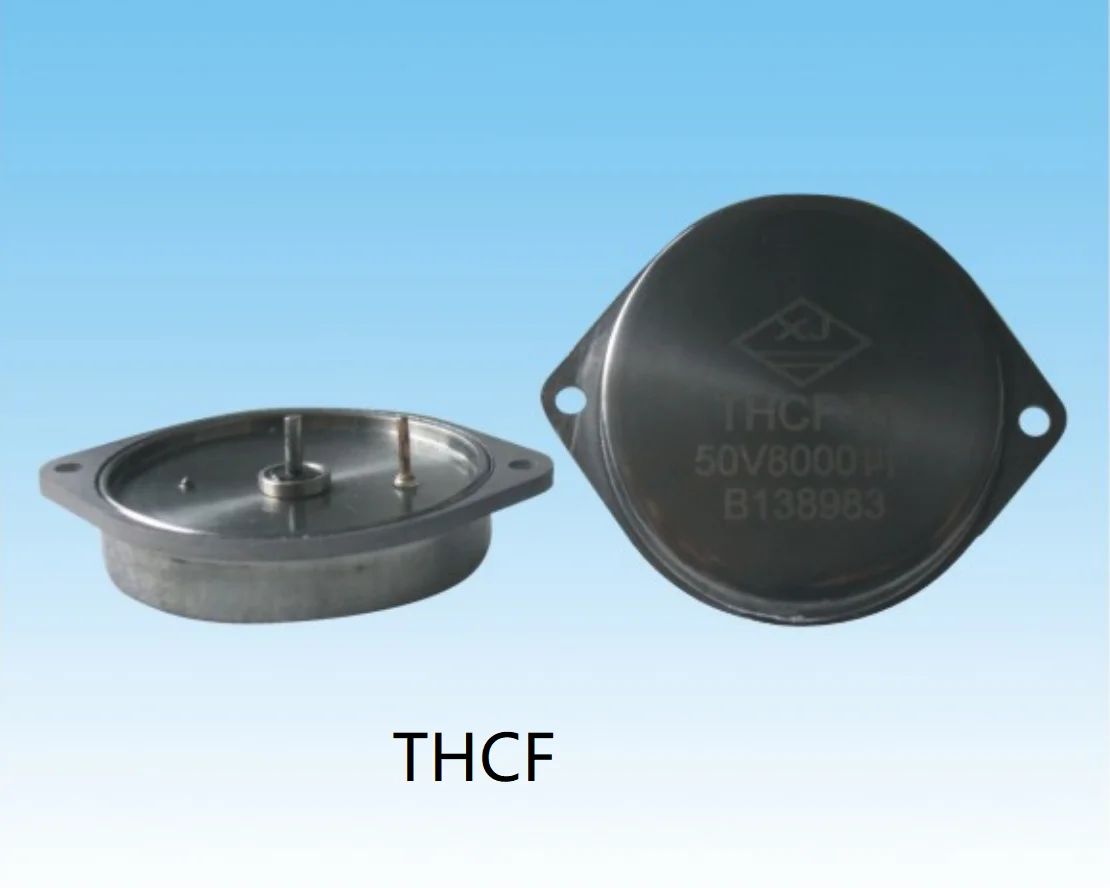

THCF | 10~125 | 580~230000 | All-tantalum Outer Case, Hermetically Sealed, Heteropolarity, Radial, With Flange Structure | |||||
Specifications
Voltage(V) | 10 | 16 | 25 | 30 | 35 | 40 | 50 |
Capacitance (µF) | |||||||
1 | 2200 | 1800 | 820 | 100/500/1000 | 680 | ||
2A/2B | 10000 | 5000 | 3800 | 3000 | 2500 | 1500 | |
3A/3B | 10000 | 6200 | 3800/4200 | 3400 | 2500 | 1000/1400/1500/1600 | |
4A/4B | 15000 | 9000 | 6000 | 4600 | 2800/3300 | ||
5A/5B | 22000 | 13500 | 9000 | 7000 | 4200 | ||
6 | |||||||
7 | 8000 |
Voltage(V) | 60 | 63 | 75 | 80 | 100 | 110 | 125 |
Capacitance (µF) | |||||||
1 | 500 | 220 | 100 | 68 | |||
2A/2B | 980 | 1000 | 630 | ||||
3A/3B | 875/100 | 470/610 | 565/700 | 500 | 180/360 | 130 | 100/210 |
4A/4B | 1200 | 1400 | 600/1000 | 360 | 260 | 200 | |
5A5B | 1800/2200 | 1400 | 1500/1500 | 540 | 390 | 300 | |
5B | |||||||
6 | 2200 | ||||||
7 |
Product Description
Product Name | Hybrid Tantalum Capacitors |

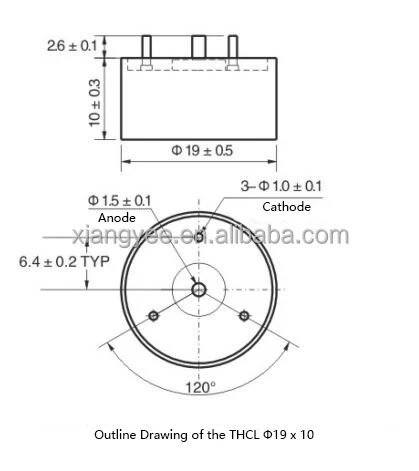

Part No. | THCL-30V3000uF-M-3A |
Detailed Description | 3000uF Hybrid Tantalum Capacitors 30V 20% |
Package | Bulk |
DC Leakage Current(DCL) | 60uA @ 25℃ & 480uA @ 85℃ |
Dissipation Factor(DF) | 85%@25℃&100Hz |
ESR (Equivalent Series Resistance) | 0.4 Ohm@25℃&1KHz |
Size / Dimension | 0.630" D x 0.315"H (16mm x 8mm) |
Impedance | 5.2 Ohm@-55℃&100Hz |
Features | Military |
More Products
Company View
Application
Communications, 5G IOT, consumer electronics, automobile，medical equipments and etc., and also aerospace , drilling instrumentation and other industries for defense.
Exhibitions

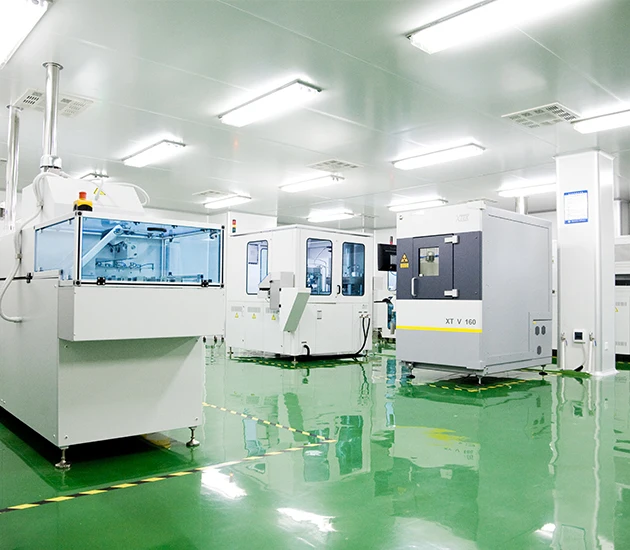

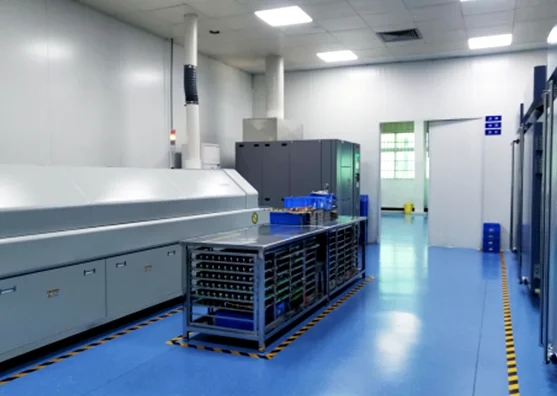

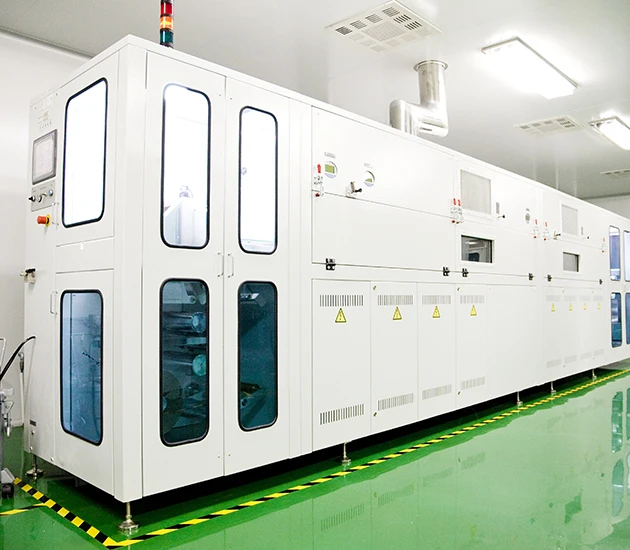

Production Process
Certifications
Cooperative Client
Packaging&Shipping
FAQ
Q1:What is the trade term?
A1:Trade terms of EXW, FCA, FOB, CPT etc. are available.
Q2:How long does it take for quotation?
A2:Normally 1-12 hours for regular items and 12-48 hours for special items.
Q3:What is the minimum order quantity (MOQ)?
A3:Usually standard pack quantity(SPQ)for regular items and 100 pcs for special items.
Q4:Are samples available?
A4:Yes,free samples for regular items and sample charges for special items.
Q5:How to handle quality problems?
A5:We have professional quality department offering technical support or exchange the items or refund your money.
Q6:Do you test the parts before delivery?
A6:Yes,100% testing before shipment,and test report is available if requested.
Q7:What is the lead time?
A7:Normally 1-3 days for stocks and 25-60 days for production.
Q8:Can we audit the factory before ordering?
A8:Of course yes,welcome to visit our office in Shenzhen and factory in Hunan.
Q9:Can we have some special requirements on the electronic parameters?
A9:Yes with higher prices.
