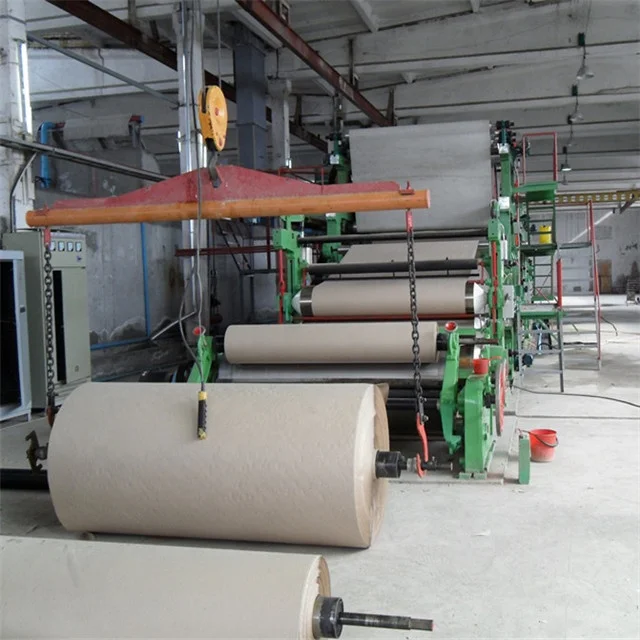

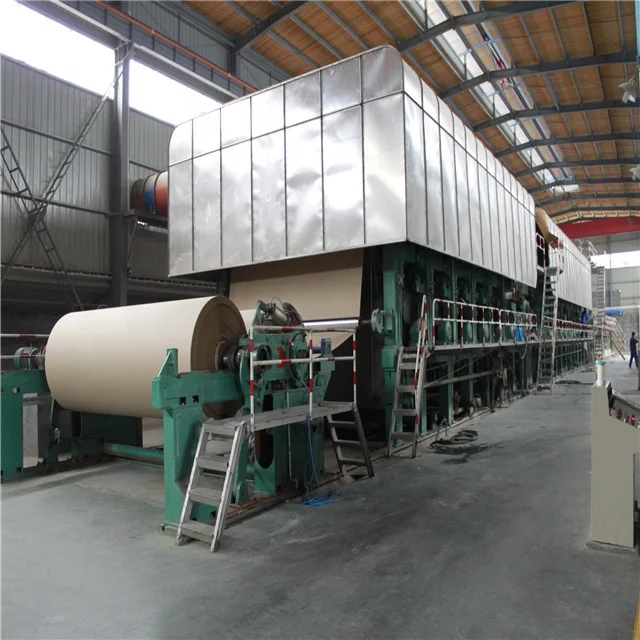

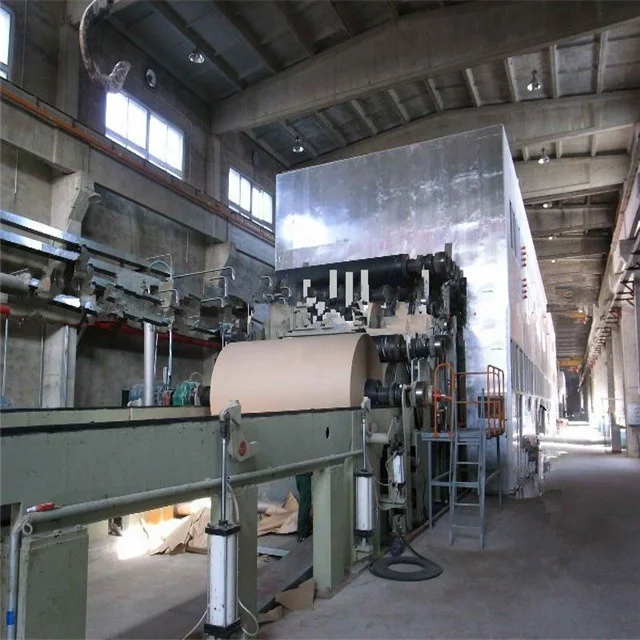

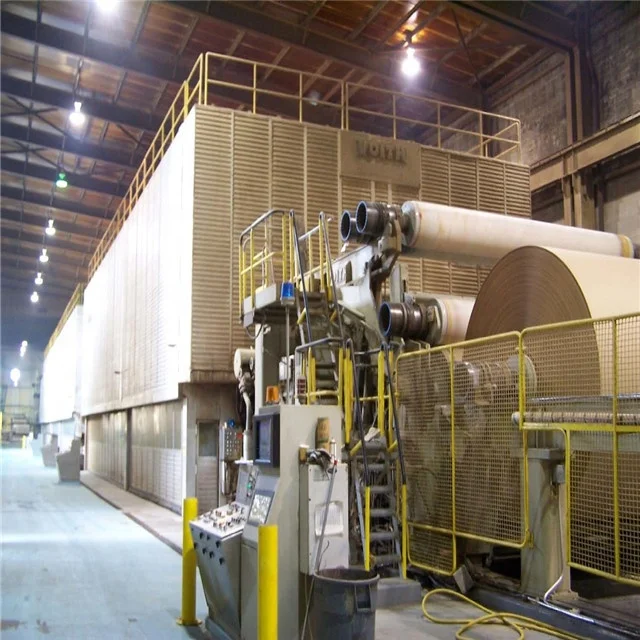

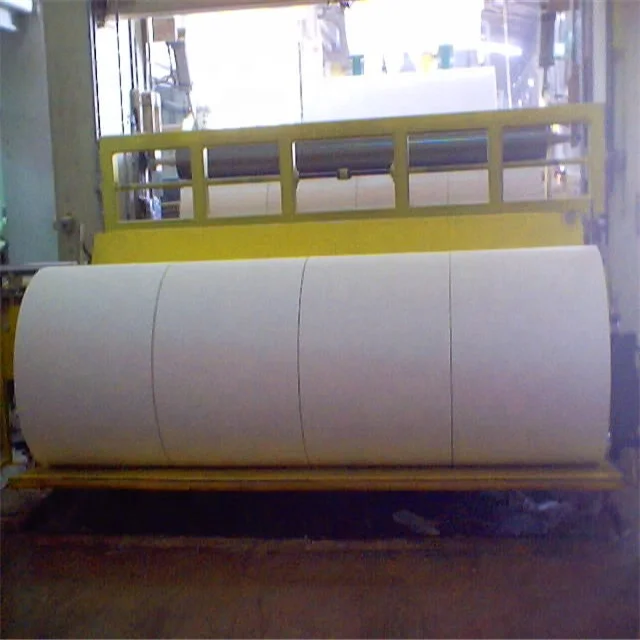

kraft liner paper/corrugated paper roll machine using recycling waste carton as raw material

Ⅰ. Technical parameter

1).Raw material:waste carton paper

2).Output paper type: kraft liner paper, corrugated paper

3).Output paper weight: 90-180g/m²

4).Output paper width: 3800mm

5).Capacity: 80T/D

6).Wire width:4250mm

7).Working speed: 80-160 m/min

8).Design speed: 200 m/min

9).Rail gauge: 5000mm

10).Drive way: Alternating current frequency conversion adjustable speed, section drive

11).Layout type: left or right hand machine.

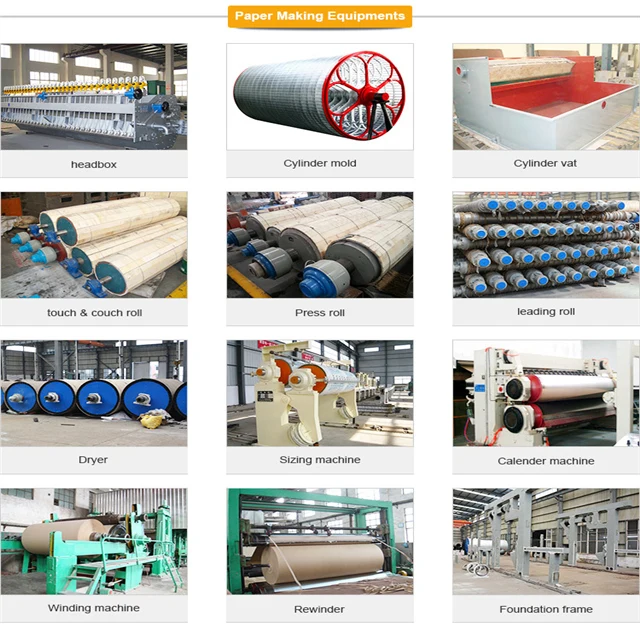

Ⅱ.Main structure

1.Cylinder mold part:

Φ1500mm×4250mm×5000mm stainless steel cylinder mold 2 sets, Φ450mm×4250mm×5000mm couch roll 2 sets,coated by rubber, rubber hardness 38±2SR^.. Φ500mm×4250mm×5000mm return roll 1 set,coated by rubber,  rubber hardness86±2SR^.. Equipped with Pressure forming device 2 sets, made from stainless steel plate.

2.Press part:

1 group of pre-press + 1st main press + 2nd main press

Pre-press: upper roller:Φ550mm×4250mm×5000mm nature marble roll 1 set,

bottom roller:Φ500mm×4250mm×5000mm rubber roll 1 set, rubber shore hardness 95℃±2, equipped with pneumatic pressure device.

1st Main press:upper roller:Φ750mm×4250mm×5000mm nature marble roll 1 set,

bottom roller:Φ700mm×4250mm×5000mm rubber roll 1 set, rubber shore hardness 95℃±2, equipped with pneumatic pressure device.

2nd Main press:upper roller:Φ850mm×4250mm×5000mm nature marble roll 1 set, bottom roller:Φ800mm×4250mm×5000mm rubber roll 1 set, rubber shore hardness 95℃±2, equipped with pneumatic pressure device.

3.Dryer part:

Φ1500mm×4250mm×5000mm alloy dryer cylinder 22sets.Arrangement:12 dryer+

sizing machine+ 6 dryer.Equipped with dry wire device and 18 sets of scraper blades and 2 group of semi-closed exhaust hood.

4.Sizing part:

Φ750mm×4250mm×5000mm sizing roll 2 sets.rubber shore hardness 98℃±2,it is   the nitrile rubber.

5. Calendering part:

Equipped with 1 set of 3800mm type 2rolls calender machine.

6. Winding part:

3800mm type horizontal pneumatic winding machine 1 set.

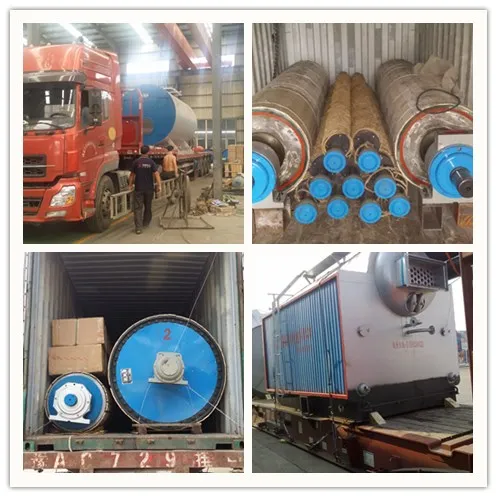

Our company will select ports for transportation based on different types of machines according to the country where the customer is located. It is usually selected at the port of Qingdao to provide customers with the best possible service.

1.Pre-sales Service

· Offering comprehensive technical and business consultation services;

· Proposing the most suitable scheme and equipment for our clients;

· Designing and fabricating targeted products according to the special re  quirements of clients;

· Training periodically high qualified service technician.

2.After-sales Service

· Highly inspecting equipments in every working procedure, quality come s first;

· Fast & Safe Delivery;

· Assisting our clients for foundation construction of equipments;

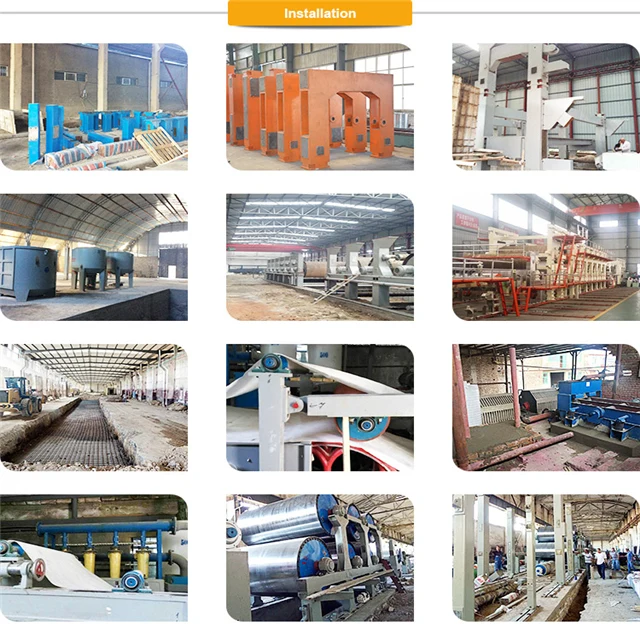

· Dispatching engineers to install and debug equipments;

· Training the first-line operators on site;

· Regularly visit clients to solve production problems;

· Providing life-long maintenance service;

· Providing technical exchanging;

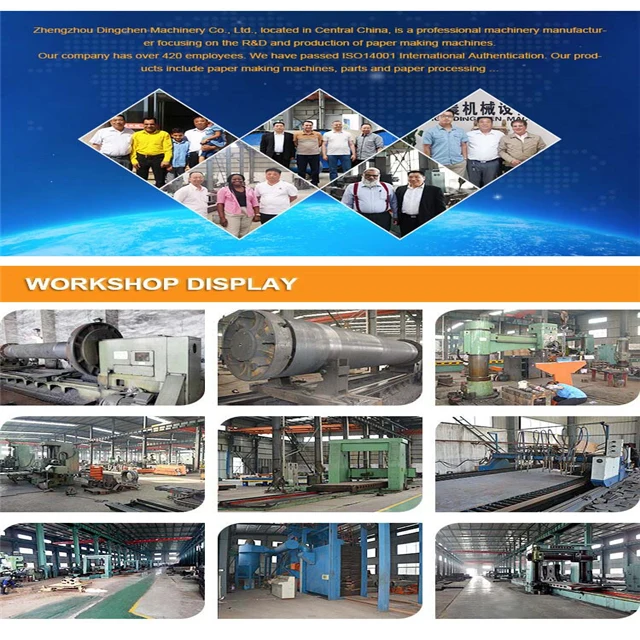

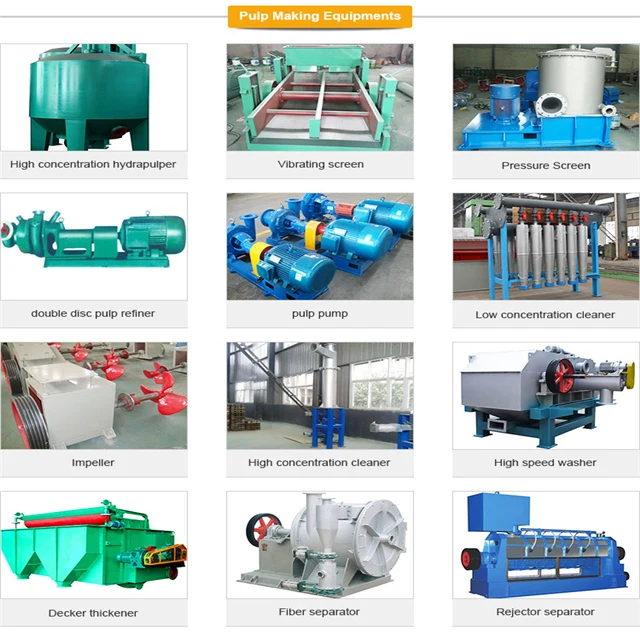

We Zhengzhou Dingchen machinery company limited has a history more than 30 years in producing pulp and paper making machines.Our products include paper making machines,pulp making machine,parts and paper converting machines such as kraft paper machines,corrugated paper machines,tissue/toilet paper machines,office paper machines, newspaper machines,and so on.Our factory gathers and trains many essential technicians and management system to ensure all products meet the quality of ISO and update constantly!

Our machines have been exported to many countries such as Uzbekistan,Pakistan,Syria,Jordan, Armenia,Yemen,Egypt,Sudan,Angola,Uganda,Nigeria,Tanzania,Gana,Brazil,Paraguay,Bangladesh, Fiji,Myanmar and so on. We win high praise from clients at home and abroad for our sophisticated craft, high quality and excellent function.

1.What information do you need,if i need to get a quotation from you?

Answer:Output paper type;Capacity(tons/24hours);Output paper weight(gram/m2);Raw material.

2.How long is guarantee period for paper making machine?

Answer:12 months after formal operational

3.What is the delivery time if we make a order from you?

Answer:Usually,the delivery time for smaller machines is 30-45 days after receiving deposit,but for bigger

machines,it will be longer to make sure the equipment quality.

4.What is your payment terms?

Answer:(1). T/T(telegraphic transfer)30% as deposit,and 70%balance paid before shipment.

(2). 30%T/T + 70%L/C at sight.    (3). 100%L/C at sight.

5.How is the quality of your equipment?

Answer:

(1).We have been specializing in pulp and paper making machines for 40 years.We have enough practice/experience.To keep and develop our good reputation,we couldn't allow the unqualified machine,as well as you.

(2).We have a technician team of engineers and experts.They mainly research the advanced paper making

technology,to make sure our machines’ design are newest.

(3). The machines will be pre-installed at workshop before delivery.

6.Why your price is higher than other similar supplier?

Answer:Different quality,different price.Our price is matched with our high quality.Compared with other suppliers based on the same quality,our price is lower.But anyway,to show our sincerity,we will give you some discount.
