l Buildings Steel Structure Warehouse
Steel structure building is mainly refers to the main bearing component is composed of steel, including the steel columns, steel beam, steel structure, steel roof truss. Each component using welds, bolts or rivets to connect.
The roof and wall can be made of composite panel or veneer. Galvanized sheet metal can prevent rust and corrosion. The use of self-tapping screw can make the connection between the plates more closely, to prevent leakage. You can also use composite panel for roof and wall. The sandwich can be polystyrene, glass fiber, rock wool, polyurethane. They have good thermal insulation, heat insulation, fire-retardant. The wall of the steel structure maintenance also can use brick wall. However, the cost of a brick wall is higher than galvanized steel roof and wall.
The usage scale includes large-scale workshop, warehouse, supermarkets, entertainment centers and modular steel structure garage, and farm chicken house even hangar as well.
(1). Free design architectural drawings for you;
(2). Features: Fast and flexible to assemble, safe, thermal and noise insulation, water proof and fire prevention;
(3). Cost-effective: Fast and easy installation greatly shorten the construction time which reduce the costs;
(4). Durability: The whole structure is easy in maintenance, which can be used for more than 50 years.
(5). Perfect design: Perfect design completely avoids leaks and water seepage. Meanwhile, it's also in line with the national level of fire prevention.
(6). Carrying capacity: can resists the impact of strong wind and seismic performance and bears heavy snow loads
| Items|| Specification|
| Main Steel Frame|| Column|| Q235, Q345 Welded H Section Steel|
| Beam|| Q235, Q345 Welded H Section Steel|
| Secondary Frame|| Purlin|| Q235 C and Z purlin|
| Knee brace|| Q235 Angle Steel|
| Tie Rod|| Q235 Circular Steel Pipe|
| Brace|| Q235 Round Bar|
| Vertical and Horizontal Support|| Q235 Angle Steel, Round Bar or Steel Pipe|
| Maintenance system|| Roof Panel|| EPS Sandwich Panel / Glass Fiber Sandwich Panel /|
Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet
| Wall Panel|| Sandwich Panel / Corrugated Steel Sheet|
| Accessories|| Window|| Aluminiumn Alloy Window / PVC Window / Sandwich Panel Window|
| Door|| Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door|
| Rainspout|| PVC|
| Live load on Roof|| In 120kg/Sqm (Color steel panel surrounded)|
| Wind Resistance Grade|| 12 Grades|
| Earthquake-resistance|| 8 Grades|
| Structure Usage|| Up to 50 years|
| Finishing Options|| Vast array of colors and textures available|
| Paint Options|| Alkyd paiting, two primary painting, two finish painting|
(gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized.

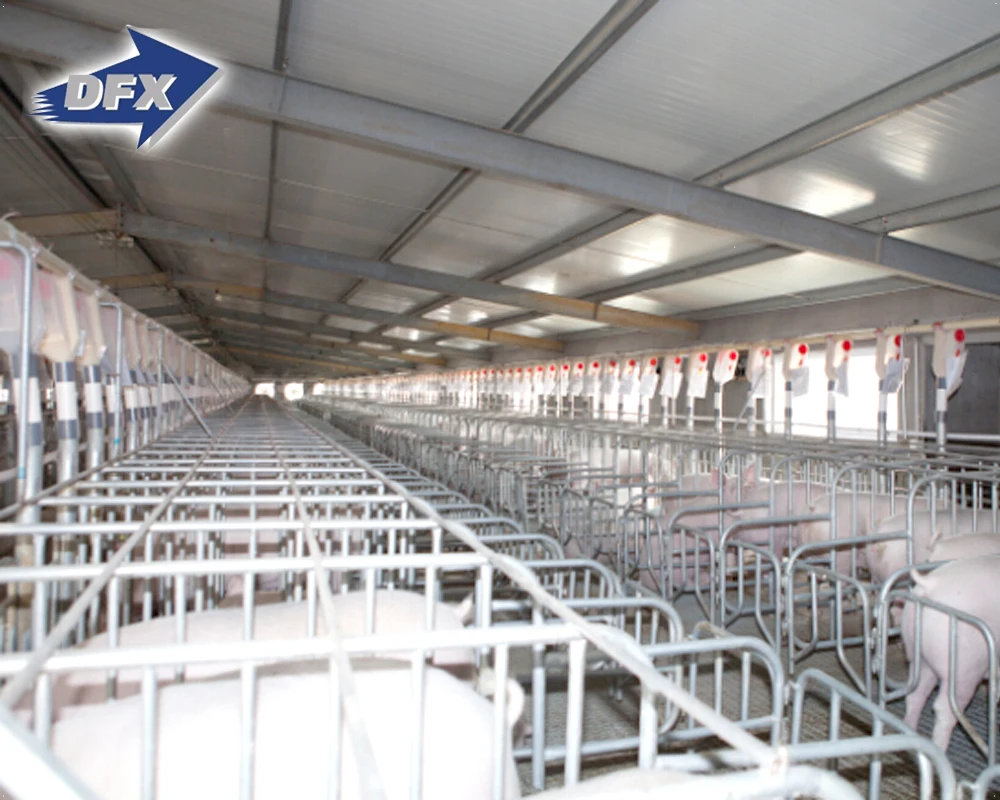

Real Photo On Site
