BRZHIFI A20 All Aluminum EL34 HiFi Amp 10W*2 Close to 300B Stereo Audio Amplificador Z11 Transformer Single-ended Class A Tube Amplifier
Features
1. The EL34 sound is round and delicate, and the human voice is natural and transparent.
2. The tone of FLUE50 is mellow and thick, with full mid and low frequencies.
3. 300B has a balanced atmosphere and good sound quality.
4. Using authentic Japanese Z11 slices, transformer silicon steel slices.
5. Japan's ALPS16 large potentiometer has first-class feel, life and accuracy.
6. American CMC816 24K gold-plated RCA input terminal, anti-oxidation.
7. Large-scale pure copper terminal, long-term use does not turn black, and the output current is large.
8. Japan's AME beauty oxygen-free copper signal line has high transmission purity and pure sound quality.
9. A large number of imported audiophile capacitors are used, and the sound quality is naturally guaranteed.
2. The tone of FLUE50 is mellow and thick, with full mid and low frequencies.
3. 300B has a balanced atmosphere and good sound quality.
4. Using authentic Japanese Z11 slices, transformer silicon steel slices.
5. Japan's ALPS16 large potentiometer has first-class feel, life and accuracy.
6. American CMC816 24K gold-plated RCA input terminal, anti-oxidation.
7. Large-scale pure copper terminal, long-term use does not turn black, and the output current is large.
8. Japan's AME beauty oxygen-free copper signal line has high transmission purity and pure sound quality.
9. A large number of imported audiophile capacitors are used, and the sound quality is naturally guaranteed.
10. This version is the standard version. If you want a higher version, please contact me.
Specification
Brand Name | BRZHIFI |
Model Number | PAT-A20 |
Type | Home amplifier |
Material | Aluminum Alloy |
Certification | CE |
Place of Origin | Guangdong China |
Color | Silver |
Output power | 10W*2 8 ohms |
Class A (EL34) load range | 4-8 ohms |
Frequency response | 20Hz--25KHz |
Total harmonic distortion | 1% (1kHz) |
Input sensitivity | 500mV--2000mV |
Input impedance | 100KΩ |
Signal to noise ratio | 90dB |
Volume | 304*160*274MM（W*H*D） |

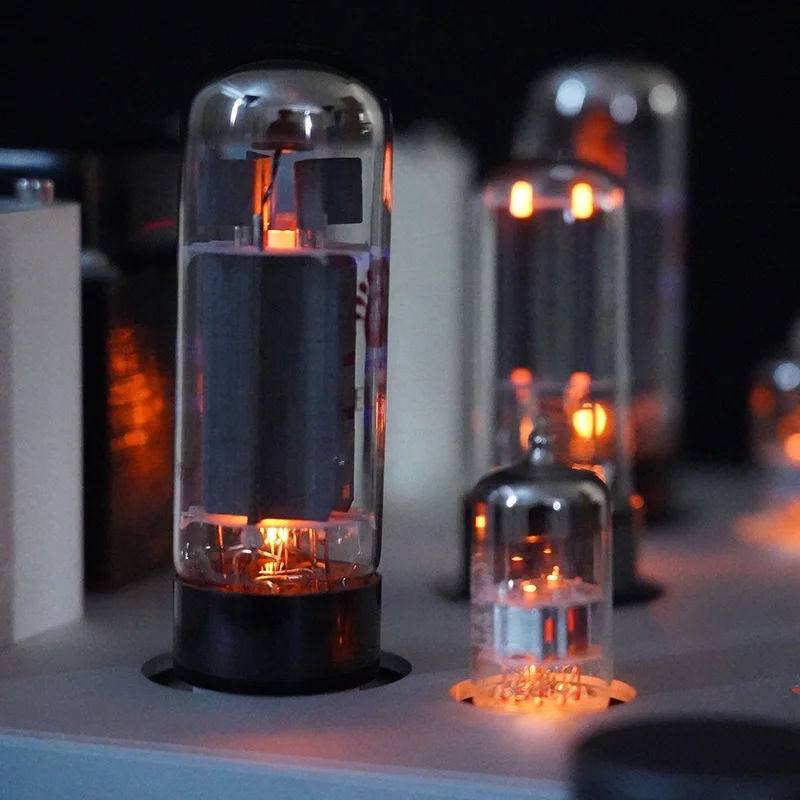

Electronic tube | EL34*2, 5Z4P, 6N2*2 |
Dimensions | 366*84*316MM（W*H*D） |
Net weight | 8.55KG |
Product packaging
1* Amplifier
1* Power supply cable (We have 3 types: UK standard, US standard and EU standard. Please note which one you need when placing an order)
