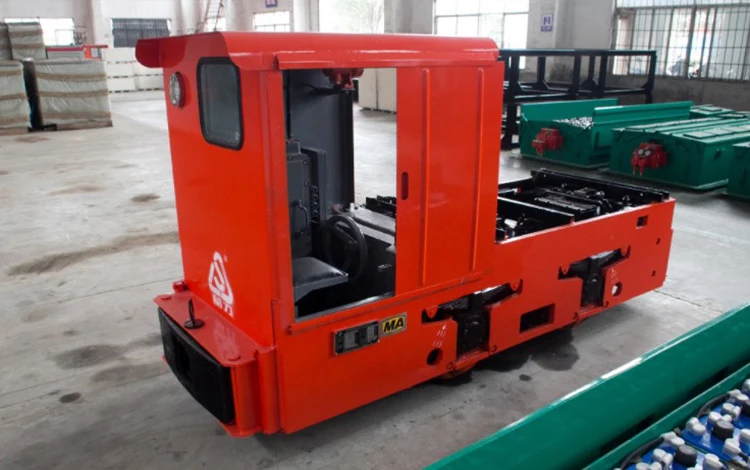

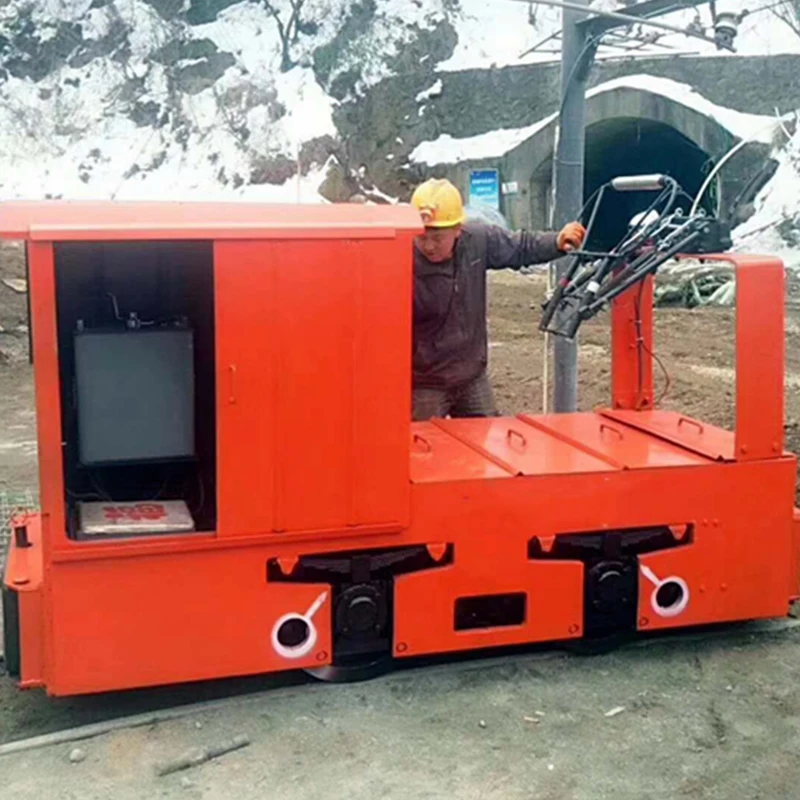

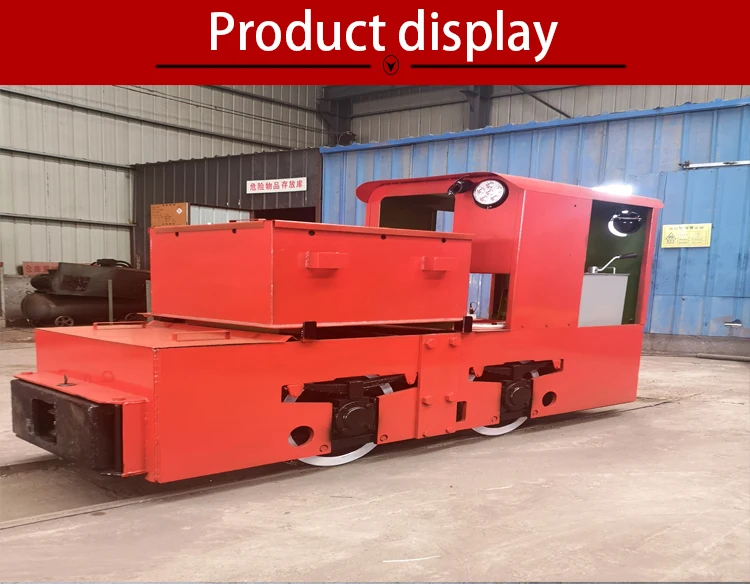

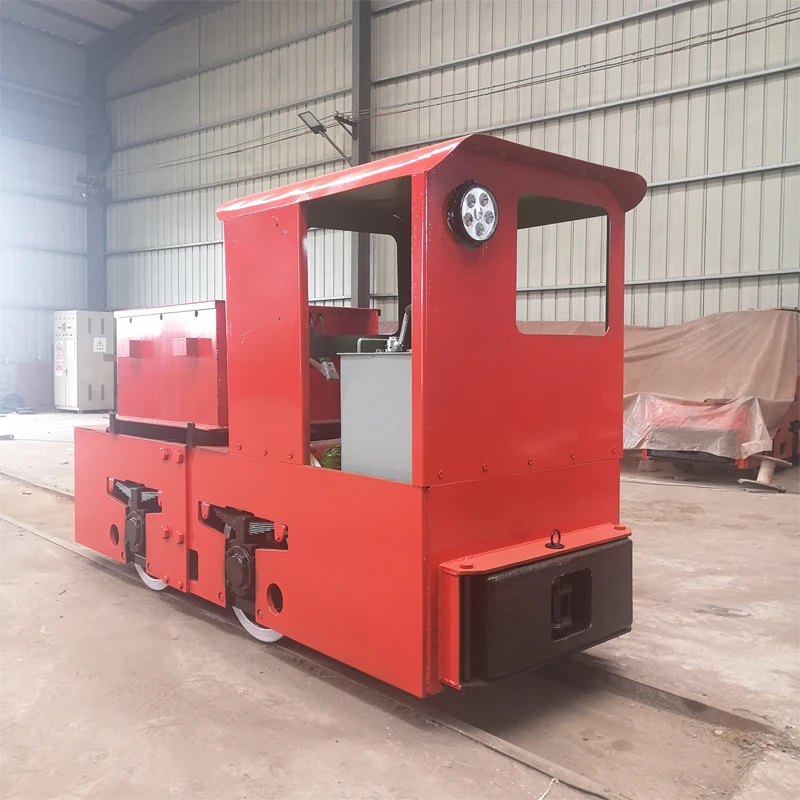

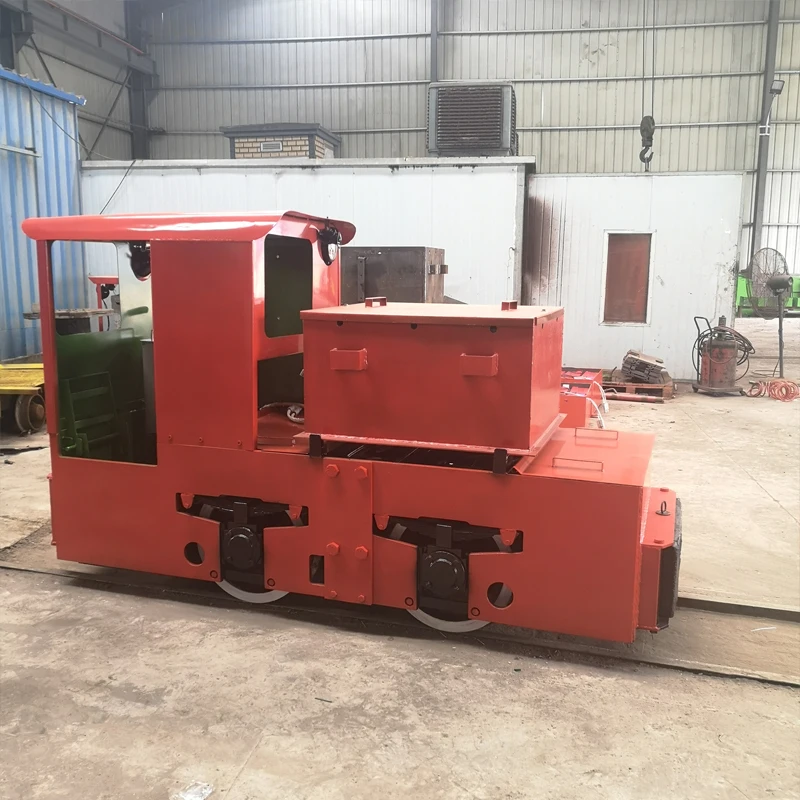

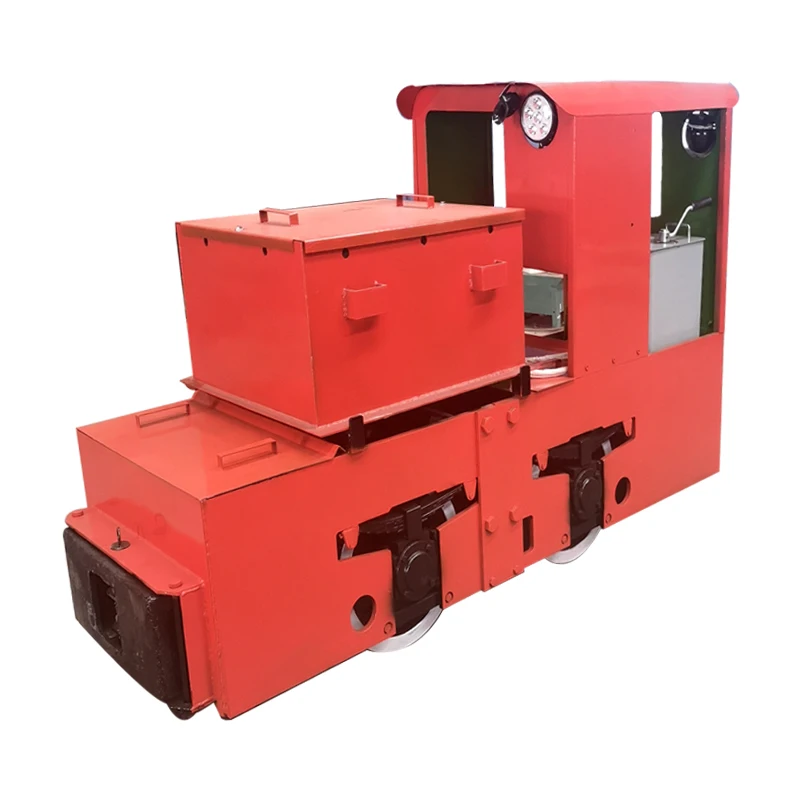

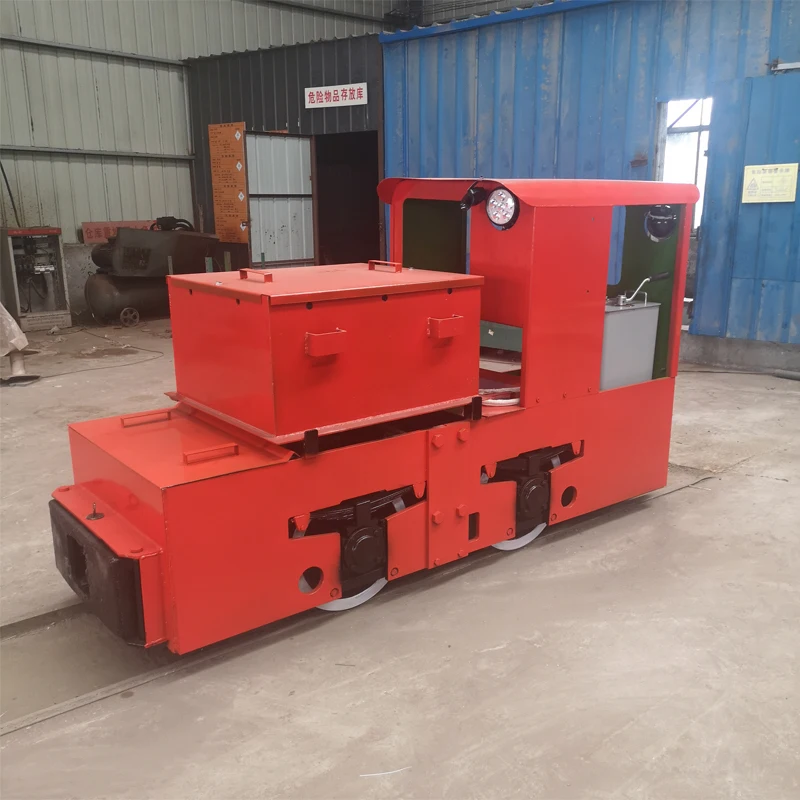

Hot selling mine stringing electric locomotive, special battery for coal mine, mine tunnel transportation trolley

Product Overview

Description

locomotive Model No. specifications	CAY8/6GP	CAY8/7GP	CAY8/9GP
Adhesive / total weight (t)	8	8	8
Track gauge (mm)	600	762	900
Wheelbase (mm)	1100	1100	1100
Wheel diameter over tread	680	680	680
Coupler height over Steel rail (mm)	320/430	320/430	320/430
Min Curve radius (m)	7	7	7
Battery volt rating (V)	132(440Ah)	140(440Ah)	192(440Ah)

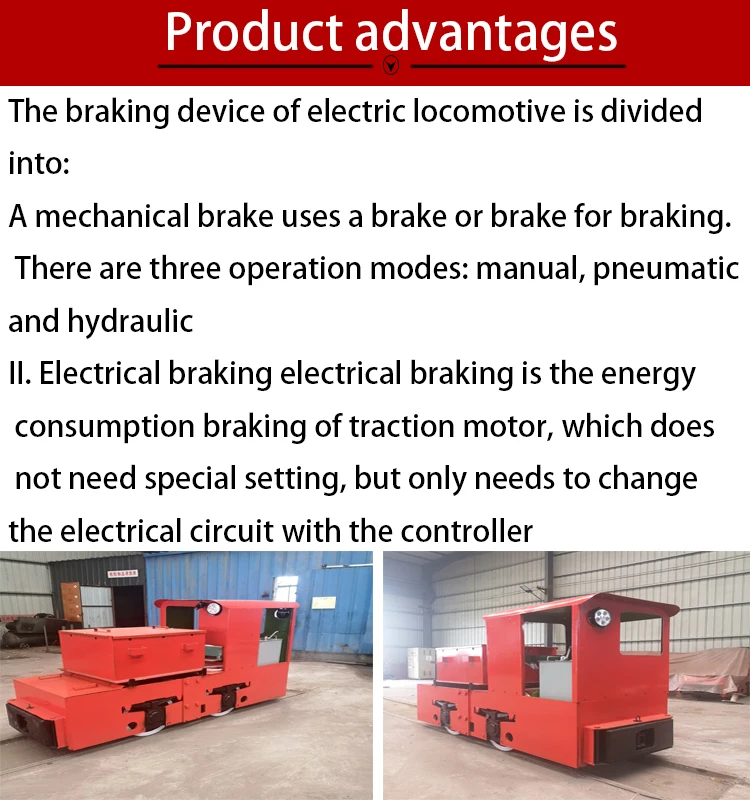

Braking method	Mechanical and electrical	Mechanical and electrical	Mechanical and electrical
Max tractive effort (KN)	22	22	22
Max speed (km/h)	20	20	20
Rated speed per hour (km/h)	10	10	10
Power of traction Motor (KW)	2*22	2*22	2*22
Transmission	Single level Spur gearing	Single level Spur gearing	Single level Spur gearing
Controller	AC frequency conversion	AC frequency conversion	AC frequency conversion
Over all dimensions (mm)	4460*1060*1590	4400*1340*1590	4460*1340*1590

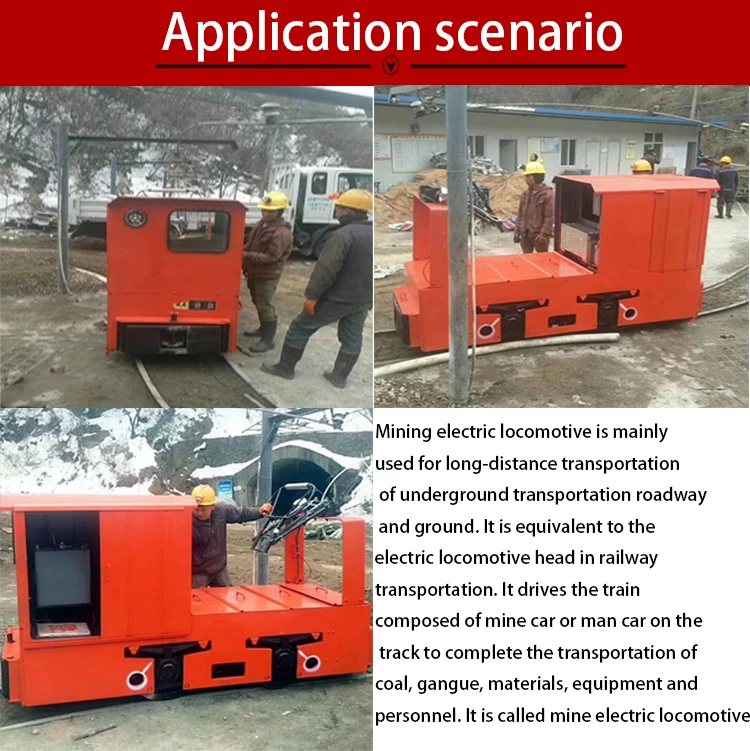

Service & Application	Mucking in mining & tunneling	Mucking in mining & tunneling	Mucking in mining & tunneling

1.About Delivery:The wood iron box packing steel bar cutting machine is adopted to better ensure the safety and quality of products.Plastic bag covered with strong waterproof bag-double protection of the machine from water and surface damage.
2Logistics distribution:Multiple ports, multiple exit points. Product transportation will be faster and more convenient. Secure the machine to an iron frame - prevent damage. Cartons are covered on shelves to protect the privacy of machine customers' goods
3.sale service:The warranty period of after-sales service is one year contact information:TEL:17862905188 Mailbox:312493026
