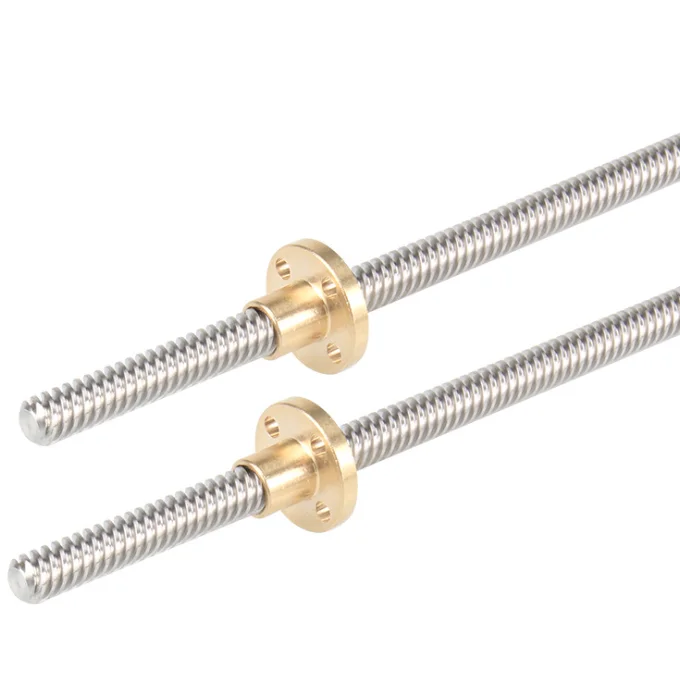

45# steel T8 t10 t12 t16 t20 Trapezoidal screw lead screw with brass nut for cnc lathe
- Category: >>>
- Supplier: Shenzhen Win3d Machinery Co. Ltd.
Share on (1600407984465):
Product Overview
Description
Details Images
Please check the assambel of linear guideway carriage.
The Lead Screw is a high-efficiency feed screw with the ball making a rolling motion between the screw axis and the nut. Compared with a conventional sliding screw, this product has drive torque of one-third or less, making it most suitable for saving drive motor power.
100% real picture, please check the rail and block.
Features:
1.low noise.
2.small torque fluctuations.
3.long-term maintenance-free operation by using a ball cage.
Product Description
Item | Model | Pitch | Screw Distance | Screw Number | Angle | Outer diameter | Middle Diameter | Lower diameter |
trapezoidal screw | Tr8*1.5 | 1.5 | 1.5 | 1P | 30° | 8 | 7.25 | 6.5 |
trapezoidal screw | Tr8*3-2P | 3 | 1.5 | 2P | 30° | 8 | 7.25 | 6.5 |
trapezoidal screw | Tr8*6-4P | 6 | 1.5 | 4P | 30° | 8 | 7.25 | 6.5 |
trapezoidal screw | Tr8*2 | 2 | 2 | 1P | 30° | 8 | 7 | 6 |
trapezoidal screw | Tr8*4-2P | 4 | 2 | 2P | 30° | 8 | 7 | 6 |
trapezoidal screw | Tr8*6-3P | 6 | 2 | 3P | 30° | 8 | 7 | 6 |
trapezoidal screw | Tr8*8-4P | 8 | 2 | 4P | 30° | 8 | 7 | 6 |
trapezoidal screw | Tr8*10-5P | 10 | 2 | 5P | 30° | 8 | 7 | 6 |
trapezoidal screw | Tr8*12-6P | 12 | 2 | 6P | 30° | 8 | 7 | 6 |
trapezoidal screw | Tr8*14-7P | 14 | 2 | 7P | 30° | 8 | 7 | 6 |
trapezoidal screw | Tr8*16-8P | 16 | 2 | 8P | 30° | 8 | 7 | 6 |
Item | Model | Pitch | Screw Distance | Screw Number | Angle | Outer diameter |
trapezoidal screw | Tr10*2 | 2 | 2 | 1P | 30° | 10 |
trapezoidal screw | Tr10*2.5 | 2.5 | 2.5 | 1P | 30° | 10 |
trapezoidal screw | Tr10*3 | 3 | 3 | 1P | 30° | 10 |
trapezoidal screw | Tr10*4-2P | 4 | 2 | 2P | 30° | 10 |
trapezoidal screw | Tr10*5-2P | 5 | 2.5 | 2P | 30° | 10 |
trapezoidal screw | Tr10*6-2P | 6 | 3 | 2P | 30° | 10 |
trapezoidal screw | Tr10*8-4P | 8 | 2 | 4P | 30° | 10 |
trapezoidal screw | Tr10*10-5P | 10 | 2 | 5P | 30° | 10 |
trapezoidal screw | Tr10*12-6P | 12 | 2 | 6P | 30° | 10 |
trapezoidal screw | Tr10*12-4P | 12 | 3 | 4P | 30° | 10 |
Item | Model | Pitch | Screw Distance | Screw Number | Angle | Outer diameter |
trapezoidal screw | Tr12*2 | 2 | 2 | 1P | 30° | 12 |
trapezoidal screw | Tr12*2.5 | 2.5 | 2.5 | 1P | 30° | 12 |
trapezoidal screw | Tr12*3 | 3 | 3 | 1P | 30° | 12 |
trapezoidal screw | Tr12*4-2P | 4 | 4 | 1P | 30° | 12 |
trapezoidal screw | Tr12*5-2P | 5 | 2.5 | 2P | 30° | 12 |
trapezoidal screw | Tr12*6-2P | 6 | 3 | 2P | 30° | 12 |
trapezoidal screw | Tr12*8-2P | 8 | 4 | 2P | 30° | 12 |
trapezoidal screw | Tr12*8-4P | 8 | 2 | 4P | 30° | 12 |
trapezoidal screw | Tr12*10-4P | 10 | 2.5 | 4P | 30° | 12 |
trapezoidal screw | Tr12*12-4P | 12 | 3 | 4P | 30° | 12 |
trapezoidal screw | Tr12*12-6P | 12 | 2 | 6P | 30° | 12 |
trapezoidal screw | Tr12*15-5P | 15 | 3 | 5P | 30° | 12 |
Drawings and data sheets
1.Please choose the right model according to your needs.
2.The length of rail base on your needs. Its range is 0 to 4000mm.
Recommend Products
Product packaging
Cartons
If length is short, to save freight, we will use cartons.
Wooden box
If length is long, to protect the rail, we will use wooden box.
