Product Overview

Description



Product Description

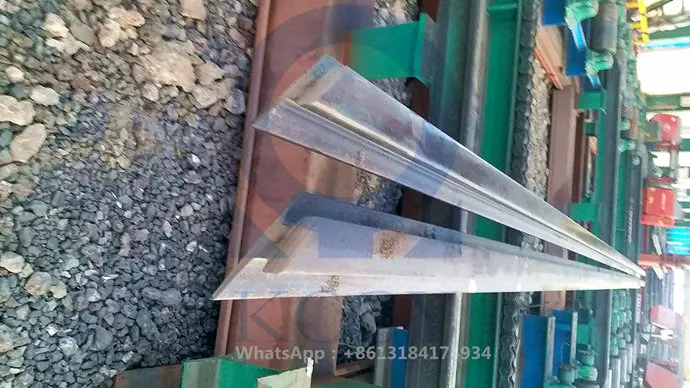

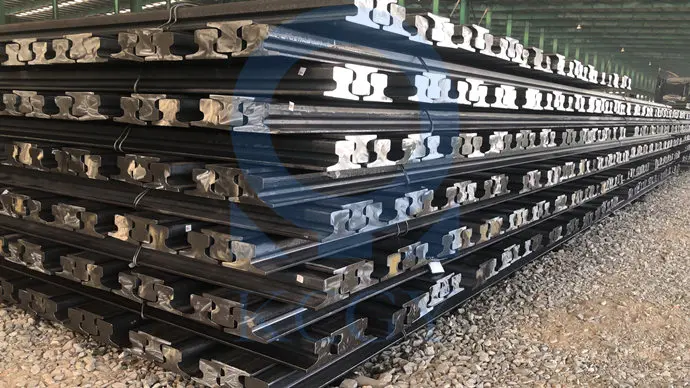

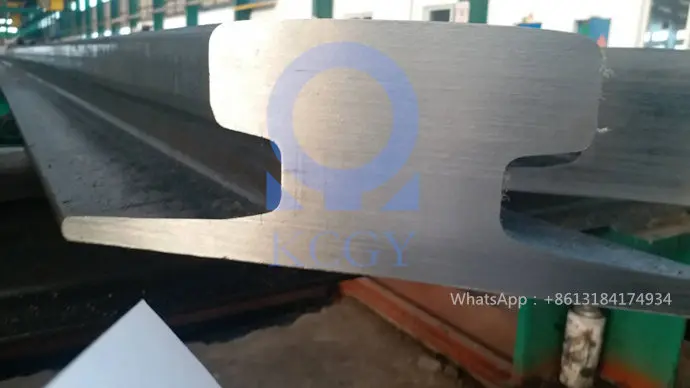

European Standard S30 Steel Rail


We can supply all kinds of steel rails, including S30 steel rail, heavy rail, crane rail with different standards and specifications.


S30 steel rail is mainly used for plants, ports, railways, etc.And offer light steel rail including S14 light rail, S18 light rail, S20 rail, S24 light rail, S30 light rail., etc.


Specification:


Size: S30 steel rail


Length: 5-12m or another length according to customers’ requirement


Material: Q235B, 55Q, R0550, R0700


Standard: DIN5901













































Q235Mechanical propertyChemical composition(%)
Yield strengthTensile strengthElongationHardnessCSiMnSP
MPa




≥


kg/mm²




≥


MPakg/mm²minHB≤≤≤
23524375-46038-4726% 0.12-0.220.350.30-0.700.0450.045

…………………………………………………………………………………………………………………………………………………………













































55Q  Mechanical propertyChemical composition(%)
Yield strengthTensile strengthElongationHardnessCSiMnSP
MPa




≥


kg/mm²




≥


MPa




≥


kg/mm²




≥


minHBW




≥


 ≤≤
  68569 1970.50-0.600.15-0.350.60-0.900.0400.040



…………………………………………………………………………………………………………………………………………………………



Light Rail


Standard: DIN5901





























































Size




*


Rail height(mm)




A


Bottom Width(mm)




B


Head Width(mm)




C


Web Thickness(mm)




t


Weight(kg/m)




*


S10705832610
S14807038914
S189382431018.3
S2010082441019.8
S2411590531024.4
S3010810860.312.330.03




We supply DIN536 Crane rail: A55, A65, A75, A100, A120


Specification as follows:





















































































DIN536 Crane rail



Type



Dimension (mm)



Weight


(kg/m)



Material



Length


(m)



Head



Height



Bottom



Web



A45



45



55



125



24



22.1



900A



6-12



A55



55



65



150



31



31.8



900A



6-12



A65



65



75



175



38



43.1



900A



6-12



A75



75



85



200



45



56.2



900A



6-12



A100



100



95



200



60



74.3



900A



6-12



A120



120



105



220



72



100



900A



6-12











































Crane railTensile Strength Min MpaChemical composition
CSi (max)MnP(max)S(max)

A45,A55,


A65,A75,A100


,A120,A150


6900.40-0.600.350.80-1.200.0450.045
A75,A1008800.60-0.800.500.80-1.3
A120,A1500.55-0.750.501.3-1.7






 U71Mn Crane Rail.jpg


DIN536 CRANE RAILS

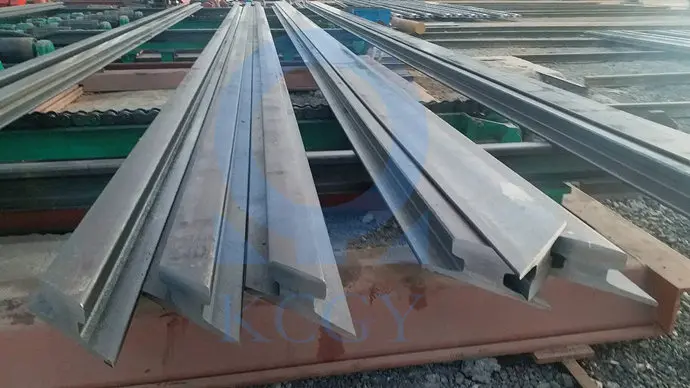

din536 A100 steel rail.jpg


A100 Crane Rail


A100 Crane Rail.jpg





DIN536 A100 RAIL.jpg

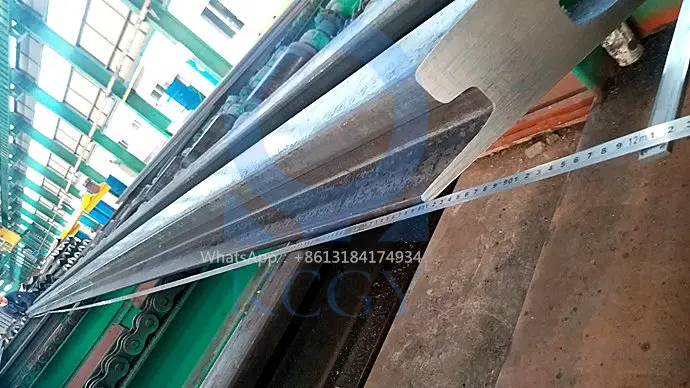

U71Mn A100 Crane Rail .jpg











Our Services


 The Process Flow Chart of Steel Rolling And Quality Control


  1. Raw material


  2. Heating


  3. High-pressure water dephosphorization


  4. Primary rolling


  5. High-pressure wind dephosphorization


  6. Precision rolling


  7. Saw cutting


  8. Pre-bending


  9. Air cooling —the test of chemical composition and mechanical properties


10. Vertical straighting


11. Ultrasonic detection


12. Drilling and milling


13. Heat treatment


14. Inspection and analysis


15. Labeling


16. Packing


17. Storage

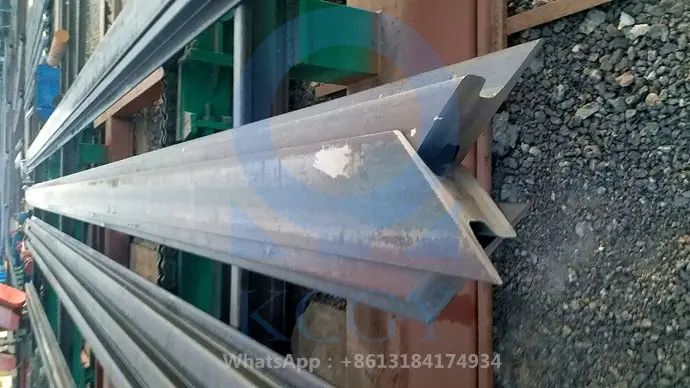

 U71Mn Crane Rails.jpg


Sale Range
  1.Rail fastening system
  2.Dog spike / Screw spike
  3.Bolts & Nuts
  4.Elastic clamp
  5.Rail anchor
  6.Rail shoulder
  7.Fish plate
  8.Tie plate
  9.Plastic / Rubber parts
10.Brake pad
11.Steel rail








Company Information


 DIN 536 STEEL RAIL.jpg



  • BS Rail

    We supply BS11 Standard steel Rail, types we have are: 50O, 60A, 75A, 75R; 80A, 80R, 85A, 90A, 100A, 113A Specification as follows: BS11-1985Steel rail



  • GB Rail

    We supply chinese Standard light rail according to GB11264-89, some types we have are: GB6KG, GB9KG, GB12KG, GB15KG, GB22KG, GB30KG







  • We supply light rail, heavy rail, crane rail according to GB, ASTM, BS, UIC, JIS, EN standard. We keep inventories for most of the common types, so we can arrange shipments within one week after order is confirmed. We supply a range of types of concrete sleepers and steel sleepers to meet most track requirements.
