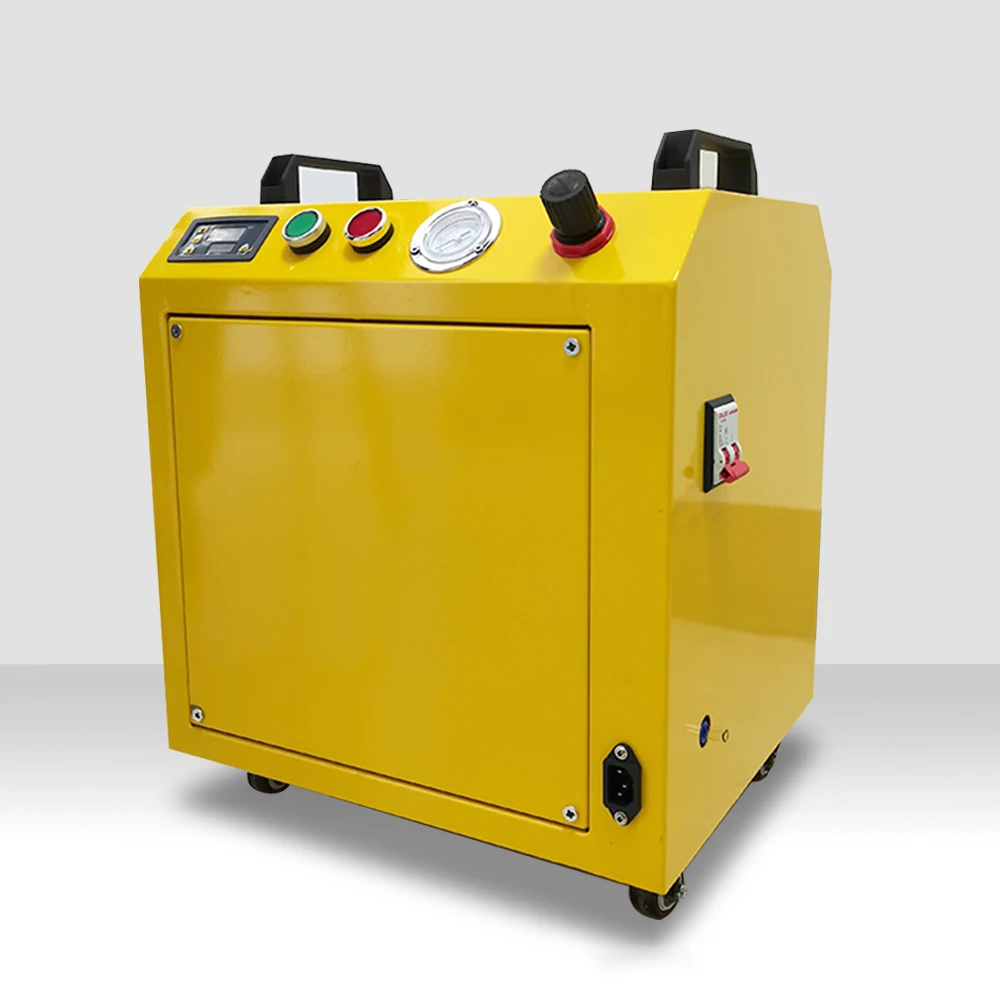

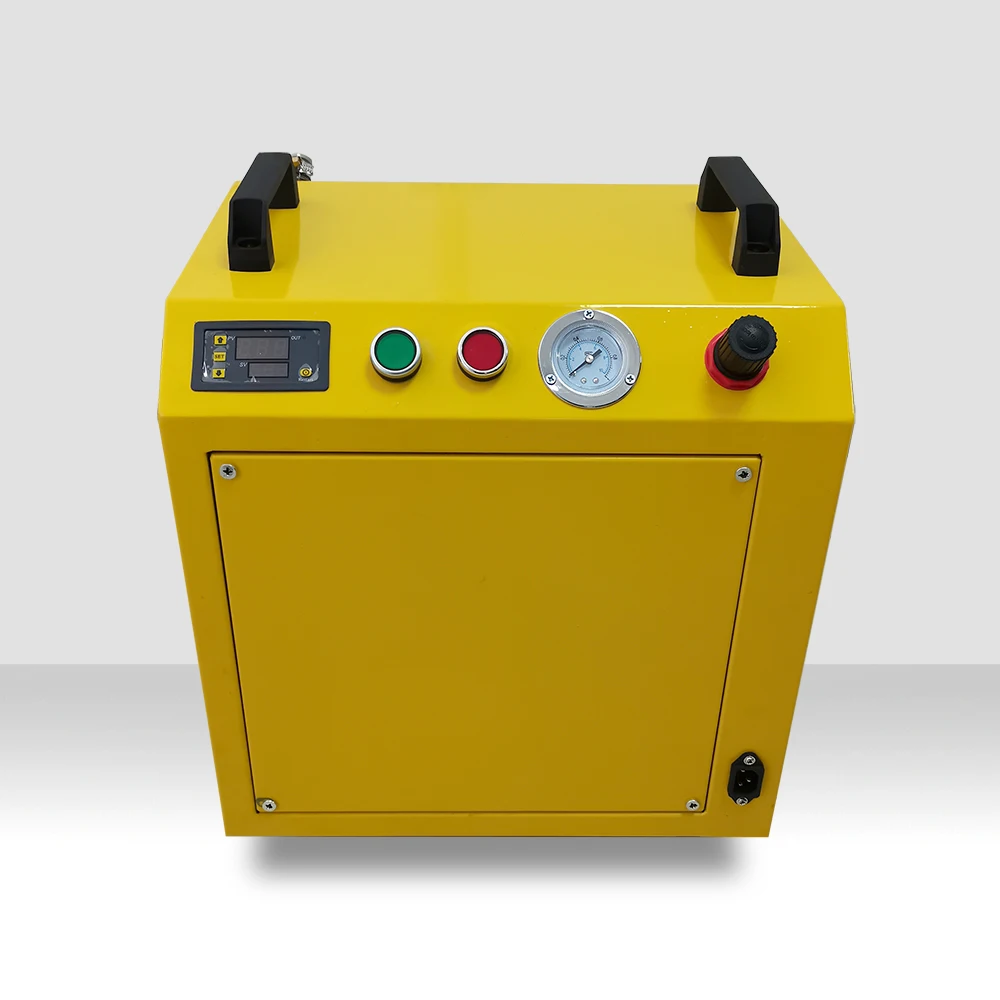

TR11 portable high production lab experiments for CLC foam concrete machine 1100w lightweight concrete foam generator

(2) Foaming volume: The maximum foaming volume is about 100L/min. The foaming agent used will affect the amount of foaming. The value of 100L/min is the value measured after the company's foaming agent is diluted 60 times;

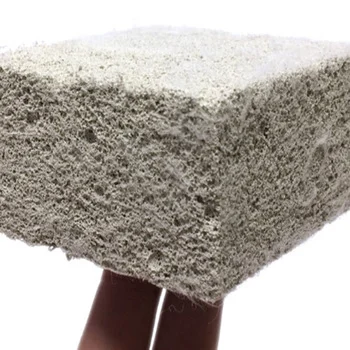

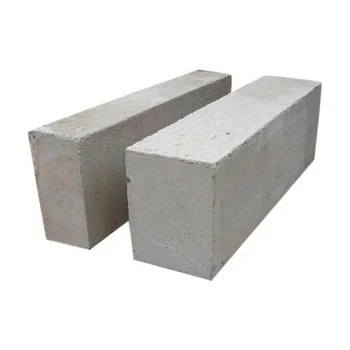

(3) About making foam concrete: You can use a mixing bucket to make pulp, and then directly foam the foam on top of the slurry.After stirring, the slurry can be mixed with foam to form foam concrete. Take care to minimize the foam stirring time and stir at low speed.

(2) Low foam density. TR-FG-11 portable foam generator has low foam density and saves foaming agent. In the case of the same dilution factor of the foaming agent, the thickness of the foam produced by this machine is 20-40 g/L, and different foaming agents have various dilution factors;

(3) Simple operation, low failure rate, precision parts are selected to reduce the use of wearing pieces, the failure rate is lower, the service life is longer, and one-button control is realized.

2.Pipe blockage: Some foaming agent remaining in the bubble tube will form a solid residue. In this case, the foam cannot be produced normally, or the pipeline pressure increases sharply. At this time, all the old steel balls need to be taken out, and then replaced with a new one The ball is fine. Steel wire ball specification requirements: each blowing tube needs to be filled with about 12-15 steel wire balls. Too much or too little will affect or even destroy the foam performance.

2.There will be air in the pipeline when it is used for the first time. The foaming liquid has not been pumped into the equipment in a short time. You can wait for tens of seconds until the liquid is filled with the entire suction tube and the foaming operation can be performed normally.

3.Do not start the equipment when the pipeline is blocked to prevent damage to the components due to overpressure in the pipeline.
