8x30m Agriculture Tomato Greenhouse Frames Plastic Film Single Span Tunnel Greenhouses
- Category: >>>
- Supplier: Henan Dorisun Agricultural Technology Co. Ltd.
Share on (1600408375868):
Product Overview
Description
Products Description

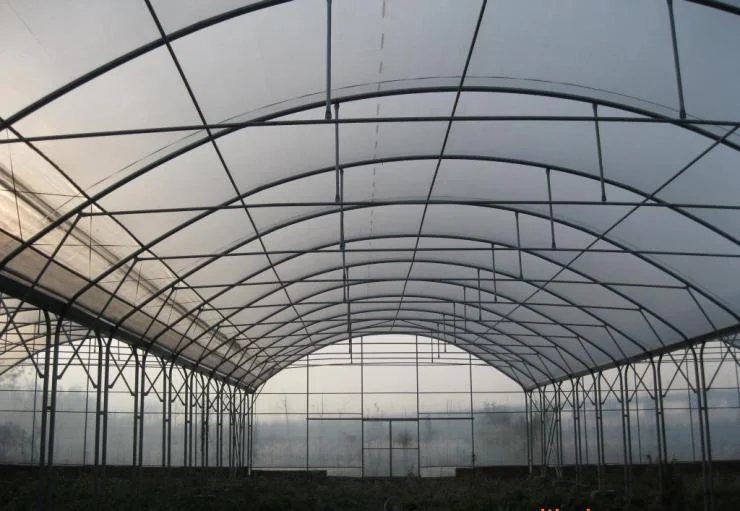

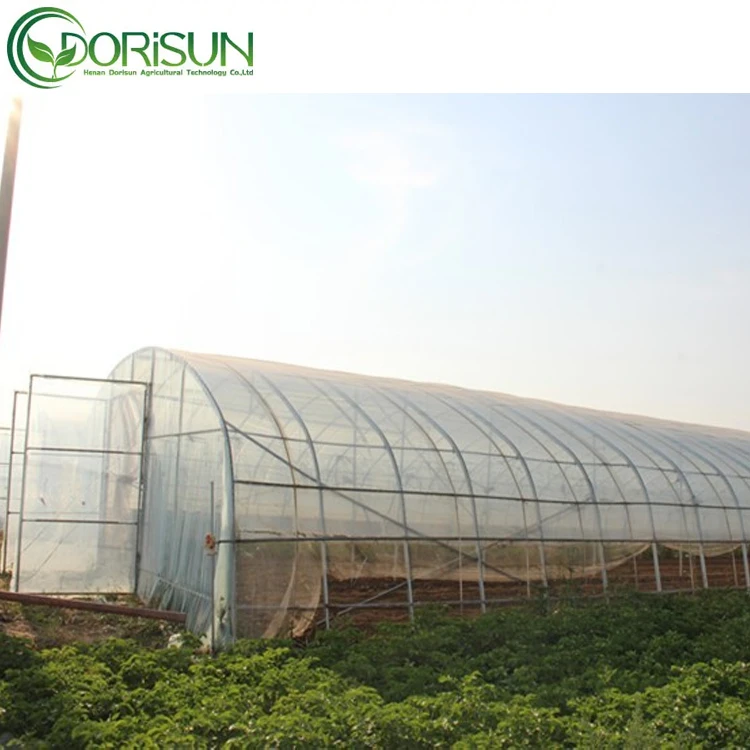

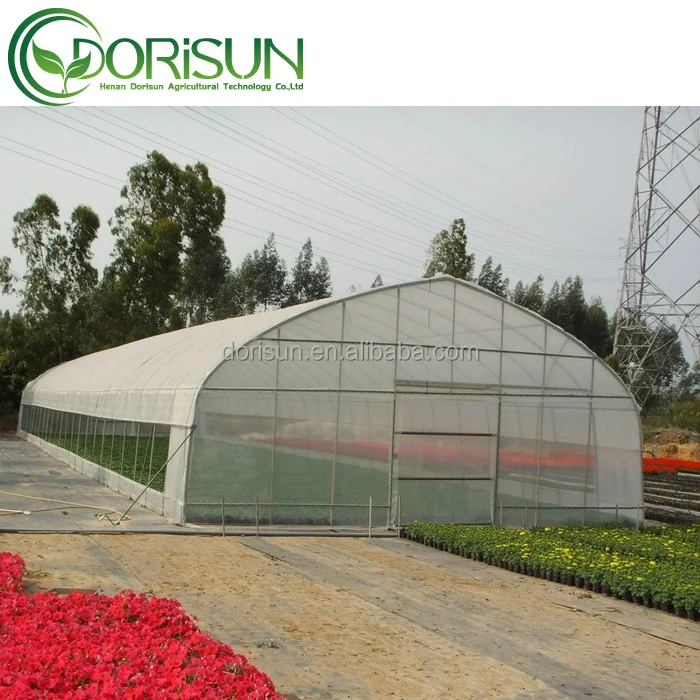

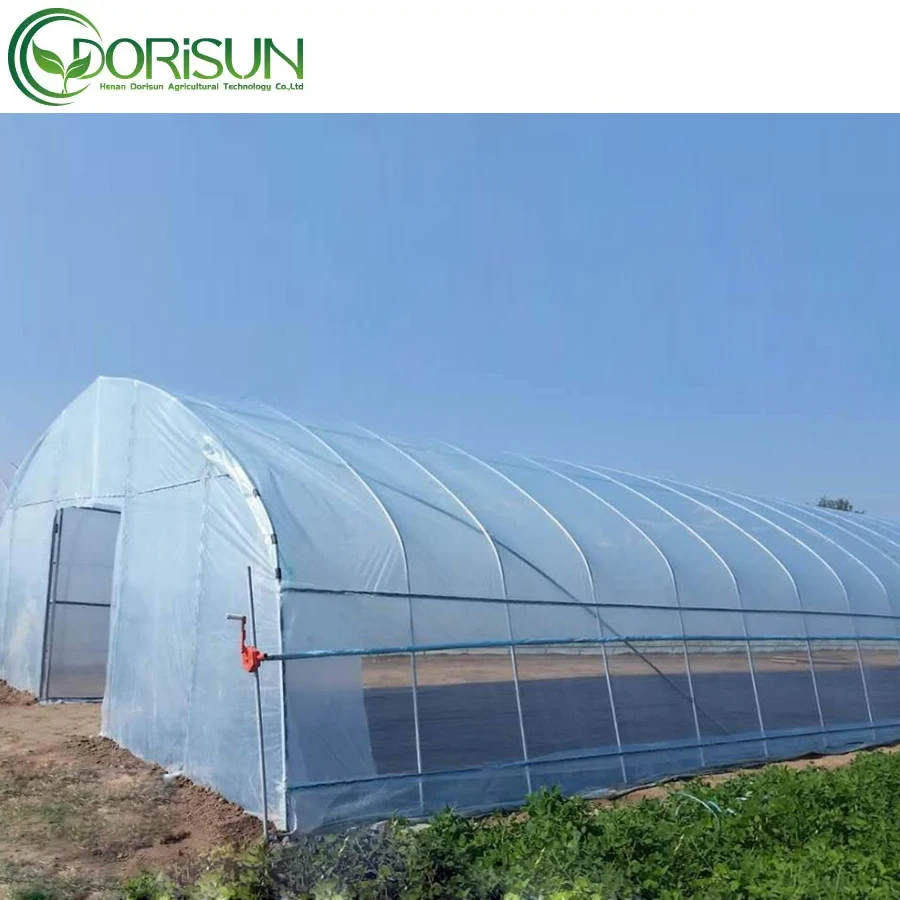

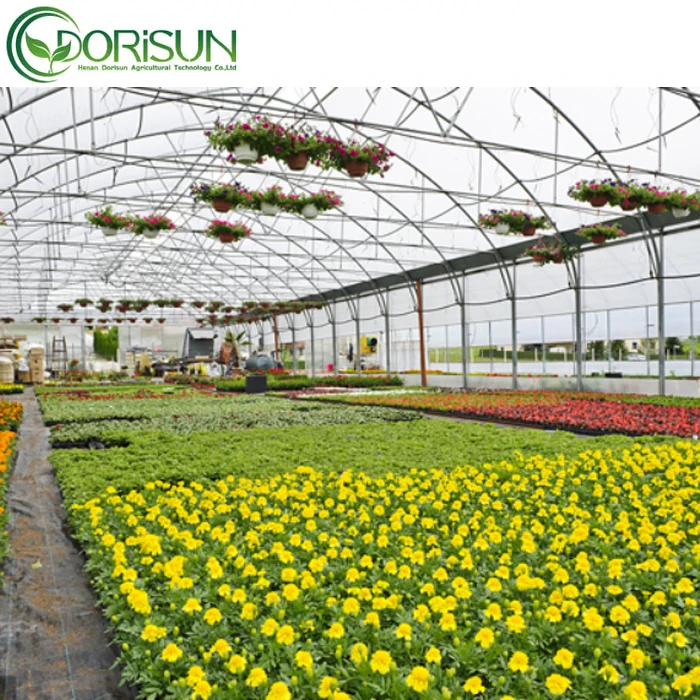

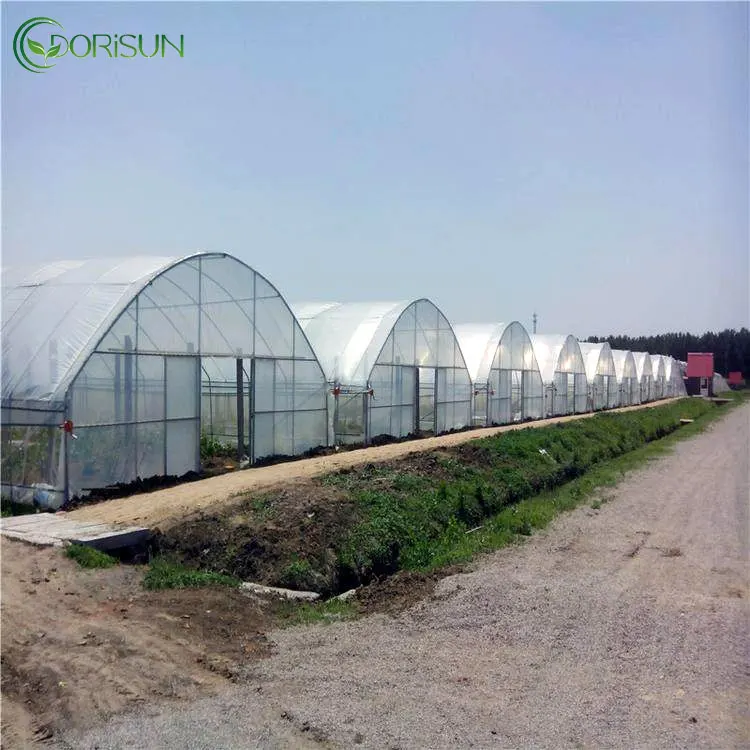

Single-Span Greenhouse
Single span plastic tunnel greenhouse is widely used in the cultivation of tomato,vegetables, fruits and flowers.
Single-Span greenhouse can be customized: Simple tunnel greenhouse, Large arched greenhouse, Light deprivation greenhouse.
Product Paramenters
Specification of greenhouse | ||||
Length | 20-100m | All greenhouse structure and control systems can be customized according to your requirements. | ||
Width | 6m,7m,8m,9m,10m | |||
Shouder height | 1.3m,2m | |||
Roof height | 3.3m,3.5m | |||
Greenhouse frame | 275g/㎡ zinc coat Hot galvanized steel pipe | |||
Cover film | PEP 150micon,200micron | |||
Wind load | 60-130km/h | |||
Snow Load | 0.25-0.5KN/m² | |||
Rainfall | 140mm3/h | |||
Option | Side or top ventilation/heating/cooling/shading system,drip/micro irrigation system | |||
Details Images

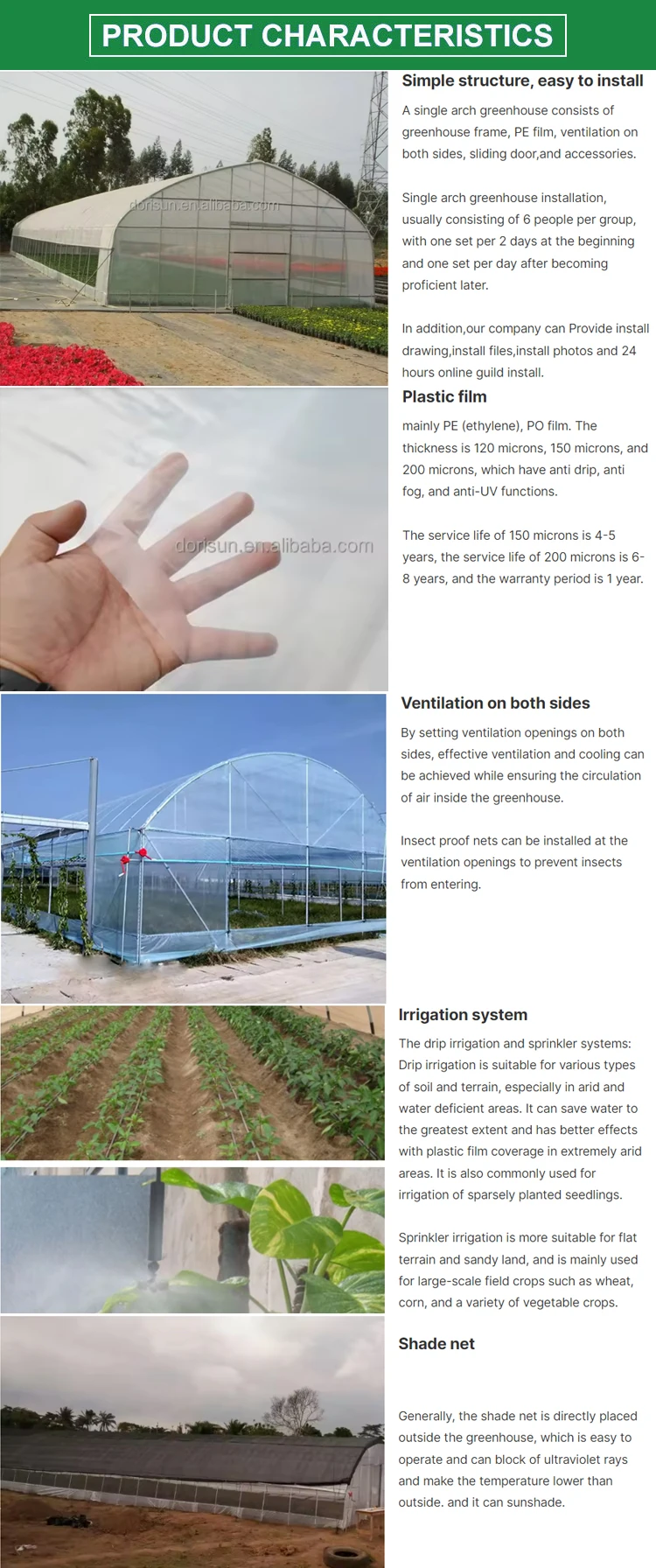

Single-span Greenhouse Standard Equipment
1.There is no bare welding points and connected by galvanized bolts, screws, and self-screws.
2.Hot galvanized steel framework,with 275g/㎡ zinc coated.
3.Cover material of Plstic film or Wove film:120/150(standard)/200microm
4.Two sides ventilation by manual/electric roll up machine.
Other system for greenhouse
