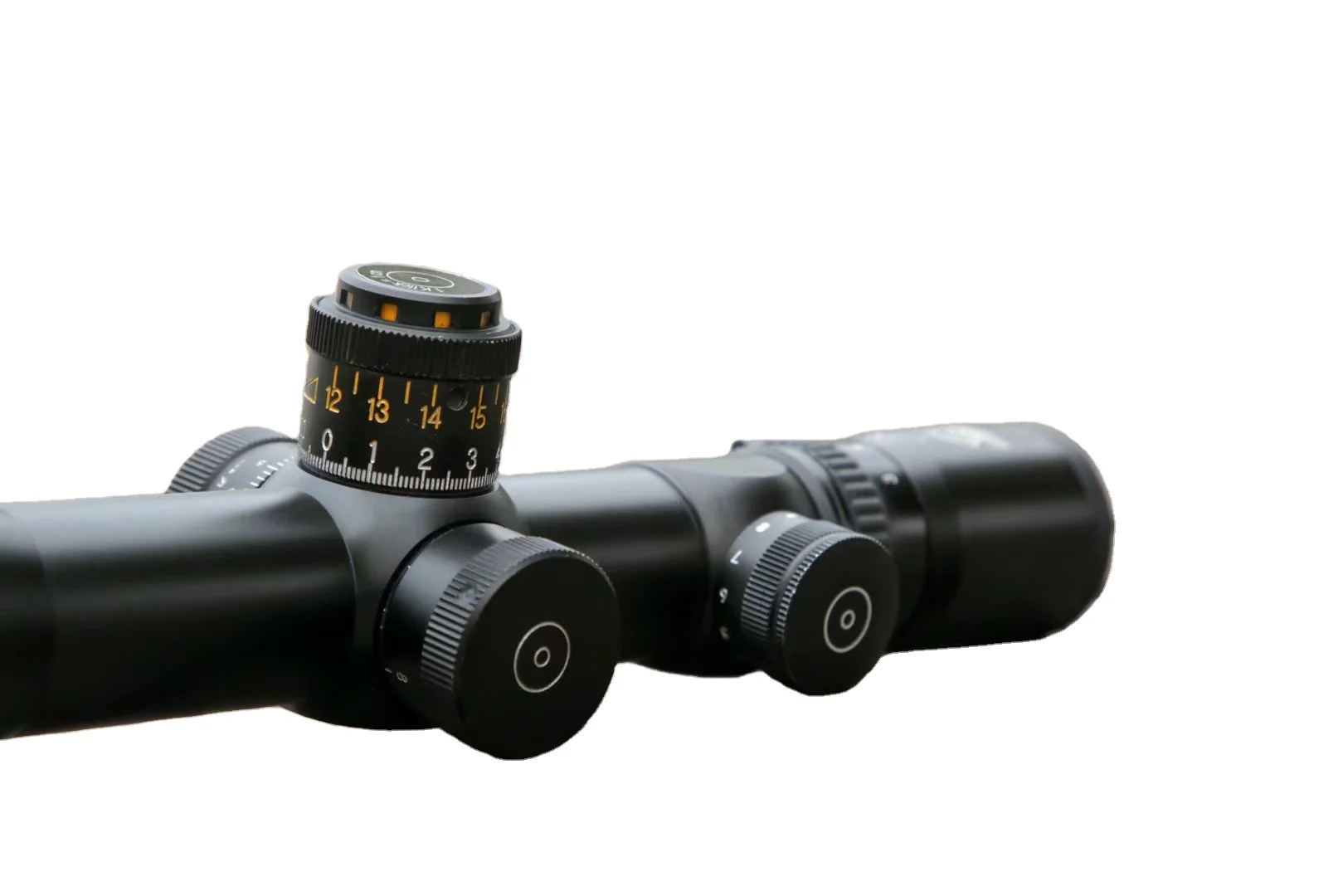

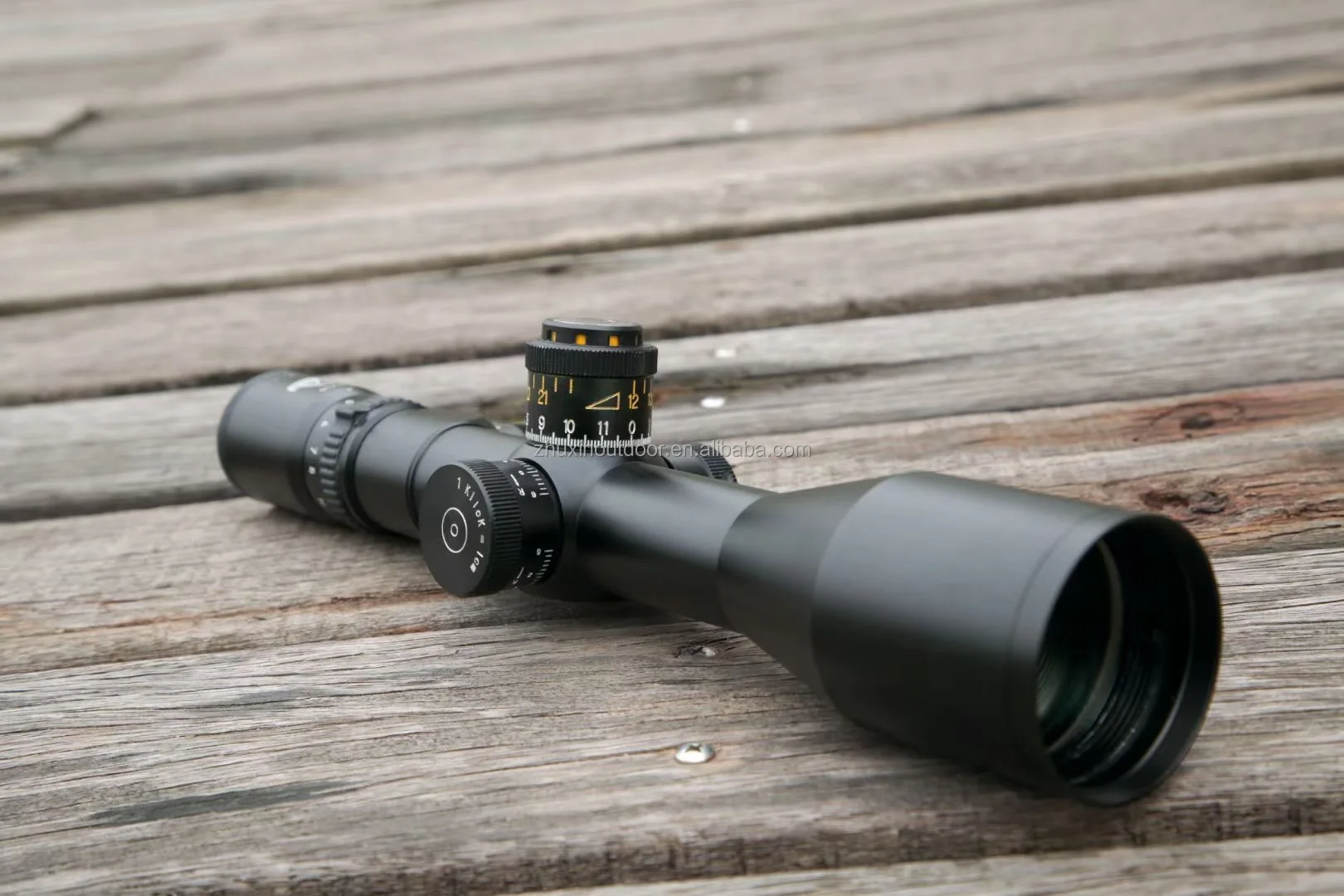

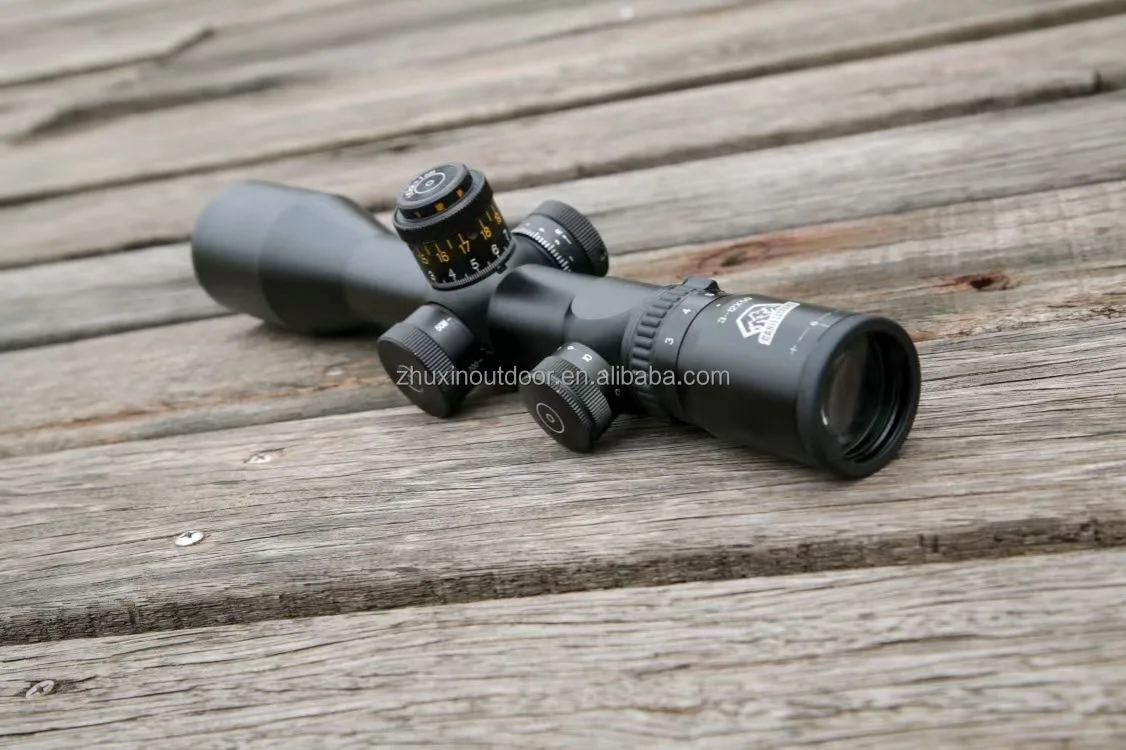

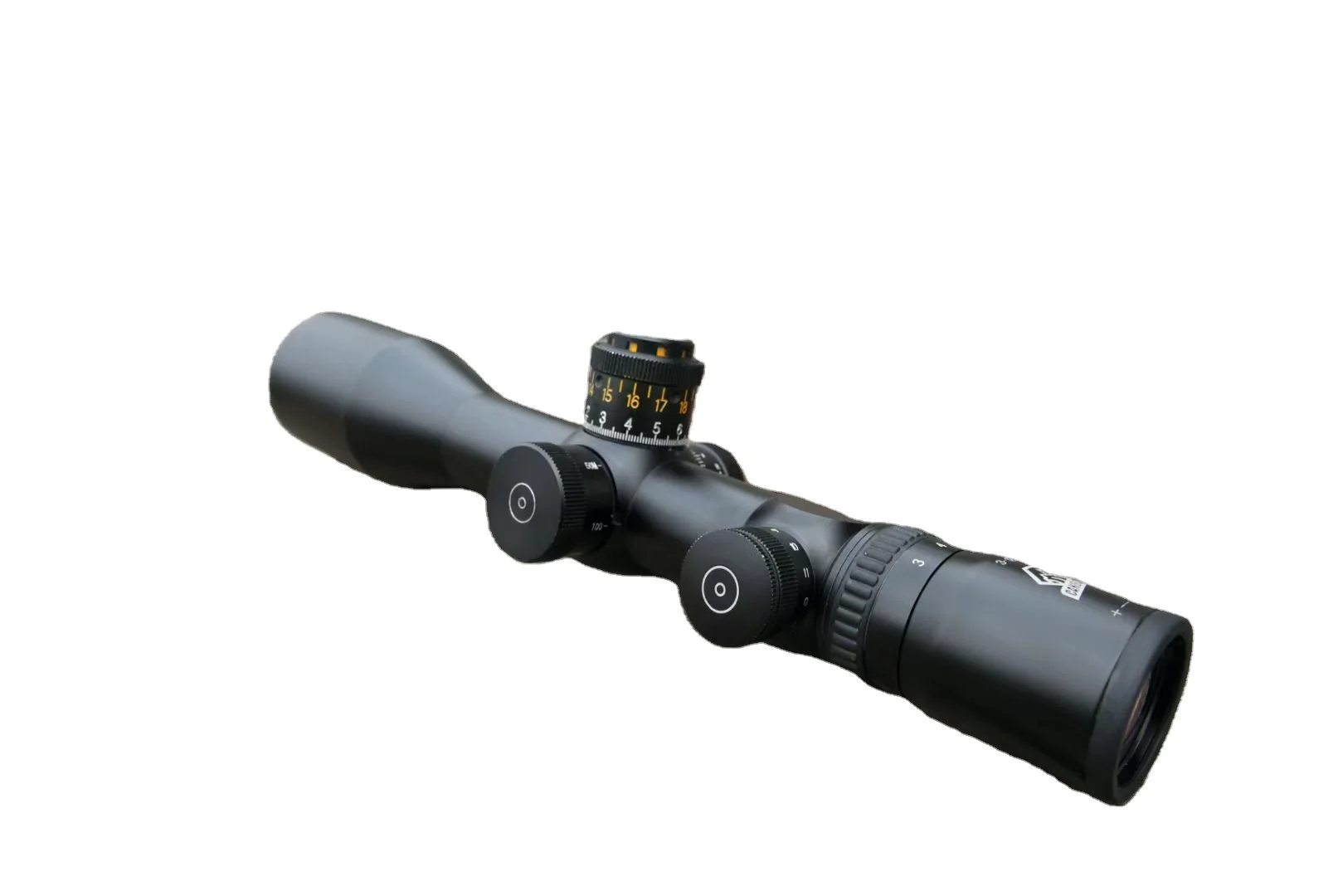

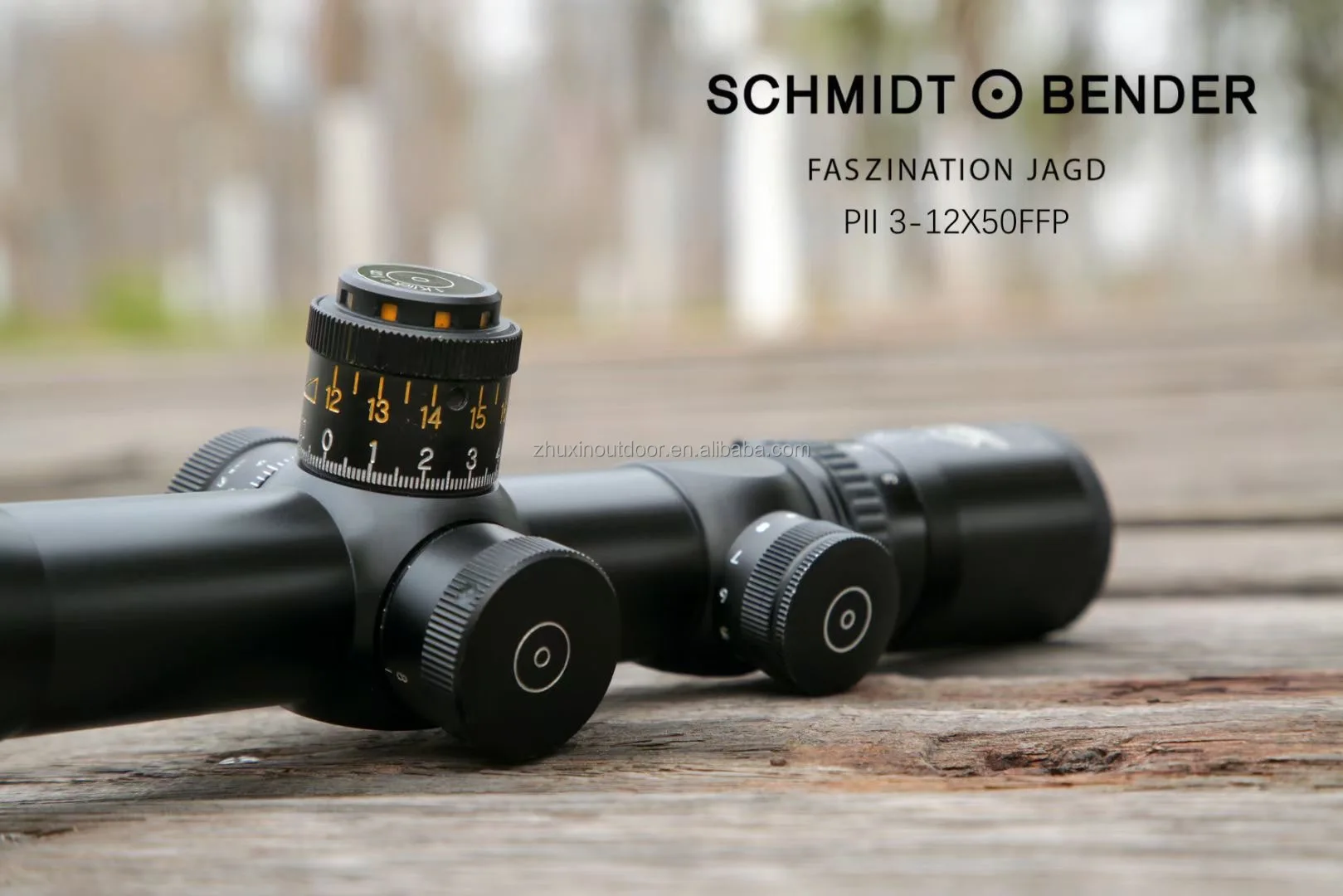

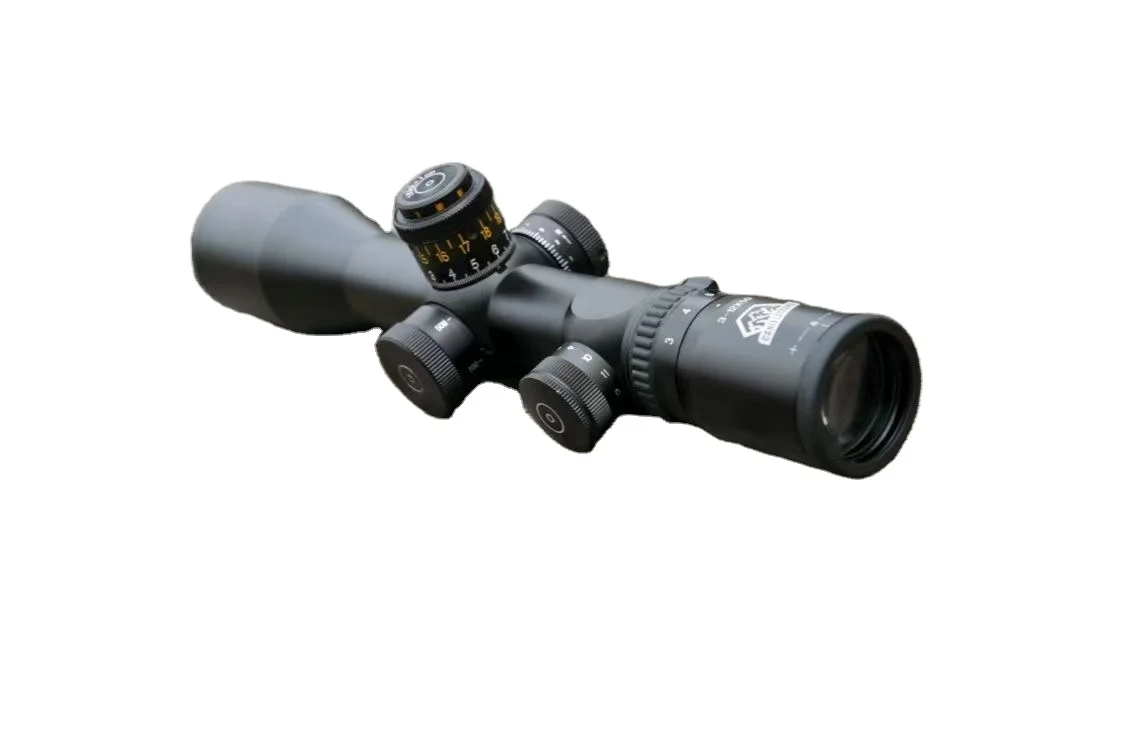

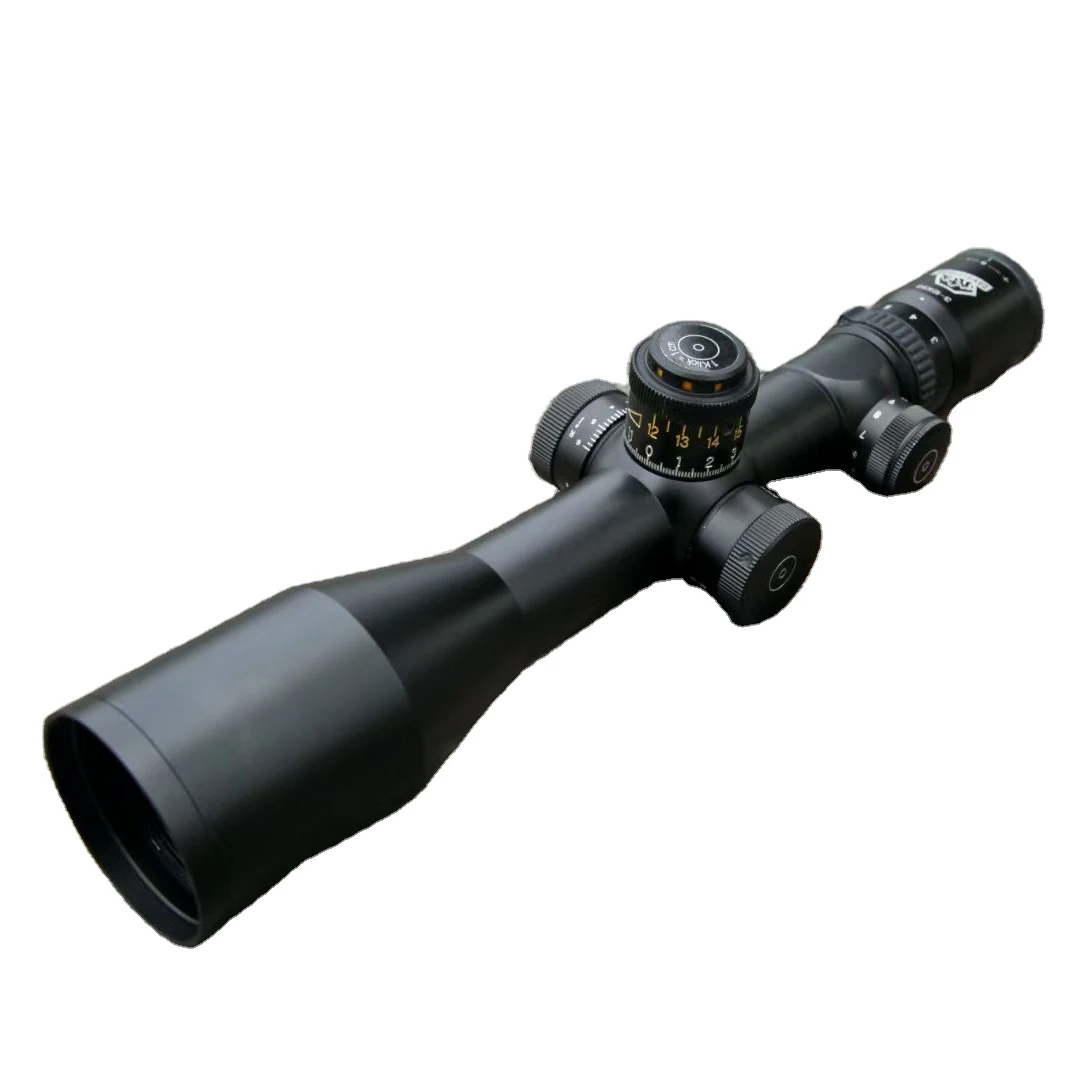

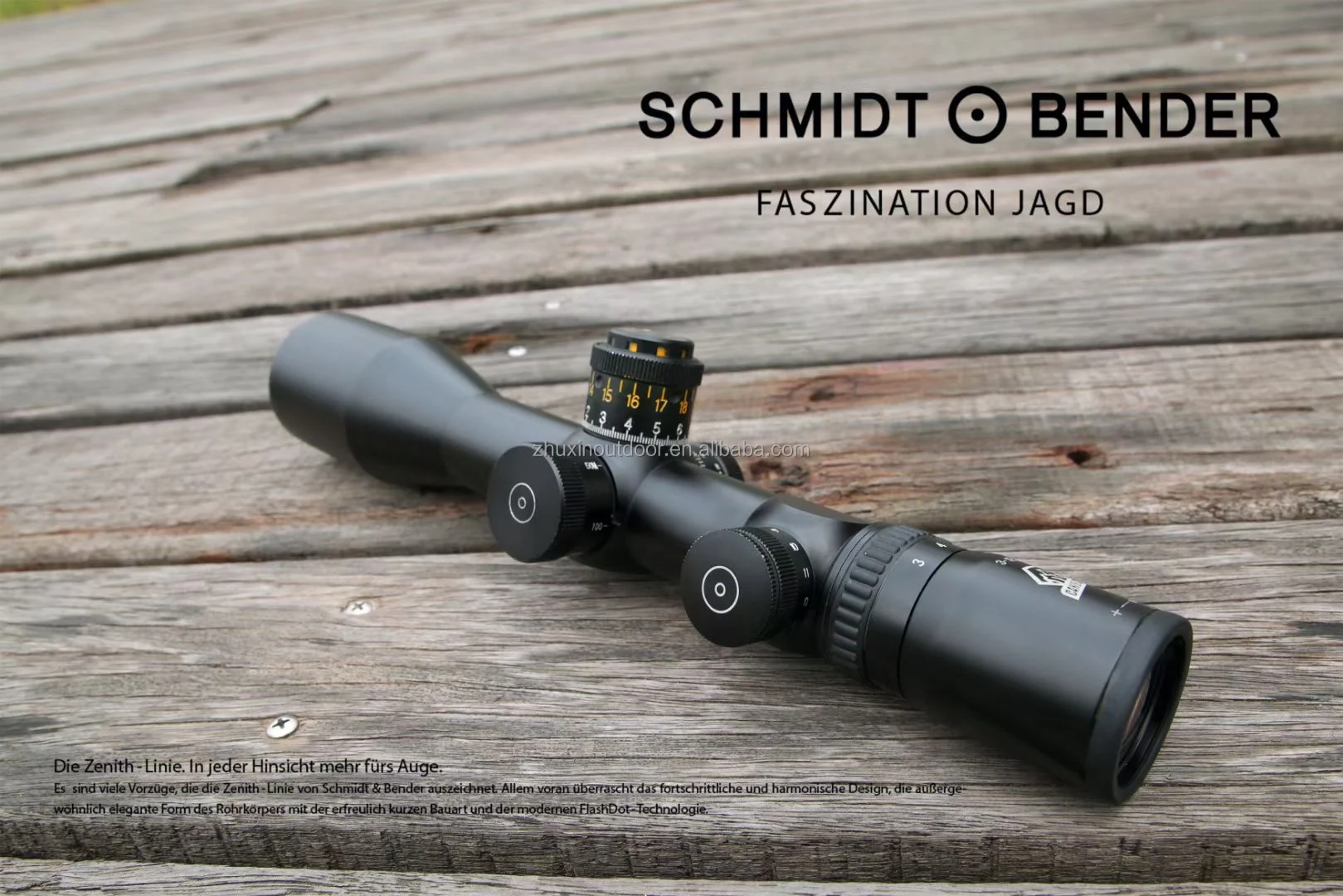

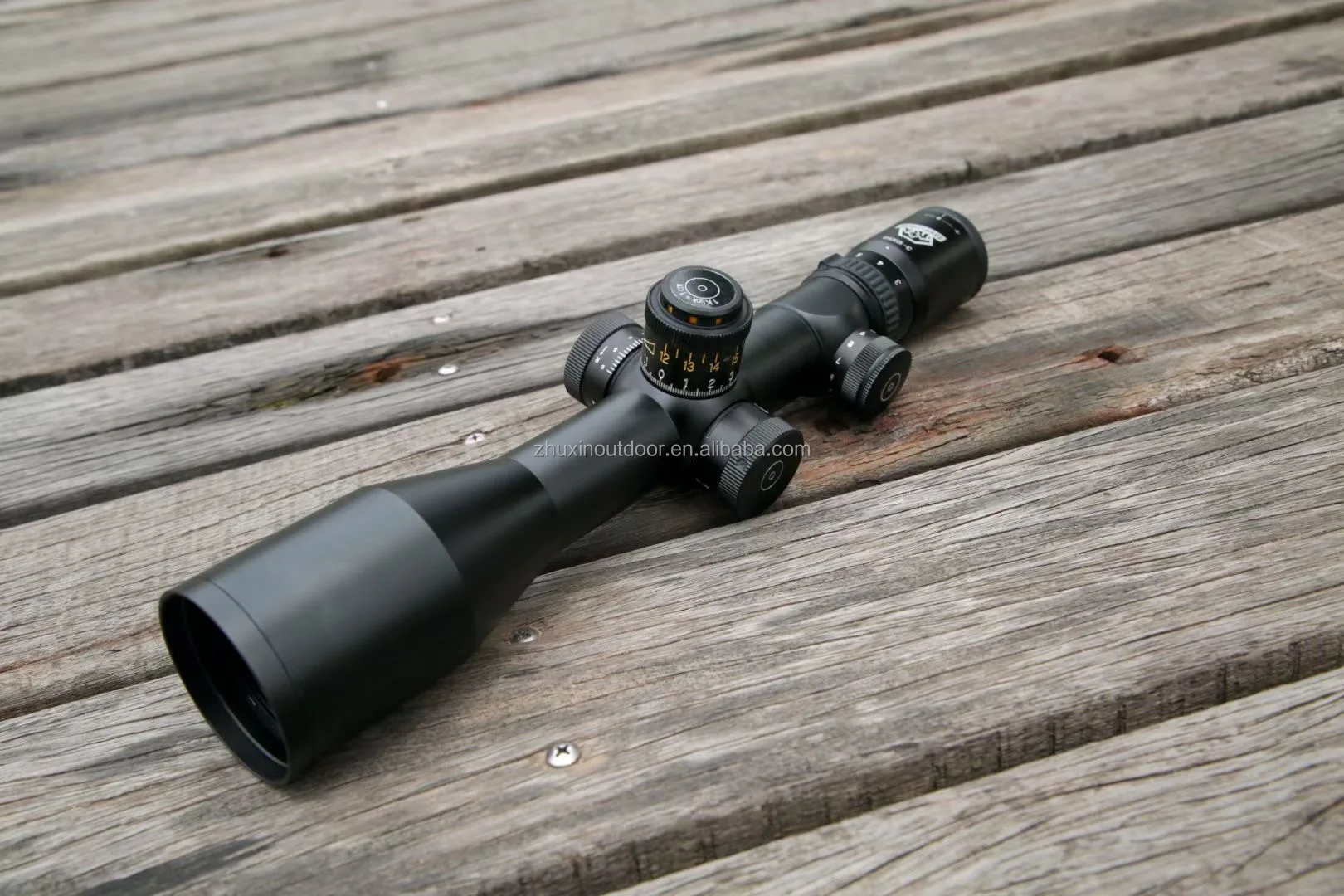

hunting manufacturers wholesale tactical sight optical hunting scopes 3 12x50 FFP scope First Focal Plane

Product Overview

Description



Specification

• Model: SCFF-09 Siegfried hunting Scope


• Magnification: 3-12x


• Objective Lens Dia: 50mm


• Ocular Lens Dia: 34mm


• Ocular Length: 70mm


• Exit Pupil: 4.2-16.3mm


• Length: 350mm (13.8 inch)


• Gap distance between objective and turret: 52mm (2.0 inch)


• Gap distance between ocular and turret: 35mm (1.4 inch)


• Weight (net): 810g (28.6 ounce)


• Eye Relief: 65-120mm (2.56-4.7 Inch), long eye relief


• Field of View (ft@100yds): 9.0-31.5


• Field of View (M@ 100M): 3.0-10.5


• Field of View (@100yds): 1.7-6.0°


• Num of Lens: 13


• Optics Coating: Fully-multi coated crystal sharp clear


• Side Focus Range: 50 Meters to unlimited (50, 100, 200, 300, 400, 500, 700, 900 and infinite)


• Parallax: ± 0.125


• Reticle: First (Front) Focal Plan Etched New MPD Reticle


• Elevation Range: 230cm (turret color change according to clock-wise or anti clock-wise adjustment)


• Windage Range: 120cm


• Battery:CR2032(Excluded)



Feature



• 11 levels gred brightness illumination


• 1st, 2nd and 3rd brightness is very weak that can support night vision


• 34mm Hammer-forged Monotube


• Shock proof (1000g), Water Proof (at 300mm and 54 degree) and Fog Proof (Nitrogen Purged)


• High quality aluminum alloy in durable black matte finish


• Feature 1 Click 1cm direct finger W&E turrets adjustments with audible clicks for greater precision


• Fast focus eyepiece at ocular lens adjustment (diopter from -3 to 2)



Packing



• 2X 34mm tactical low picatinny mount


• 1X Honeycomb sunshade


• 1X Protective caps


• 1X Fine package











FFP Brief Introduction: Most scopes have the reticle fitted in the second focal plane (near the eyepiece). While, presently it has always been the practice to fit the reticle in the first focal plane (the reticle increases its size when change the magnification from low to high). Each system has its advantages.



The advantage with telemetric reticles (like rangefinder & Mil-dot etc) is that the target image and distance between dots remains constant even when changing magnification. It is the system that is widely used by the TOP military suppliers now.
