OEM Quality Wood HiFi Cabinet Multimedia Powered Desktop Main speaker Passive Bookshelf Speaker
- Category: >>>
- Supplier: Shanghai Menuilife Intelligent Technology Co. Ltd.
Share on (1600408480923):
Product Overview
Description
Product Description
HIFI audiophile speakers
▶Shallow horn type titanium membrane tweeter
▶Aluminum diaphragm anti-magnetic mid-woofer
▶Patented sandwich speaker front panel and
cloth frame structure
cloth frame structure

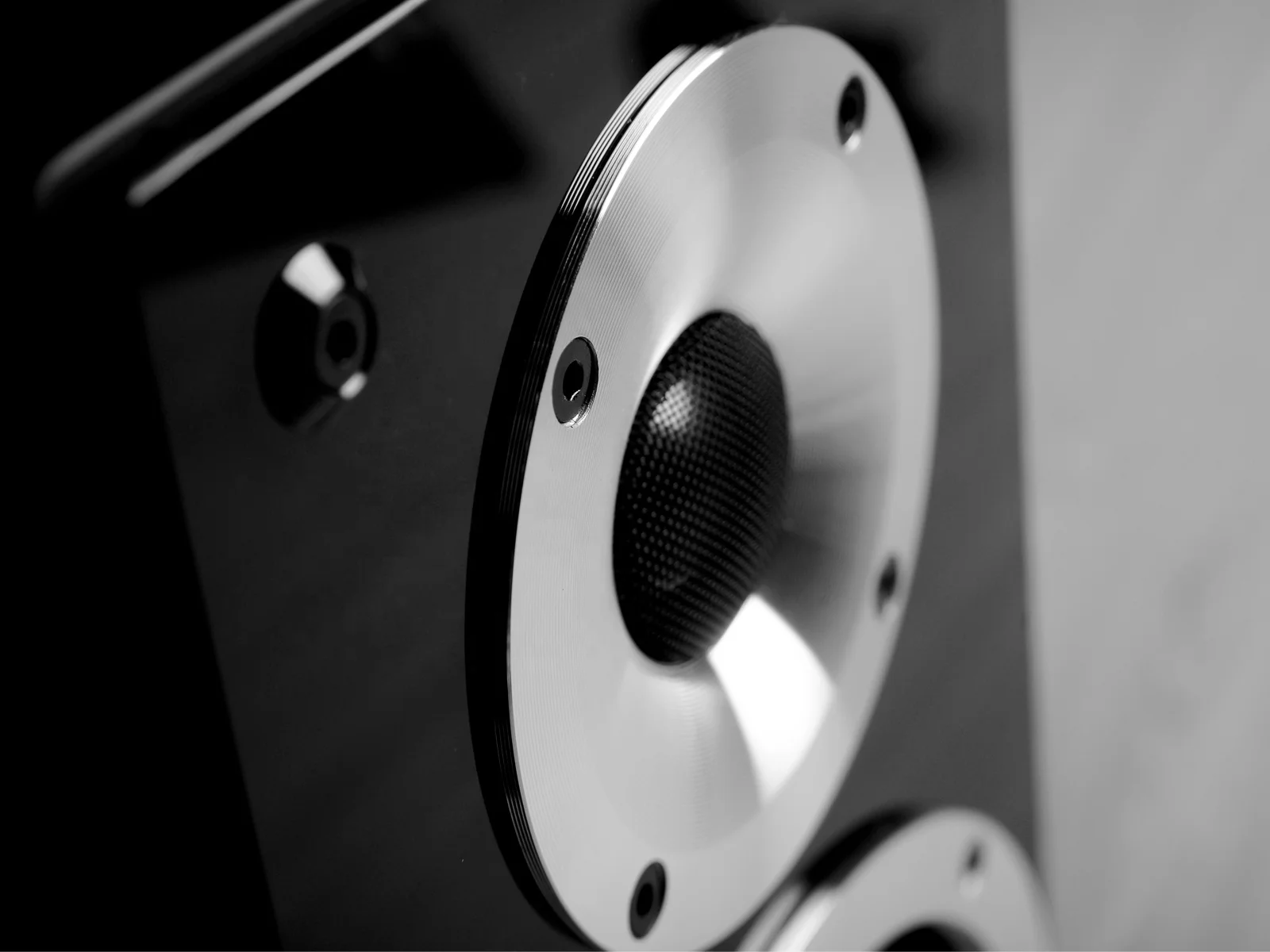

▶Titanium dome tweeter to ensure clear and transparent sound quality in the high-frequency range
▶18mm high quality MDF sheet, asymmetrical length, width and height design, precise size
Specification
Product Name | Bookshelf speakers（Main speaker） | Product size | 326×174×210 mm | |
Model | H500 | Sound pressure value | 89dB / 2.83V / 1m | |
Power Handling | 60 / 120 Watt (s) | Packing | One pair per carton | |
Frequency Response | 50 - 40 000Hz | Weight | 14.2KG | |
Impedence | 6 Ohms normal | |||
Amplifier Compatibility | 25 -120 Watt(s) into 6 Ohms | |||
Details Images

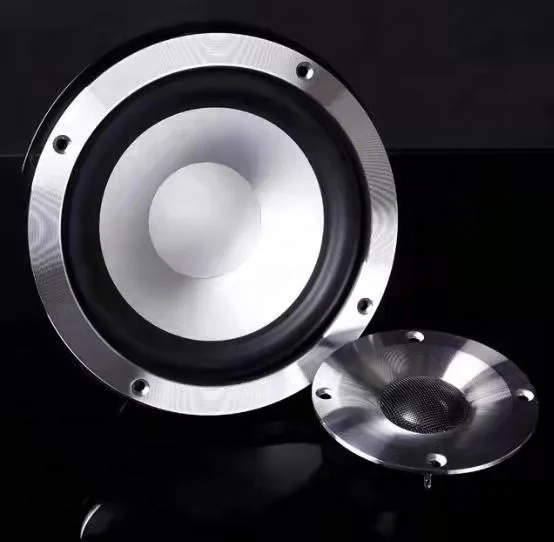

Self-developed custom speaker unit

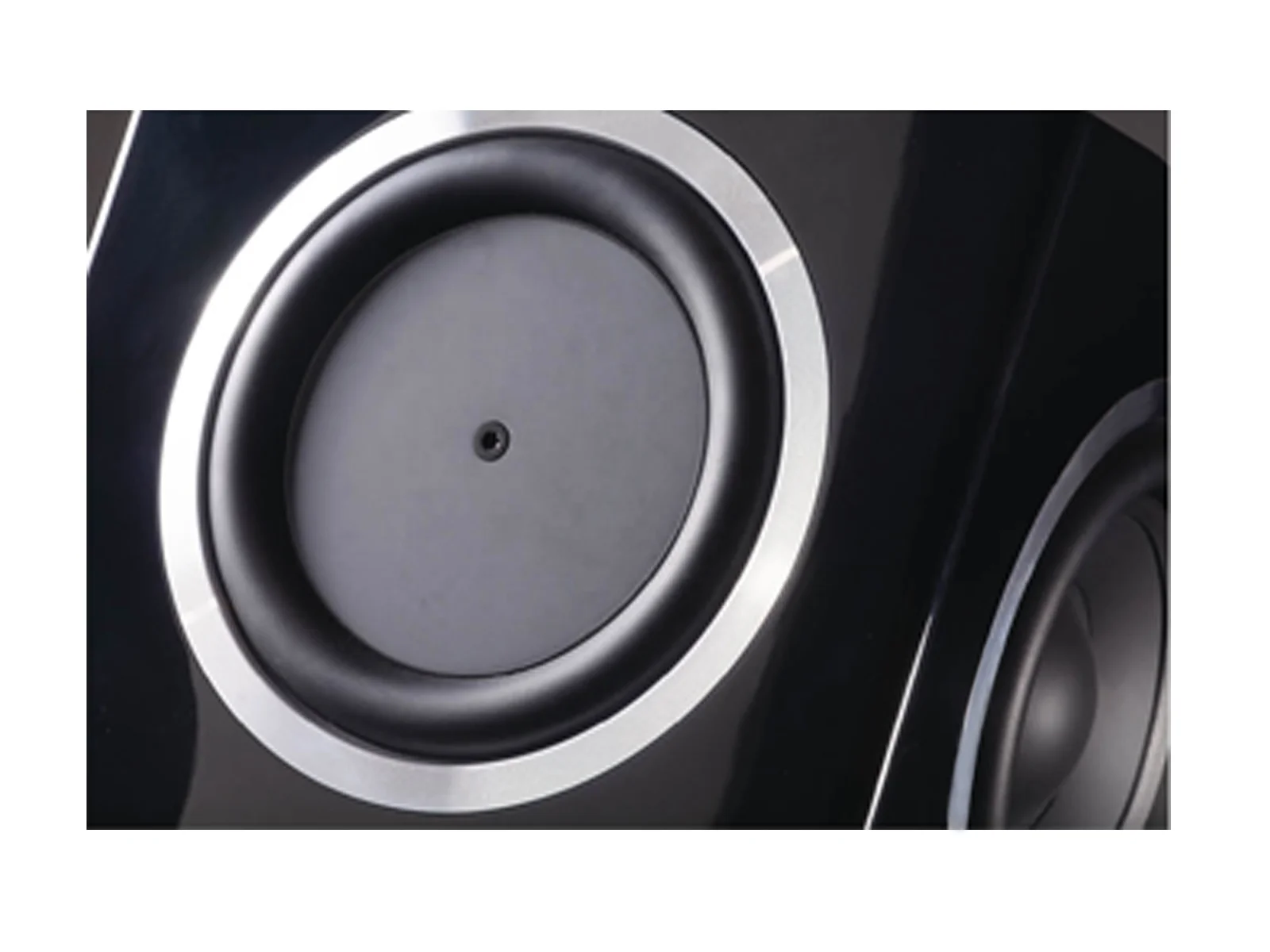

The high-strength die-cast aluminum alloy frame is connected to the magnetic circuit system and the vibration system of the speaker unit to reduce resonance and reduce distortion. The magnetic circuit system adopts double ferrite strong magnetic and anti-magnetic leakage design, making full use of the magnet performance and the distribution of magnetic lines of force is more balanced and concentrated. Equipped with a long-stroke voice coil, the magnetic energy and electrical performance are perfectly matched, effectively reducing harmonic distortion and electrical distortion . The surface of the aluminum alloy diaphragm with anodized hardening treatment has a 3-segment arc design. The middle hole is in contact with the voice coil frame more fully, and the bonding strength is greater. It reduces the small deformation during the vibration transmission process, improves the transmission efficiency and effectively reduces the distortion. The selected high-quality rubber rim and Conex vibration plate, whose amplitude is scientifically calculated, is perfectly matched with the long-stroke voice coil and magnetic circuit, which improves the effective frequency response range, has low distortion, high power tolerance, and obtains clear, mellow and more powerful mid-low frequency response . The high frequency band sound quality is clear, transparent, and high resolution! The aerospace-grade titanium diaphragm has a special crystallization treatment on the surface, which has high surface hardness, high strength, light weight and high temperature resistance. The specially designed shallow horn-type aluminum alloy cover, the surface is cut with a diamond knife to enhance the transmission efficiency and effectively improve the directivity of the frequency region above 15KHZ. Aerospace-grade neodymium iron boron magnetic circuit, equipped with aluminum radiator, can effectively improve the power tolerance and significantly reduce the distortion under large dynamics.

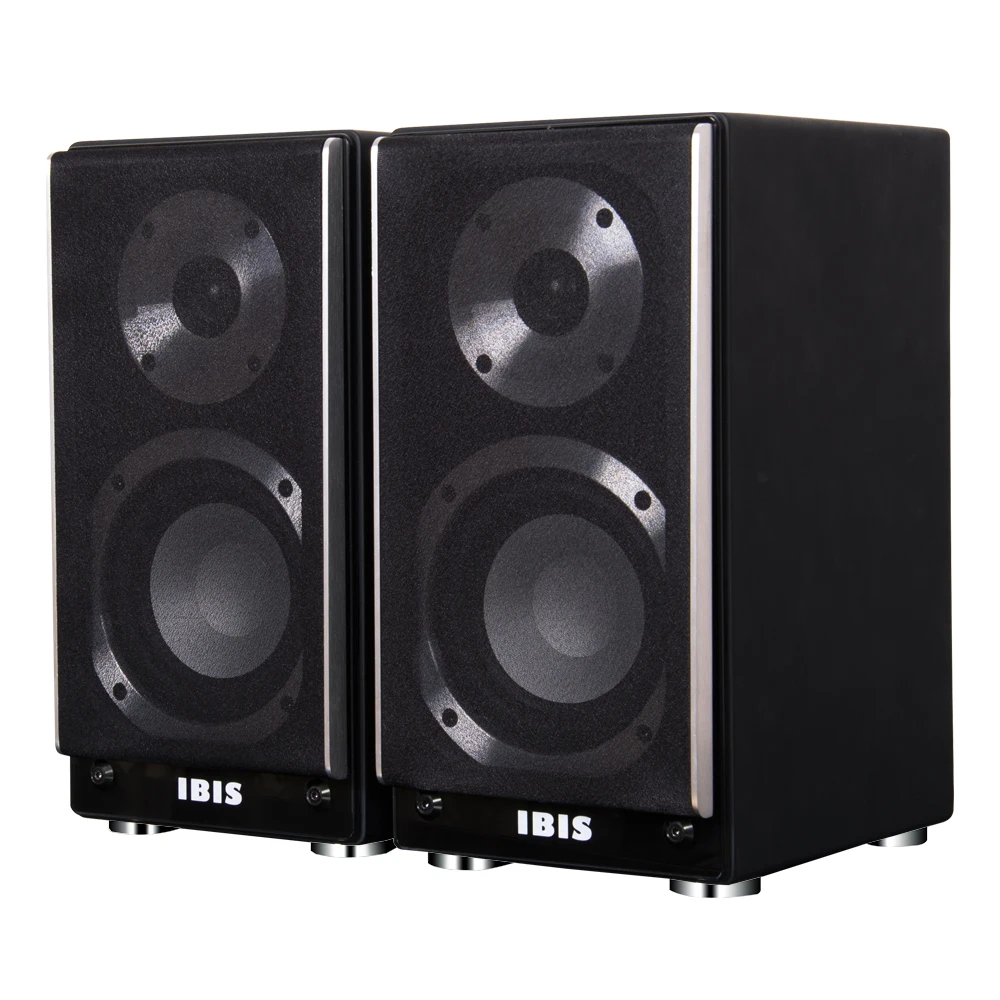

Speaker and cloth frame
The perfect speaker cabinet should eliminate the cabinet resonance to the smallest possible extent. The IBIS designer carefully selects very advanced 25MM and 18MM imported MDF panels (H600/25MM; H500/18MM; HC500/18MM), and the cabinet has a precise ratio of length, width and height. The asymmetrical design, the fully reinforced wooden support structure and the 4 solid 50mm diameter aluminum alloy foot posts at the bottom greatly reduce the resonance of each panel of the cabinet! We know that the resonance of the cabinet mainly comes from the vibration of the woofer when it is working, so the front panel of the speaker with the woofer is designed into a special sandwich sandwich method: a very hard 5MM tempered glass panel, a piece of moderately soft and hard silicone The film, woofer and aluminum bass decorative ring, aluminum panel tweeter, are firmly fixed on the front panel of the speaker and become a whole with it. Moderate internal damping and external strength all make the box resonance to be eliminated to the smallest possible extent. At the same time, the overall visual effect of the audio front panel is very layered and the texture is extremely strong. The 12MM high-quality MDF board and the two brushed anodized decorative aluminum strips greatly ensure that the fabric frame has sufficient strength and resistance to deformation. Built-in high-performance magnet, you can easily install or remove the frame.
Unique detailed design

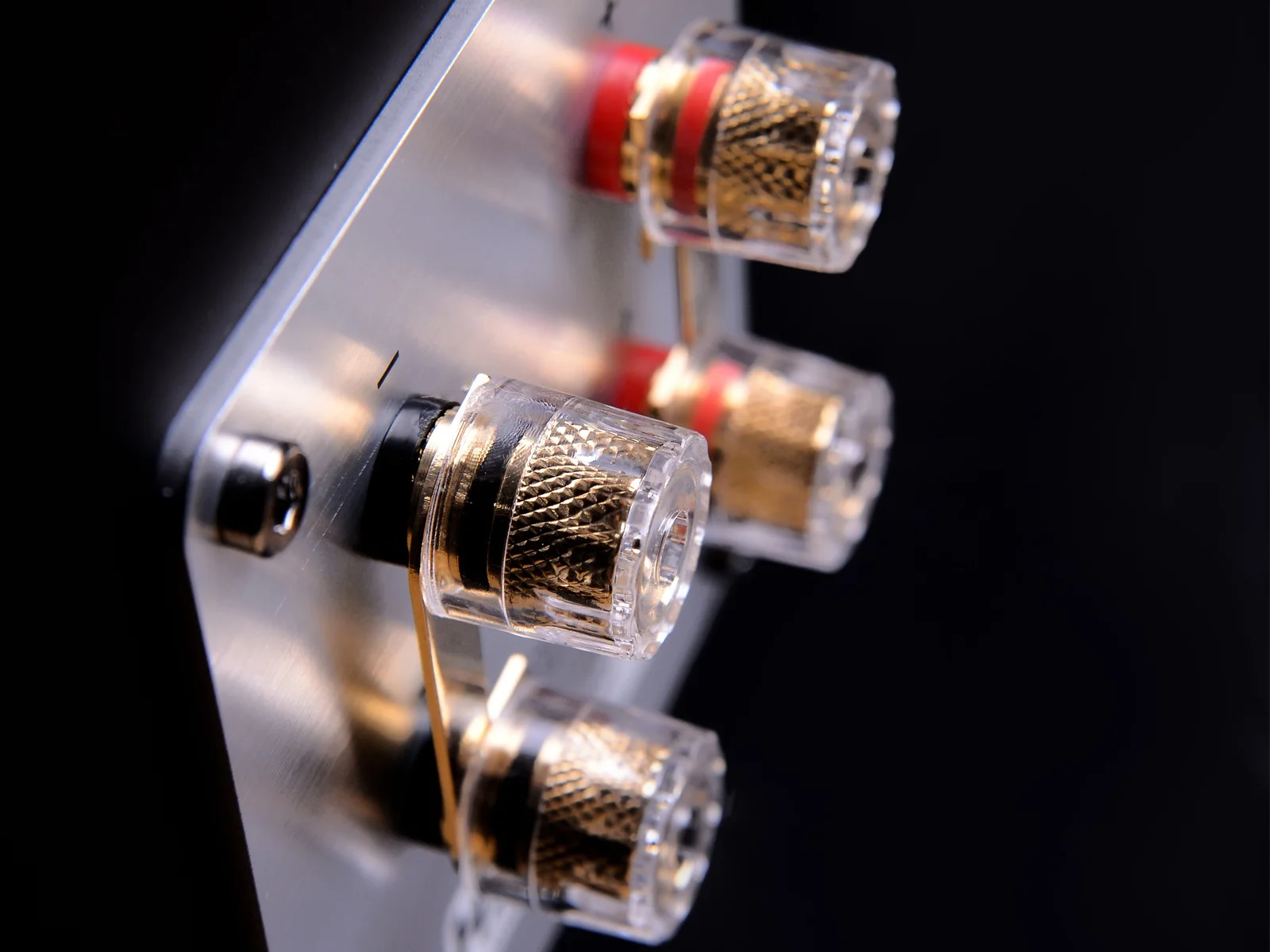

2.5MM wire drawing anodized aluminum wiring board, 4 terminals and 2 connecting pieces are made of high-quality oxygen-free copper, and the surface is 24K gold-plated. The 4 terminals are equipped with a transparent PVC protective cover. Provides two-line crossover options. The two-headed horn-type inverted hole, one end is directly formed by CNC machining on the back panel of the sound box to reduce resonance, which is conducive to the export of low-frequency sound waves inside the box and enhances the low-frequency response. Using the most advanced software simulation design, with high-quality electronic components, in the long-term comparative audition, continuous meticulous modification and fine-tuning to obtain the best listening experience. The innovative tempered glass installation method has become a delicate highlight in the overall appearance at the same time. With advanced concepts, the use of the latest technology and adhere to independent innovation, such as innovative sandwich speaker panel and cloth frame structure has been patented.
XO sound
Visual? Hearing? Technology? Space feeling? In any complex environment, IBIS with excellent technology and conceptual quality,
Present the beauty to you in a unique way! classical? modern? IBIS carefully designed, Integrate the world's leading technology
and advanced manufacturing process, Bring you wonderful music and exquisite life...
Present the beauty to you in a unique way! classical? modern? IBIS carefully designed, Integrate the world's leading technology
and advanced manufacturing process, Bring you wonderful music and exquisite life...
