DIY Wind Turbine parts For Vertical Generator Fiber Glass Blades 24V 220V 300w 500w 600w 800W DIY Blades For Wind Generator
- Category: >>>
- Supplier: Jiangsu Beigood Electronic Co. Ltd.Jiangsu Ltd.
Share on (1600408600015):
Product Overview
Description
Product Description
Features:
1, Rich colors. The blades could be white, orange, yellow, blue, green, mixed, and any other color.
1, Rich colors. The blades could be white, orange, yellow, blue, green, mixed, and any other color.
2, Various voltages. 3 phase AC output, suitable for charging 12V, 24V, 48V batteries.
3, One-piece Blade design ensures higher rotational stability, low noise.
4, Coreless generator means lower start torque, lower start wind speed, longer service life.
5, RPM limit protection. The RPM is kept under 300 regardless of high wind speed which prevents the controller from over-load.
6, Easy installation. Full set of fasteners and installation tools are attached in the package.
7, Long service life. The turbine could work 10~15 years under normal natural environments
3, One-piece Blade design ensures higher rotational stability, low noise.
4, Coreless generator means lower start torque, lower start wind speed, longer service life.
5, RPM limit protection. The RPM is kept under 300 regardless of high wind speed which prevents the controller from over-load.
6, Easy installation. Full set of fasteners and installation tools are attached in the package.
7, Long service life. The turbine could work 10~15 years under normal natural environments
Specitications
Des/model | BGFS-400 | BGFS-600 | BGFS-800 | BGFS-1000 | BGFS-2000 | ||||
Started wind speed|(m/s) | 1.3m/s | 1.3m/s | 1.3m/s | 1.5m/s | 1.5m/s | ||||
Cut-in wind speed|(m/s) | 2.5m/s | 2.5m/s | 2.5m/s | 3m/s | 3m/s | ||||
Rated wind speed|(m/s) | 11m/s | 11m/s | 11m/s | 11m/s | 11m/s | ||||
Rated voltage(AC) | 12/24V | 12/24V | 12/24V | 24V/48V | 48V/96V | ||||
Rated power (W) | 400W | 600W | 800W | 1000W | 2000W | ||||
Max power (W) | 450W | 650W | 850W | 1100W | 2100W | ||||
Rotor Diameter of Blades (m) | 0.52 | 0.52 | 0.52 | 0.67m | 0.67m | ||||
Product assembly weight weight(kg) | <23kg | <24kg | <25kg | <40kg | <45kg | ||||
Blades height(m) | 1.05 | 1.3m | 1.3m | 1.5m | 1.5m | ||||
Safe wind speed (m/s) | ≤40m/s | ||||||||
Blades quantity | 2 | ||||||||
Blades material | Glass Fiber | ||||||||
Generator | Three phase permanent magnet suspension motor | ||||||||
Control System | Electromagnet | ||||||||
Mount Height (m) | 7-12m(9m) | ||||||||
Generator protection grade | IP54 | ||||||||
Work environment humidity | ≤90% | ||||||||
Altitude: | ≤4500m | ||||||||
Overspeed protection | Electromagnetic brake | ||||||||
Overload protection | Electomagnetic brake and the unloading unit | ||||||||

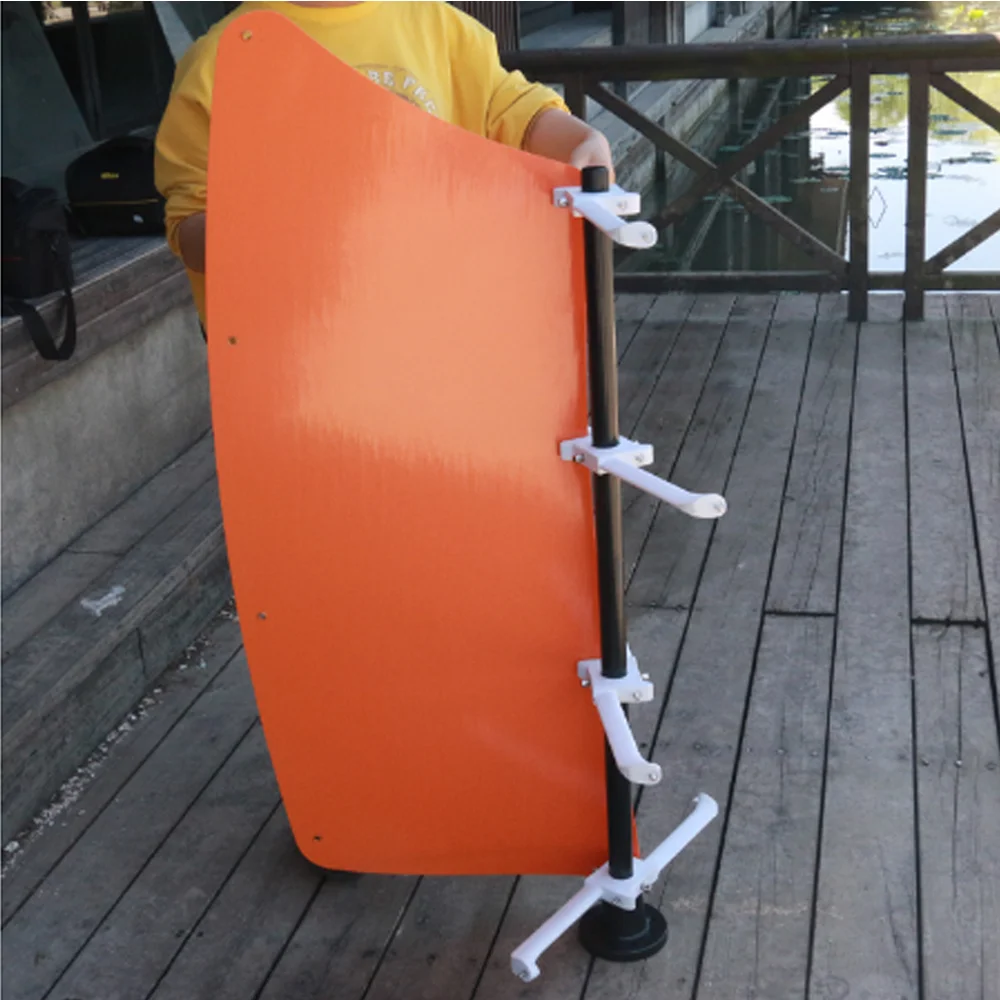

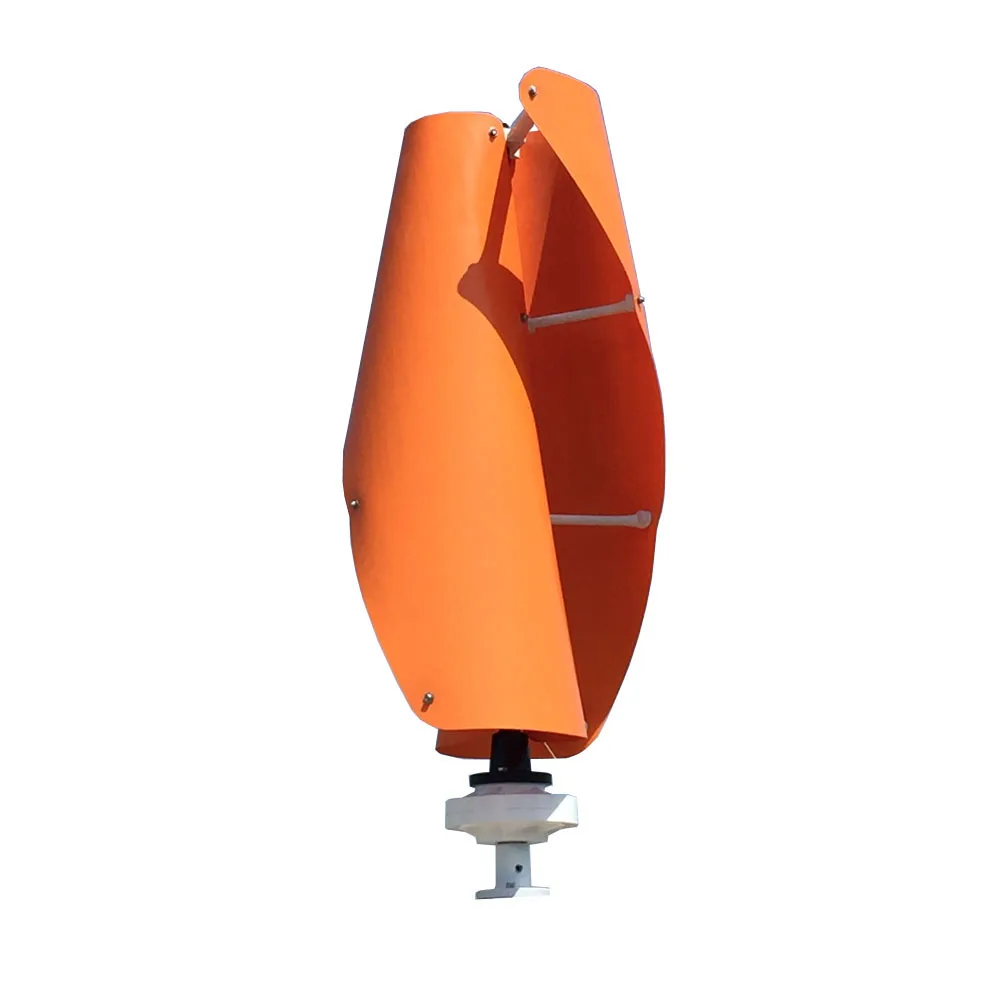

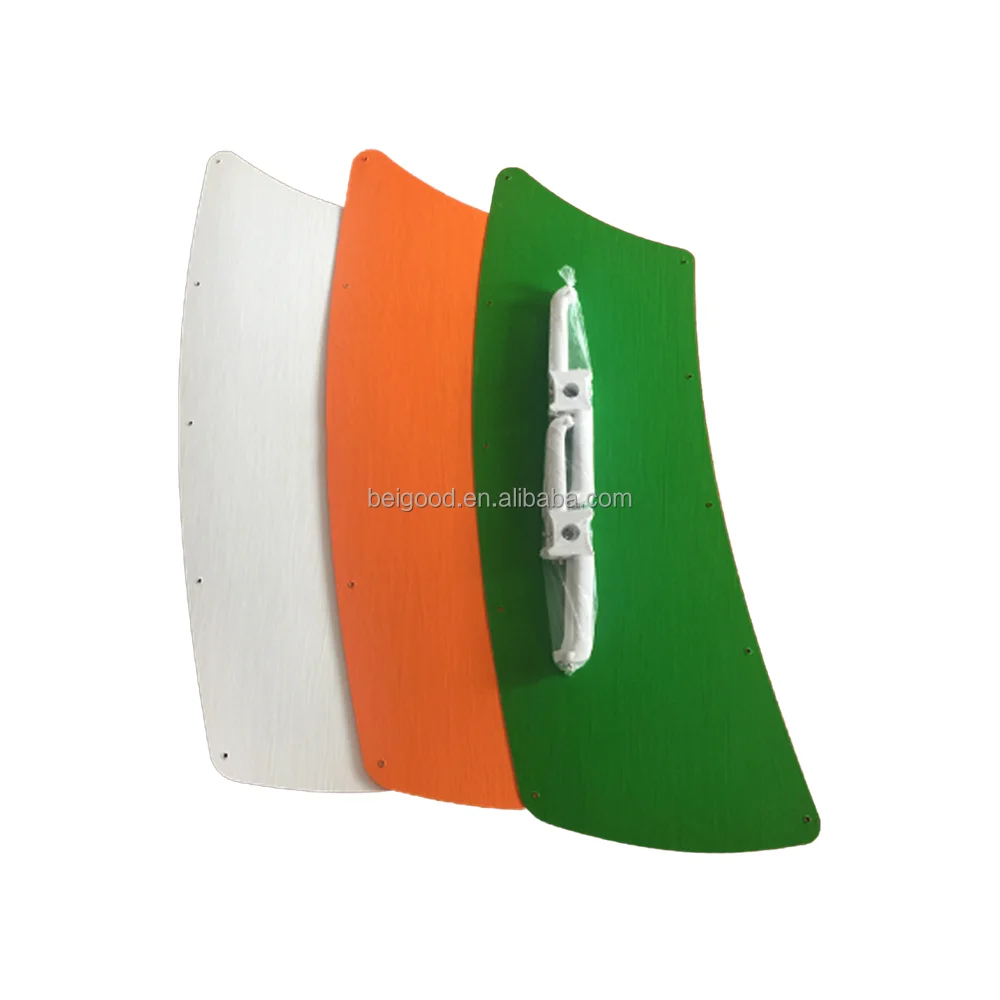

colorful wind turbine blades

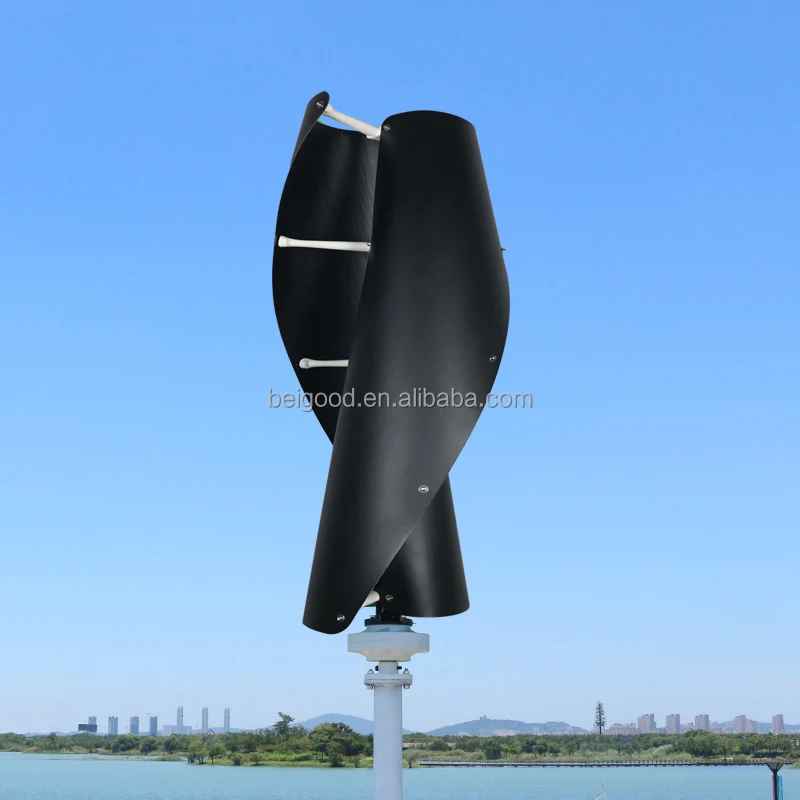

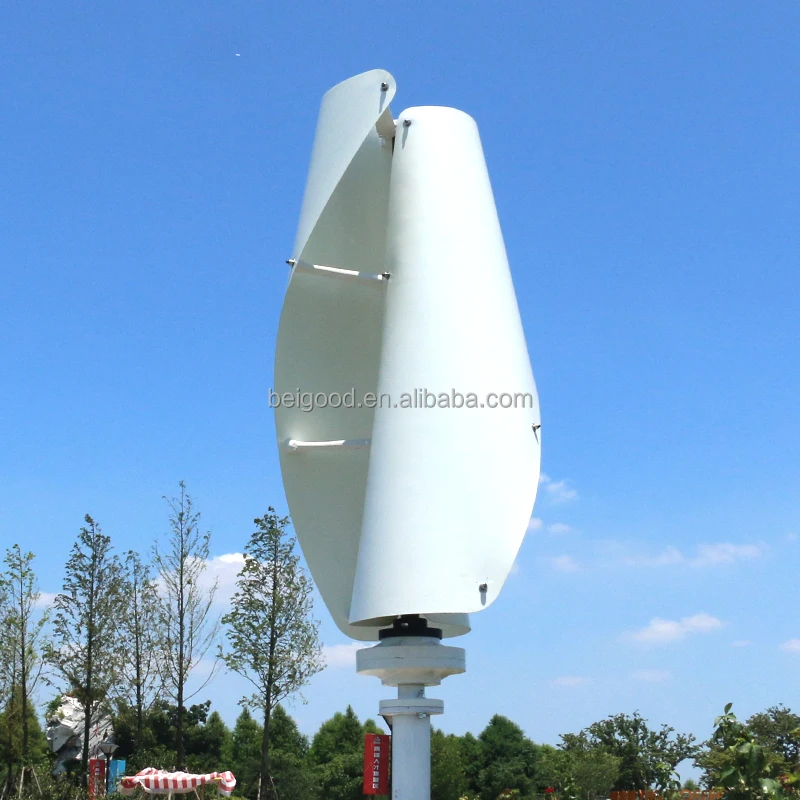

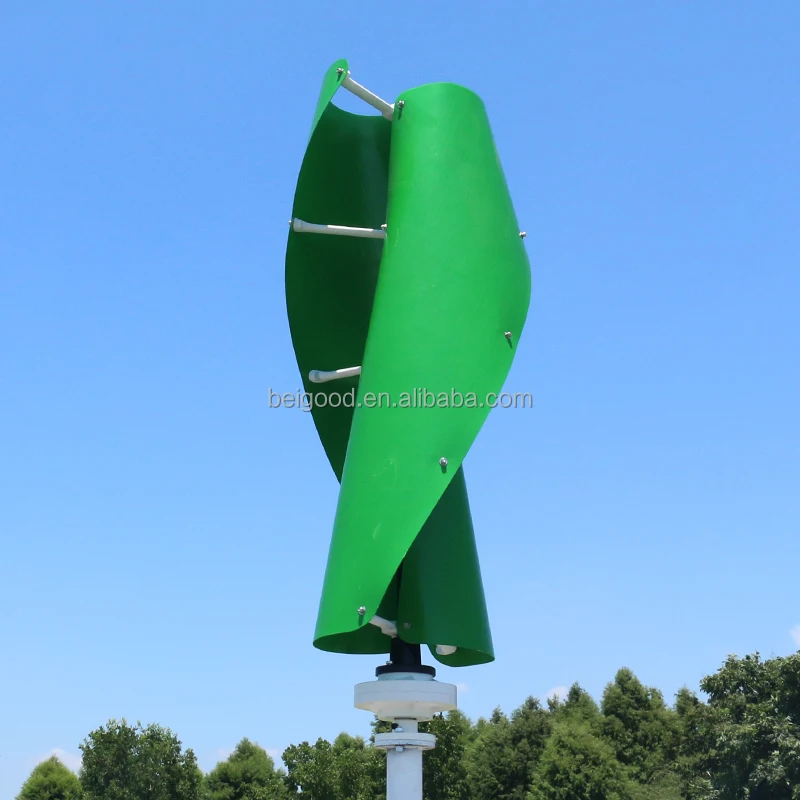

Fiber Glass wind turbine blades. Vertical wind turbine. DIY use wind turbine set.

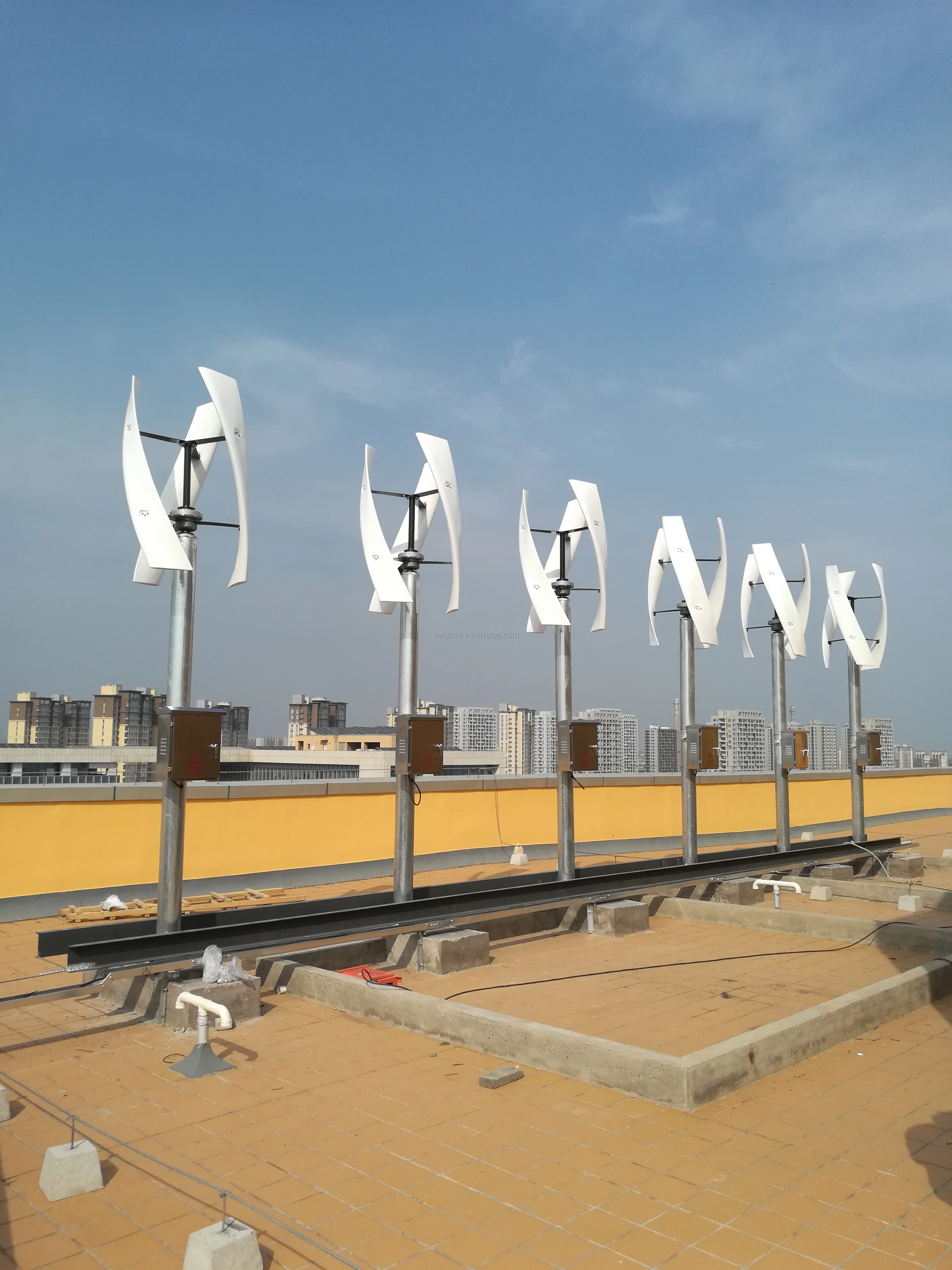

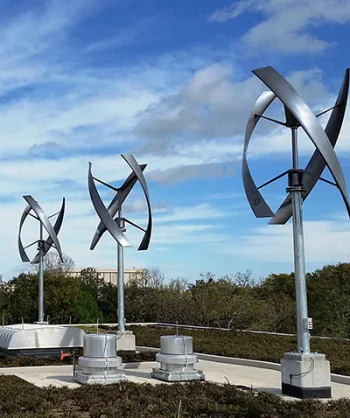

Success Applications
Company Profile
Jiangsu Beigood Electronic Co., ltd is specialized in energy supply for house, streetlights, factories,
emergency power station ,farm etc.There are more than 6 warehouses Russia,USA,Spain,Poland,Germany and UK, so we can dealing drop shipping orders .We are highly welcome distributors and brand agent from different countries in the world. OEM and ODM are also acceptable.Jiangsu Beigood Electronic Co., ltd is your reliable supplier and partner for ever.

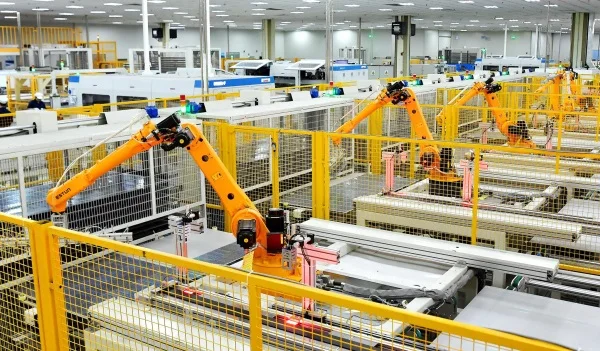

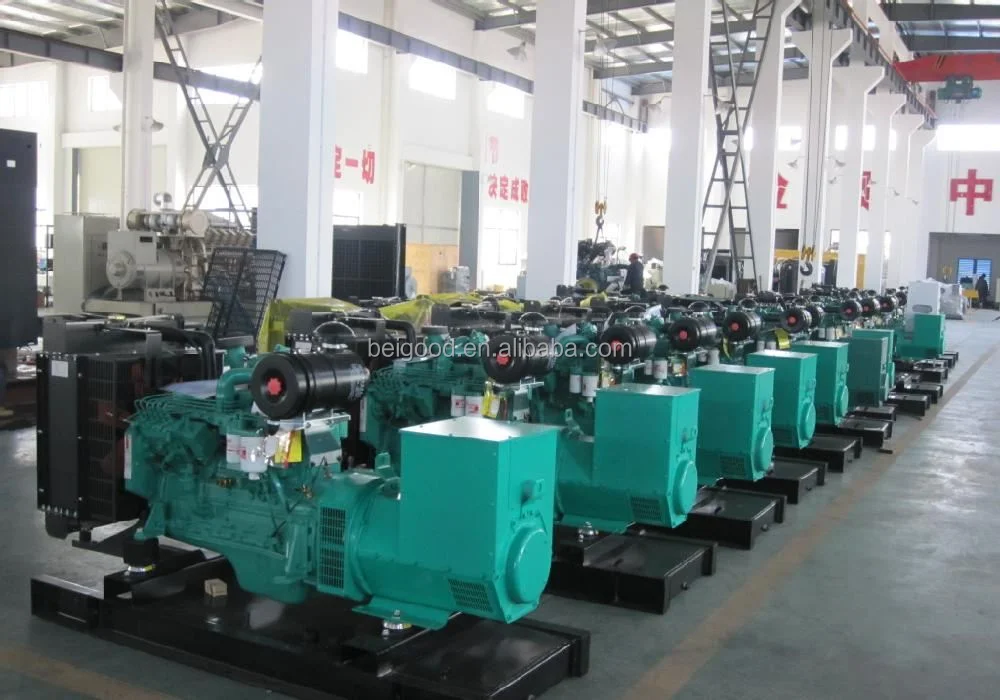

Factory
Why Choose Us
1.we are the top 2 manufacturer of wind and diesel generator in China.
2.20 years experience of producing and 12 years experience of international business.
3.6 warehouses Russia, USA,Spain, Poland,
2.20 years experience of producing and 12 years experience of international business.
3.6 warehouses Russia, USA,Spain, Poland,
Germany and UK,3 special line to Lebanon,Syria and Israel, Free tax for most countries.
5-10 years warranty for all products, free return service for all order due to quality problems.
5-10 years warranty for all products, free return service for all order due to quality problems.
Exhibition
Packing & Delivery
FAQ
Q1. What is the advantage about your company?
A1. Our company has professional team and professional production line.
Q2. Why should I choose your products?
A2. Our products are high quality and low price.
Q3. Any other good service your company can provide?
A3. Yes,we can provide good after-sale and fast delivery.
A1. Our company has professional team and professional production line.
Q2. Why should I choose your products?
A2. Our products are high quality and low price.
Q3. Any other good service your company can provide?
A3. Yes,we can provide good after-sale and fast delivery.
