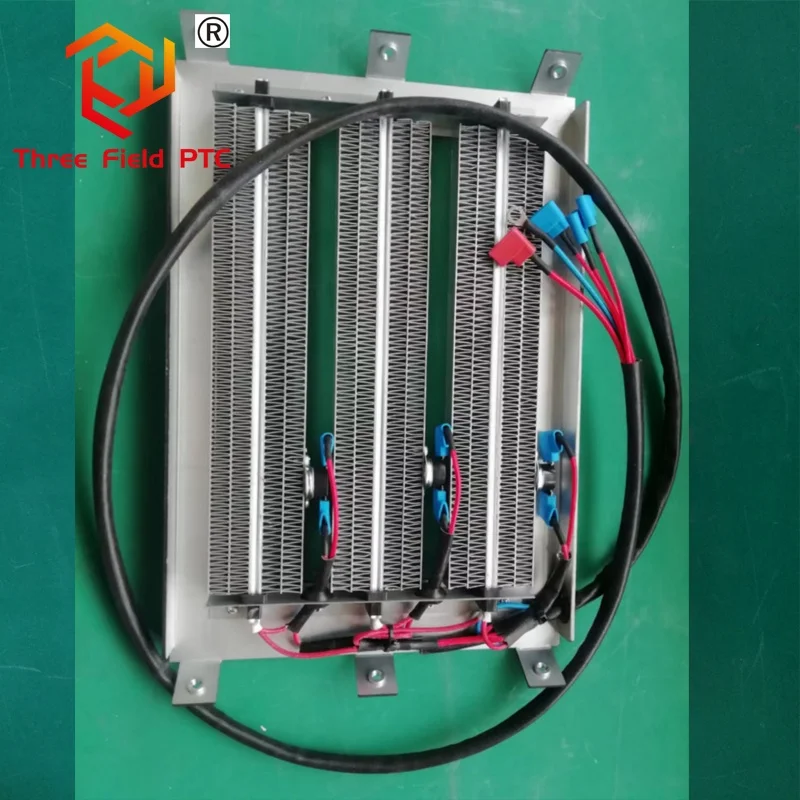

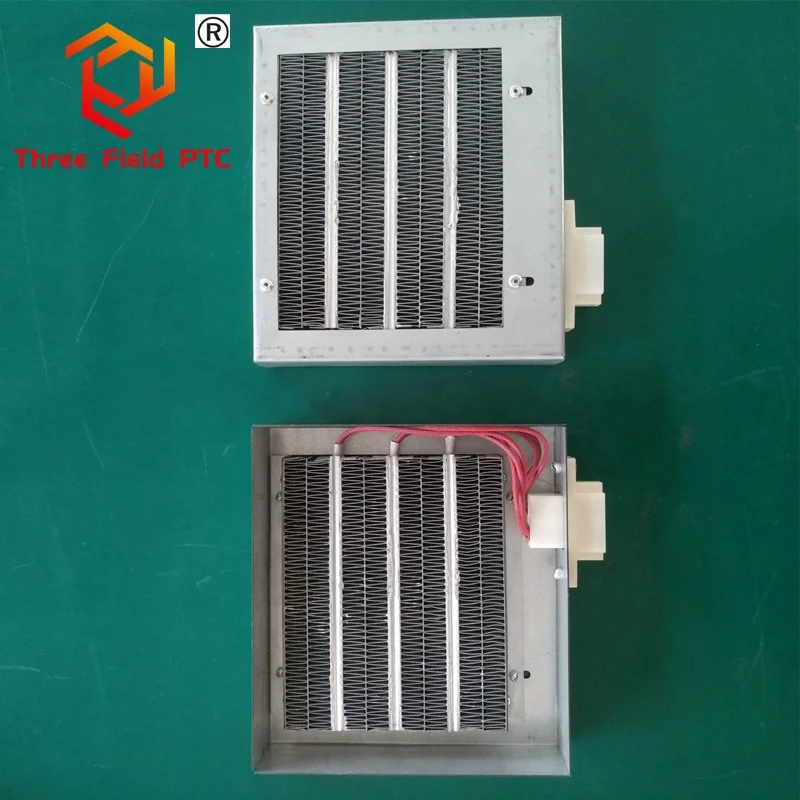

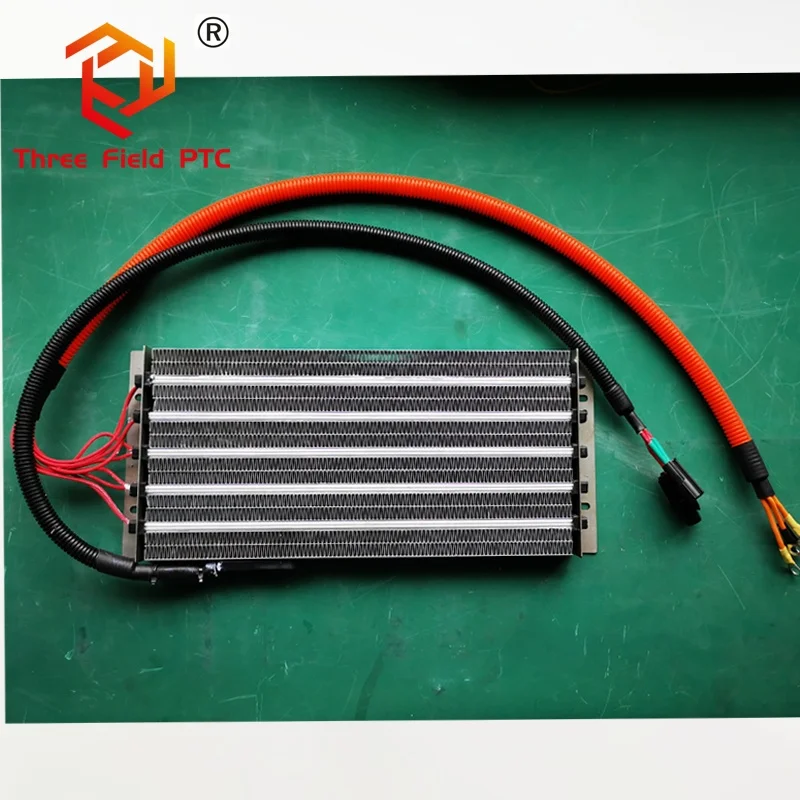

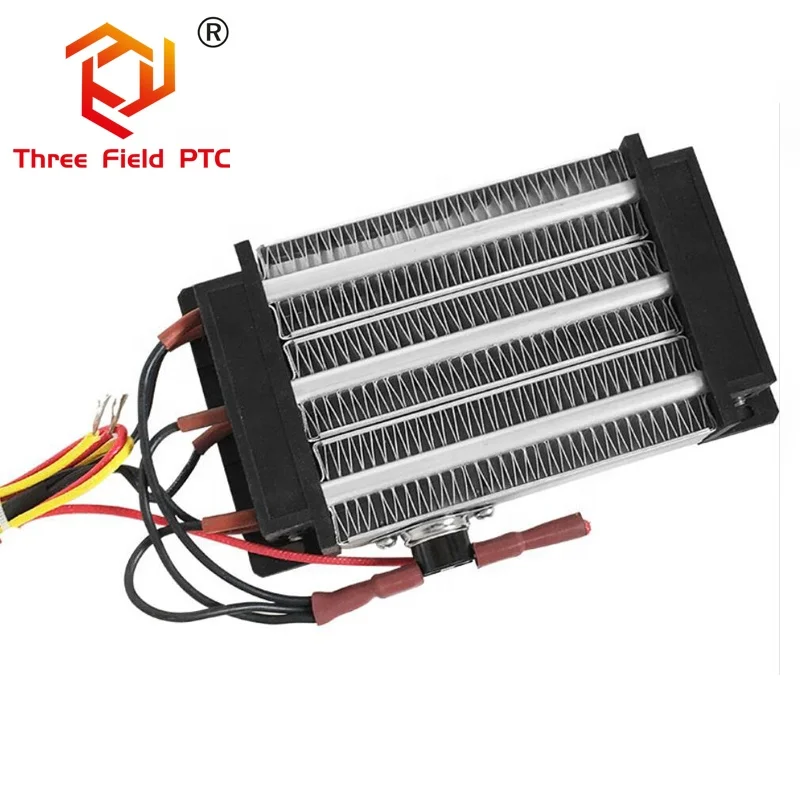

Custom High Power Industrial Heater Insulated Electric PTC Industrial heater for HVAC 230 volt heating element
- Category: >>>
- Supplier: Shenzhen Three Field PTC Co. Ltd.
Share on (1600408632797):
Product Overview
Description
Product Description
ODM Project Supported 100-50KW Surface Uncharged for Air Conditioner HVAC System
230 volt heating element

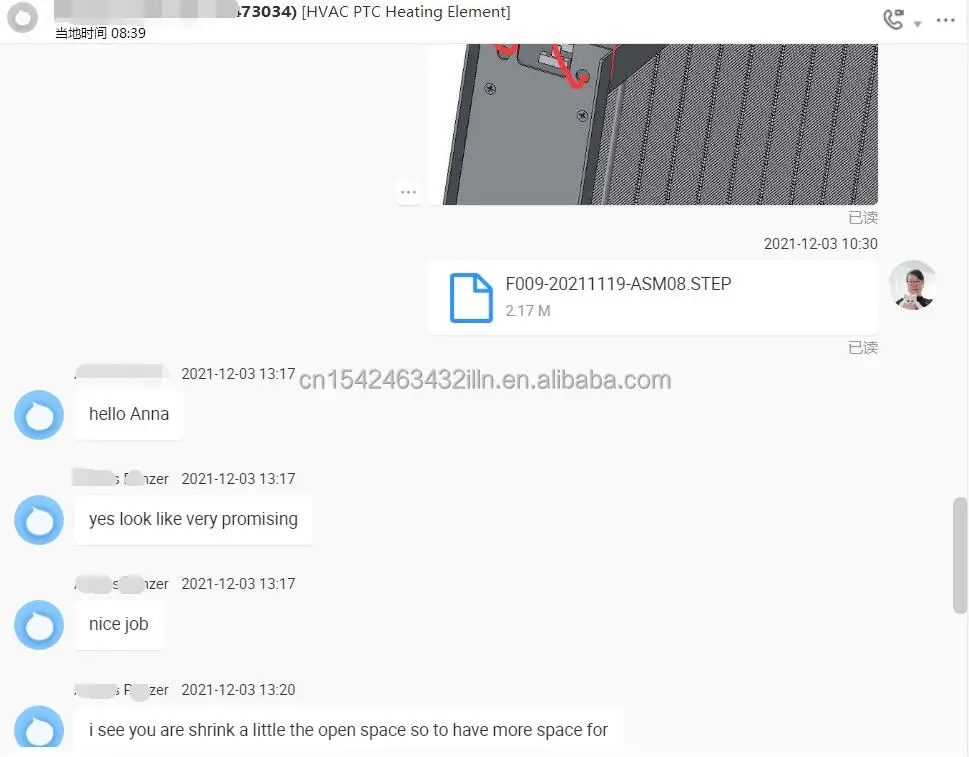

Our service advantage: our experienced engineers can help client to design the special PTC heating element and its frame for free. Usually we do it exceed customer expectations. See the comments of our design below, don't hesitate to contact us to enjoy the same level service:

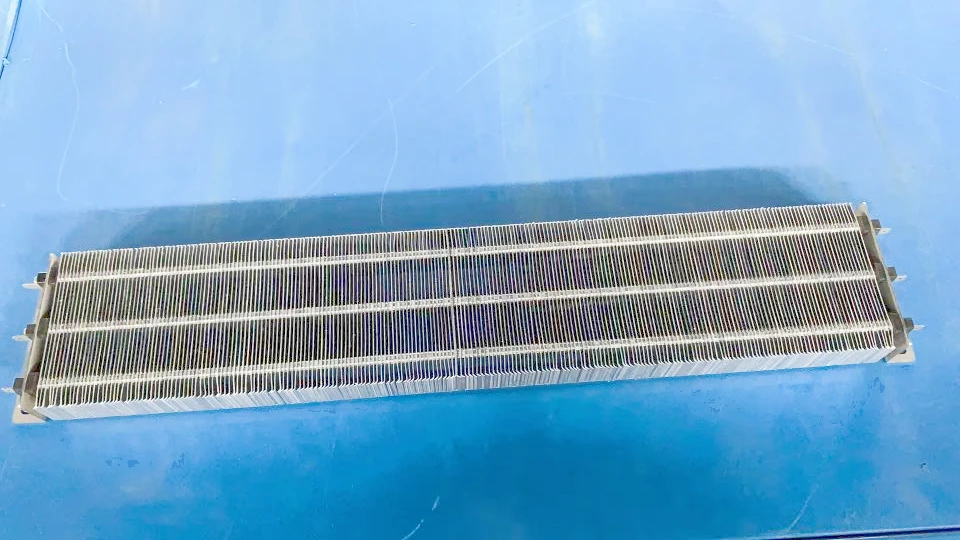

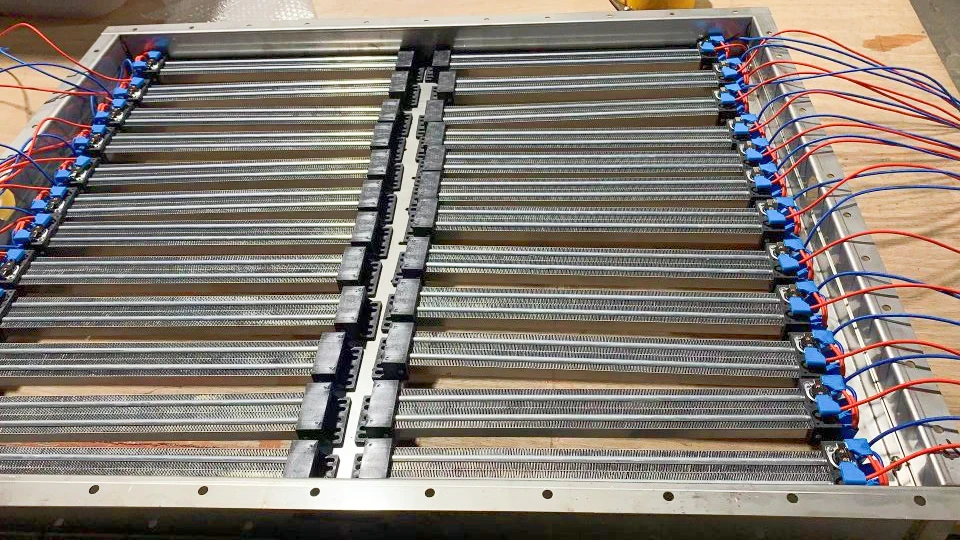

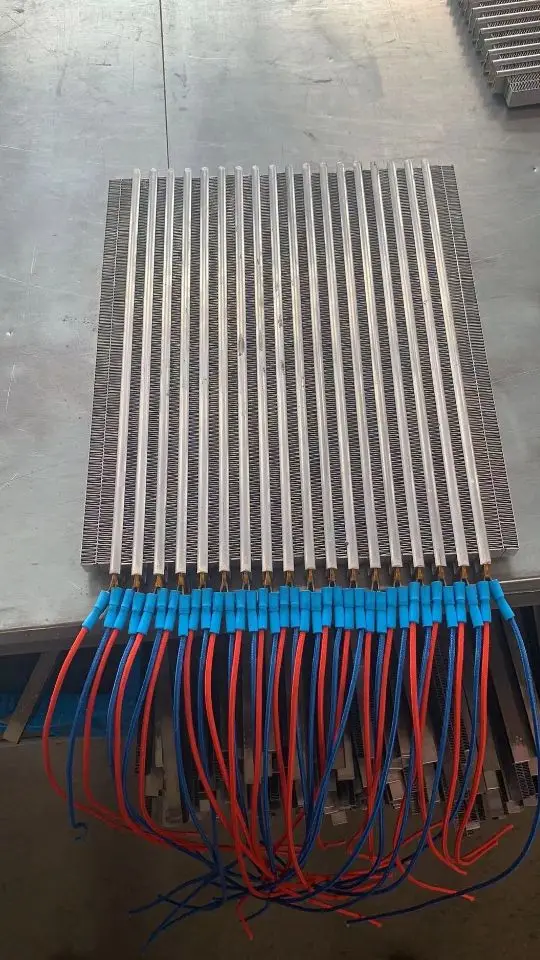

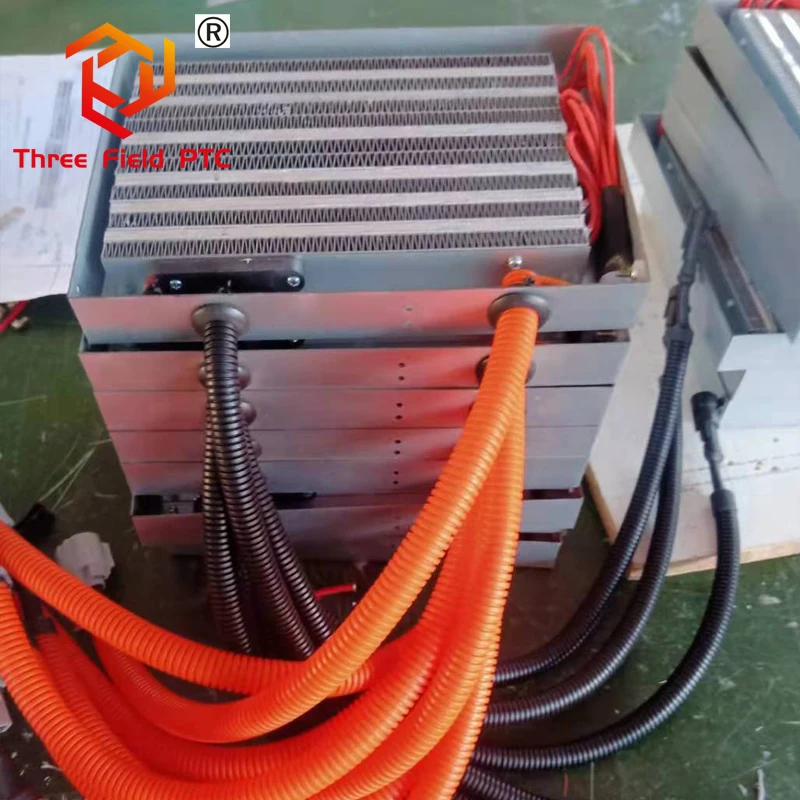

Some HVAC System heating elements cases we made for clients in 2021：
Below chart shows the specification and explains what can be customized.
No | Item | Description |
1 | Material | PTC thermistors and aluminium strips, |
2 | Dimension | Reply on the model you choose. Please contact us, we are glad to provide design drawing. |
3 | Rated power | From 1000W to 50KW, can be customized. |
4 | Withstanding Voltage testing | During the withstanding voltage test, we input 2 times of related voltage to the PTC heater for a minute. |
5 | Surge current | It will reach 1.5-2 times of related current when power on for about 10-15 seconds. |
6 | Power supply | Electricity power supply |
7 | Assembly method | We have engineer team who can help client to design how to assemble the PTC heater. |
8 | Temperature | The highest temperature of the heater body is 280℃, the highest temperature of the heated air is 130℃. It doesn’t have light fire. |
9 | Temperature control | This heater doesn’t have it. For safety consideration, we can add it to the PTC heater, need to negotiate with client about how to design a plastic frame to fix the sensor. |
10 | Testing | 100% power and high pressure withstanding test. |
11 | Surface Conductivity | Its surface is dielectric |
1 The features of surface uncharged heater series.
1.1 Its surface is uncharged.
1.2 Easy installation, plug-and-play, fast temperature increase
1.3 No oxygenation and open flame, secure and comfortable use. Quiet operation, and do not generate RFI noise.
1.4 It has a virtually unlimited service life, the service life is up to 100,000 hours.
1.5 Automatic adjustment to maintain balanced and continuously heating. When the temperature is too high, it will automatically reduce the power, reduce the heating and keep the temperature constant. High operational reliability and energy efficiency without any additional switching elements.
1.6 Product size, voltage, power, temperature and other parameters can be customized.
1.2 Easy installation, plug-and-play, fast temperature increase
1.3 No oxygenation and open flame, secure and comfortable use. Quiet operation, and do not generate RFI noise.
1.4 It has a virtually unlimited service life, the service life is up to 100,000 hours.
1.5 Automatic adjustment to maintain balanced and continuously heating. When the temperature is too high, it will automatically reduce the power, reduce the heating and keep the temperature constant. High operational reliability and energy efficiency without any additional switching elements.
1.6 Product size, voltage, power, temperature and other parameters can be customized.
2 The possible applications of surface uncharged PTC heater
Because of good safe performance, no-surface-electrified PTC heater is most commonly used as large power of pre or post-heaters for industrial heater, such as HVAC, Air conditioners.
Our client is welcomed to expand the usage of this PTC heater.
We support ODM projects for 230 volt heating element

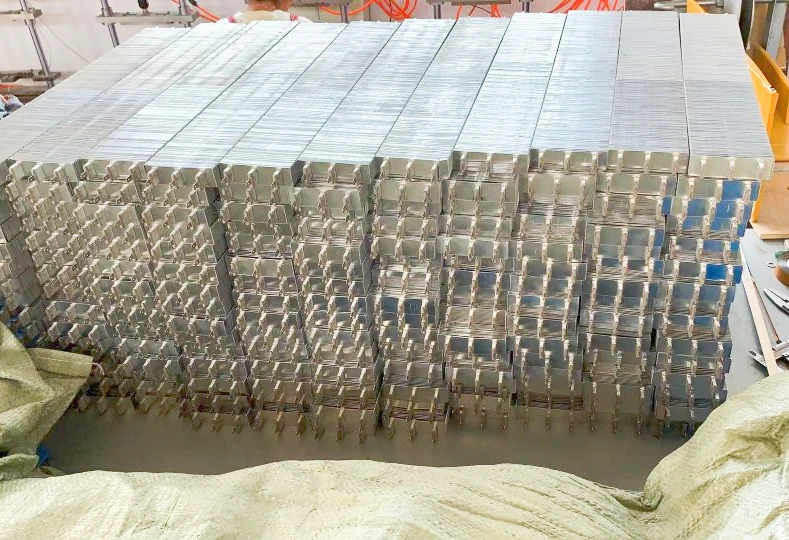

Production Process
1 Assemble PTC thermistors
2 Hydraulic press
3 Waterproof deal with
4 LOGO printing
5 Insulation test
6 Packing
Company Profile
Shenzhen Three Field PTC Co., Ltd. was established in 2010, with years of experience in designs, develops and manufactures PTC heaters and PTC production equipment.
New equipment are adopted for our production line and new PTC products are developed constantly. With workshop of more than 2,000 sqm, our annual output of PTC heaters is more than 3 millions with their superlative performance. Now our market department is focusing on on fast-growing consumer electronics market, which includes air heater, air conditioner, hairdressing, hot glue gun, dehumidifier, other heating apparatuses, etc.
Better quality, better service is our principle, we have management center, production center, R&D center, marketing center, logistic center. We pursue modernization of enterprise management, following our management principle of “quality first, high reputation”. Three Field PTC, your reliable PTC heater supplier!
ODM Project Supported 100-50kW Surface Uncharged for Air Conditioner HVAC System ventilation. Ceramic ptc heating element.
Cooperation Customers
FAQ
1. Is the sample for free?
If the proofing fee of samples is less than us$20, it is for free. Client only need to pay for the shipping cost.
2.The lead time of samples?
For ready made models, the lead time is only 3 days.For customization models, the lead time is 7-14 days. We will try our best to make the samples as fast as possible.
3.Can your company customize new PTC heater models?
Yes, ODM project is warmly welcomed in our company as we have the engineer team to take charge of development. Please tell us the requirements of the new model, we will offer a total solution to client.
4.What’s the lead time for a bulk order?
Usually it take 30 days for a bulk order. Most of clients are satisfied with our lead time.
5.What’s the shipping method for PTC heaters?
For most of PTC heaters, the volume is not small, we suggest client to place quantity order and ship through sea shipping, then the unit cost is competitive in your market. Except you need these PTC heaters in your country in short time.
6.How to ensure the quality?
100% of products were tested before shipment. We provide 3 years of quality warranty for our PTC heaters.
7.How to develop a new model for a new project?
Please provide these information to us for a new project:
The usage of PTC heaters, the type of PTC heater you want, its related voltage, related power, temperature, size and shape, the wind speed and environment temperature condition (for air heater), the finished product structure, requirements on material and so on. The more information you provide, the better for us to develop a suitable model for you. Our experienced engineer team will design the suitable model for you.
