Stainless Steel Band DCI Jaw Single Band Repair Clamp for Pipe
- Category: >>>
- Supplier: Tianyi Suns Pipe&fittings Co. Ltd.
Share on (1600408865812):
Product Overview
Description

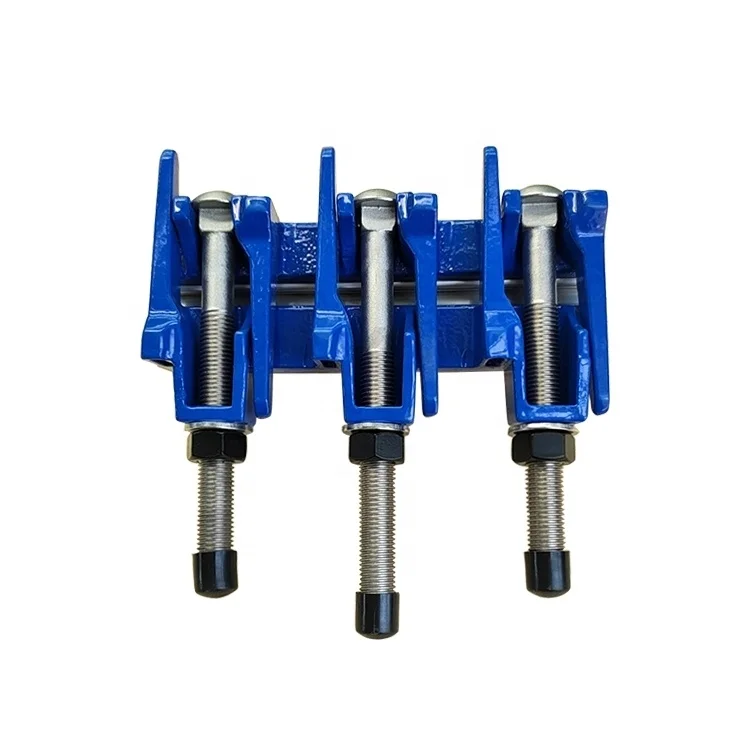

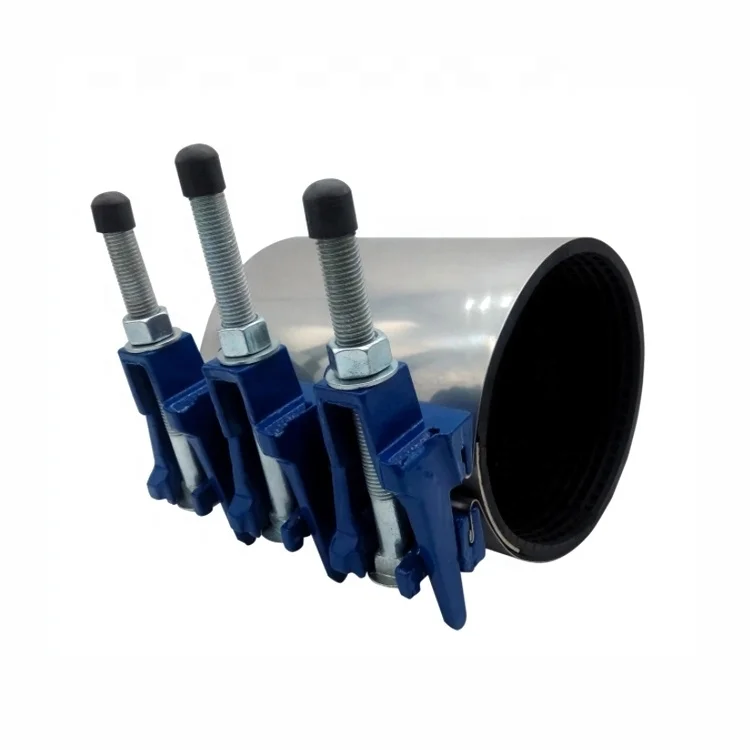

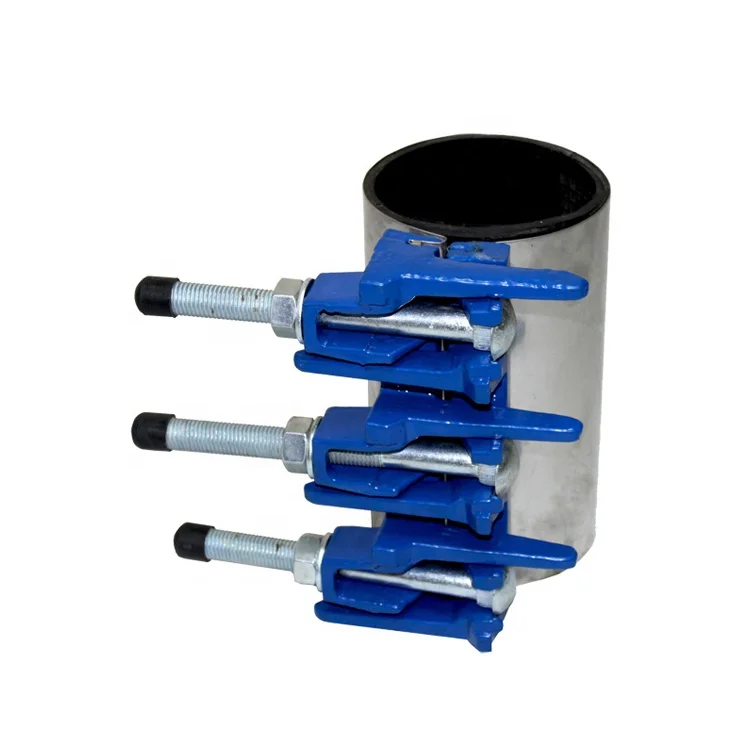

DI Jaw Stainless Steel Ductile Iron Single Band Repair Clamps
Products Description
Ductile Iron Band Repair Clamp is used on repairing different kinds of pipelines like cast iron, ductile iron, steel, asbesos cement, copper,aluminum, PVC, HDPE, fiberglass and other pipe types. It can provide a quick and economic way in repairing longitudinal, holes and breaks.
Features:
1.Easy installation, leaking pipeline quickfix
2.wide range of pipe O.D. to suit the different pipeline
3.the range of pipe O.D. for DI Jaw Single-band S.S.Repair Clamp is 10mm(+/-5mm)
the range of pipe O.D. for DI Jaw Double-band S.S.Repair Clamp is 20mm(+/-10mm)
the range of pipe O.D. for DI Jaw Triple-band S.S.Repair Clamp is 30mm(+/-15mm)
1.Easy installation, leaking pipeline quickfix
2.wide range of pipe O.D. to suit the different pipeline
3.the range of pipe O.D. for DI Jaw Single-band S.S.Repair Clamp is 10mm(+/-5mm)
the range of pipe O.D. for DI Jaw Double-band S.S.Repair Clamp is 20mm(+/-10mm)
the range of pipe O.D. for DI Jaw Triple-band S.S.Repair Clamp is 30mm(+/-15mm)

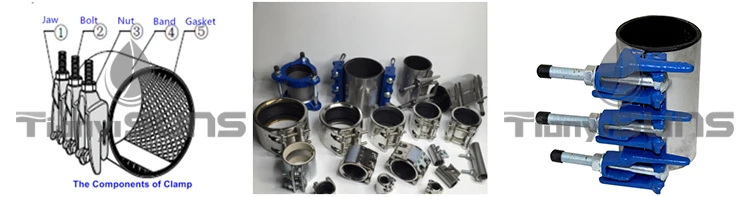

Item No. | Item Name | Material |
1 | Jaw | Ductile Iron |
2 | Bolts | Carbon Steel Galv. |
3 | Nuts | Carbon Steel Galv. |
4 | Band (Single/Double/Three) | SS304 |
5 | Gasket | EPDM/NBR |
6 | Coating | Epoxy Fusion Bonded |
Size | O.D.Range:mm | Length:mm | Bolting | Working Pressure |
2" | 60-67 | 150, 191, 200 | 5/8" or M16 | PN10/16 |
3" | 88-98 | 150, 191, 200, 300 | 5/8" or M16 | PN10/16 |
3" | 95-105 | 150, 191, 200, 300 | 5/8" or M16 | PN10/16 |
4" | 108-118 | 150, 191, 200, 300 | 5/8" or M16 | PN10 |
4" | 115-128 | 150, 191, 200, 300 | 5/8" or M16 | PN10 |
6" | 158-172 | 191, 200, 300 | 5/8" or M16 | PN10 |
6" | 168-182 | 191, 200, 300 | 5/8" or M16 | PN10 |
8" | 217-229 | 191, 200, 300 | 5/8" or M16 | PN10 |
8" | 225-240 | 191, 200, 300 | 5/8" or M16 | PN10 |
10" | 243-260 | 300 | 5/8" or M16 | PN6/10 |
10" | 270-288 | 300 | 5/8" or M16 | PN6/10 |
12" | 323-336 | 300 | 5/8" or M16 | PN6/10 |
12" | 340-360 | 300 | 5/8" or M16 | PN6/10 |
Please contact us for more detail , package,delivery time and shipment.
welcome your enquiry ,we will do our best to support.
Details Images

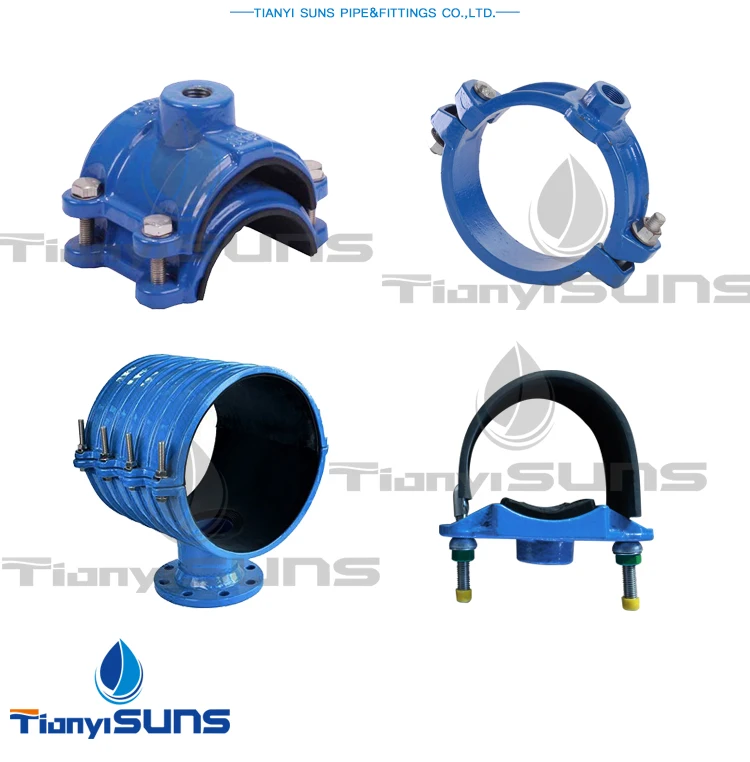

SEVERAL TYPES DISPLAY
Factory Display
Installation Instructions

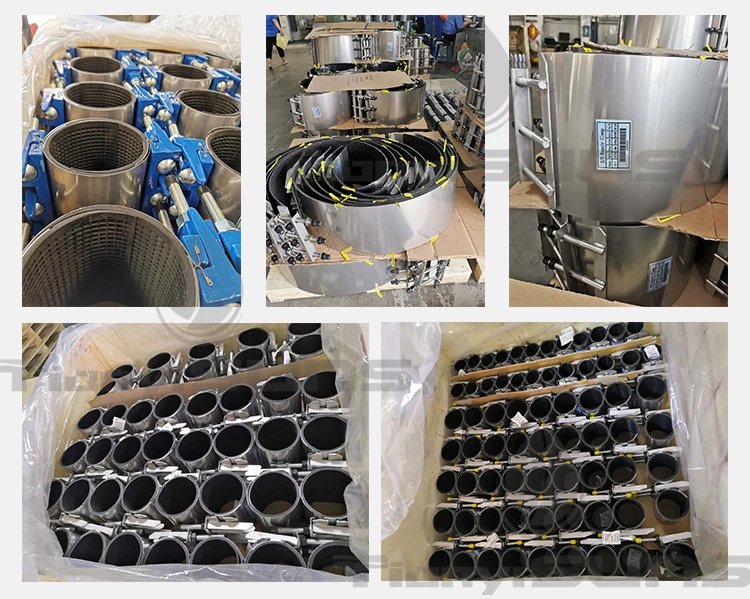

Product packaging
