High quality AJY series LNG flow meter nature gas meter
- Category: >>>
- Supplier: Shanghai Anjun Industrial Co. Ltd.
Share on (1600408871399):
Product Overview
Description
Product Description
Material | Aluminium alloy;carbon steel |
Accuracy | 1.50% |
Application | LPG LNG |
Normal diameter | DN25-DN200 |
Ambient temperature | -30~+60℃ |
Display | LCD |
Power supply | 24VDC+3.6v battery |
Signal output | pulse/4-20mA |
Protection class | IP65 |
Connection | flange |
Introduction:
AJY series Gas Roots Flowmeter is Shanghai Anjun Industrial Co., Ltd. selected professional technology and components manufacturing of world famous enterprises assembled, matching of high precision, high reliability, wide range, high price ratio measurement instrument. Widely used in industrial measurement and control, city gas detection or measurement etc..
Working Principle
Gas roots flowmeter is volume measuring chamber by rotating the two opposite directions of figure 8 waist wheel and a shell body, achieve accurate measurement of the gas (see below). In gas enters the instrument air inlet, in table cavity to form a pressure difference, so as to make the waist wheel to rotate, in each rotation cycle, the volume of a gas is through the metering chamber four times was removed from the fixed volume and waist wheel speed with the flowing gas proportional, waist wheel rotating through a specially designed deceleration mechanism and magnetic coupling coupling output to an external auxiliary counter reading unit, the counting unit can be a mechanical counter or a volume correction device, volume correction device is a traffic is correct, timely communication function.
Features:
The rotor material density equalization, high processing precision, good consistency and symmetry, stable operation, low noise, good reproducibility and high accuracy.
The rotor can also keep the measurement in the velocity variation under the condition of accurate.
Wide range ratio, up to 1:300.Small starting flow, initial minimum flow rate can reach 0.02m3/h, which is suitable for measuring small flow rate.
Shell cavity surface waist wheel made of super hard process, make the meter running more reliable and longer service life.
Small flow compensation function, security is less than 10%FS can accurately measure the flow.
Aluminum Alloy material, small volume and light weight, installation and maintenance more convenient.
Advanced dual power micro power high technology, low power consumption, not only by the battery in the long-term supply operation (lithium battery available for 3 years), and can be connected to external power supply operation.
With a large screen display Chinese, a large amount of information, clear and intuitive, easy reading.According to different countries and regions, setting the benchmark state, can meet the needs of different units of measurement.
The display screen can be rotated to 180°，More convenient for reading.

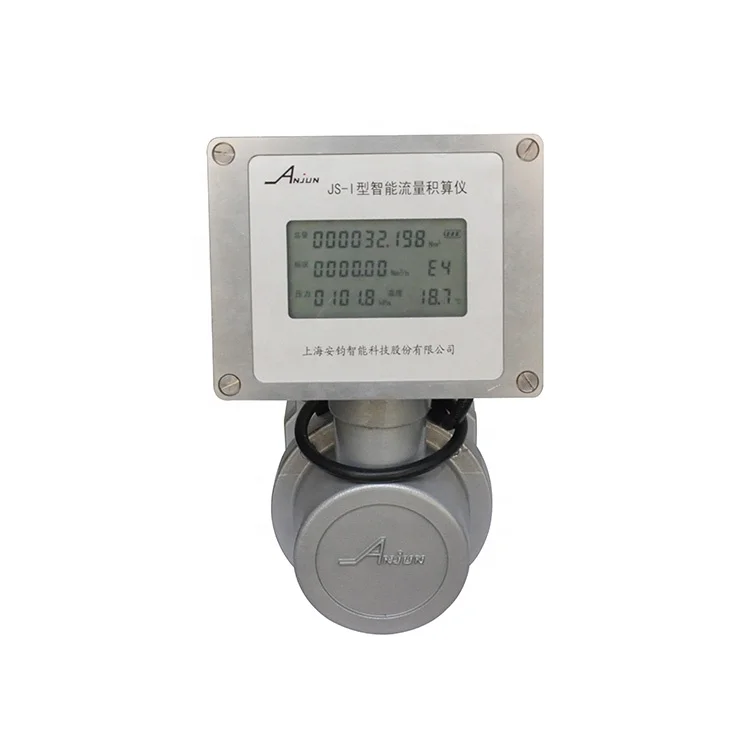

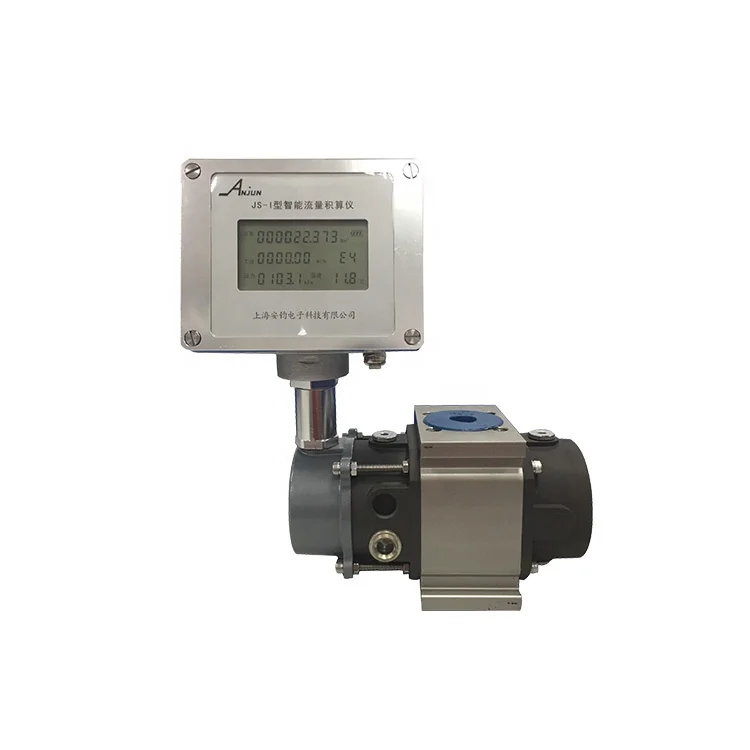

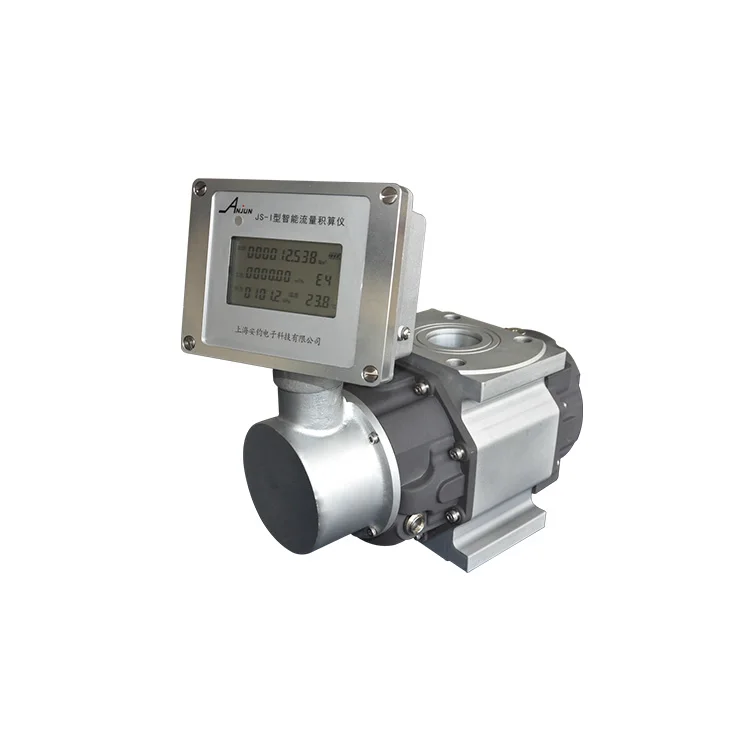

Intelligent integration design, but the temperature and pressure dynamic detection medium, and automatic compensation and compression factor correction, directly display the amount of gas standard instantaneous volume flow and standard volume.
meter with pulse signal output, can also be based on user needs output (4 ~ 20) mA standard analog signal, pulse signal and other signal quantitative IC card.
Uses the MODBUS standard protocol: RS485 interface, can be matched with a special MODEM, construction of automatic meter reading management system through the network, high degree of automation.
The internal battery low voltage alarm (≦2.7V), to remind the user to replace the battery in time.
mechanical counter, intelligent volume corrector dual display, convenient record,save the data to prevent data lost.
The main circuit of power supply and flowmeter isolation, isolation voltage up to 1000V.
reliable electromagnetic compatibility design.
Technical parameter:
The conditions of use:environment temperature: -30 to +60°C
relative humidity: 5% ~ 95%
atmospheric pressure: 70kPa ~ 106kPa
medium temperature: -20 to +80°C (special requirements can be done: -40 to +80°C)
Fluid condition:
Flow, temperature and pressure range of measured fluid should be consistent with the requirements of this specification.
measured gas is single-phase gas (air), such as natural gas, city gas and other gas, alkanes and industrial inert gas and other non corrosive
Measure Range Of Roots Flow Meter: | ||||||||||||||||
SIZE （mm） | MODEL | STARTING FLOW （m³/h） | FLOW RANGE （m³/h） | MAX PRESSURE LOSS （Pa） | RANGE RATIO | PRESSURE （MPa） | ACCURACY | MATERIAL | ||||||||
25 | AJY-25 | 0.05 | 1.00~20.00 | 80 | 20：1 | 1.0 | 1.0 1.5 | |||||||||
40 | AJY-40 | 0.07 | 1.17~40.00 | 100 | 34：1 | 1.0 | 1.0 1.5 | |||||||||
50 | AJY-50A | 0.07 | 1.17～65.00 | 100 | 55：1 | 1.0 | 1.0 1.5 | |||||||||
AJY-50B | 0.07 | 1.17~85.00 | 200 | 72：1 | 1.0 | 1.0 1.5 | ||||||||||
80 | AJY-80A | 0.08 | 2.46~150.00 | 220 | 61：1 | 1.0 | 1.0 1.5 | |||||||||
AJY-80B | 0.11 | 2.46~200.00 | 230 | 81：1 | 1.0 | 1.0 1.5 | ||||||||||
100 | AJY-100A | 0.11 | 2.98~250.00 | 300 | 84：1 | 1.0 | 1.0 1.5 | |||||||||
AJY-100B | 0.11 | 5.00~450.00 | 450 | 90：1 | 1.0 | 1.0 1.5 | ||||||||||
150 | AJY-150A | 1.0 | 6.5～650 | 700 | 100：1 | 1.0 | 1.0 1.5 | |||||||||
AJY-150B | 1.0 | 6.5～1000 | 800 | 153：1 | 1.0 | 1.0 1.5 | ||||||||||

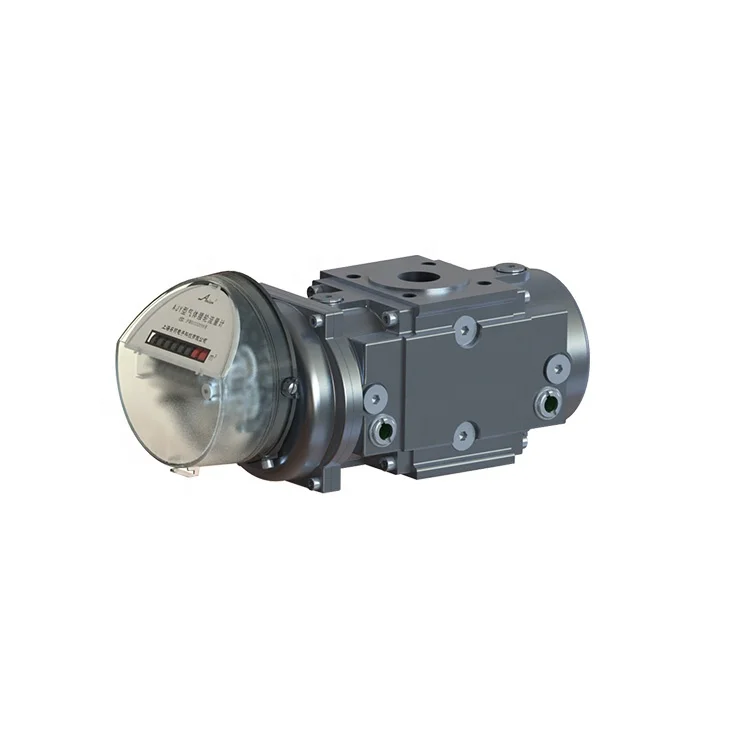

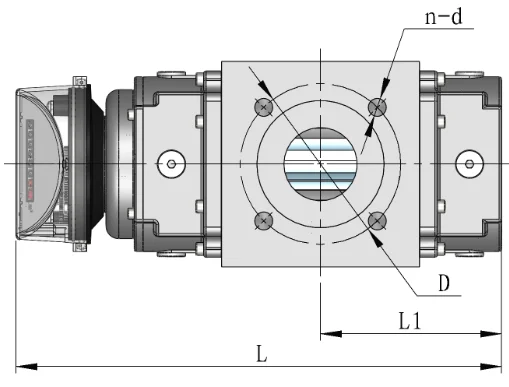

Gas Roots flowmeter (mechanical counter display)
SIZE（mm） | MODEL | L | L1 | B | H | D | N*d |
25 | AJY-25 | 321 | 104 | 110 | 120 | 85 | 4*M12 |
40 | AJY-40 | 392 | 129 | 160 | 172 | 110 | 4*M16 |
50 | AJY-50A | 392 | 129 | 160 | 172 | 125 | 4*M16 |
AJY-50B | 412 | 141 | |||||
80 | AJY-80A | 426 | 154 | 230 | 245 | 160 | 4*M16 |
AJY-80B | 446 | 164 | |||||
100 | AJY-100A | 511 | 197 | 230 | 245 | 180 | 8*M16 |
AJY-100B | 616 | 249 | |||||
150 | AJY-150A | 680 | 296 | 450 | 460 | 240 | 8*M20 |
AJY-150B | 680 | 296 |

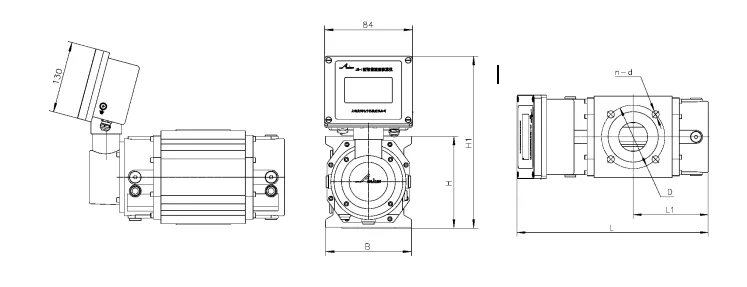

Gas Roots flowmeter (intelligent volume correction instrument display)
SIZE（mm） | MODEL | L | L1 | B | H | H1 | D | n*d |
25 | AJY-25 | 290 | 104 | 110 | 120 | 296 | 85 | 4*M12 |
40 | AJY-40 | 353 | 129 | 160 | 172 | 318 | 110 | 4*M16 |
50 | AJY-50A | 357 | 139 | 160 | 172 | 318 | 125 | 4*M16 |
AJY-50B | 377 | 149 | ||||||
80 | AJY-80A | 390 | 154 | 230 | 245 | 382 | 160 | 4*M16 |
AJY-80B | 410 | 164 | ||||||
100 | AJY-100A | 475 | 197 | 230 | 245 | 382 | 180 | 8*M16 |
AJY-100B | 580 | 249 | ||||||
150 | AJY-150A | 680 | 296 | 450 | 460 | 590 | 240 | 8*M20 |
AJY-150B | 680 | 296 |
