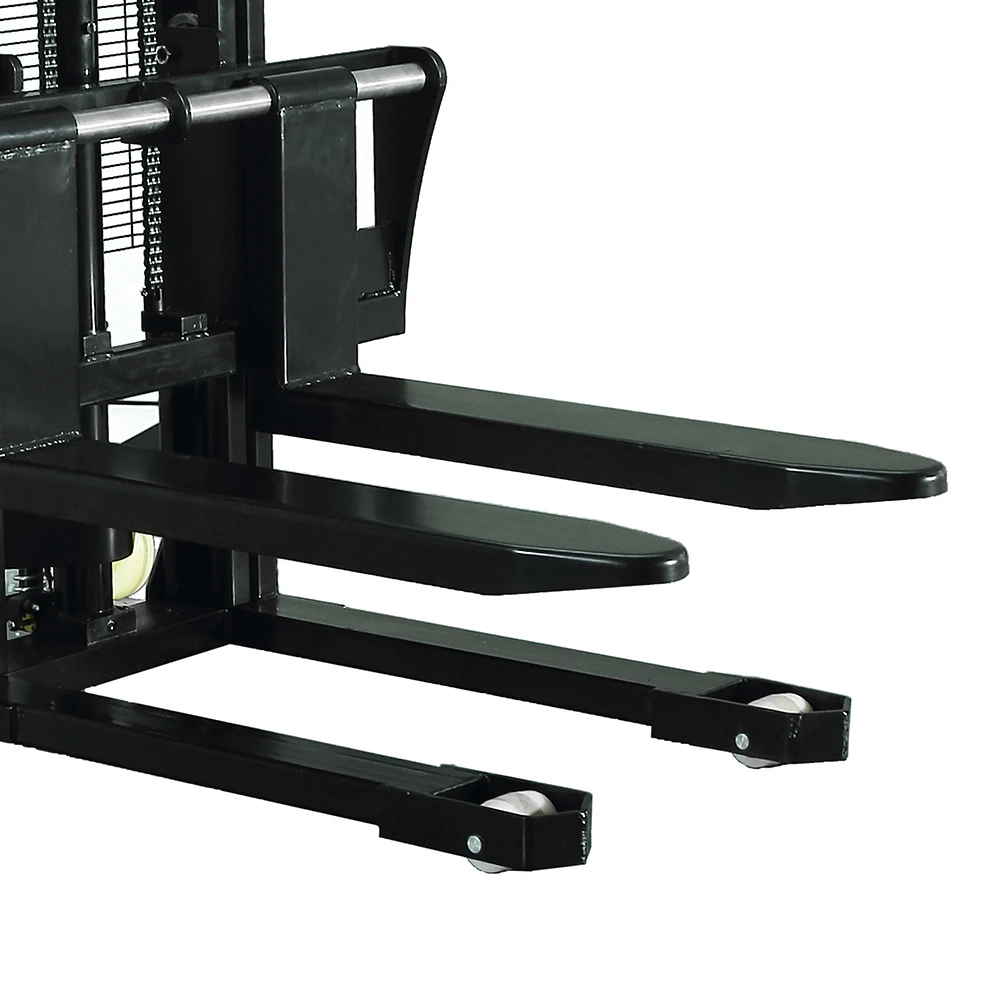

Hydraulic Oil Drum1.5ton 3m Self Load Forklift Manual Stacker Forklift
- Category: >>>
- Supplier: Zhejiang Kaixun Mechanical And Electrical Co. Ltd.
Share on (1600408874479):
Product Overview
Description
PRODUCT DESCRIPTION
KX-CDSS15 Manual Stacker
1. Rated Load 1500kg
2. Lifting Height 3m
3. Fork Length 910mm/1150mm
4. Fork Adjustable Width from 340mm to 1000mm
5. Fixed straggle legs width 685mm/550mm
6. Turning radius 1480mm
7. 3-Position handle control - Raise, Lower, and Neutral
8. With metal grid and brake system to ensure safety
3. Fork Length 910mm/1150mm
4. Fork Adjustable Width from 340mm to 1000mm
5. Fixed straggle legs width 685mm/550mm
6. Turning radius 1480mm
7. 3-Position handle control - Raise, Lower, and Neutral
8. With metal grid and brake system to ensure safety
Advantages
* Reasonable design and compact structure
* steady lifting, flexible moving, and convenient operation.
* High efficient pumps makes the control easier to operate
* Metal grid protects user from lift chains
* With brake system to ensure safety during operation.
* steady lifting, flexible moving, and convenient operation.
* High efficient pumps makes the control easier to operate
* Metal grid protects user from lift chains
* With brake system to ensure safety during operation.
PRODUCT SPECIFICATIONS
Articles/Model | Article/Model | Unit | KX-CDSS-10 | KX-CDSS-15 | KX-CDSS-20 | ||
Main characteristics | Rated load capacity | kg | 1000 | 1500 | 2000 | ||
N.W. | kg | 278 288 310 340 | 288 317 340 363 | 269 320 343 366 | |||
Max.mast height | mm | 2068/2568/3068/3568 | |||||
Wheel specification | Wheel material | PU/Nylon | |||||
Carrying wheel | mm | Φ80×70 | |||||
Driving wheel | mm | Φ180×50 | |||||
Wheel base | mm | 1200 | |||||
Size | Lifting height | mm | 1600/2000/2500/3000/3500 | ||||
Fork length | mm | 910/1150 | |||||
Fork adjustable width | mm | 340/1000 | |||||
Overall width | mm | 1045 | |||||
Overall length | mm | 1585 | |||||
Turning radius | mm | 1480 | |||||
Motor battery | Battery voltage/rated capacity | V/Ah | 12/100 | ||||
Lifting motor | kw | 1.6 | |||||
DETAILED PHOTOS
COLOR(CUSTOMIZABLE)
COMPANY PROFILE
Kaixun Group --- Zhejiang Kaixun Mechanical and Electrical Co., Ltd., which founded in 1998, is an export-oriented high-tech enterprise. We integrate R&D, production and sales into one body, and we are specialized in manufacturing various 380 items,including hoisting machinery, financial equipments, electric winch, electric forklift and hydraulic car, etc.
Our company locates at Wenzhou City, Zhejiang Province, China. We covers an area of 59000m², structure area 87000m², and owned 880 sets of production equipment, which includes 260 sets of testing instruments.KAiXUN brand, creat top quality, offer best service and ensure customer satisfactory.
We have passed the certification of ISO9001:2015 quality system. Many products have got CE, GS, RoHS, CB, UL, CUL, and FCC approvals.Now we have been exporting 80% of our products in bulk to Europe, USA, Africa, Middle east, south Asia, Russia, India, etc.Over120 countries and regions. Our products are highly praiised by our clients.
We have passed the certification of ISO9001:2015 quality system. Many products have got CE, GS, RoHS, CB, UL, CUL, and FCC approvals.Now we have been exporting 80% of our products in bulk to Europe, USA, Africa, Middle east, south Asia, Russia, India, etc.Over120 countries and regions. Our products are highly praiised by our clients.
