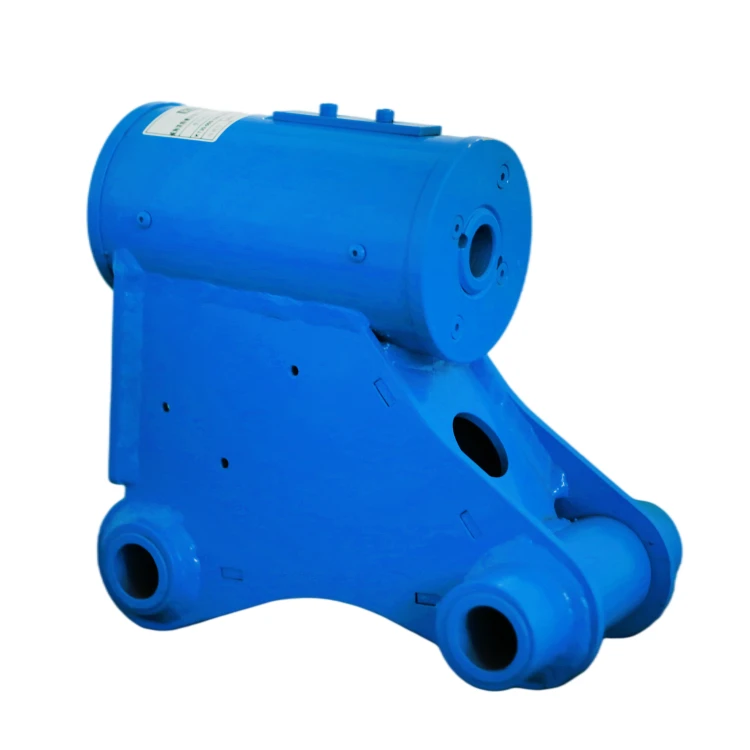

China Factory direct sales Hydraulic Rotary Actuator cylinder
China Factory direct sales Hydraulic Rotary Actuator cylinder
China Factory direct sales Hydraulic Rotary Actuator cylinder
China Factory direct sales Hydraulic Rotary Actuator cylinder
China Factory direct sales Hydraulic Rotary Actuator cylinder
China Factory direct sales Hydraulic Rotary Actuator cylinder
China Factory direct sales Hydraulic Rotary Actuator cylinder

China Factory direct sales Hydraulic Rotary Actuator cylinder

Share on (1600408874965):


Price:$600.00

Quantity:


Product Overview

Description







KT20 SERIES PERFORMANCE

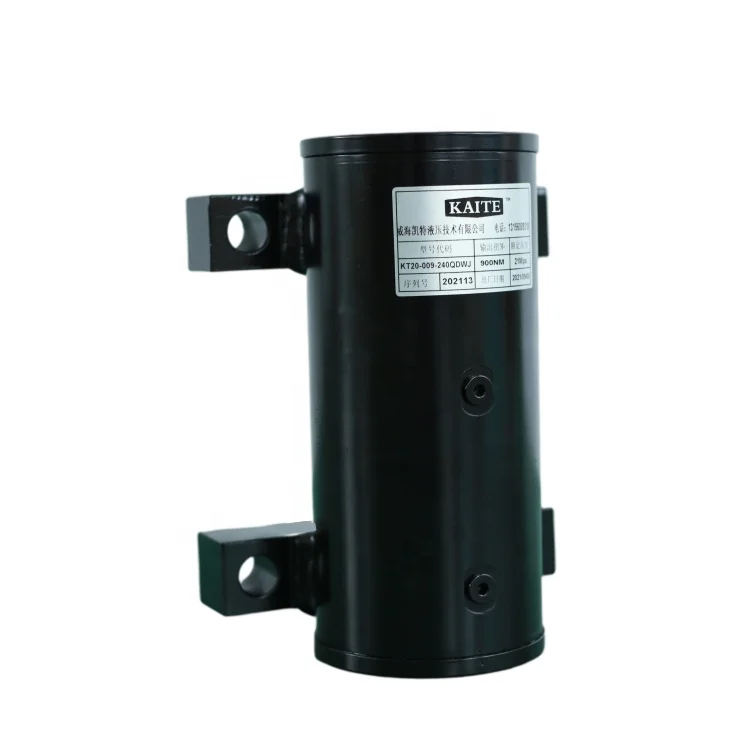

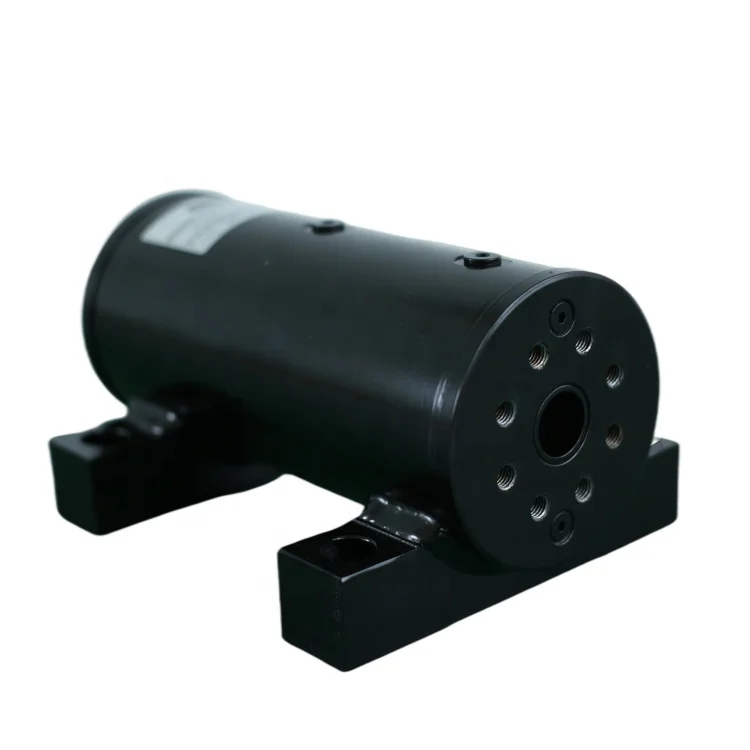

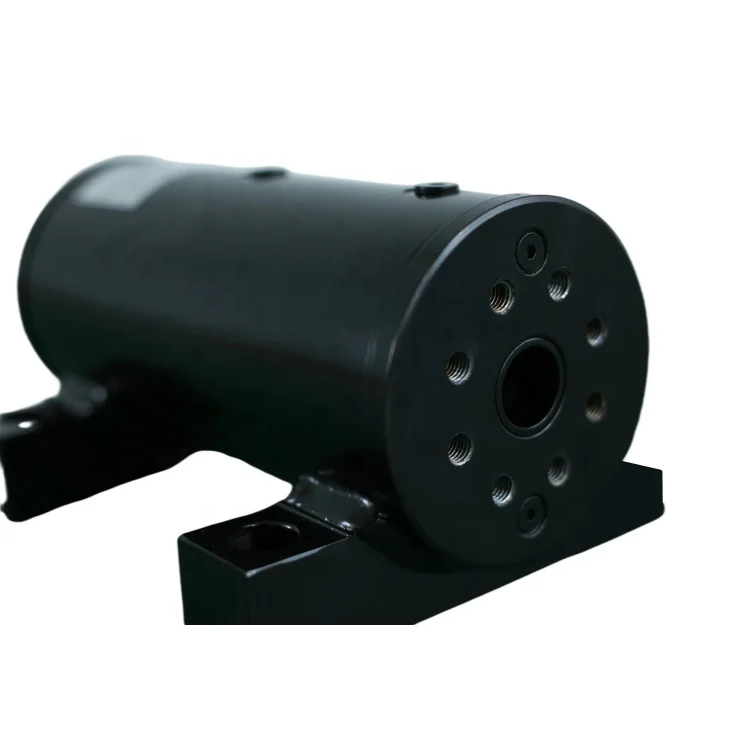

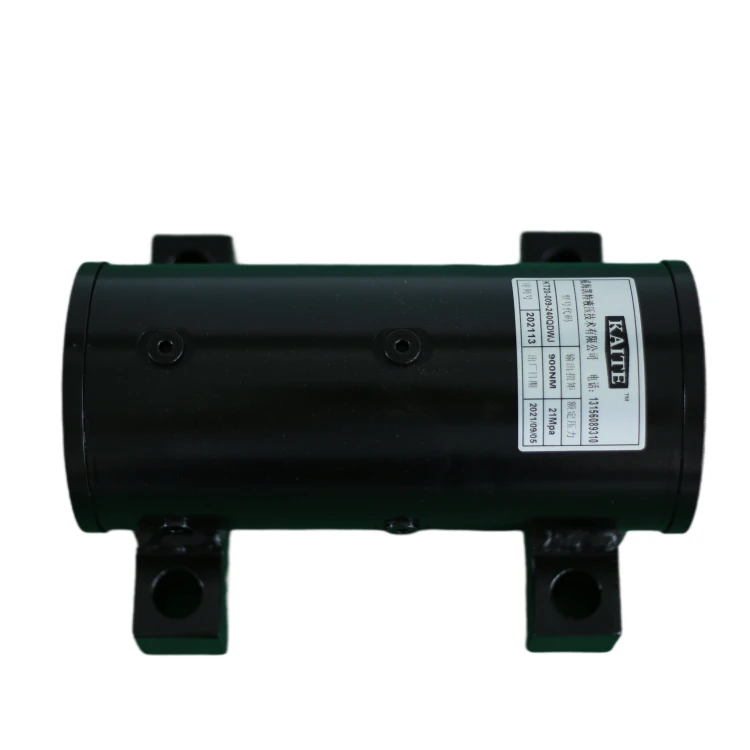

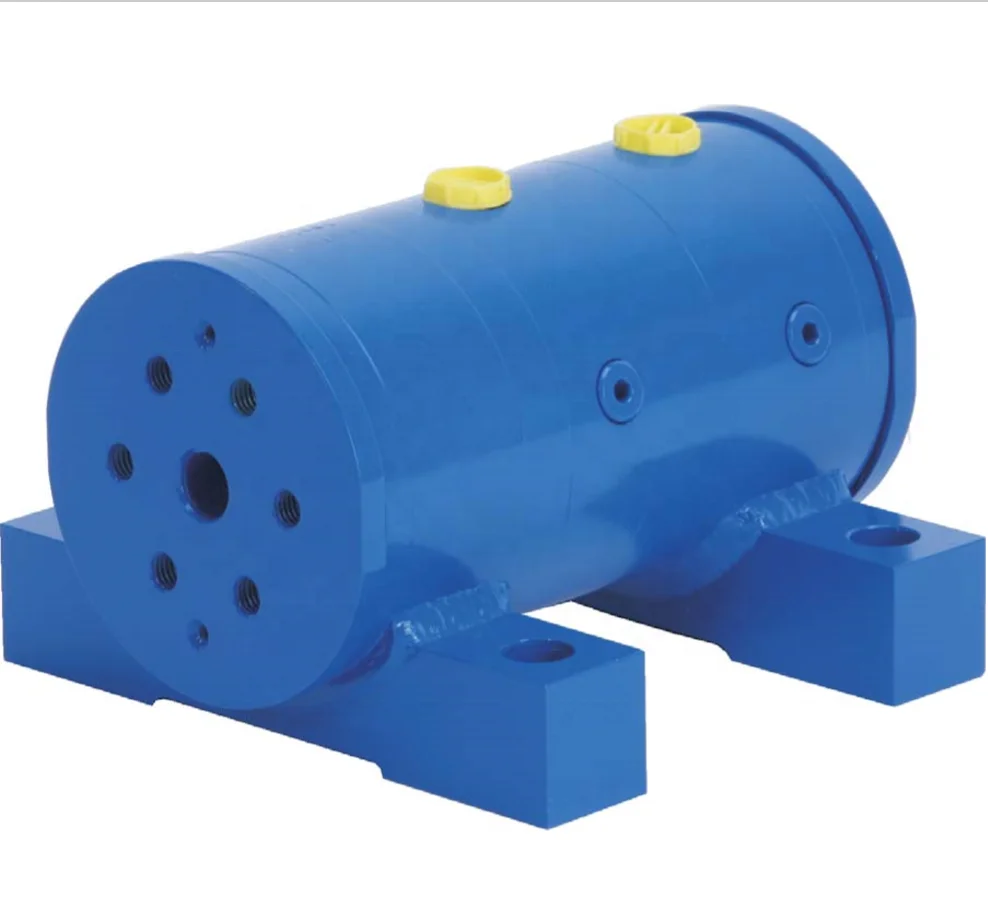

This helical hydraulic rotary actuator  delivers power and performance in a compact size
to help you work in the tightest applications, it works stable and easy maintenance.
KT30 series actuators are available in a variety of standard configurations in 180 or 360 degree rotation.


        KT20 Series Parameter
型号/SERIES
5
9
16
27
42
输出扭/Drive orqueNm@21MPa
500
900
1600
2680
4200
保持扭矩/ Holding Torque Nm@21MPa
1300
2400
4400
7100
10500
跨骑安装最大弯矩/ Max straddle moment Nm
2500
4500
10200
16400
31600
悬臂安装最大弯矩/ Max cantilever moment Nm
1360
2480
5420
11300
15800
径向负载/ Radial load kg
1380
2130
4190
5580
9530
轴向负载/Axial load kg
500
680
1000
1400
1770
排量/ Displacement 180°cc
132
234
436
726
1070
重量/Weight 180° kg
12.5
17
30
51
77
D1 安装盘直径/ Dia of mounting flange mm
104
117
142
170
196
D2 壳体直径/dia of house mm
101
114
139
165
191
F1 法兰端螺丝孔尺寸/ tape hole mm
M10×1.5
M10×1.5
M12×1.75
M20×2.5
M20×2.5
F2 法兰端螺丝孔个数/ Nos of tape holes
6
8
8
8
10
F3 法兰端螺丝中心圆直径/ Pitch of mounting mm
53.9
65
85
102
121
F4 内轴通孔尺寸/ shaft hole mm
M20
M24
M24
-
-
F5 地脚安装丝孔尺寸/oot tap holemm
M16
M20
M24
M24
M30
F6 轴中心孔/shaft hole mm
-
-
-
M24×3
1 1/4-7
F7 端盖丝孔尺寸/ flange tap hole mm
-
-
-
M12×1.75
M16×2
F8 端盖螺纹数量/ Nos of tap holes
-
-
-
8
10
F9 端盖丝孔中心圆直径/ pitch of tap hole mm
-
-
-
108
121
H1不含平衡阀高度/ height without counterbalance valve mm
119
135
158
193
218
H2底面距中心线高/ height of center hole mm
66
76.2
85.9
108
121
H3 地脚高/foot height mm
34.3
38.1
44.5
63.5
70
H4 总高度/ total height mm
146
163
185
220
245
L1 总长度/ total length mm
188
216
248
298
337
L2 不含旋转法兰长度/ length without flange mm
173
197
229
276
314
L3 法兰距离平衡阀距离/ distance between flange and counterbalance valve mm
32
34.5
44.7
48.8
49
L4 脚安装孔距离/ mounting length mm
111
140
152
184
216
L5 法兰与安装孔距离/ flange to mounting hole mm
37.9
37.6
47
57.2
60.5
W1 地脚安装孔距离/ mounting width mm
145
152
197
222
267
W2 总宽度/ overall width mm
178
191
248
279
330
P1 P2 壳体油口/ port of housing
ISO-1179-1/BSPP‘G’， 1/8  1/4
V1 V2 阀体油口/port of valave
ISO-11926/SAE ， 7/16




     Product Performance

COMPACT DIMENSIONS

RIGID BODY

SAFETY FRAME

EASY CONTROL

EASY MAINTENANCE

CUSTOMIZED DESIGH AVAIABLE











Quality control
Qulity control
prepare for assembly




Construction equipment
Aerial work platform
 Fire fighting truck










Q1: Are you trading company or manufacturer ?
A:We are factory, all work done by us from design, manufacture, sales and service.
Q2: How long is your delivery time?
A: Generally it is 10 days if the goods are in stock. or it is 30~45 days if the goods are not in stock since advance paymen received, the specific delivery time depends on the items, transportation ways and the quantity of your order or if it need custom design.
Q3: What is your terms of payment?
A:Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance, balance before shipment.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings or special design as per customer demand.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6. How about your quality warranty?
A：we promise one year warranty since products received, on line support available in case some question.
