Low Pressure Feed Industrial Metal Car Painting Round Spray WA 101 WA 200 Automatic Spray Gun For Coating

Share on:

Price:$60.00 - $88.00
Price in USD:Details


Product Overview


Product Description

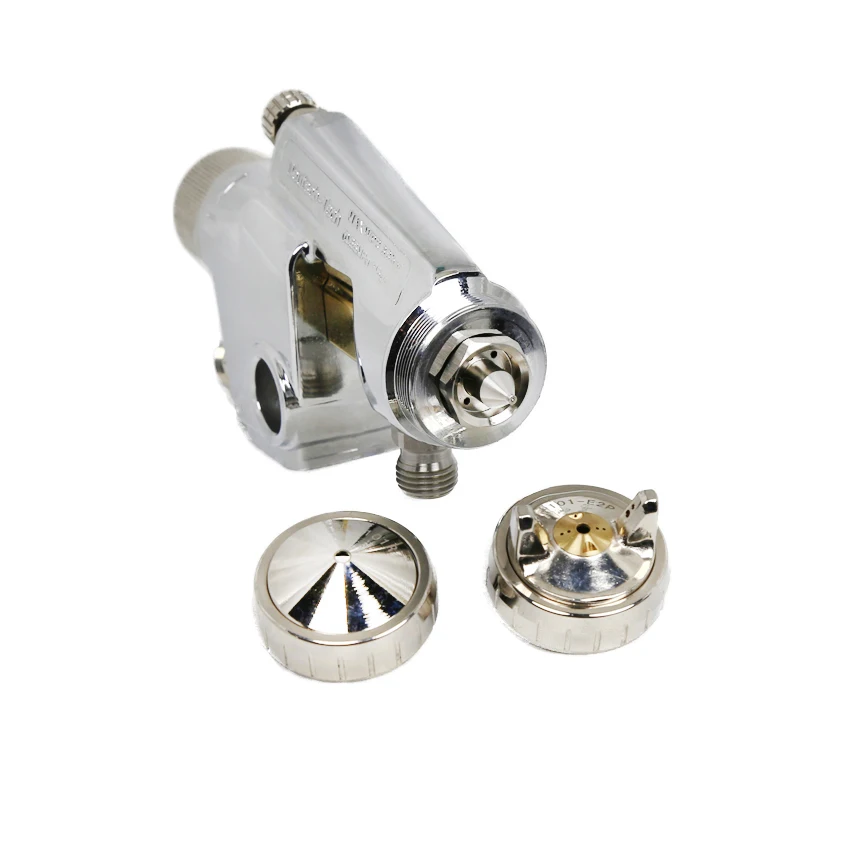

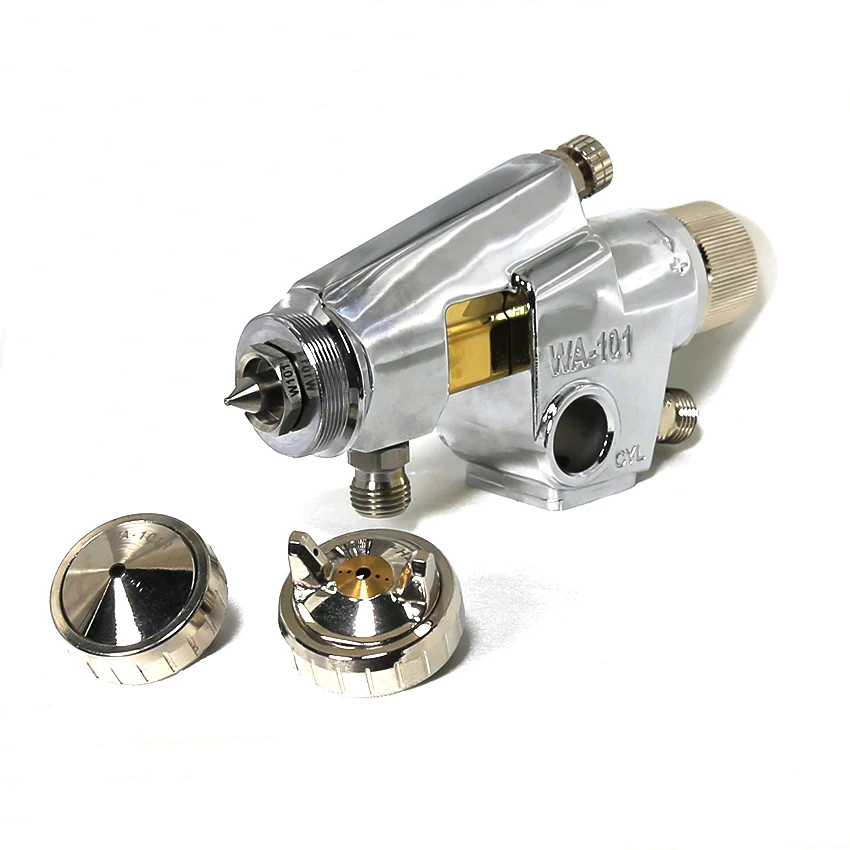

WA-200 pressure feed automatic industrial metal paint spray gun for coating
Nozzle Orifice.(mm)
Feed type
Spray distance
Stainless Steel

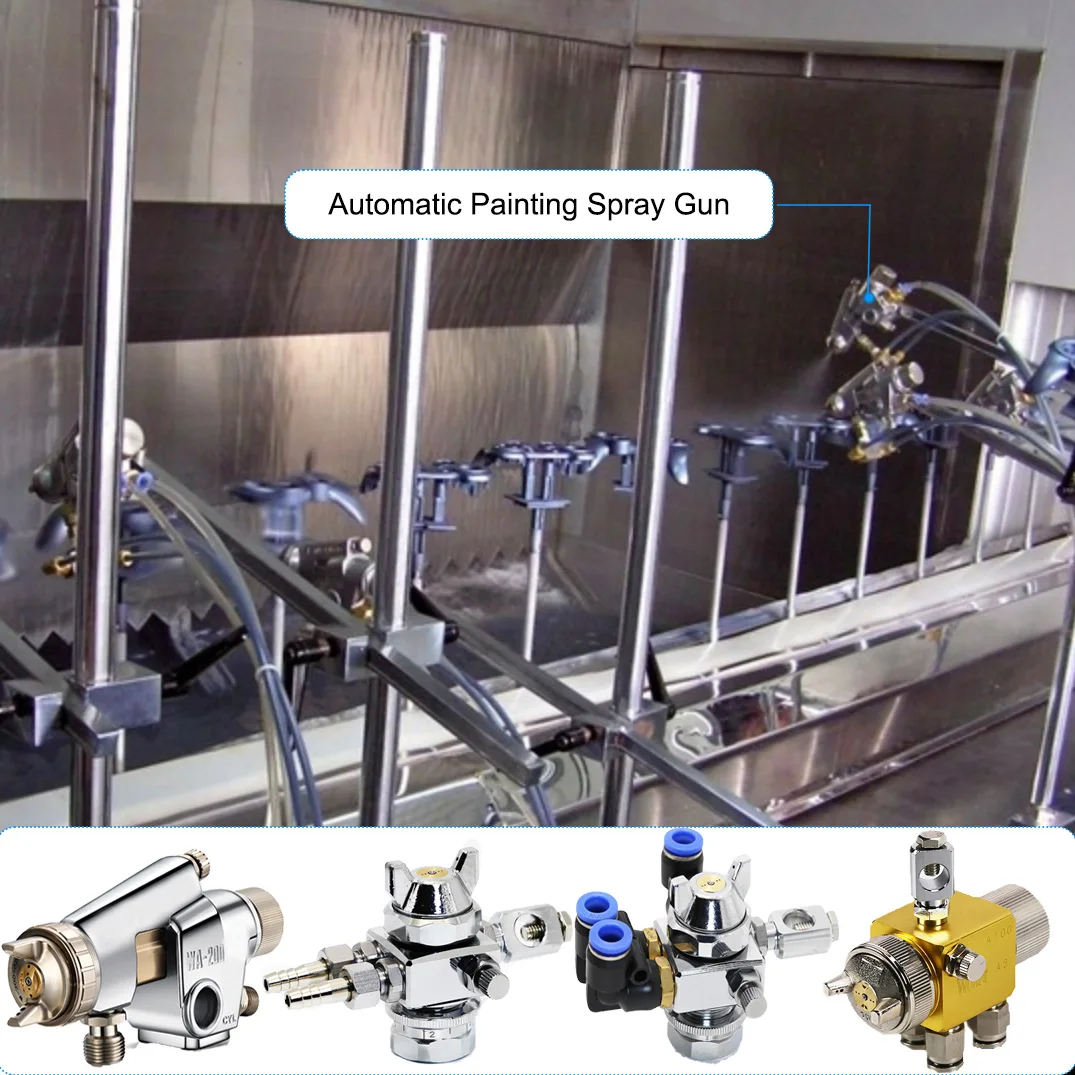

Ideal to spray wood,ceramics,hardware,toy,plastic item,furniture,craft etc.Especially for ceramics glaze spraying and abrasive grind material.

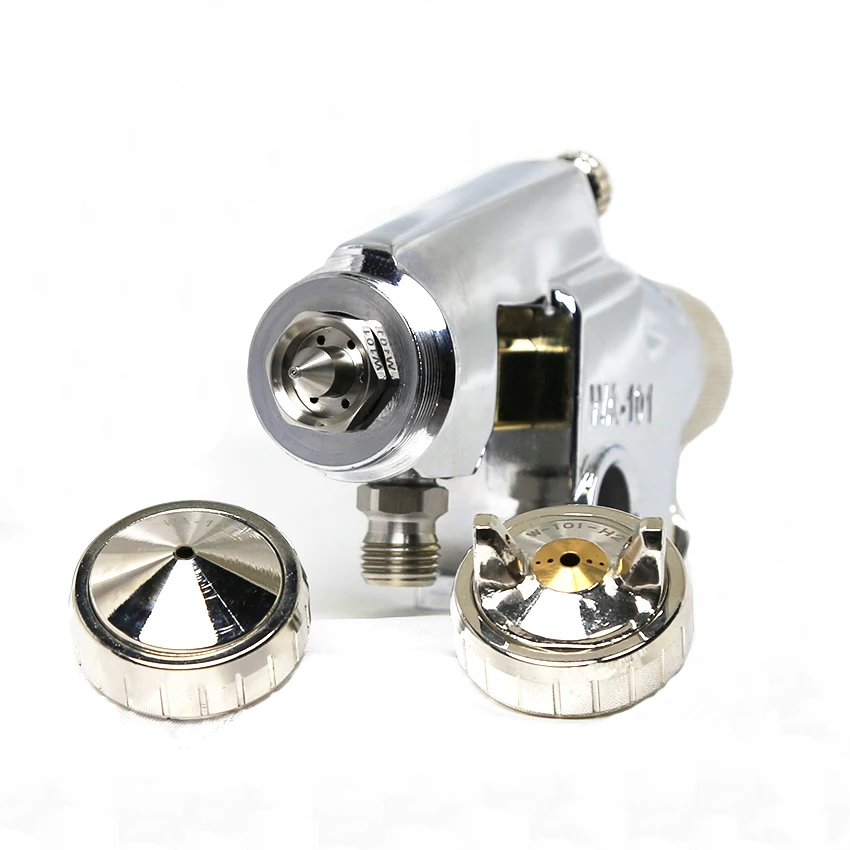

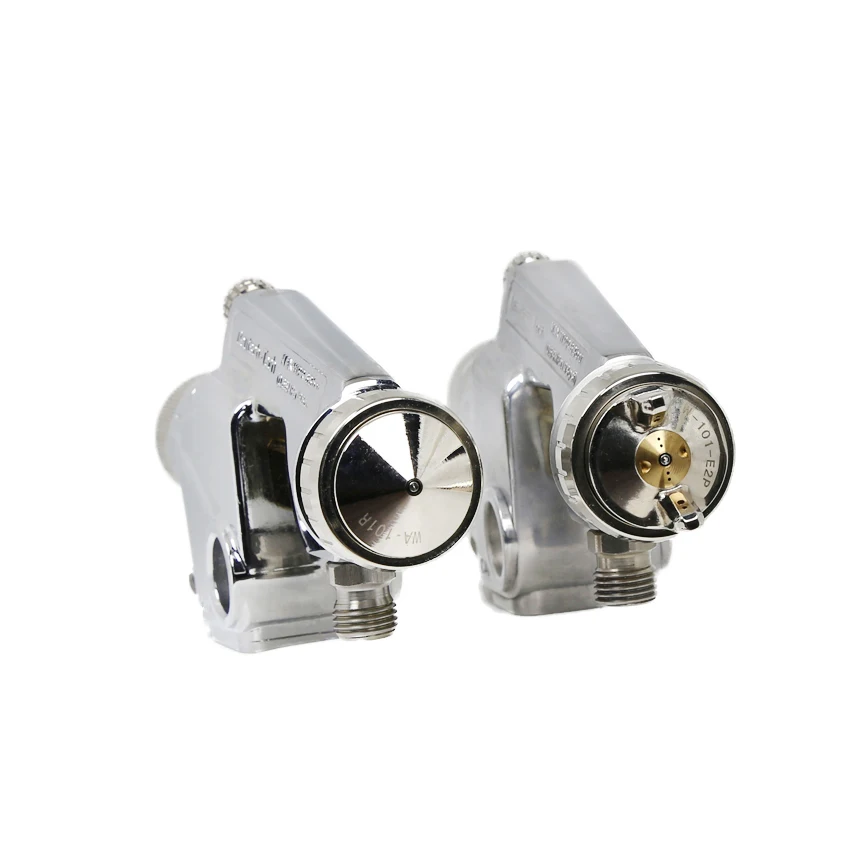

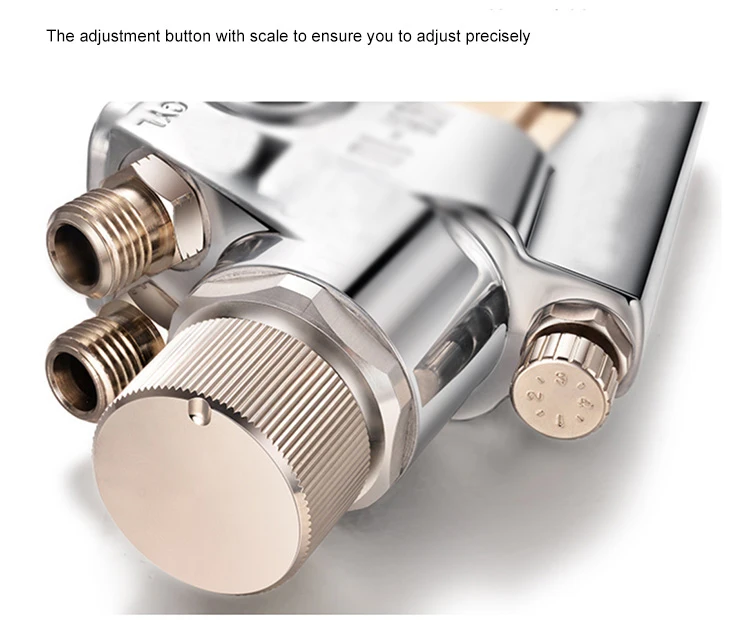

Product Show

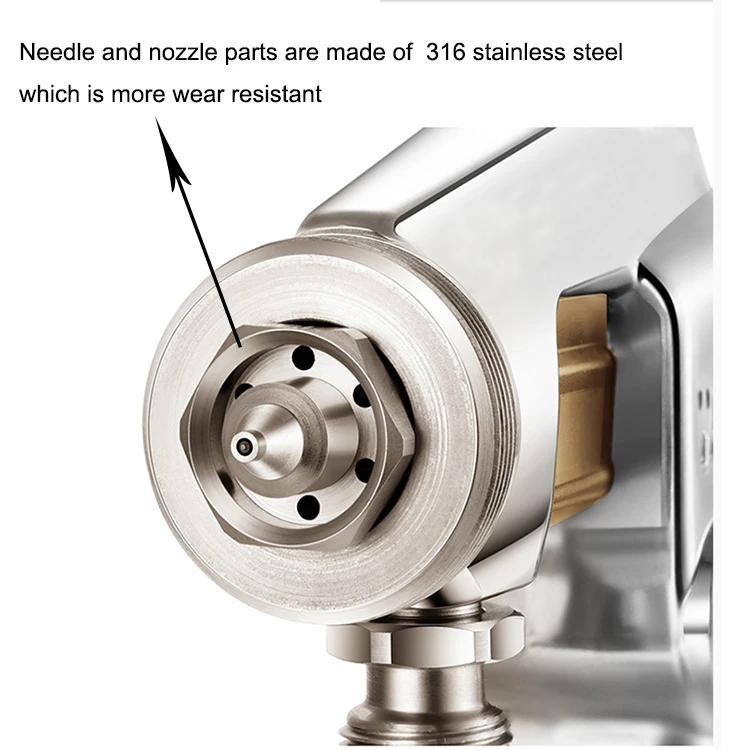

The nozzle and needle which are the core parts of the spray gun are made of  316 stainless steel with special processing,which ensure the gun wear resistant,painting saving.   It's convenient to disassemble and clean the gun.

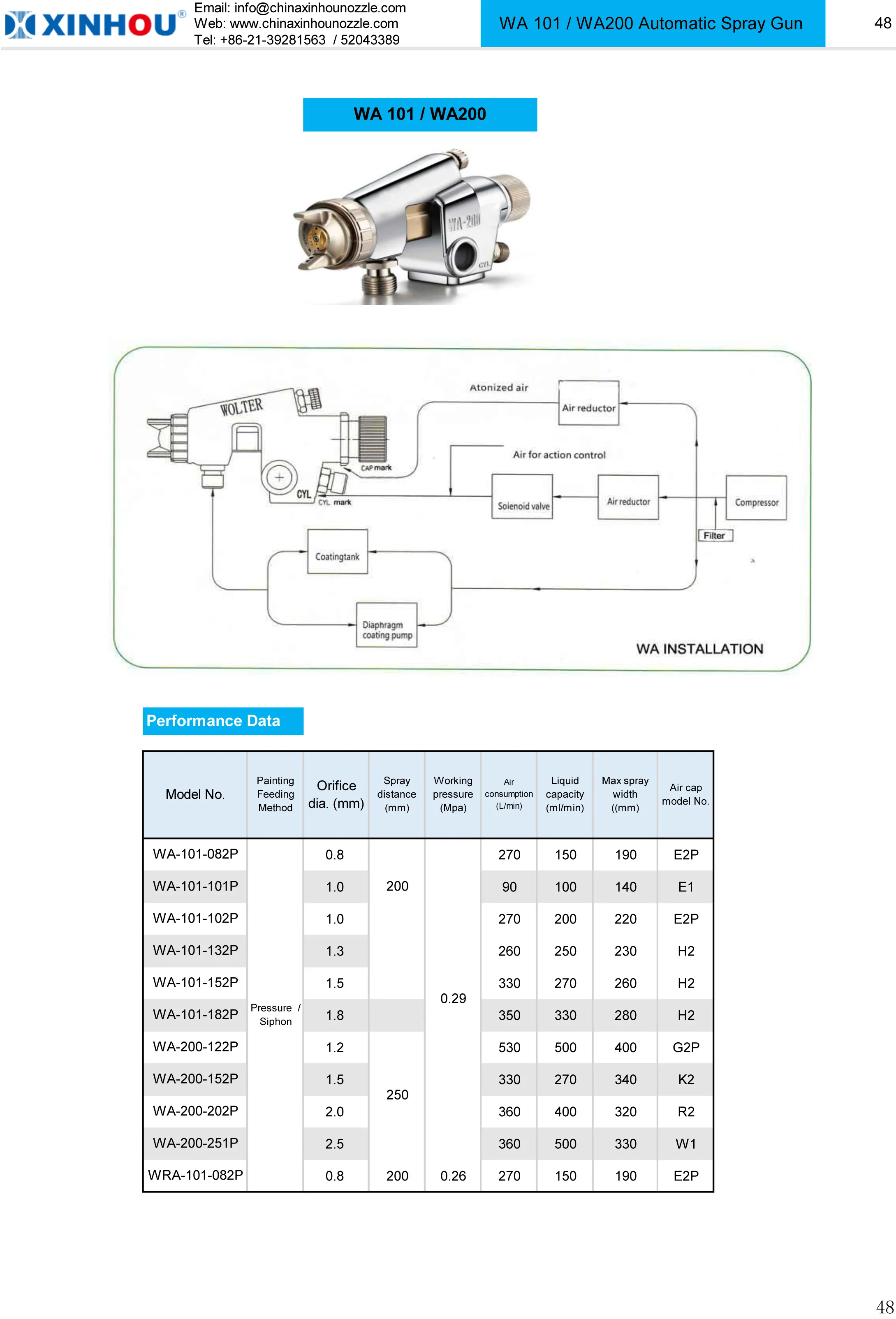

How to connect?

Use clean air filtered through air dryer and air filter.------If not,dirty air can cause painting failure.
If you use this gun for the first time after purchasing,clean fluid passages spraying thinner and remove rust preventive oil.-------If not,remaining preventive oil can cause painting failure such as fish eyes.
Use three-way solenoid valve of more that 4 inner dia.cross-sectional area and air hose of over 6 ommer doa.ad less than 10m length.------If not,small dia of solenoid valve and longer air hose between three way solenoid valve and gun can cause dely in operation.
Firmly fix hose to spray gun.-----If not,diisconnection of hose and drop of container can cause bodily injury.

Air pressure regulating filter
The spray gun has high demand for the source of air. It's recommended to installed air pressure regulating filter to adjust the air pressure around 0.3-0.4 Mpa.At the same time,the regulating filter can remove some of the impurtities in the air,so that some defects such as dirt pits will not happen.Thus the painting effect can be greatly enhanced.

Spray gun cleaning tips


Wash and dry in time after using the spray gun
1, first pour the dilution solvent to the 1/3 capacity of cup
2, Spray til the clean solvent is visible
3, the surface of the gun body is wiped clean with a cloth dipped in solvent
4. Do not always disassemble the internal parts of the gun to clean it separately, so as to avoid damage or loss of internal parts.
5. Please do not soak the whole gun body with solvent. The solvent will make the inner seal ring expand and the seal will be not tight.
6, Add lubricating grease timely to each adjustment device of the spray gun to keep the adjustment smooth

Recommend Products

Why Choose Xinhou Company

Shanghai Xinhou Spraying & Purification Equipment Co., Limited

Shanghai Xinhou started 2004 in the outskirt of Shanghai, near to Hongqiao airport, ,as a professional manufacturer of nozzle. Since then the production line has increased to including a wide range of spraying nozzles ,ranging from fluid or gas spray nozzles to ultra high precision nozzles. Our spray nozzles are used in more than 200 industries for applications such as cleaning, coating, cooling, drying, lubricating, dispensing, sanitizing, marking and more.

Shanghai Xinhou has won great fame in both domestic and overseas markets and have established business with many famous customers already worldwide with our trustable quality products, especially in automobile industry, we supply for some top companies such as TKS , and some renowned enterprise whose projects involves Mercedes Benz, Tesla ect. Besides, we also supply for many clients from other industries, such as those from industries of food, marine, chemical, pharmaceutical, environmental protection and so on.

With an exclusive focus on spray technology, and with a wide variety of nozzles , Shanghai Xinhou has the expertise to help you to find out the nozzles that suit you best !

Our Advantages

Favorable location
We are located at Sijing ,a town in Shanghai, near to Hongqiao airport. This location puts us in a very favorable position in terms of reponsiveness to customers’ visit as well as significant reductions in transportation time and costs.

Our successful cases
We constantly supply for some renowned companies in automobile industry worldwide, such as TKS in USA, and some renowned companies in Italy whose projects involves Mercedes Benz, Nissan ect. Besides, we also supply for many clients from other industries, among which the most famous are China Power and the cooperator of COSCO. Our quality has won their trust and we established long-term and stable cooperation

Flexibility in operations management
As a flexible manufacturer, we are enable to respond to customer orders quickly, provide a broad product range, or introduce new products to the range effortlessly.
The operational flexibility is determined primarily by our young and energetic team who are professional, creative, sincere and have the sense of responsibility.

A wide variety of products
We have spray nozzles available for a wide range of pressures, flow rates and spray patterns, among which you can choose the performance characteristics that suit you best

Quick delivery
The flexible management enable us to provide our clients faster delivery, as well as expedite shipping based on clients' option. For some standard items that we have in stock, we can even provide immediate delivery.

Authentic Feedback From Customers

Manufacturing Process

Package & Delivery

Paint coating auto automatic Spray gun WA-200


● Pacakge: Standard exporting cartons or pallets

● Delivery time: Immediate delivery for products in stock

     Within 10 days for customized products ( Producing time + transport time )


● Delivery methods: DHL, FEDEX, UPS, TNT, EMS, Air cargo, By sea
