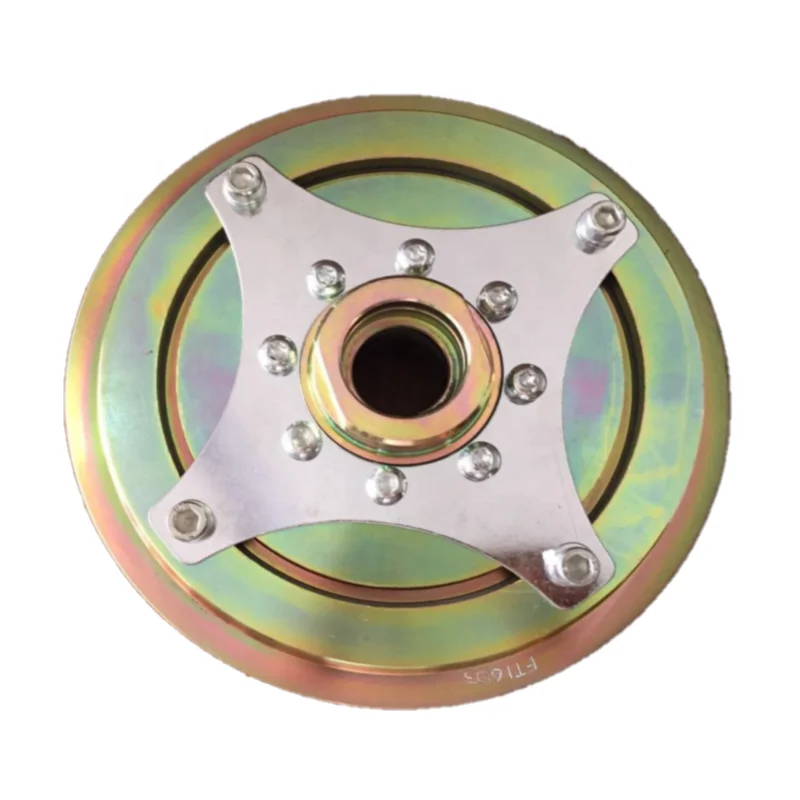

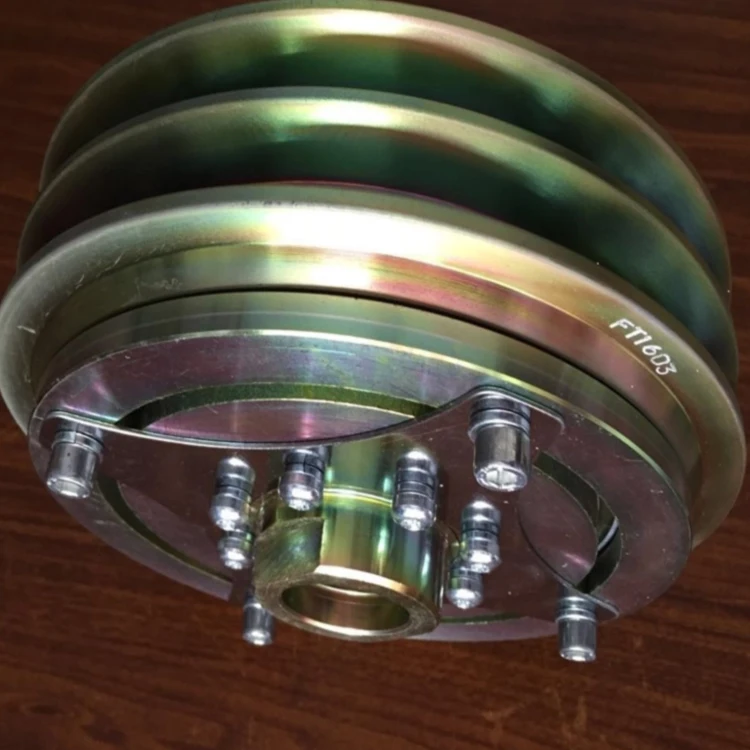

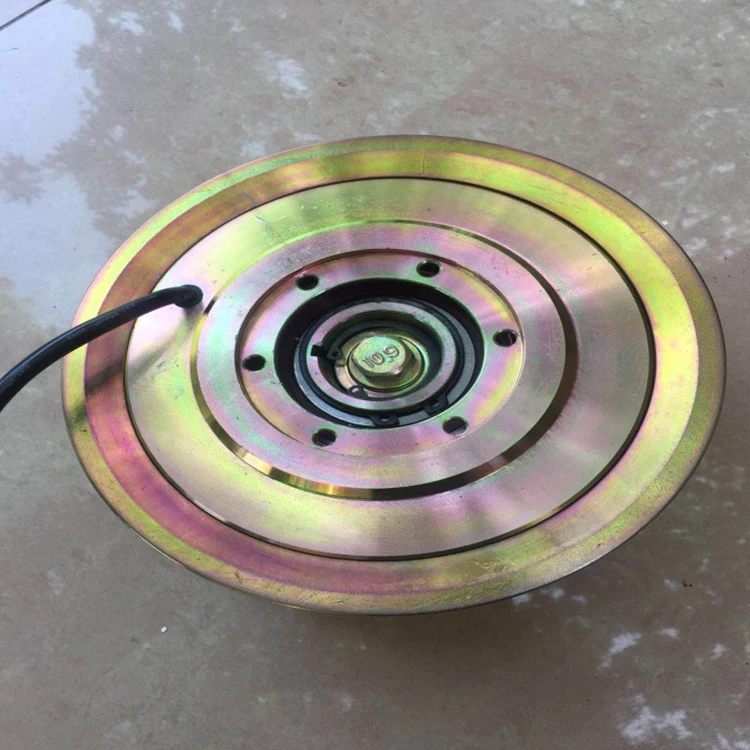

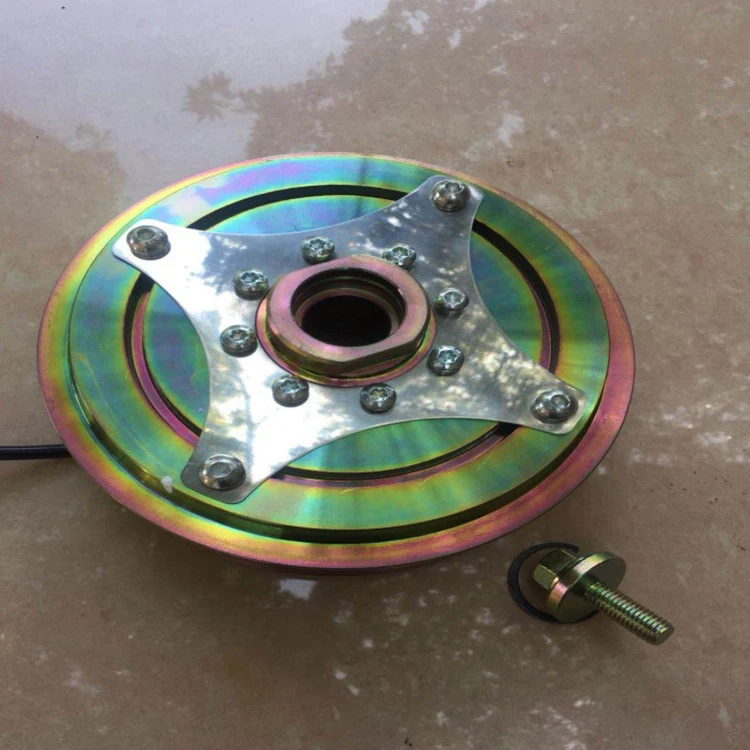

2022 sell like hot cakes DC 2B 210mm bus air conditioner compressor AC compressor magnetic clutch
- Category: >>>
- Supplier: Guangzhou Zengcheng Dongcheng Machinery Factory
Share on (1600408901965):
Product Overview
Description
Product Paramenters
Compressor model: | DC large torque electromagnetic clutch |
Rated voltage: | 12V/24V |
Pulley grooves * size: | 2B |
Effective outside diameter: | 210mm |
Inner shaft sleeve diameter: | Taper hole 39.8mm/ straight hole 30mm |
Detaching torque: | 98N. n |
Power consumption: | 89W/Max |
Maximum instantaneous speed: | 7000r/min |
Maximum continuous speed: | 6000r/min |
Weight | 11kg |
Product Description
Clutch composition: pulley + suction + line diagram + bearing + clamp spring (clearance gasket)
12V and 24V options, single line and double line options Dual circuit output is suitable for mechanical clutch application, single circuit output is suitable for automobile or single circuit product application brand quality, in line with European standard product standards, environmental protection and safety products strict intelligent detection, to ensure the qualified rate of products

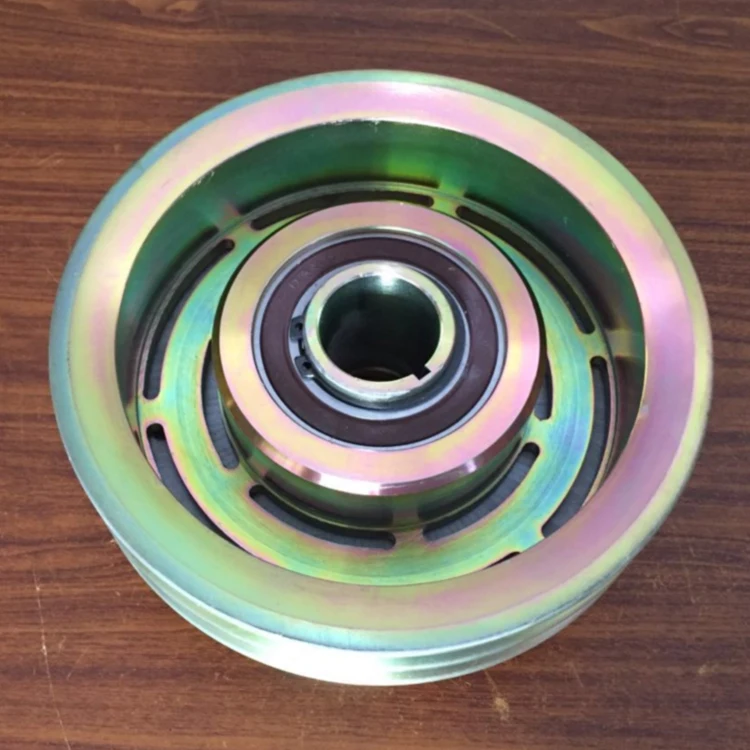

1.pulley:
Adopt CNC machining center technology, lathe manufacturing process, one clamping production is completed, to ensure that
the product beat in: 0.004m range, double A slot belt design (surface plating treatment, no rust, friction resistance)
2. Sucker:
the use of grinder milling production and manufacturing process, large torque, increase the friction between the pulley and the belt, thus greatly improving its formulation and clutch action (surface plating treatment, no rust)

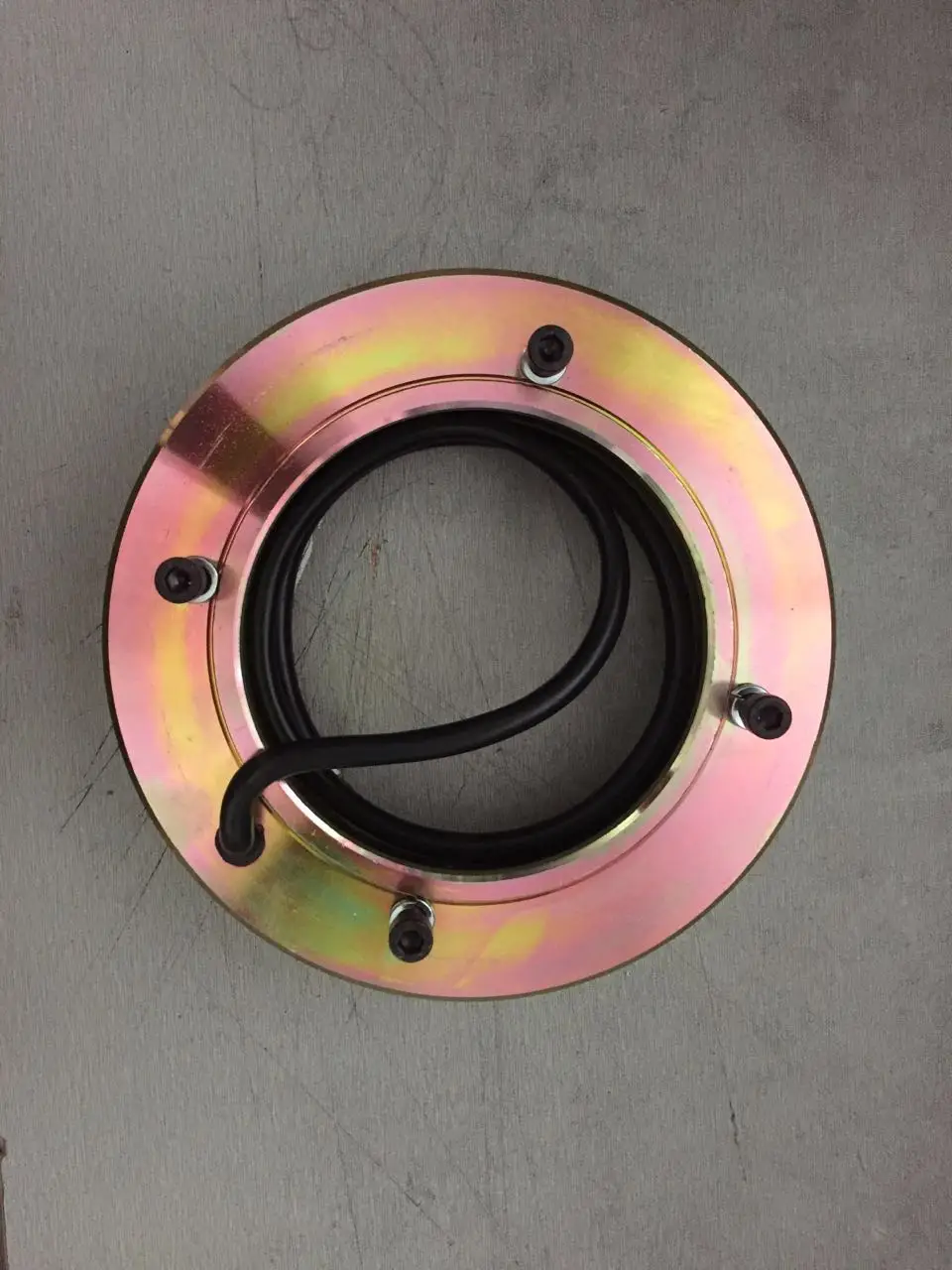

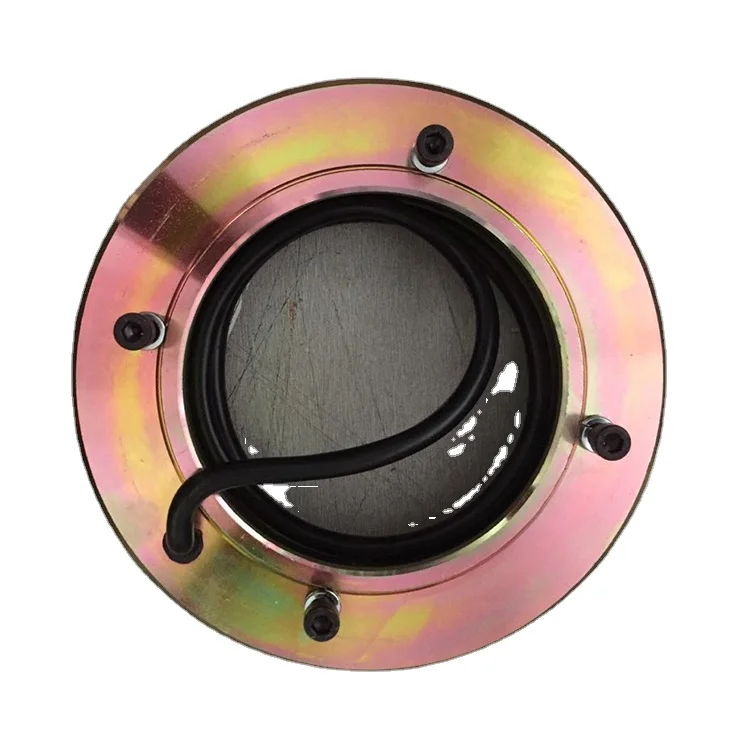

3. Coil:
the use of high temperature resistant copper wire and high temperature coating application manufacturing coil than the general copper coil efficient: 1.5 times, high temperature than the general copper wire, not easy to damage.(surface plating treatment, no rust)
the highest speed of the bearing is up to 7000r/min, and the continuous speed is up to 6000r/min
