Economy Semi automatic Glass silicone extruder machine for double glass units LJST02A
- Category: >>>
- Supplier: Jinan Kation Trading Co. Ltd.
Share on (1600408928372):
Product Overview
Description
Manual Two Pumps Two Component Silicone Extruder Machine Sealant Sealing Spreading Machine
Product Description
Product Description

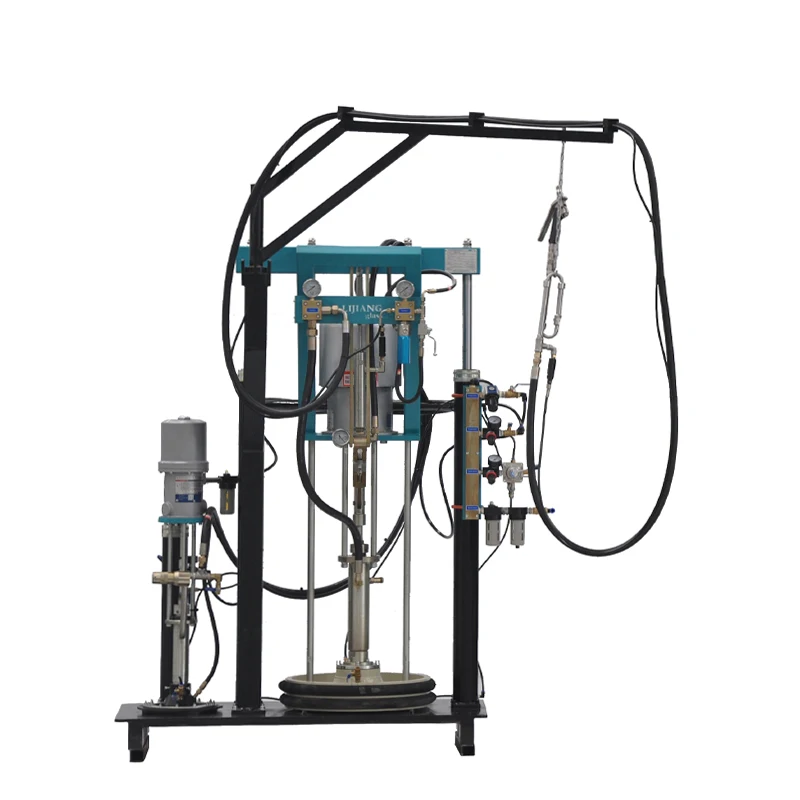

Manual sealants spreading machine for sealing insulating glass
The manual sealants sealing machine uses imported motor instead of cylinder to control the machine working. The sealing gun and mixer are used famous brand in China. The sealing machine always use the rotated table together to coat glass by workers.
The two-component glue applicator is composed of A and B glue pumps, pneumatic system, lifting mechanism, frame, etc. Now we could introduced those parts of sealants sealing machine as follows:
1. Glue pump:
(1) A glue pump is set for each of components A and B, which are driven by their respective air motors to make a reciprocating motion to suck in and push out the glue. The glue pumps A and B are fixed together with the pressure glue plate, and then connected with the frame to form their systems.
(2) The ratio of A and B components is adjusted by a proportional lever: inward adjustment, B glue output decreases, outward adjustment, B glue output increases. By adjusting the proportional lever to control the amount of glue B, to control the ratio of A and B glue.
(3) Glue output: controlled by the air source processor, counterclockwise adjustment, the glue output increases, and clockwise adjusts the glue output to decrease. (Here refers to the total amount of glue) The glue pump adjusts the ratio of the glue amount of A and B through a proportional lever, which has the characteristics of flexible operation, stable performance, and large adjustment range.

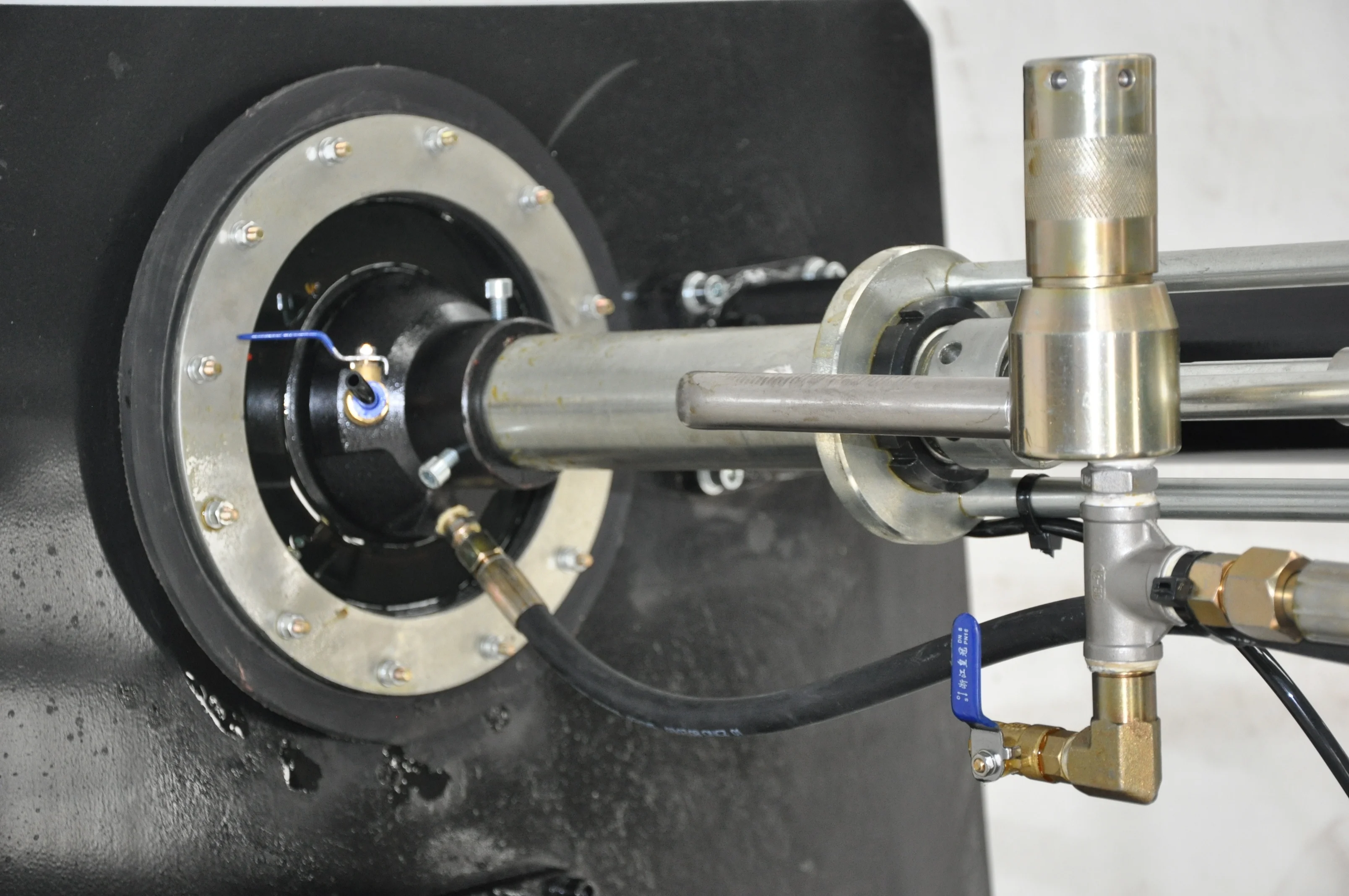

2. Lifting mechanism: A and B component rubber pumps are respectively equipped with a set of the pneumatic lifting mechanism, which is composed of two cylinders in parallel, and the respective pump bodies are fixedly connected by a beam. One of the purposes is to apply the force of the two cylinders to the rubber surface through the pressure plate, and the pressure is adjusted by the supplier of the pressure regulating valve, generally adjusted to about 0.3MPa; second, when the rubber barrel needs to be replaced, The cylinder can lift the pressure plate. Leave the plastic bucket so that it can be replaced with a new one.
Advantages & Features
Advantages & Features
Working Principle
The base material pump, curing agent pump, and proportional pump all use special high-pressure plunger pumps, two-way equal feeding, and the base material pump and curing agent pump are driven by a pneumatic motor. The two are supplemented by a pressurized supply pressure plate to fully ensure the full cavity delivery of high-viscosity fluids. The base material is pressed and increased to high pressure, the curing agent is pressed and pressurized, and then sent to the proportional pump. The flow of the curing agent is controlled by the ratio adjusting mechanism After adjusting, the two components are fed into the mixer at the same time, and reach the glue gun after being fully mixed.
Benefits & Advantages
1.The manual sealants spreading machine is special glue-making equipment for producing hollow glass and curtain wall glass, which can complete the mixing and gluing of components A and B in the second seal. It is especially suitable for the types of glues that require strict proportioning precision and is suitable for the production requirements of high-efficiency, high-quality, and high-qualified production lines for doors, windows, curtain walls, and glass deep-processing enterprises.
2. The manual sealants spreading machine digests and absorbs American advanced technology, pure pneumatic imported motor, the frame adopts integral welding, adding gantry and welding triangle to form a stable structure, which overcomes the shaking of the cantilever beam when working; the B pump adopts double columns and pressure plate double seals. Thoroughly solve the problem of black component glue easy to oxidize and leak; optimize the pipeline design to solve the problem of the slow flow rate of similar products.

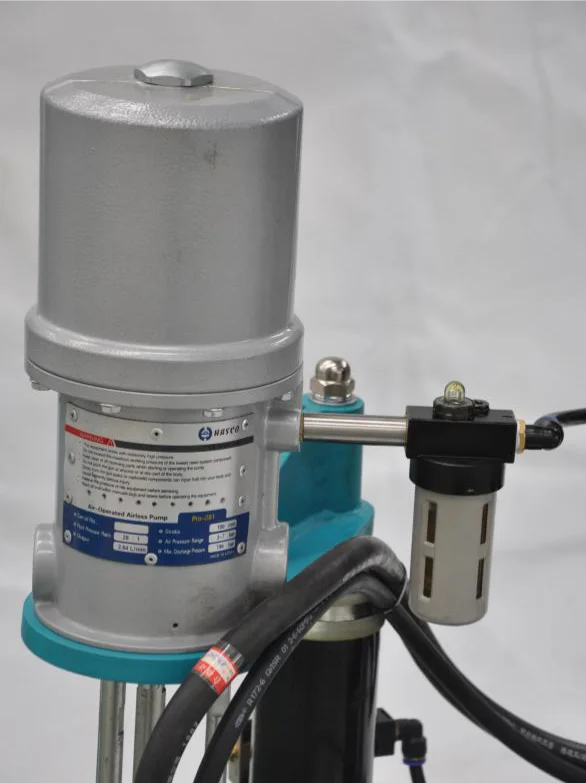

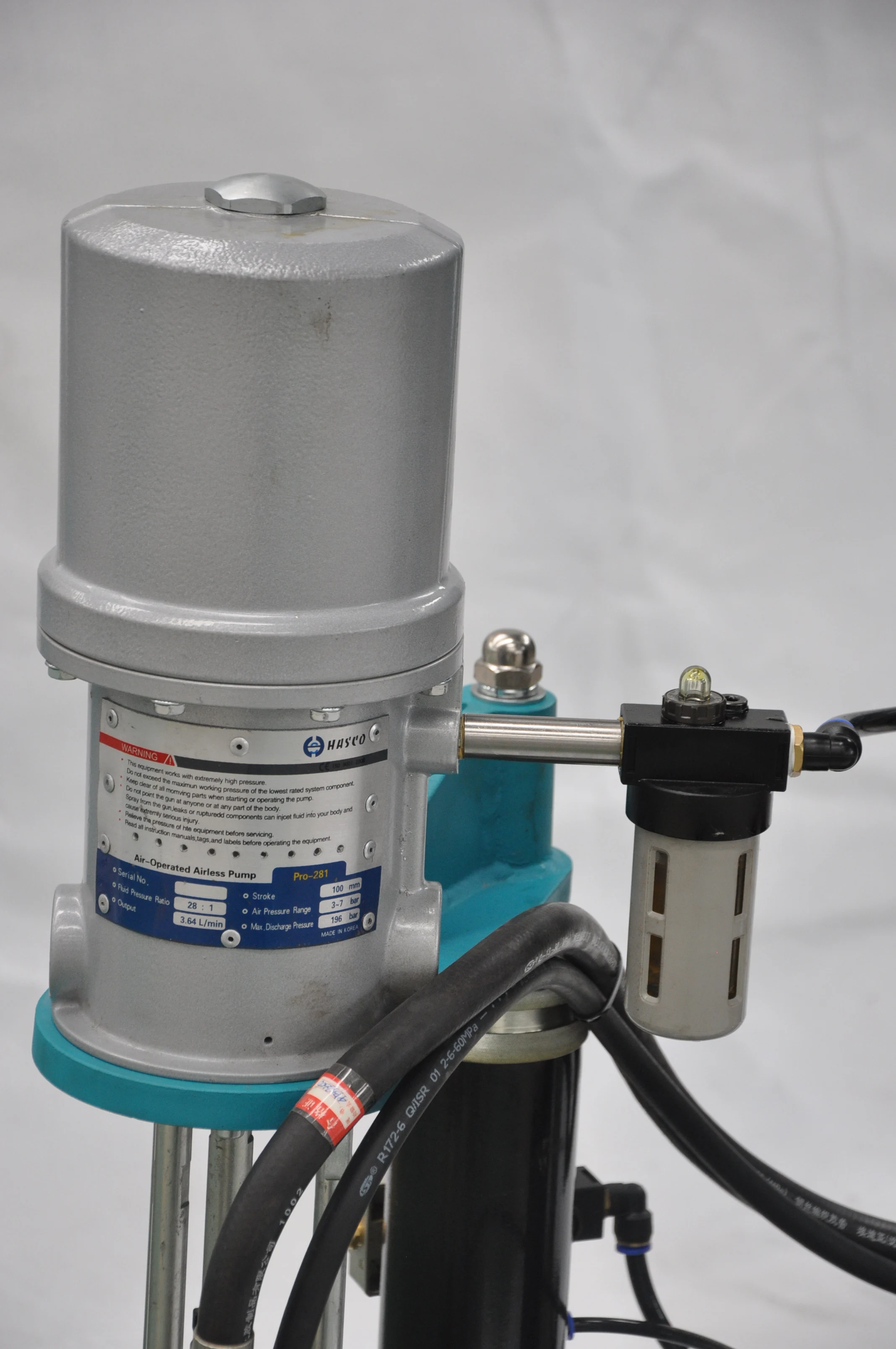

The Sealing Motor
From the sealing gun until the sealing mixer, they are always stopped by glues. The sealing motor is import from Korea.

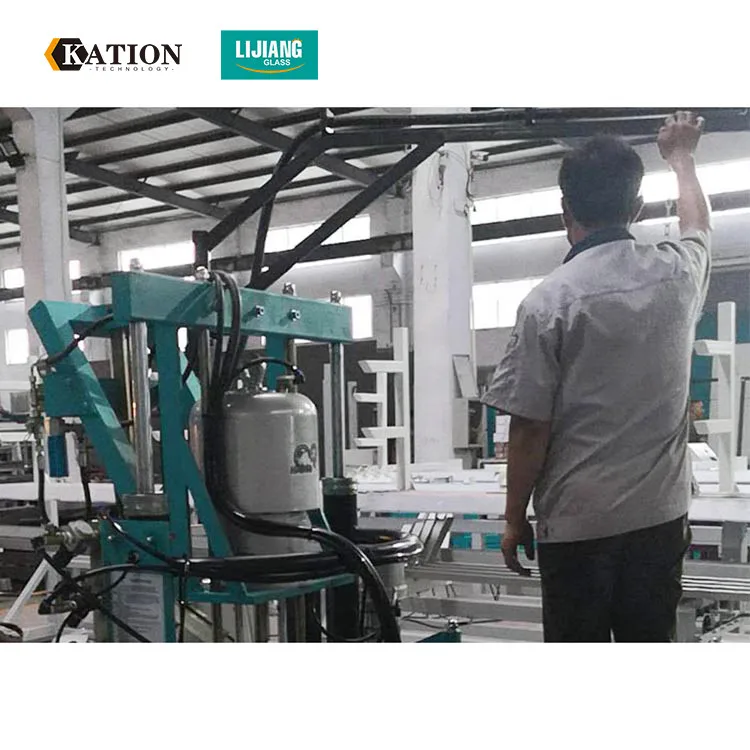

The Coating Glass
The sealing machine could coat double and triple glass by different glue nozzles. The machine is used to send a

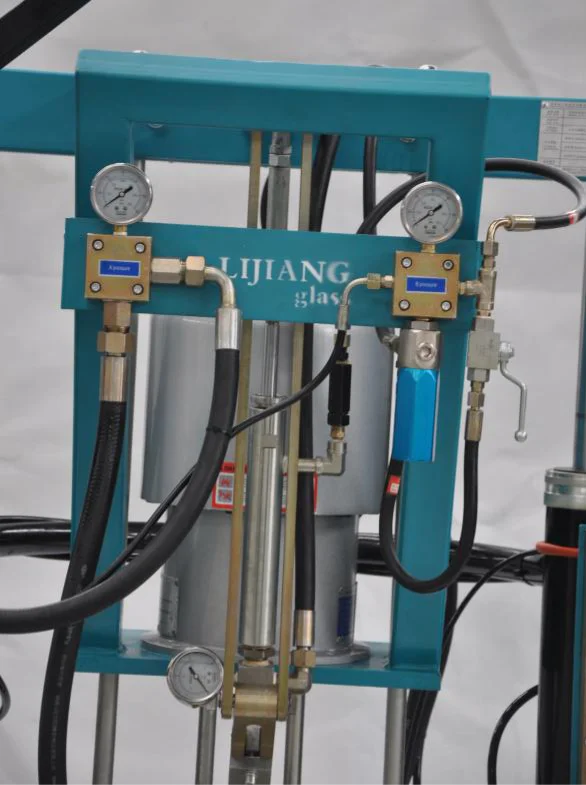

The lifting system
The lifting system adopts manual valve control. The ratio of the two components can be adjusted by adjusting the position of the slider on the swinging rod. When the required scale is reached, the nut can be tightened. The operation is simple and convenient.
The mixer Parts
Both the outlet of the curing agent filter and the inlet of the mixer are equipped with high-pressure ball valves, and the mixer is equipped with a one-way needle valve, which not only makes the mixing more uniform but also effectively prevents the two components from mixing.
Main Technical Parameter
Main Technical Parameter
