Product Overview

Description





Products Description

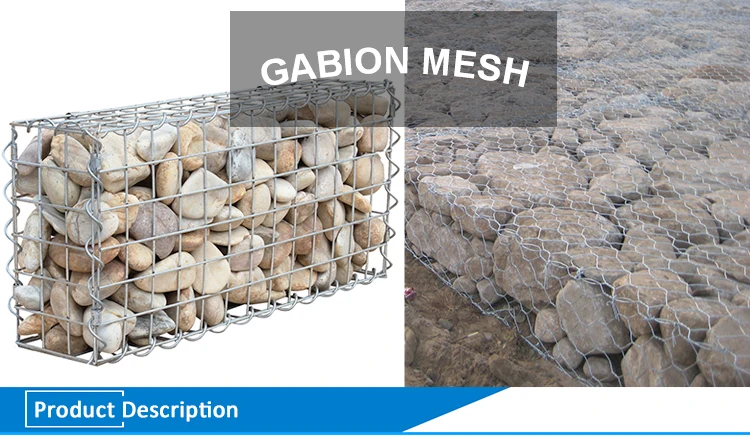

Gabion Basket are wire mesh boxes, containers or baskets filled with rock to prevent soil erosion and to retain / contain soil particles. Flat Gabions, called River or Reno Mattresses, are widely used in river courses where soil erosion is a problem over a large flat or sloped area in need of protection against soil loss or scour. They are used mostly in the civil engineering industry, especially in the construction of roadway drainage structures. Recently however, due to the environmental benefits associated with gabions, they are being used in many various applications and industries.


Product Type


Gabion mesh is divided into hexagonal braided gabion mesh and welded gabion mesh

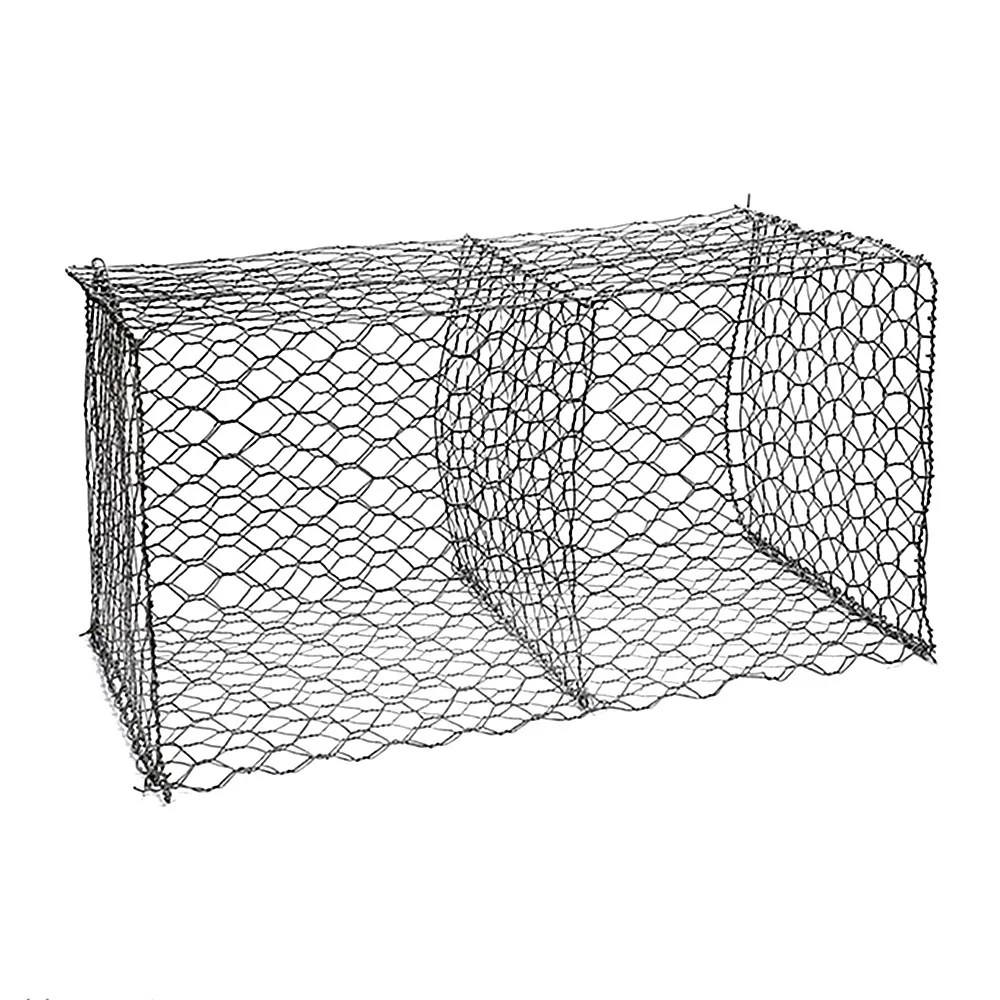

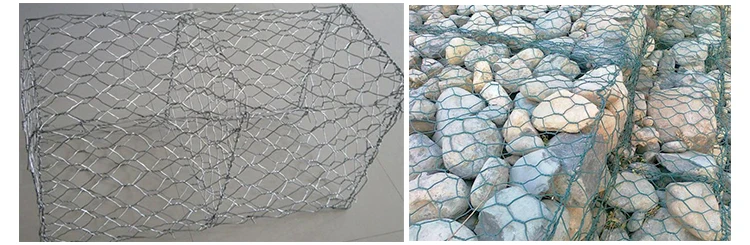

Hexagonal Gabion Mesh

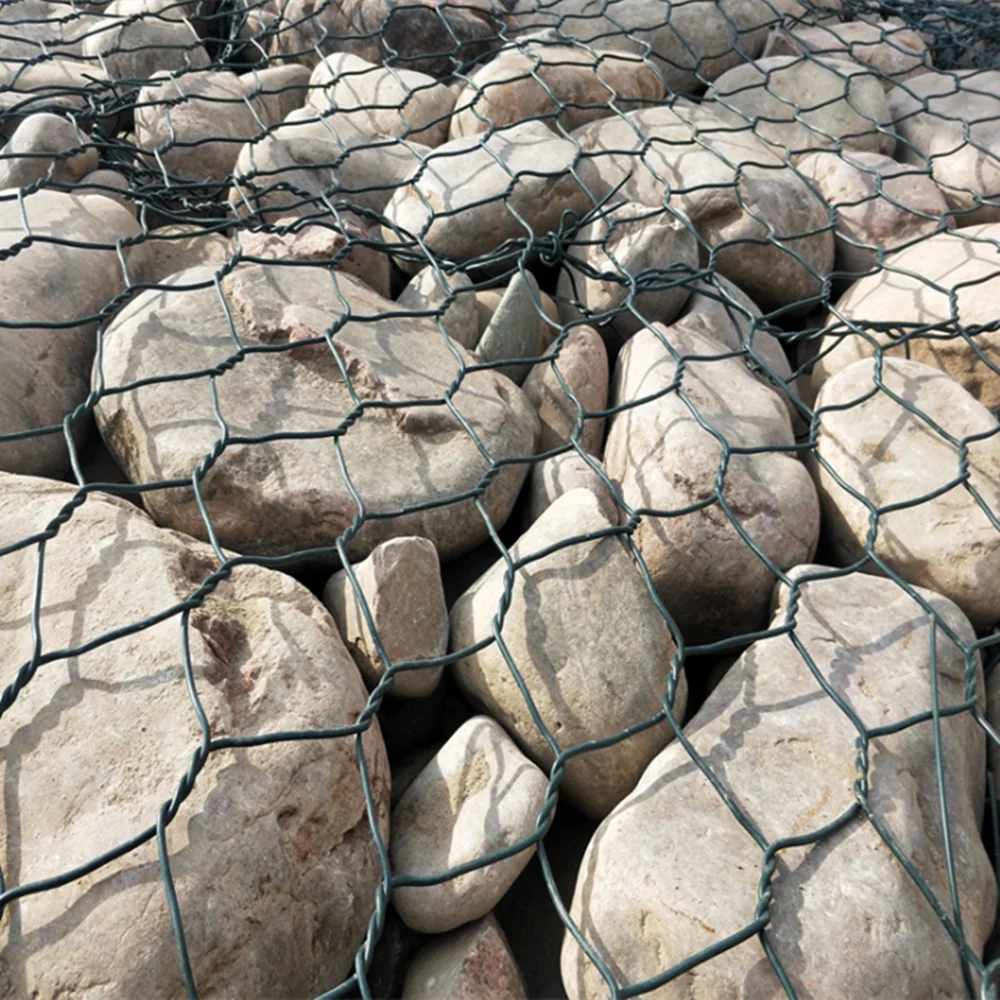

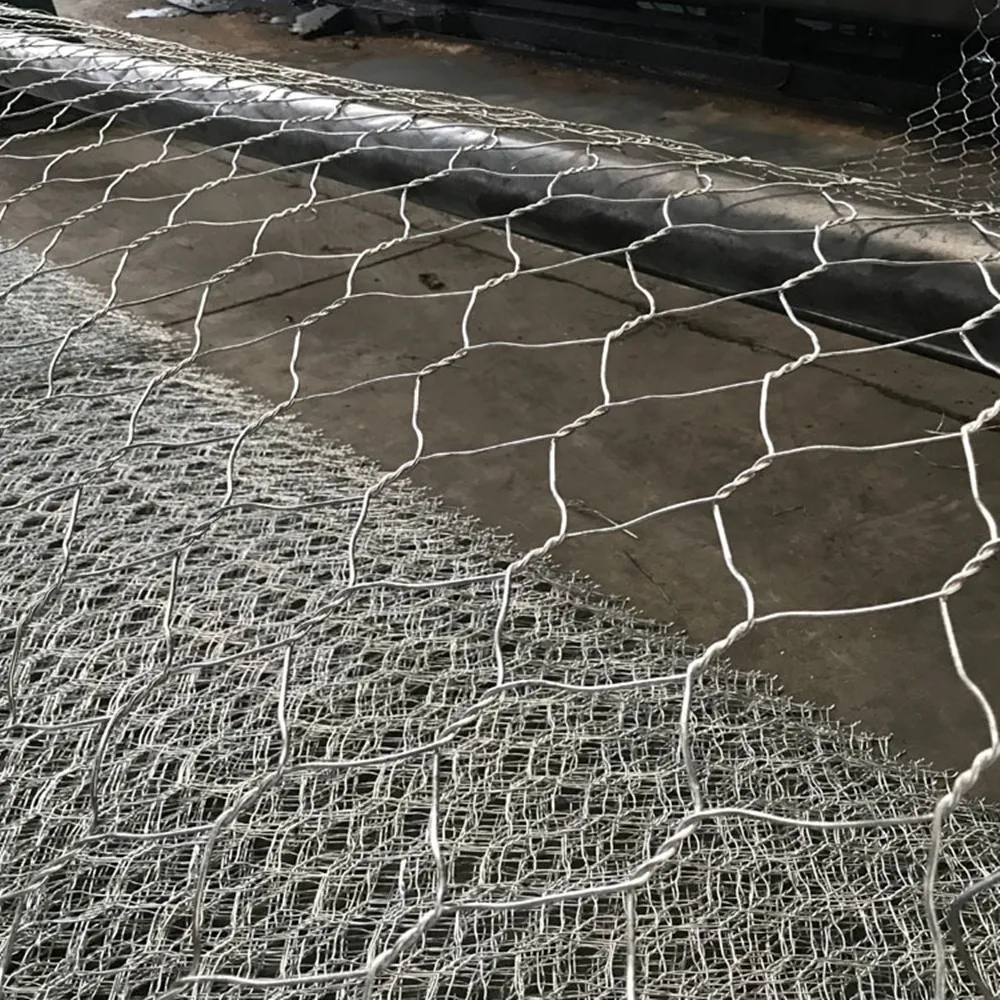

Gabion Wire Mesh is also called heavy hexagonal wire netting. It is made from high grade Carbon steel iron wire, heavy zinc coated wire, PVC coated wire through twisting and braiding by machine, It is mainly used in supporting and protecting side slope and basis pit,mountain rock hanging mesh, green guard rail netting on side slope, railway guard netting. Heavy Hexagonal wire netting also can be worked into stone cage or stone cage cushion, and used in reservoir , river or dyke for closure.
Soft structure is exactly adapt to any changing of slope but not ruined by it, which more stable than rigid structure.The gabion wire mesh is folding and can be assembled site,which saves on transport cost.


Specifications Of Hexagonal Wire Mesh
Mesh
Min.Gal.v. G/SQ.M

Width
Wire Gauge(Diameter) BWG
Inch
mm
Tolerance(mm)
3/8"
10mm
±1.0
0.7mm-145
2'-1M
BWG23-27
1/2"
13mm
±1.5
0.7mm-95
2'-2M
BWG21-25
5/8"
16mm
±2.0
0.7mm-70
2'-2M
BWG22-27
3/4"
20mm
±3.0
0.7mm-55
2'-2M
BWG19-25
1"
25mm
±3.0
0.9mm-55
1'-2M
BWG18-25
1-1/4"
31mm
±4.0
0.9mm-40
1'-2M
BWG18-23
1-1/2"
40mm
±5.0
1.0mm-45
1'-2M
BWG18-23
2"
50mm
±6.0
1.2mm-40
1'-2M
BWG18-23
2-1/2"
65mm
±7.0
1.0mm-30
1'-2M
BWG18-21
3"
75mm
±8.0
1.4mm-30
2'-2M
BWG17-20
4"
100mm
±8.0
1.6mm-30
2'-2M
BWG16-19

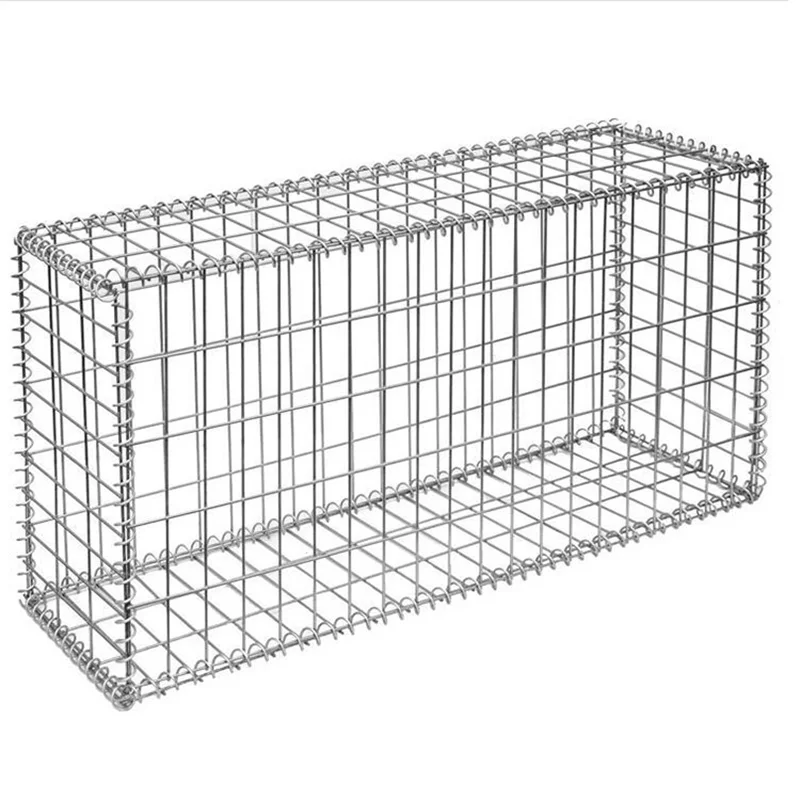

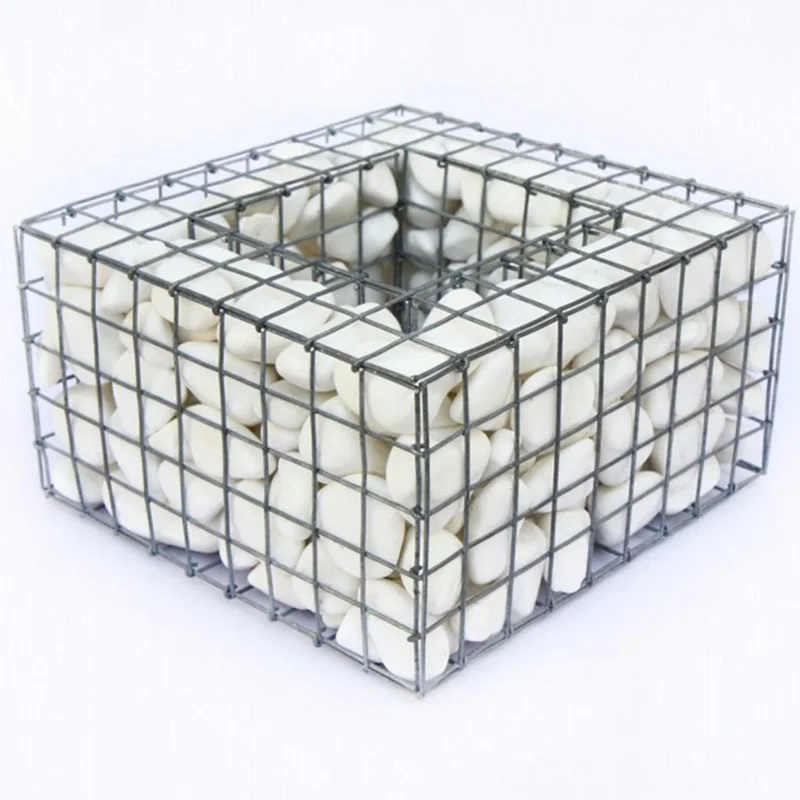

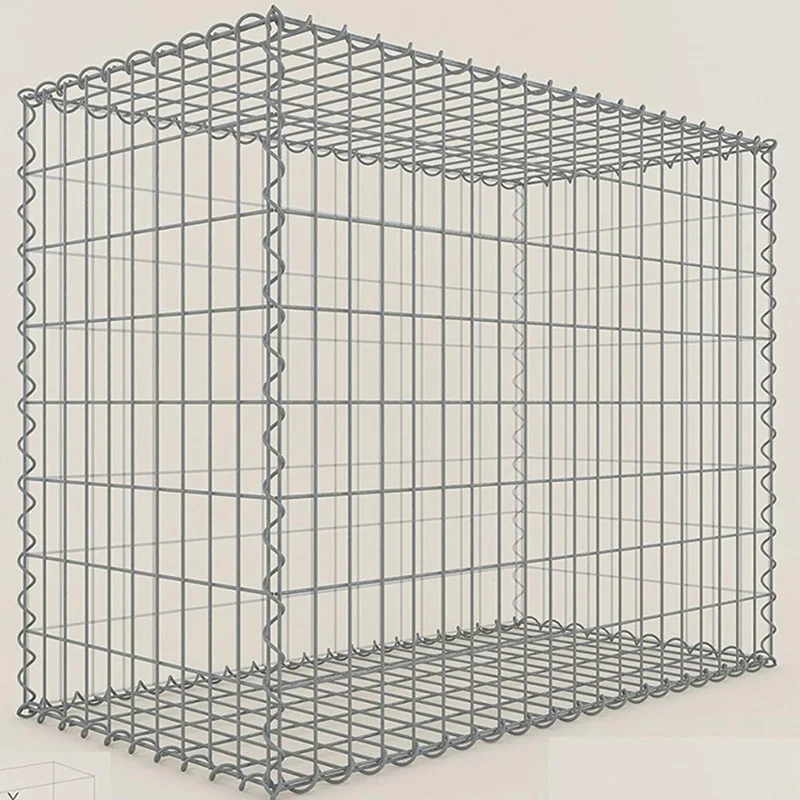

Welded Gabion Mesh

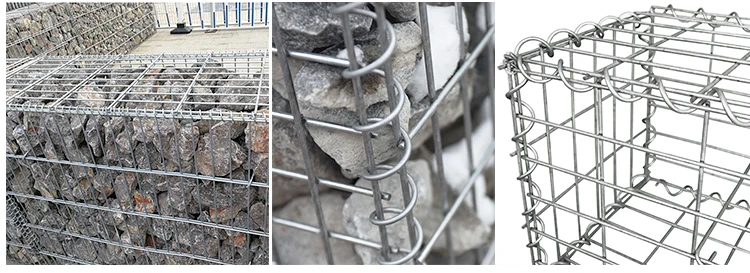

Welded Gabion stone cage is made of Welded Wire Mesh panels assembled with spirals, locking pins and stiffener. Each gabion panel is composed of rugged high tensile wire coated by a thick, corrosion-resistant layer of zinc.

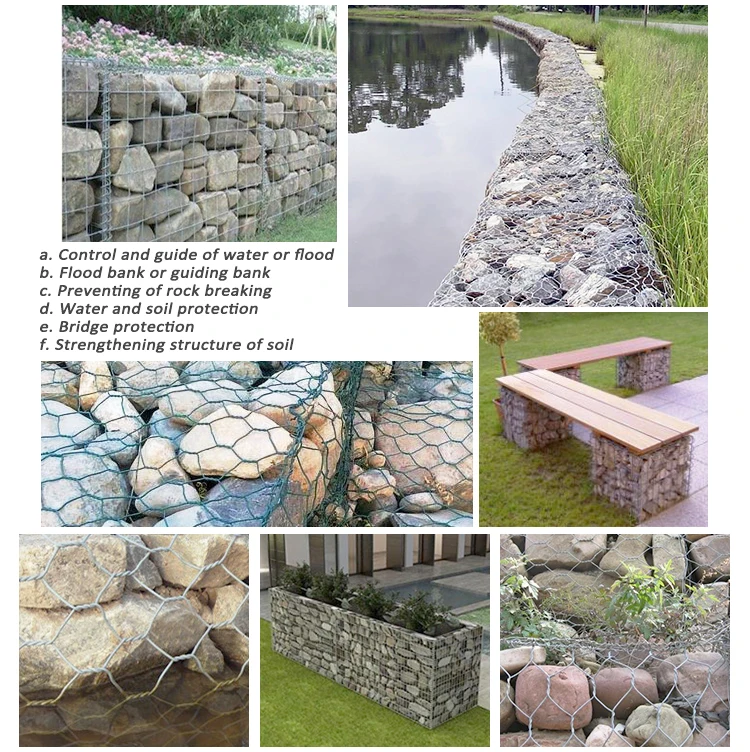

Product Application




Gabion mesh is widely used for the control and guide of water; preventing of rock breaking; water and soil, roadway and bridge protection; strengthening structure of soil; protection engineering of seaside area and retaining wall structures; hydraulic structures, dams and culverts; coastal embankment works; architectural feature retaining walls.

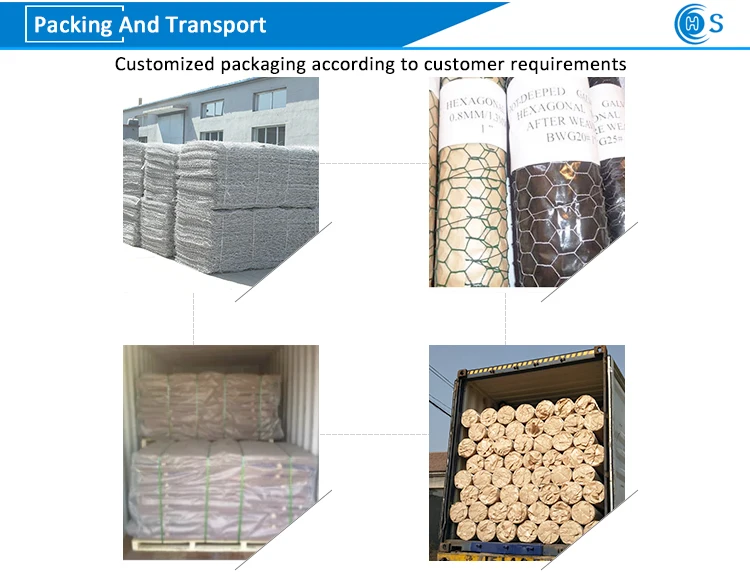

Packing and delivery
