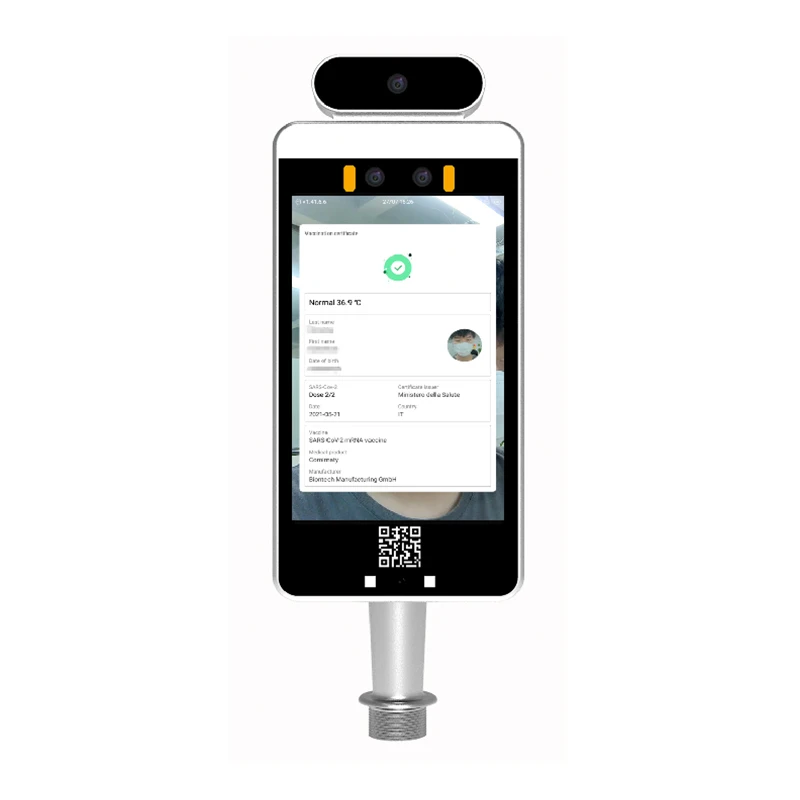

vaccine qr code scanner eu printer health code access control face recognition temperature measurement kiosk
- Category: Access Control Systems & Products >>>
- Supplier: Chengdu Tommi Technology Co. Ltd.
Share on (1600409182964):
Product Overview
Description
Product Description
Scan EU Green Pass
The EU digital vaccination Certificate regulation entered into application on 01 July 2021. EU citizens and residents will now be able to have their digital vaccination certificates issued and verified across the EU. An EU Digital Certificate is digital proof that a person has either been vaccinated, received a negative test result or recovered. The device can scan this QR Code and selectively pass.

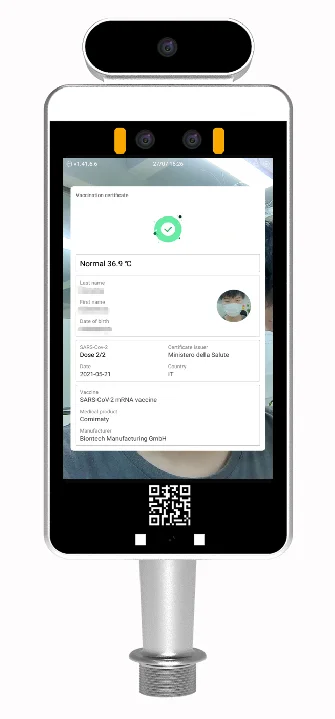

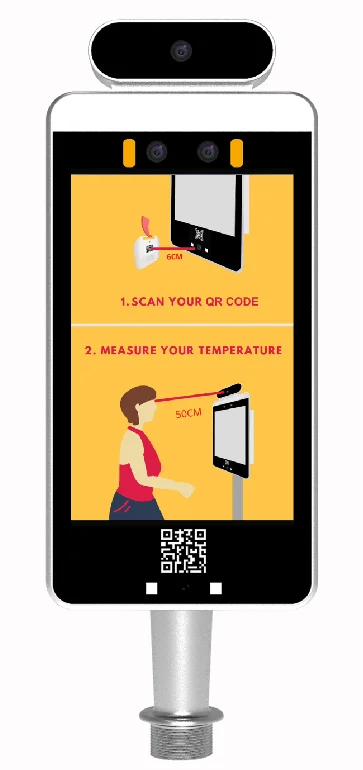

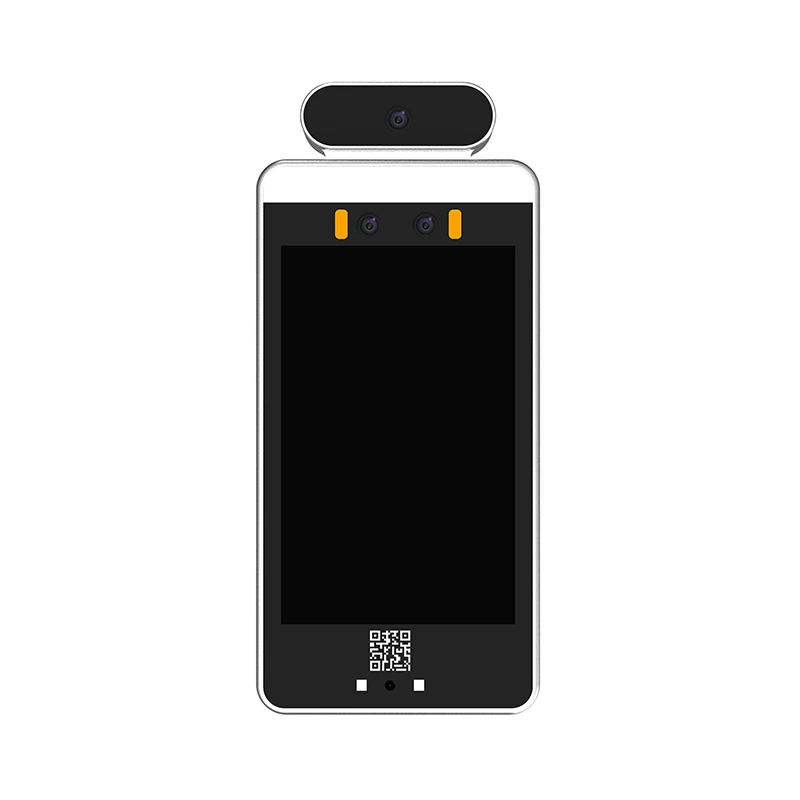

This device can be put into use after plug in, it can scan the health QR code, display health QR code info on the screen including name, doses and manufacturer of vaccination, test result, measure body temperature, and give pass to green health code with a normal temperature result, otherwise, it will send alarm and not allow pass of the visitor or registered staff. This device can also be connected to most types of printers and print out the QR code scan result.It will save time in manual check of health QR code and improve passing efficiency at public places. Currently it supports health code scan in 21 countries including EU, America,Canada, Brazil, Chile, Russia, India, Thailand, Malaysia, etc.
Specifications
Core Parameter | ||
CPU | RK3288,4 Cores,Cortex A17 1.8G(optional RK3399,6 Cores) | |
RAM | 2GB(optional 4GB) | |
ROM | 8GB(optional 16GB/32GB) | |
OS | Android 7.1 | |
Screen | ||
Dimension | 8 inches screen, full view angle, IPS LCD screen(optional 10.1/15.6/21.5 inches) | |
Resolution | 800 x 1280 | |
Contrast | 800:1 | |
Brightness | 250 cd/m2 | |
Touch Screen | Non-touch(optional Touch) | |
Ratio | 16:09 | |
Camera | ||
Dual Camera | 200W(RGB Camera);130W(Infrared Camera) | |
Type | Wide dynamic camera | |
Aperture | 4mm | |
Focal Length | 50-150cm | |
White Balance | Automatic | |
Wide Dynamic | Support | |
Interface | ||
Network Interface | Support Ethernet, 2.4G WiFi(optional 4G module) | |
Wiegand Interface | Support wegand 26/34/47, support input/output | |
Serial Communication interface | RS232/RS485 | |
USB Interface | 1 USB 2.0 + 1 USB OTG | |
Relay Output | COM and NO | |
HDMI Interface | Support | |
Audio | 2.5W /4R speaker(optinal line out) | |
Reset Interface | Yes | |
RJ45 | Yes | |
Face Recognition | ||
Face Detection | Support detecting and tracking 5 people at the same time | |
Detection Type | Support liveness detection | |
Face Capacity | 20,000(optional 50,000) | |
Event Capacity | More than 1000000 | |
Recognition Rate | 99% | |
Recognition Speed | ≤150ms | |
Recognition Distance | 0.5-4m | |
Stranger Detection | Support | |
Mask Detection | Support | |
Function | ||
Development Interface | Support HTTP/SOCKET SDK | |
Deployment Method | Support LAN/WAN | |
UI Configuration | Support | |
Remote Upgrade | Support | |
Protection Level | IP64, certain dustproof and waterproof function | |
OSD Language | Multi language supported | |
General Parameter | ||
Filling Light | LED filling light | |
Power Supply | DC12V(±10%) | |
Power Comsumption | 10W MAX | |
Working Temperature | -10°C ~ 60°C | |
Working Humidity | 10% to 90% | |

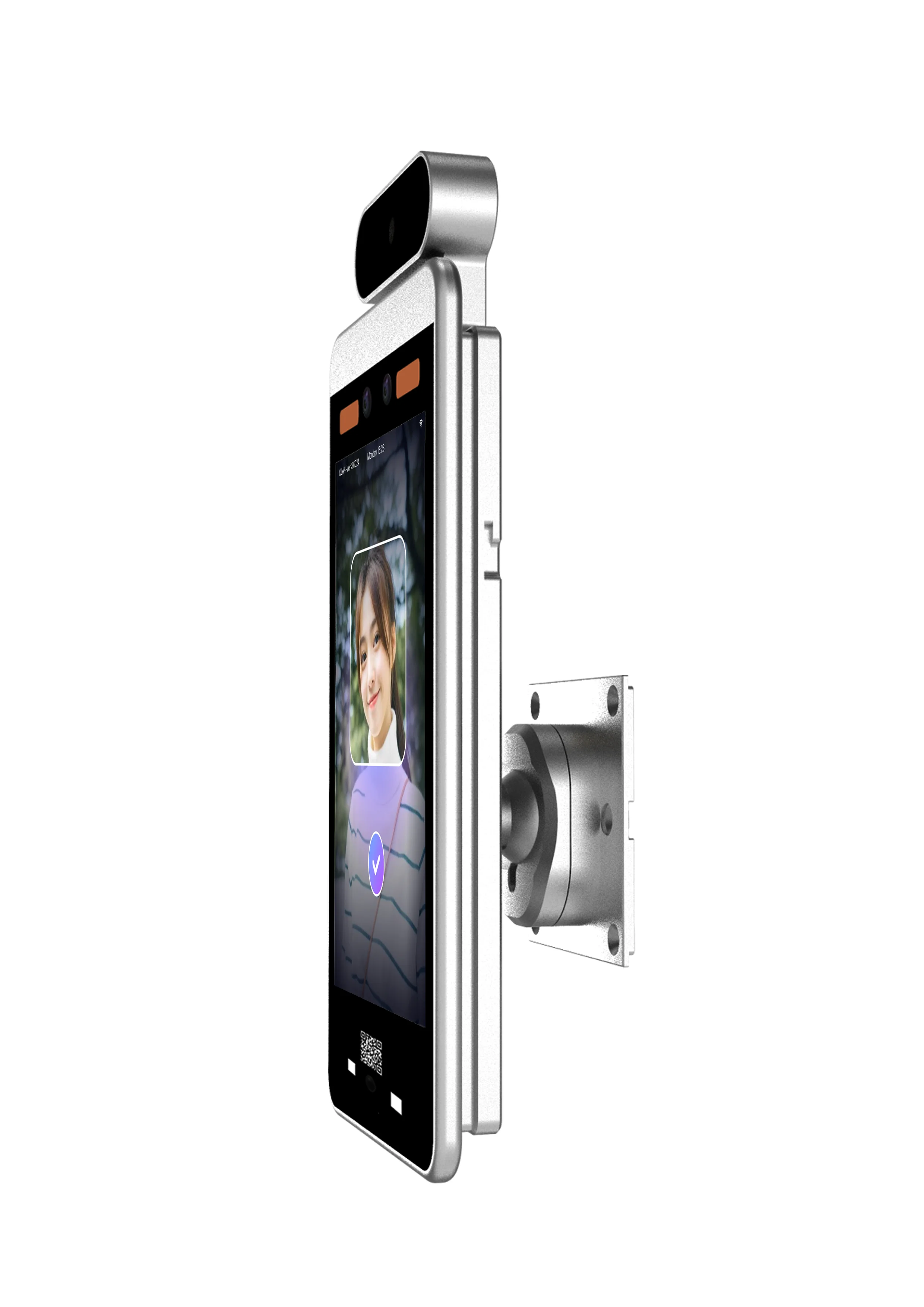

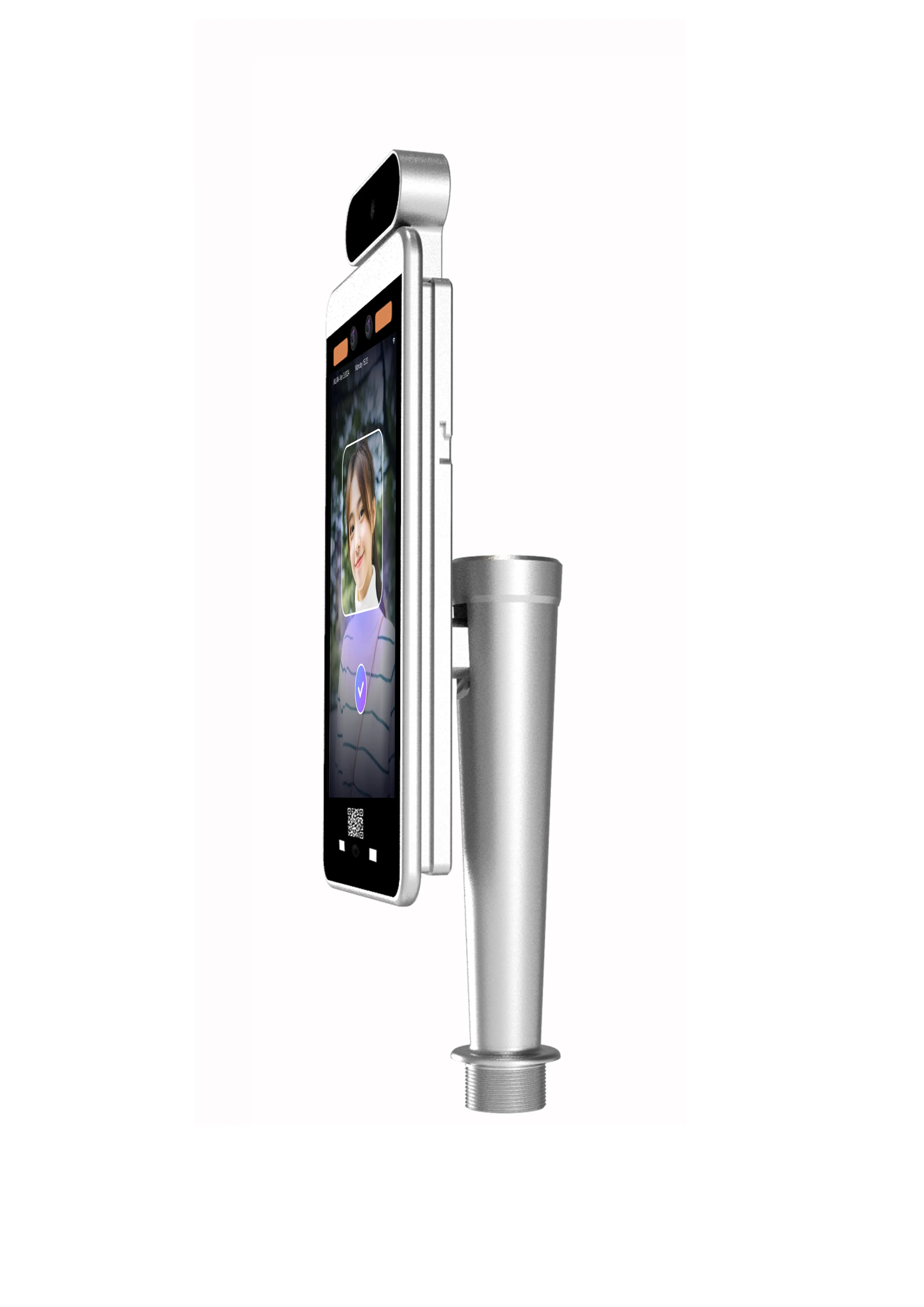

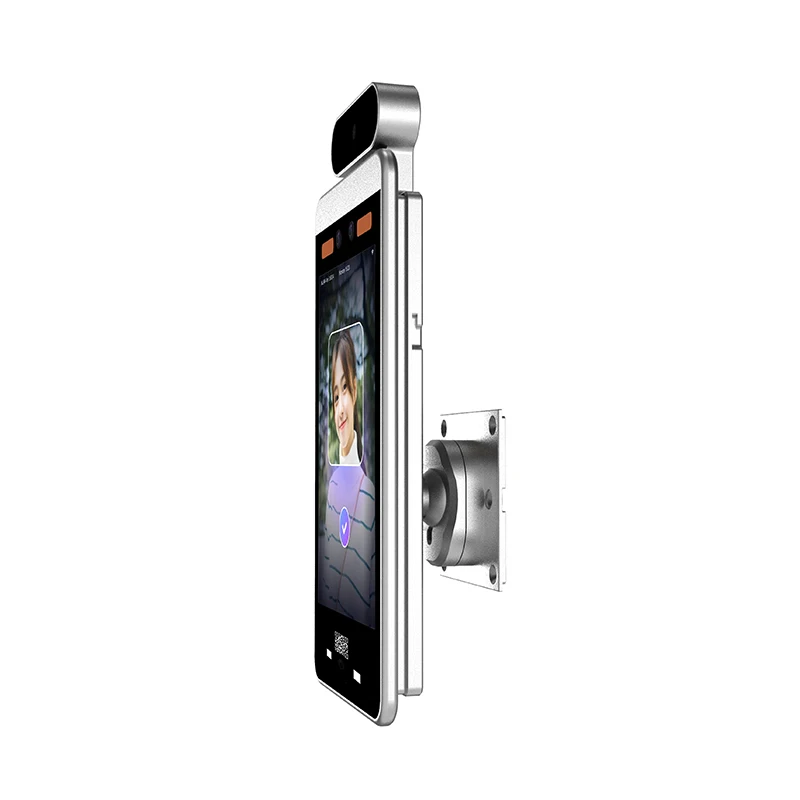

Installtion Method | Turnstile, Wall mounted, Desktop, Floor Type | |
Device Size | 234(L)*125(W)*24.5(H)mm | |
Weight | 3 kg(Device Only) | |
Optional Accessories | ||
Card Reader | IC/NFC/HID | |
Qrcode Reader | Support | |
Label Printer | Support | |
Alertor | Support | |
Recommend Combination
Card reader and QR code reader can be added to the face recognition device.
Note: The cost of the added card reader,QR reader and the metal stand is not included in the current price, pls contact us for the price of the stand or specific questions about customized functions.
Three most frequent installations of our face recognition devices are as above.
Note: We offer different standard accessory for each installation, pls inform us which is your preferrable installation before placing your order or before we send out your order.
OUR SERVICES INCLUDE
We have 34 technical engineers to support you, either it's about custom functions, SDK, API, or other secondary development related questions, you will get quick response. Welcome to contact us!
Company Profile
Chengdu Tommi Technology Co., Ltd. is an innovative technology company integrating R & D,production and sales.

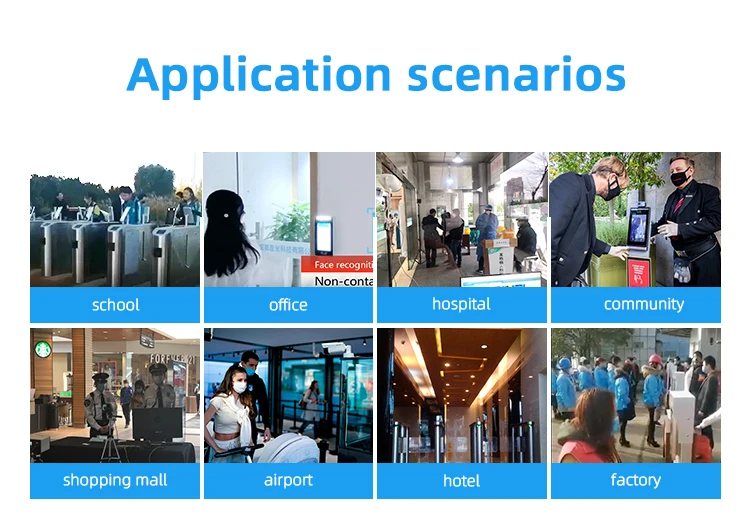

Our company adopts advanced image analysis algorithm and has fully independent intellectual property rights of face recognition technology. We are the source supplier of face recognition solutions. We supply stable, reliable and cost-effective face recognition related security products for a long time. At the same time, relying on a strong technical R & D team, we can provide customers with complete platform and systematic solutions, provide customers with "one-stop" services, support OEM, ODM and other cooperation modes, so as to meet various customized needs of customers. Our main products include face recognition devices, smart security devices, CCTV productsand temperature measurement instruments, etc., which are widely used in communities, schools, hospitals, factories, construction sites, office buildings, hotels, public transport terminals and other public places. In 2020, the sales volume will exceed 15 million US dollars, which ranks No.1 market share of Hisilicon embedded face recognition equipment. Our products are also exported to the United States, the Middle East, Japan, South Korea, Southeast Asia and other countries with FCC, CE and other certificates. Welcome customers to choose our products, Tommi technology will serve you wholeheartedly.
