vacuum drying machine | Automatic Starch Vacuum Filter Machine

Product Overview

Description





  Application fields:

1.Titania filtering dehydration
2.Alumina, silicon slag, red mud filtering dehydration
3.Small particles, high viscosity material filtering dehydration





Product features:



1.Customized design to meet various customers' demands
2.Advanced and reasonable structure, elegant appearance
3.Frequency conversion stepless speed, steady transmission
4.Concise process layout, satisfying outlet dryness
5.Cradle of first class product, the first choice of titania industry





Items	TB10	TB15	TB20	TB25	TB30	TB35	TB40	TB45	TB50
Filter Area(m2)	10	15	20	25	30	35	40	45	50
Feed concentration	300 ~ 350g/l
Feed drying degree	37% ~ 40%
Operating vacuum degree(Mpa)	0.04~0.07
Main motor power(kw)	2.2	3	4	4	4	4	5.5	5.5	5.5
Drum speed(r/min)	0.1~1.0	0.1~1.0	0.1~1.0	0.1~1.0	0.1~1.0	0.1~1.0	0.1~1.0	0.1~1.0	0.1~1.0
Stirring motor power(kw)	1.5	2.2	3	3	3	3	4	4	4
Diamention (mm)	3685 ×3495 ×1995	3895 ×3918 ×2853	4495 ×3918 ×2853	5195 ×3705 ×2053	5795 ×3705 ×2853	5486 ×4657 ×3602	5986 ×4657 ×3602	6386 ×4657 ×3602	6886 ×4657 ×3602
weight(kg)	7200	8600	9700	10600	11400	12800	13500	14740	15600

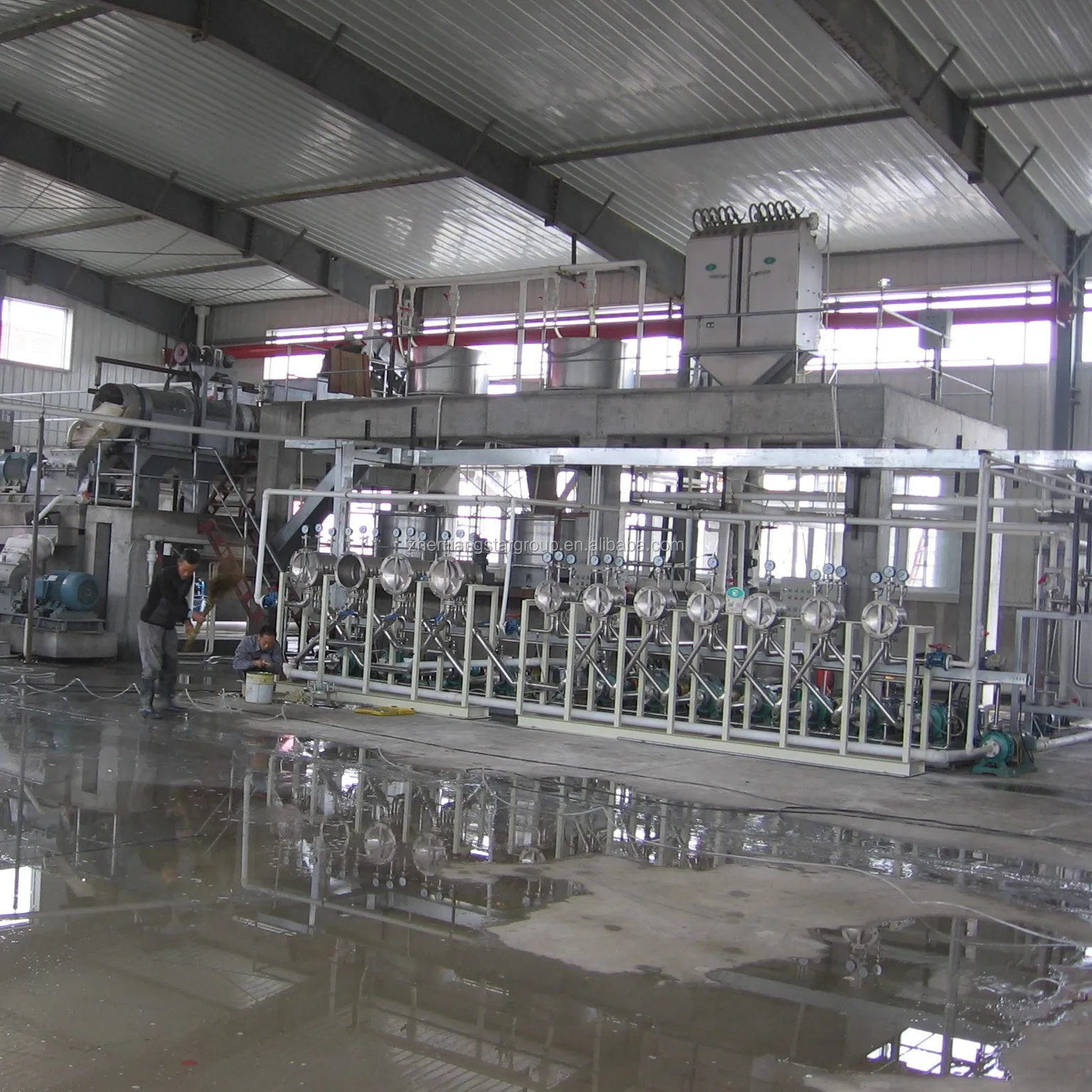

Our Producing:

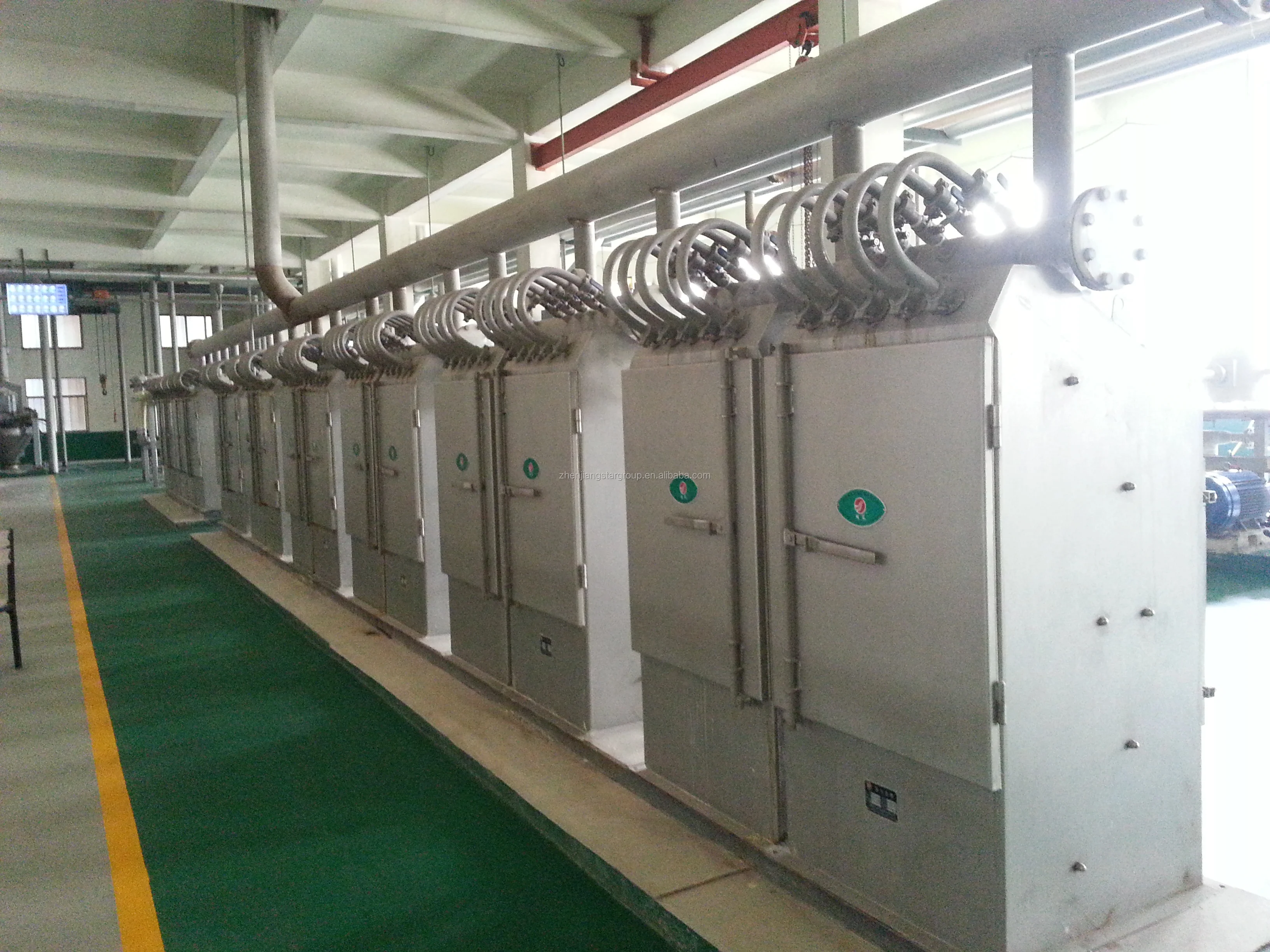

Our Different filtering machines:

Our Transporation :











Our loading filtering machines:



































OUR CERTIFICATES: ISO9001, SGS, BV









Professional,  over 20 years  exportation and importation



Reliable,  over 8 years certificate in alibaba



Qulified,  SGS, Bureau Veritas, ISO9001, CIQS certificates











We are now supply to Italy, USA, MEXICO, YEMEN, SYRIA and Brazil market , could be used for the electricity industry, powerstation Industry, decoration and other industry usage.







Welcome to vist our factory to test the quality, service and reputation
