JB NJ4 Automatic salsa red hot viscous thick pasta sauce filling machine
- Category: >>>
- Supplier: Shanghai Jiaoban Machinery Co. Ltd.
Share on (1600409586159):
Product Overview
Description
Our factory has manufactured filling machines for over 20 years!!

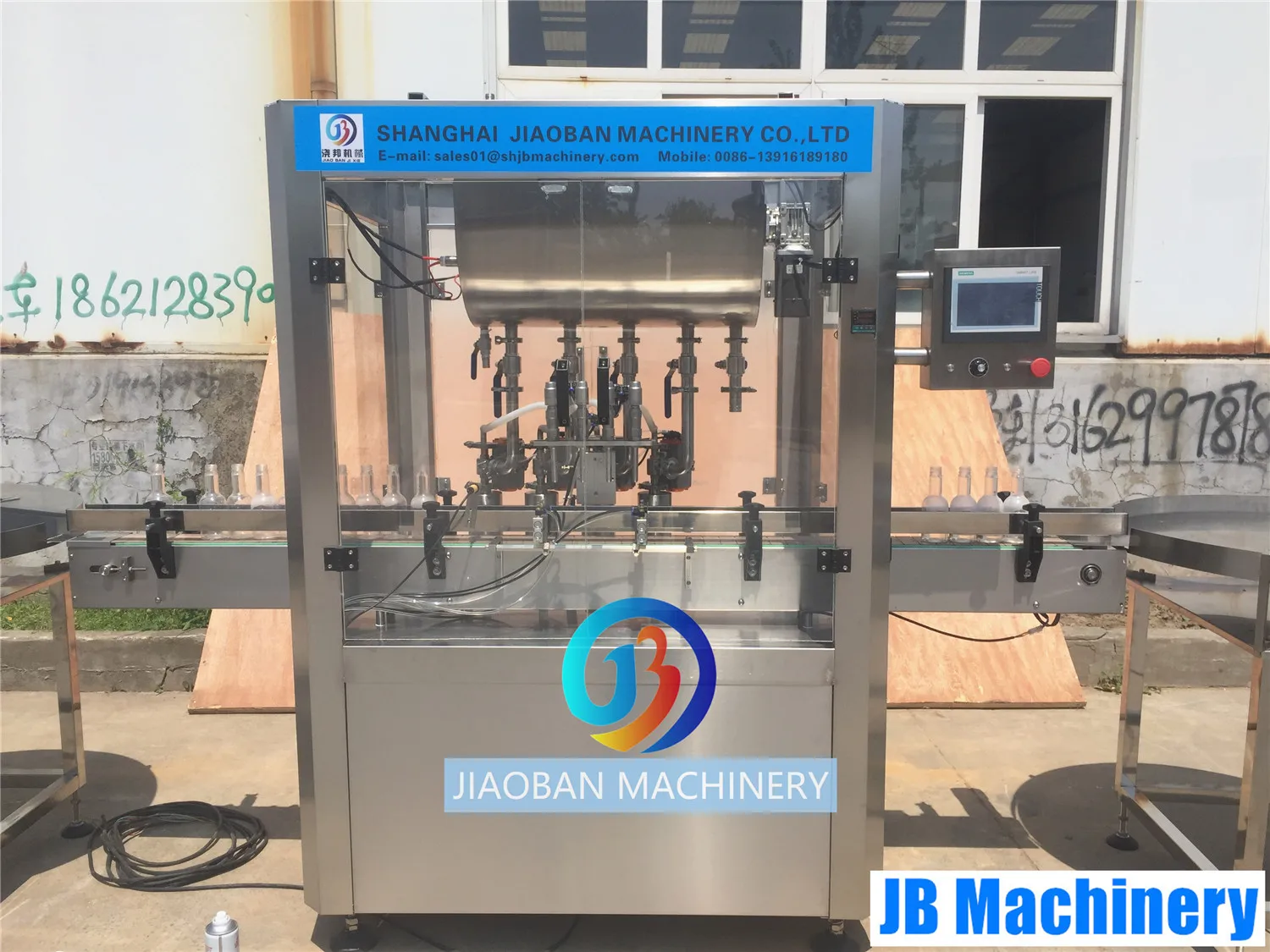

JB-JG4 sauce filling machine
Products Description
Model | JB-JG4 | JB-JG6 | JB-JG8 |
Filing head number | 4 | 6 | 8 |
Adding plug/dropper head | 1 | 2 | 2 |
Capping head number | 1 | 2 | 2 |
Filling volume | 50-1000ml | 50-1000ml | 50-1000ml |
Capacity | 5-35 bottles/min | 10-60 bottles/min | 15-70 bottles/min |
Filling accuracy | ≤ ±1%(depend on product) | ≤ ±1%(depend on product) | ≤ ±1%(depend on product) |
Pass rate | ≥ 98% | ≥ 98% | ≥ 98% |
Power supply | 1 Ph. AC220V/3Ph AC380V 50/60Hz | 1 Ph. AC220V/3Ph AC380V 50/60Hz | 1 Ph. AC220V/3Ph AC380V 50/60Hz |
Total power | 2.8 KW | 3.0 KW | 3.5KW |
Net weight | About 850kg | About 1000 kg | About 1200 kg |
Overall Dimension | L4600x W1800x H1900mm | L6500x W4800x H1900mm | L7000x W5200x H1900mm |
This production line is suitable for filling and capping semi-liquid products without or with small particles: such as sweet chili sauce, beef paste, bean sauce, mushroom sauce, tomato sauce, peanut butter, jam, honey, sauce, shrimp paste, shampoo, body wash, liquid detergent, dishwashing liquid, etc.
1. Adopts plunger type metering pump filling, high precision; The structure of pump adopts fast disassembly institutions, easy to
clean and disinfect.
2. PLC control system , color touch screen display.
3. This machine has function of no bottle no filling and automatic counting.
4. The filling nozzle was equipped with drip-proof device .
5. W hen filling liquid, the filling nozzle dive into the bottom of bottle, rising slowly , it can effectively prevent bubbles.
6. Machine body and the parts contact ing liquid are made of stainless steel, full compliance with GMP standard
clean and disinfect.
2. PLC control system , color touch screen display.
3. This machine has function of no bottle no filling and automatic counting.
4. The filling nozzle was equipped with drip-proof device .
5. W hen filling liquid, the filling nozzle dive into the bottom of bottle, rising slowly , it can effectively prevent bubbles.
6. Machine body and the parts contact ing liquid are made of stainless steel, full compliance with GMP standard

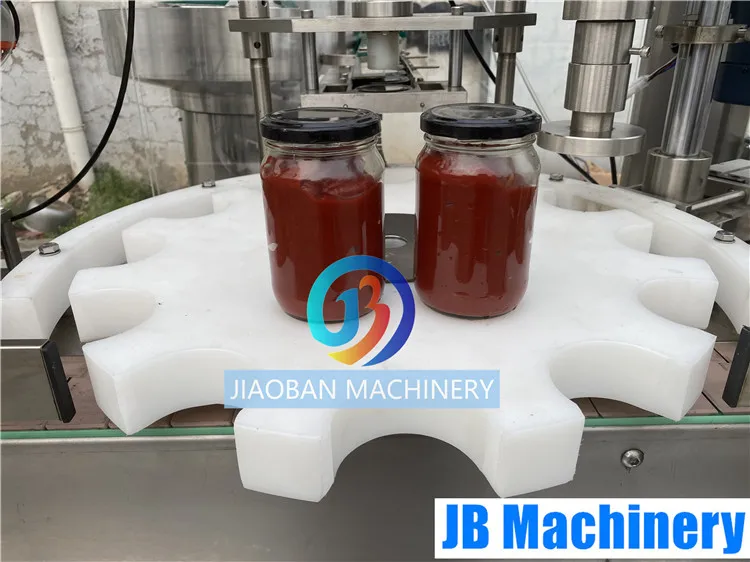

Sample Bottles
Details Images

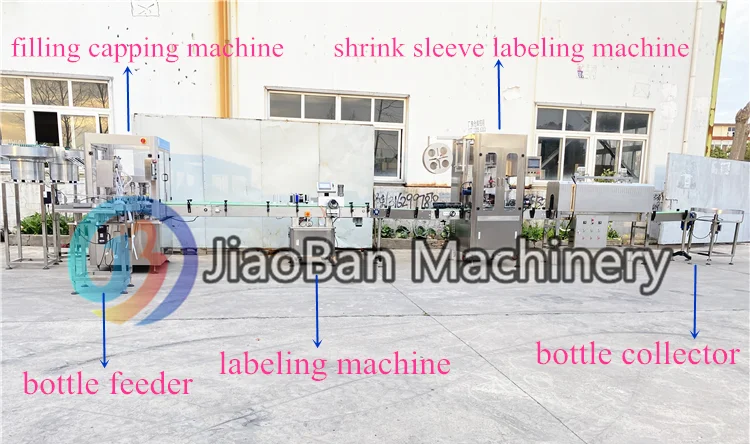

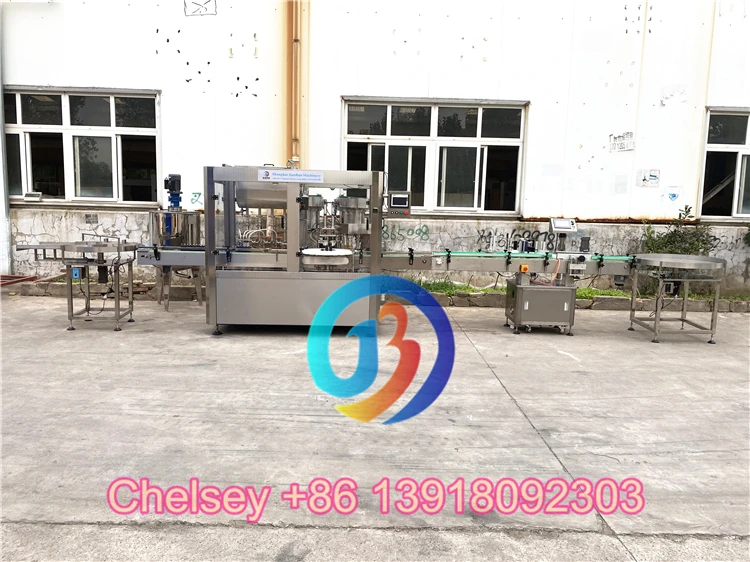

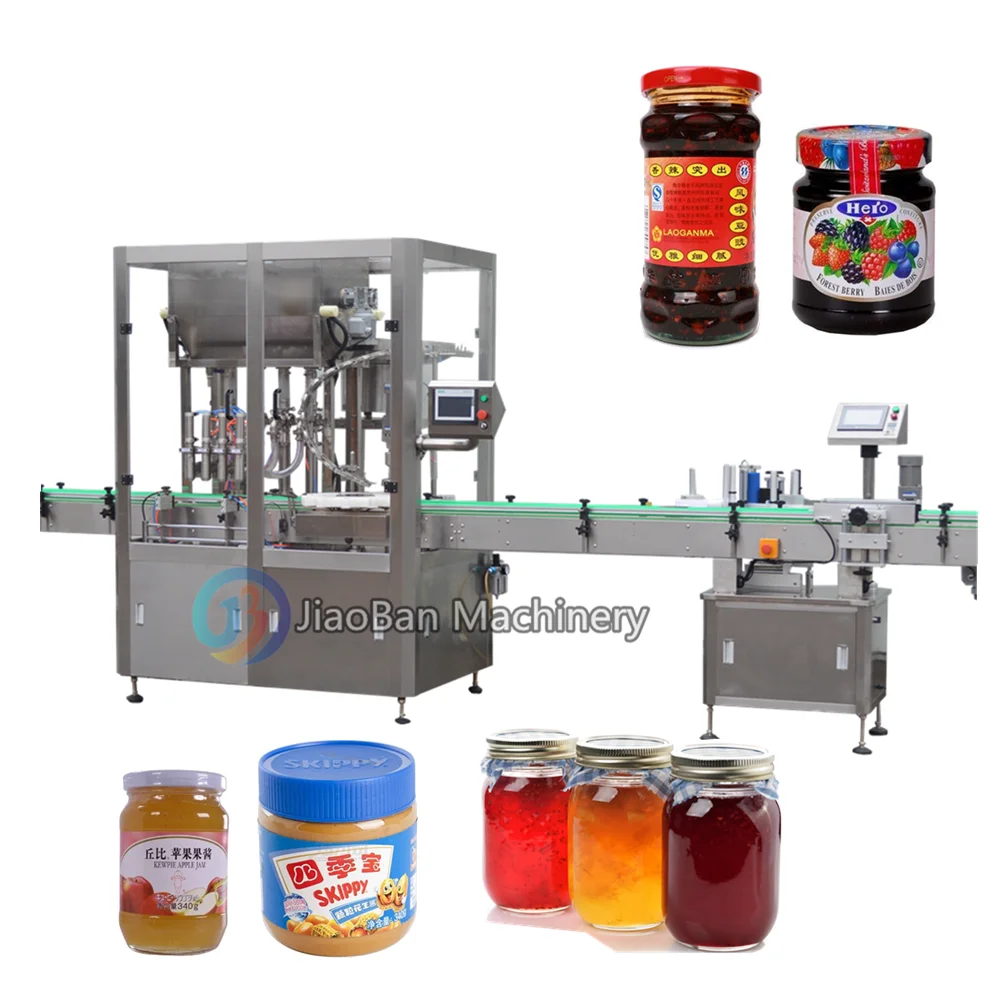

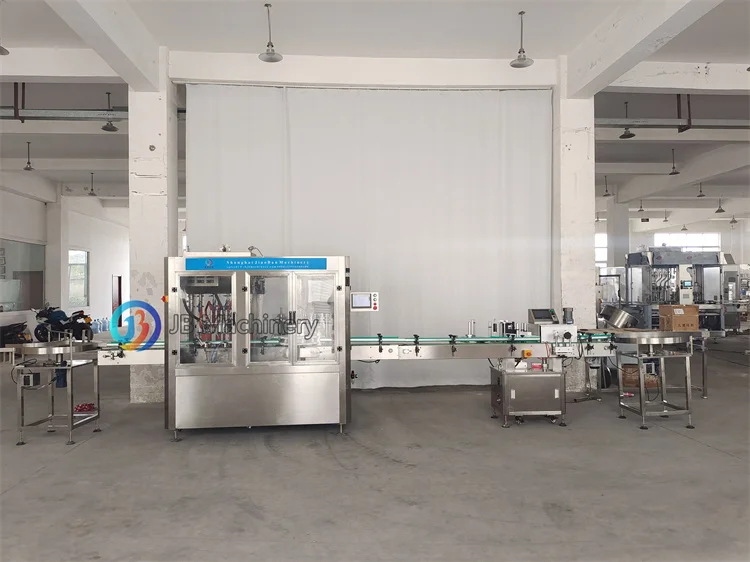

Filling line:

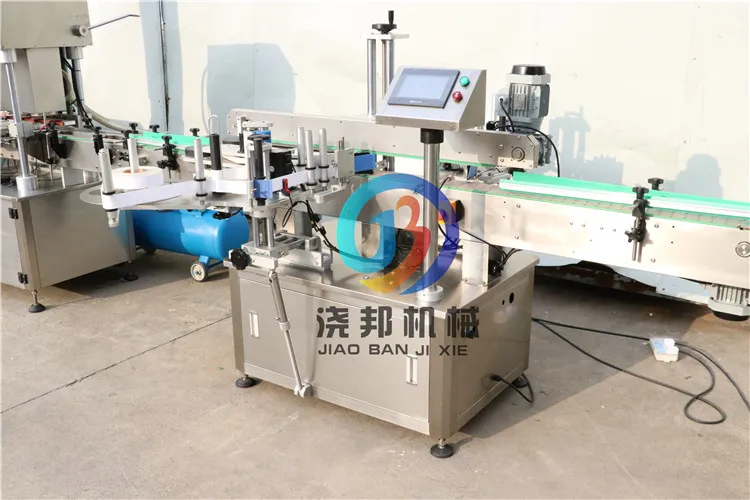

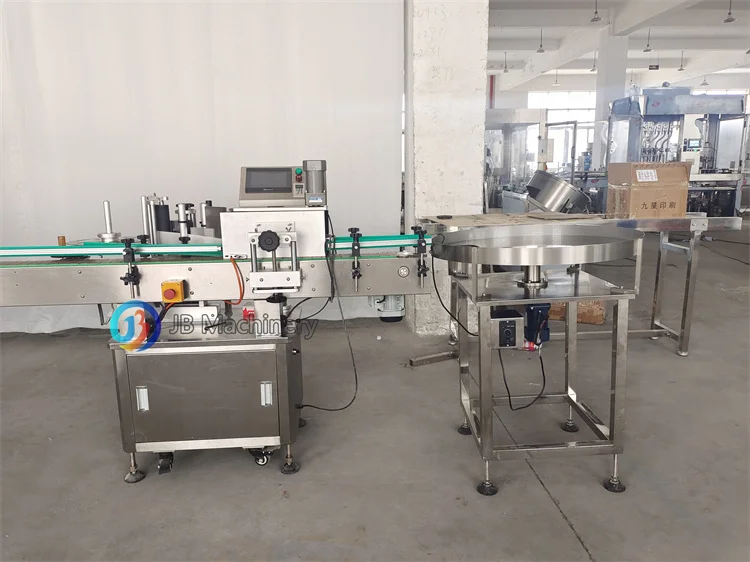

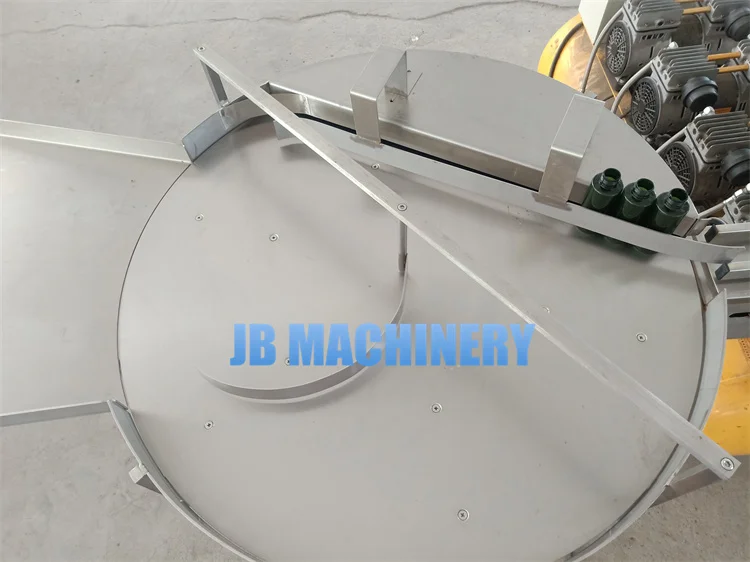

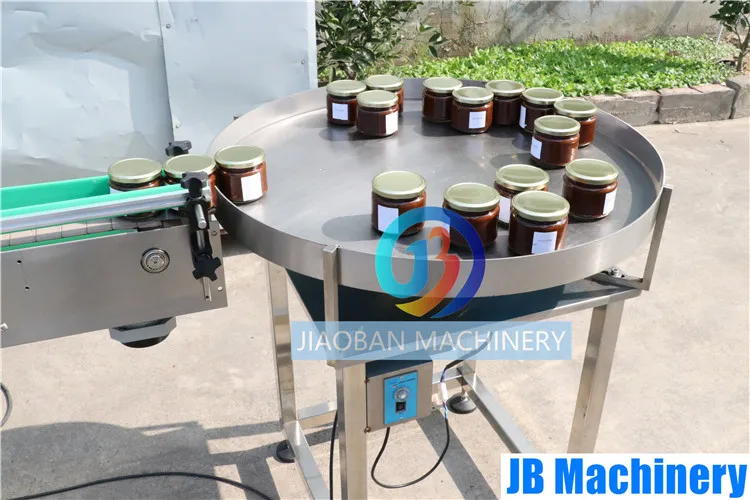

bottle feeding table-- filling and capping machine-- labeling machine-- bottle collecting table
Main machine work flow:

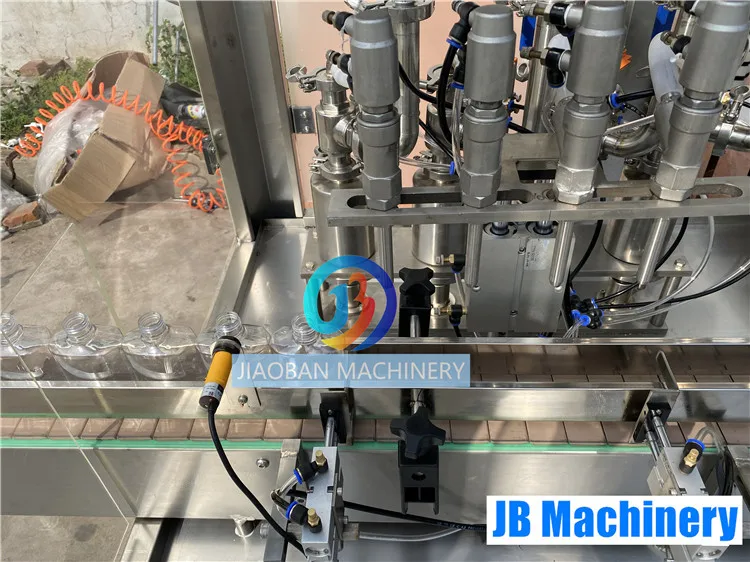

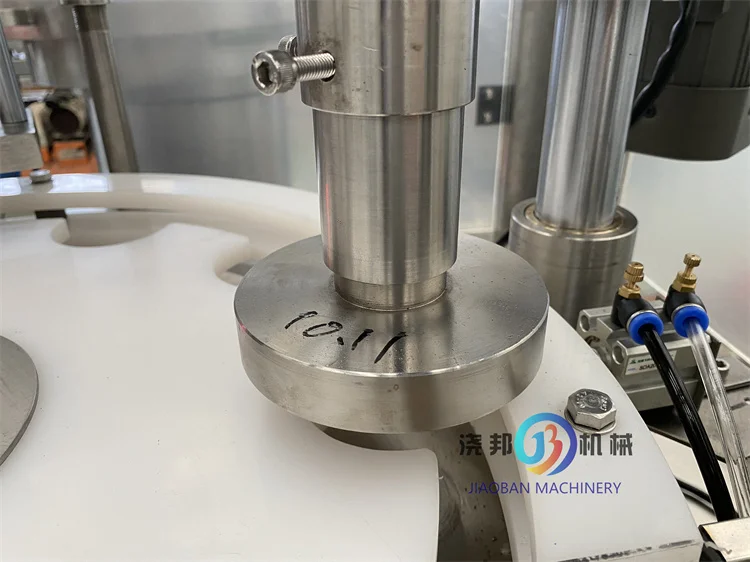

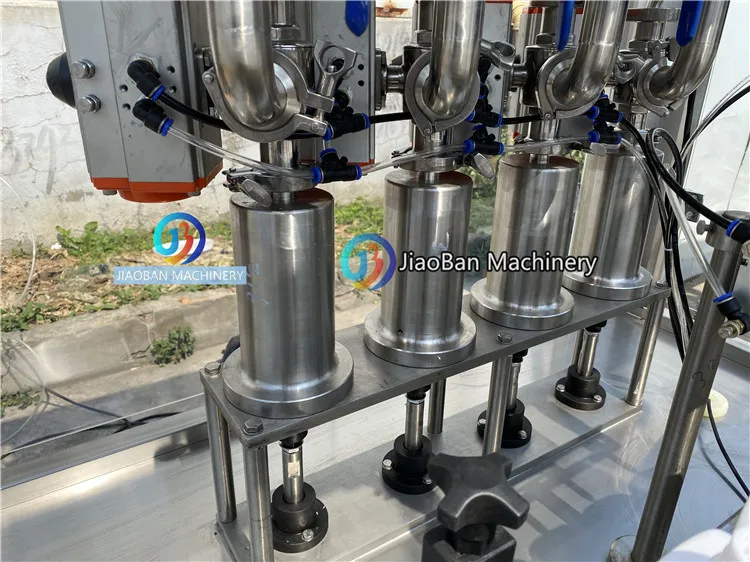

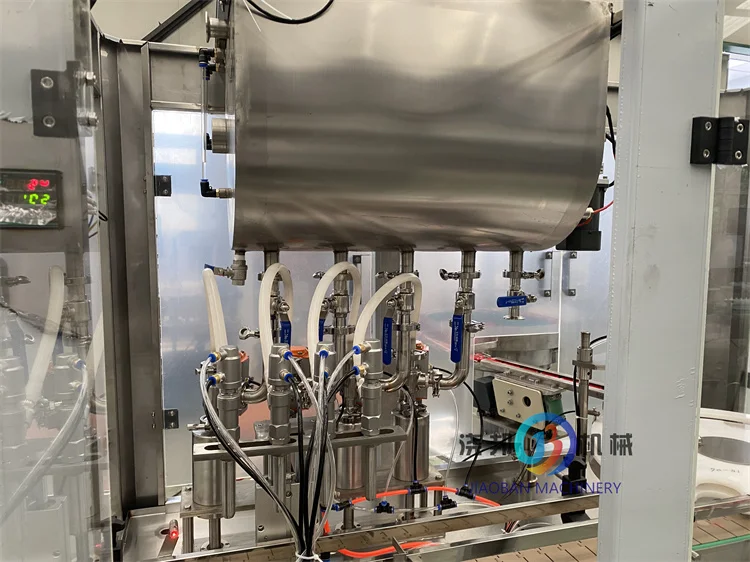

Top material hopper 4 filling nozzles servo motor piston pump filling

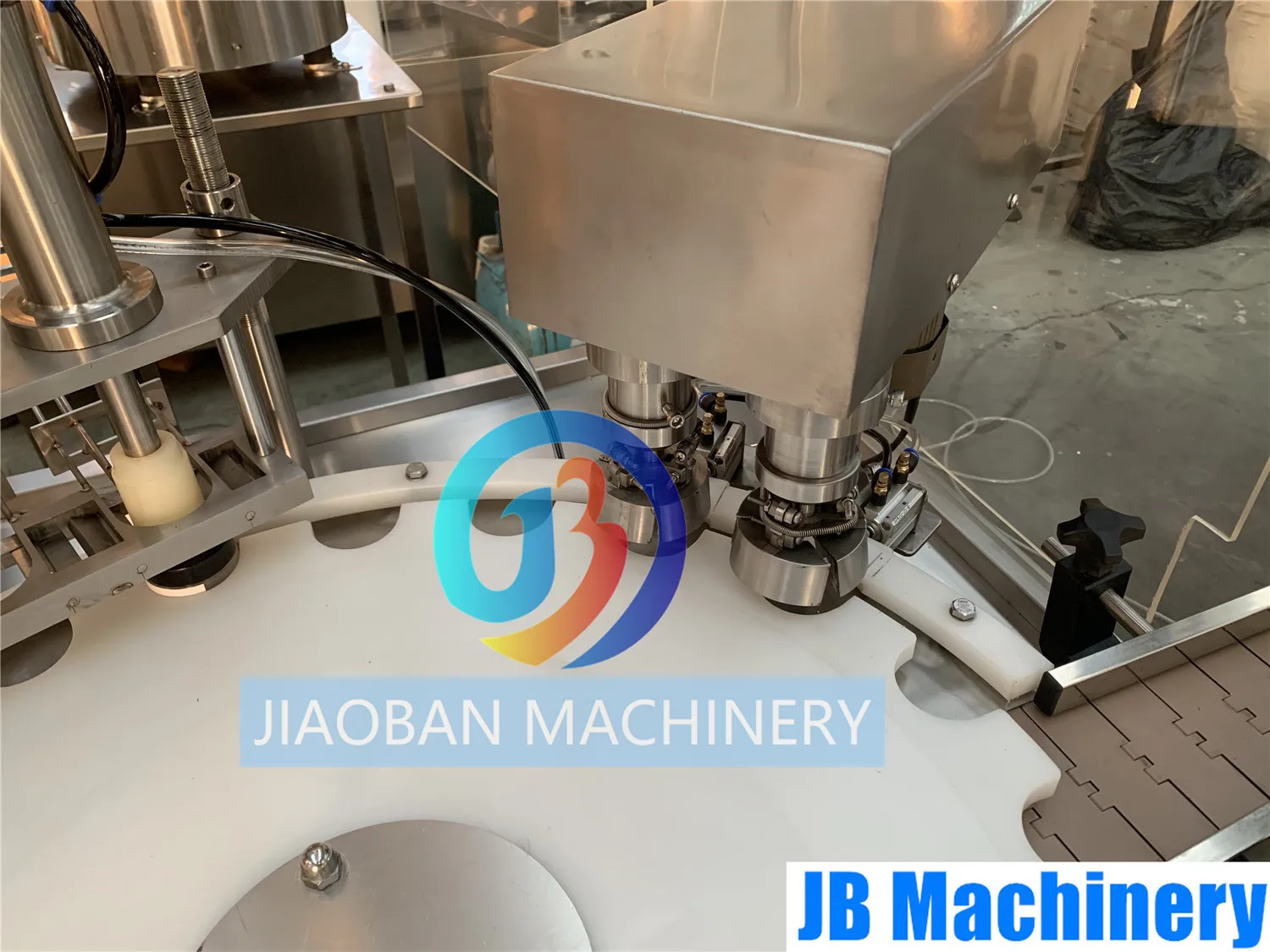

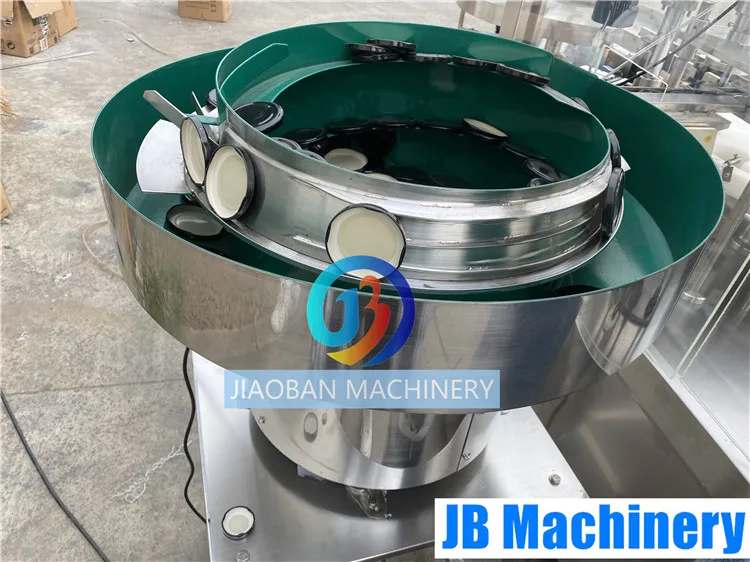

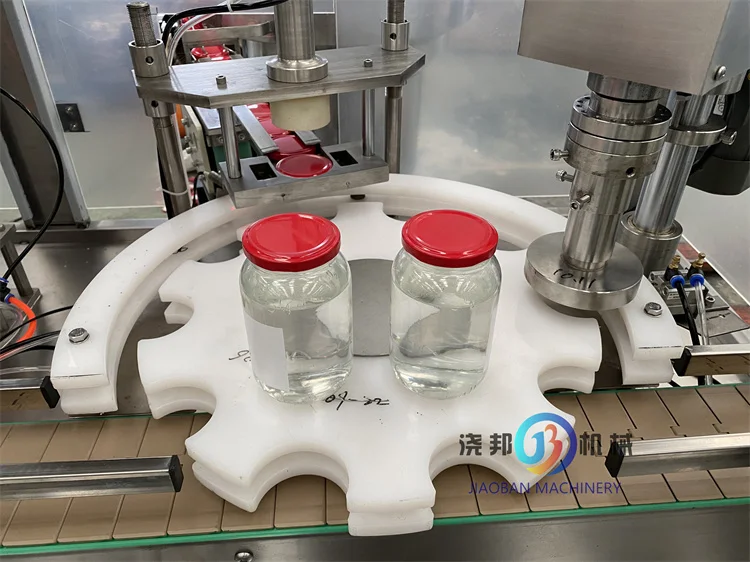

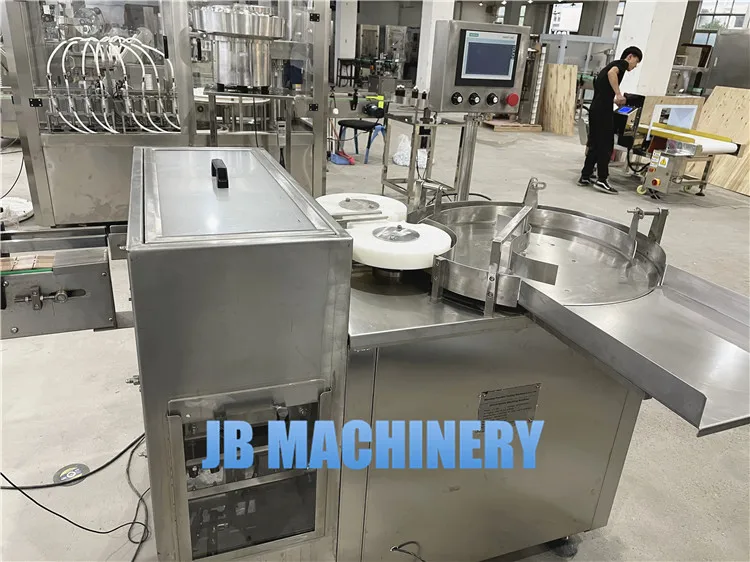

Add Caps On The Bottle or Jar Auto Capping Head Finished Bottle or Jar

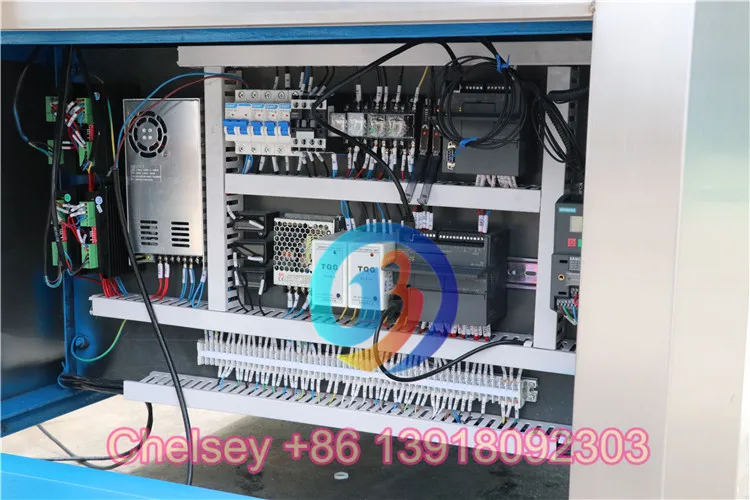

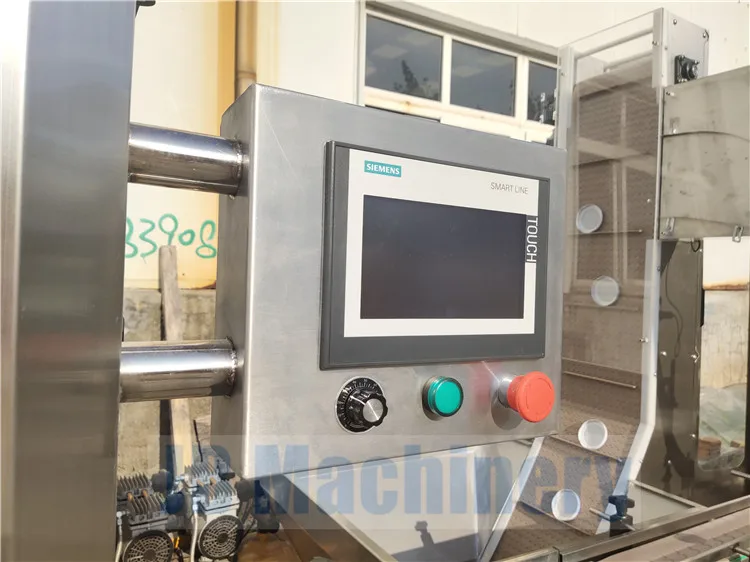

Siemens PLC control electricity part
Optional Machine

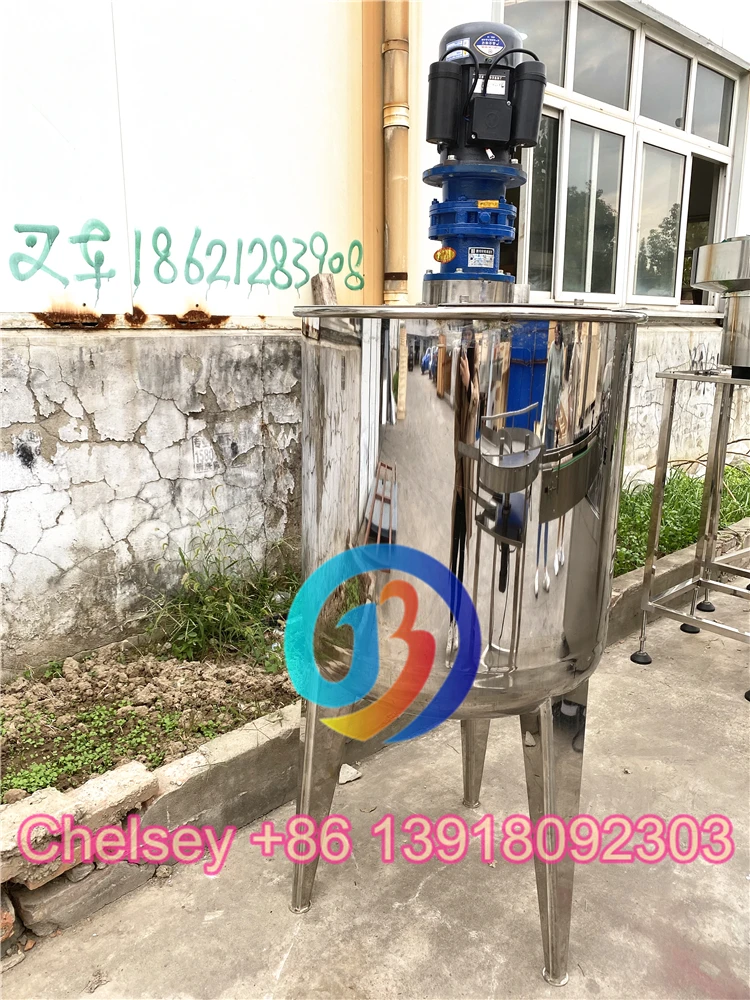

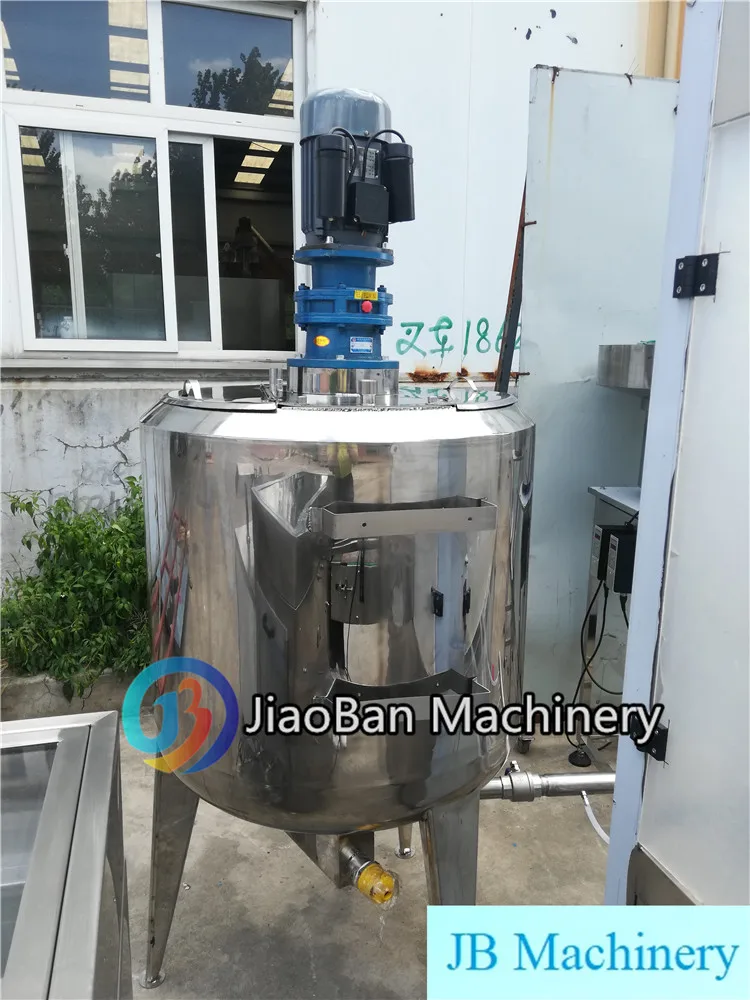

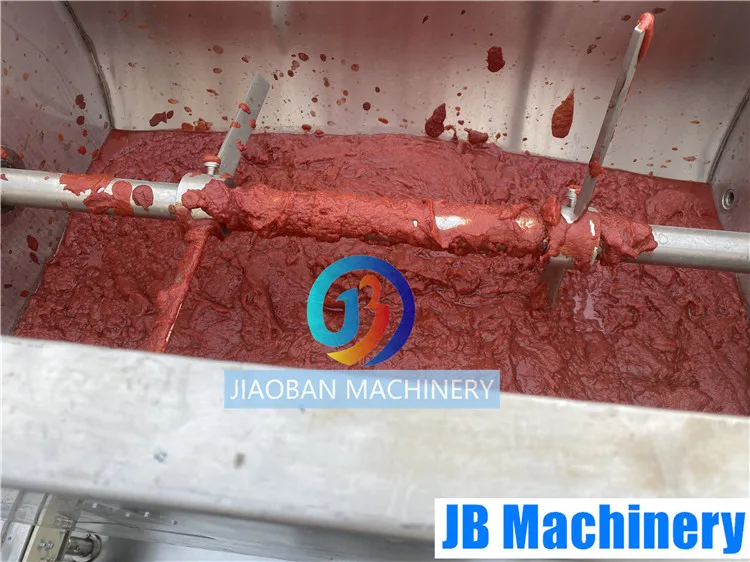

Tank
It can add mixing and heating function. We have 100L, 200L, 500L, 1000L etc

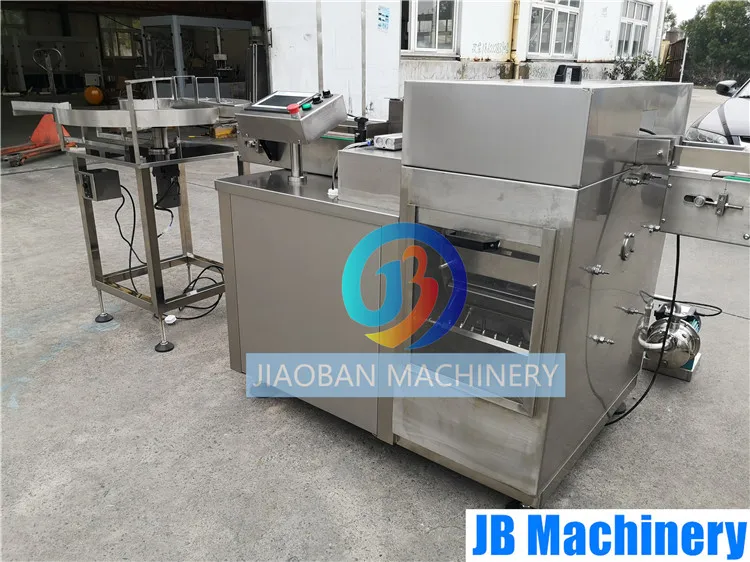

JB-ZX100 Bottle washing machine
It can clean square or round bottle inside and outside

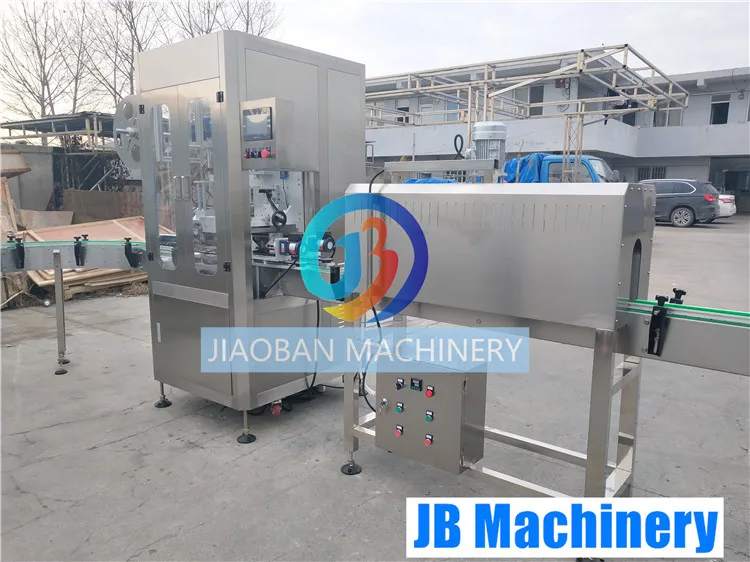

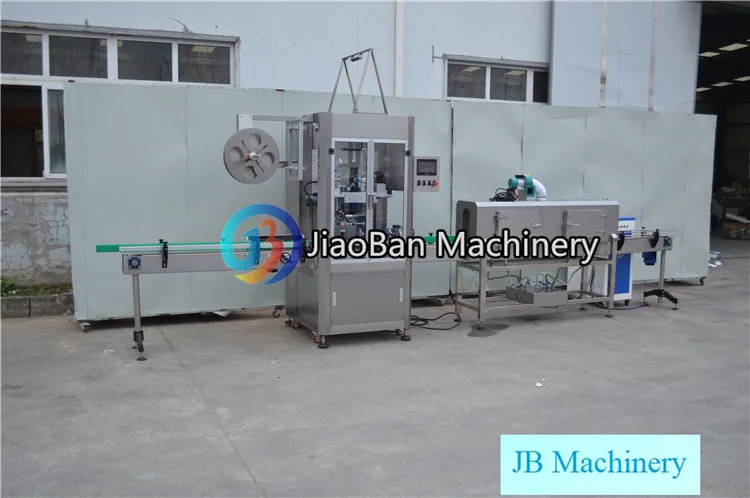

JB-TB200 Bottle shrink sleeve labeling machine
We have steam heating or electric heating
We have steam heating or electric heating
