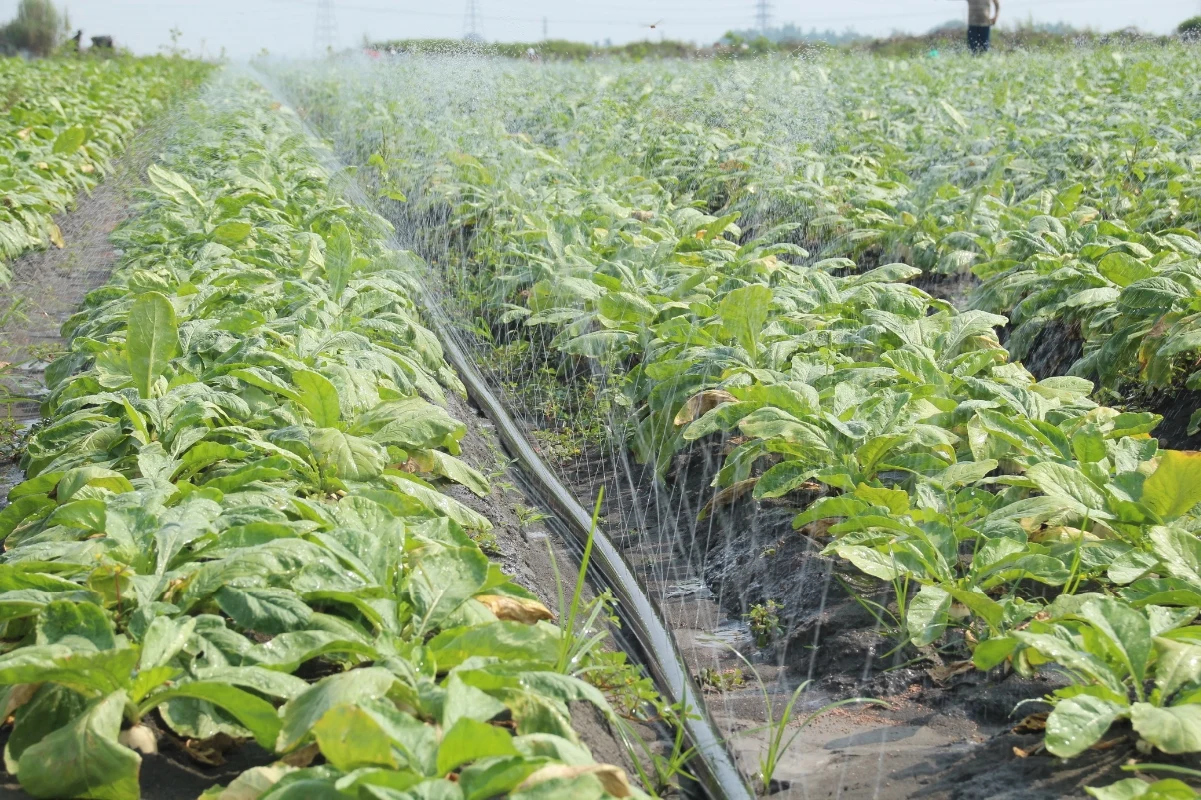

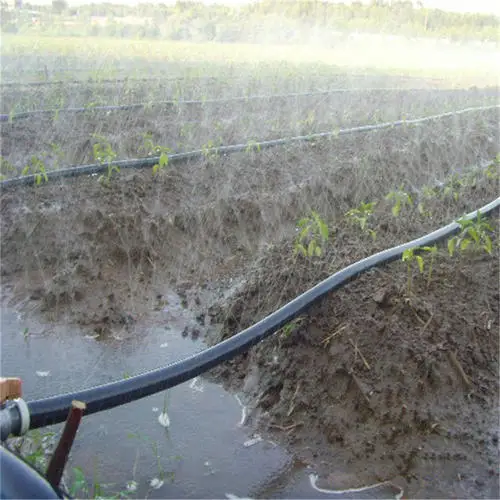

agricultural spray tube farm irrigation system irrigation pipe rain hose
- Category: >>>
- Supplier: Yushen(tangshan)water Saving And Technology Group Co. Ltd.
Share on (1600409596376):
Product Overview
Description
PRODUCT INTRODUCTION

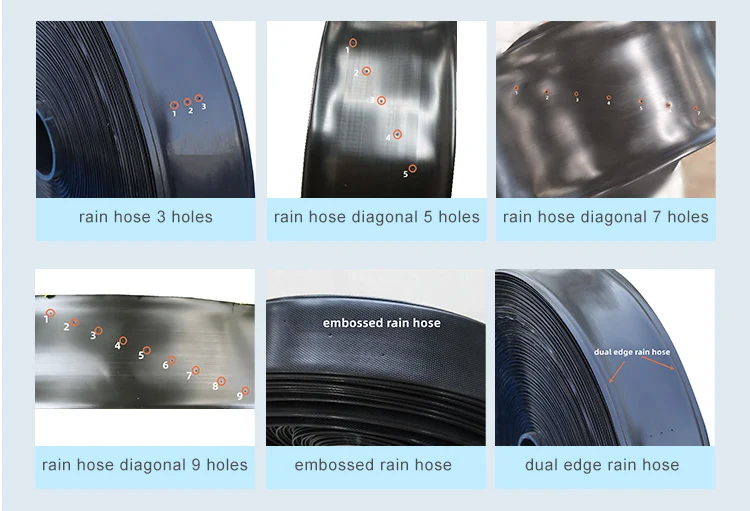

Diameter (mm) | Fold Diameter (mm) | Wall Thickness (mm) | Hole Spacing (mm) | Hole Type | Normal Working Pressure(Mpa) | Flowrate (m³/H by 10 meters) | Spray width (m) | Rolls Length (m) |
25 | 39 | 0.2-0.4 | 150-300 | 2 holes | 0.1 | 1.5-2.0 | 2 | 100-200m |
28 | 40 | 0.2-0.4 | 150-300 | 2,3 holes | 0.1 | 2.0-3.0 | 2.8 | 100-200m |
32 | 50 | 0.2-0.4 | 150-300 | 3,5 holes | 0.1 | 2.0-3.0 | 3 | 100-200m |
40 | 63 | 0.2-0.4 | 150-300 | 3,5,7 holes | 0.1 | 3.0-4.0 | 3 | 100-200m |
50 | 78.5 | 0.2-0.4 | 150-300 | 5,7 holes | 0.1 | 4.0-5.0 | 4.6 | 100-200m |
63 | 99 | 0.2-0.4 | 150-300 | 5,7,9 holes | 0.1 | 5.0-6.0 | 5.6 | 100-200m |
75 | 118 | 0.2-0.4 | 150-300 | 5,7,9 holes | 0.1 | 6.0-7.0 | 6 | 100-200m |

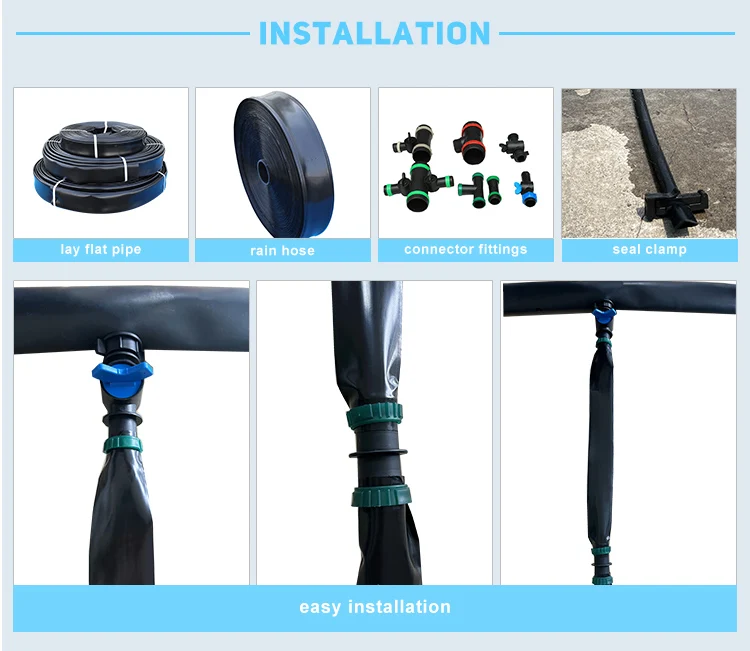

INSTALLATION

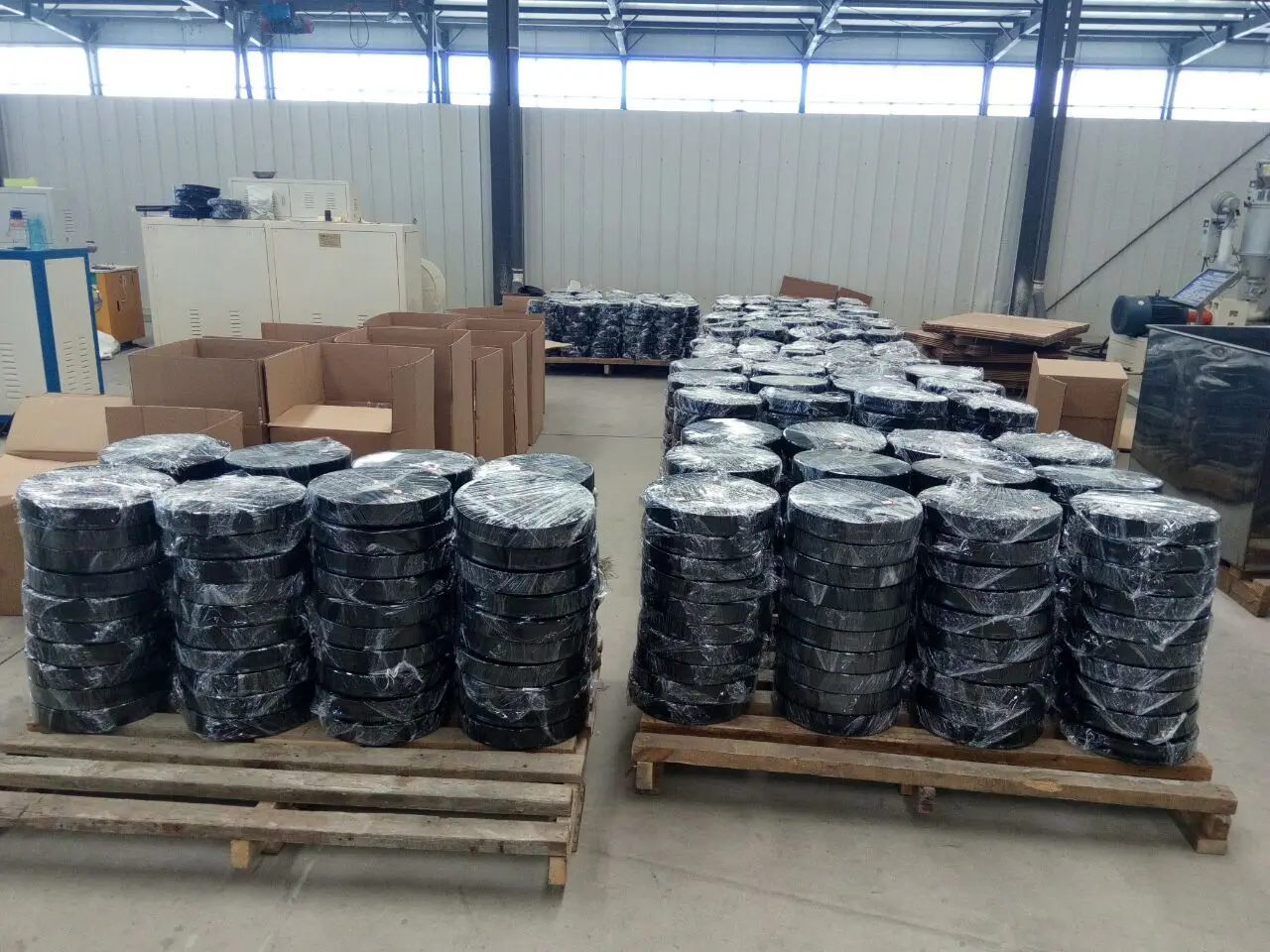

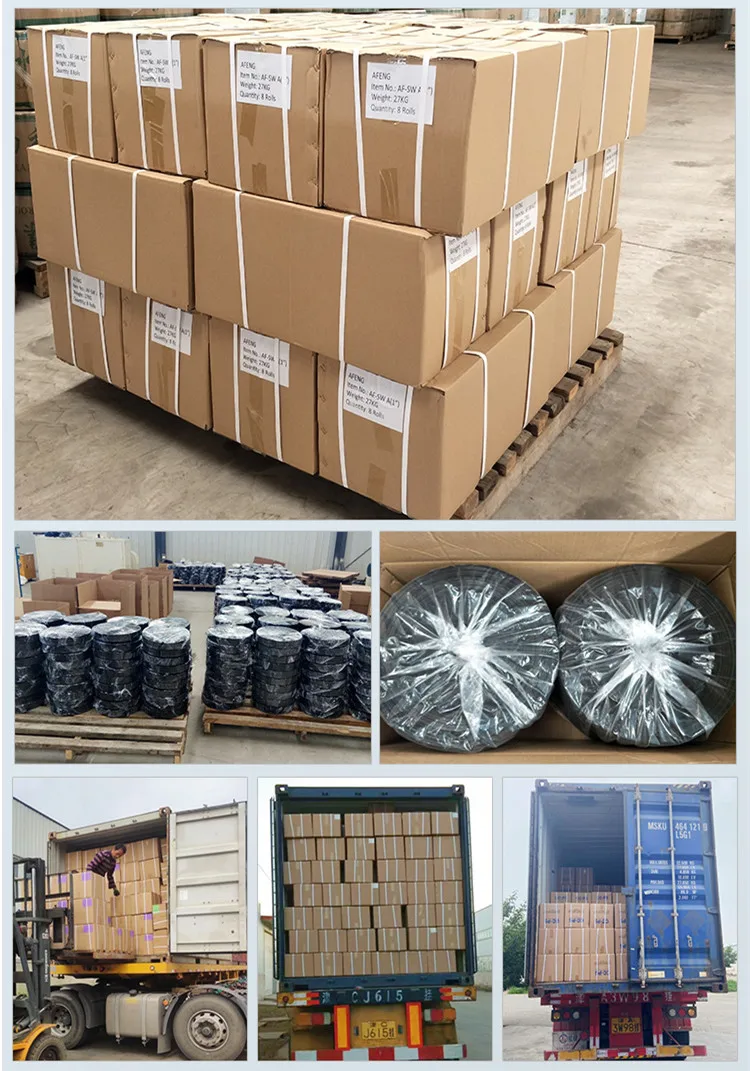

PACKAGINHG

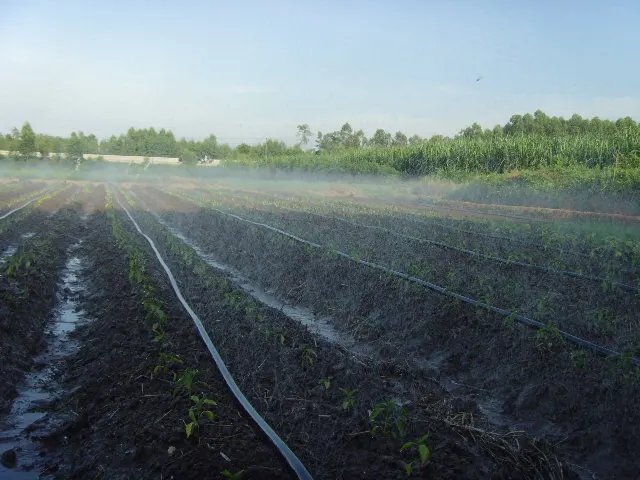

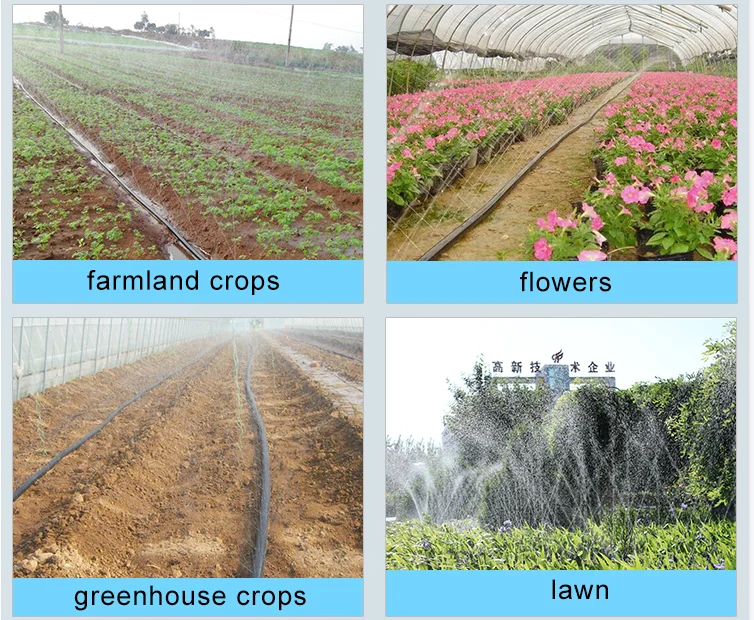

APPLICATION
CERTIFICATION
