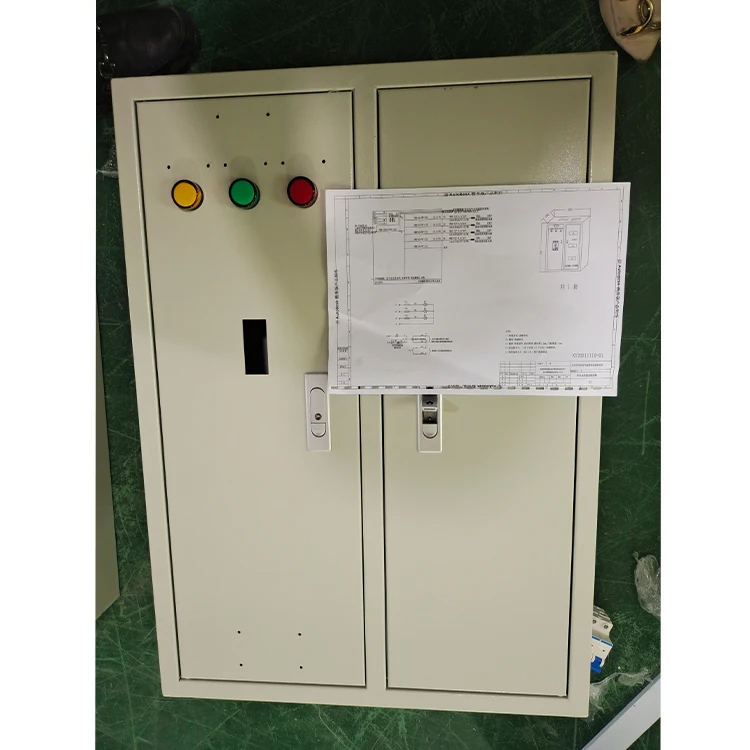

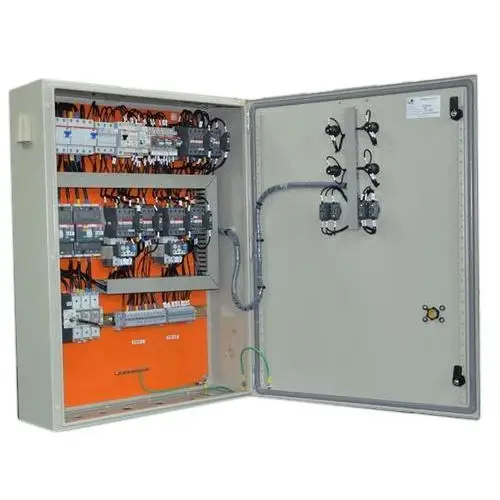

DWDP Low Voltage Switchgear Lv Ring Main Unit And Compact Distribution Switchgear And Controlgear Professional Cabinet

Product Overview

Description

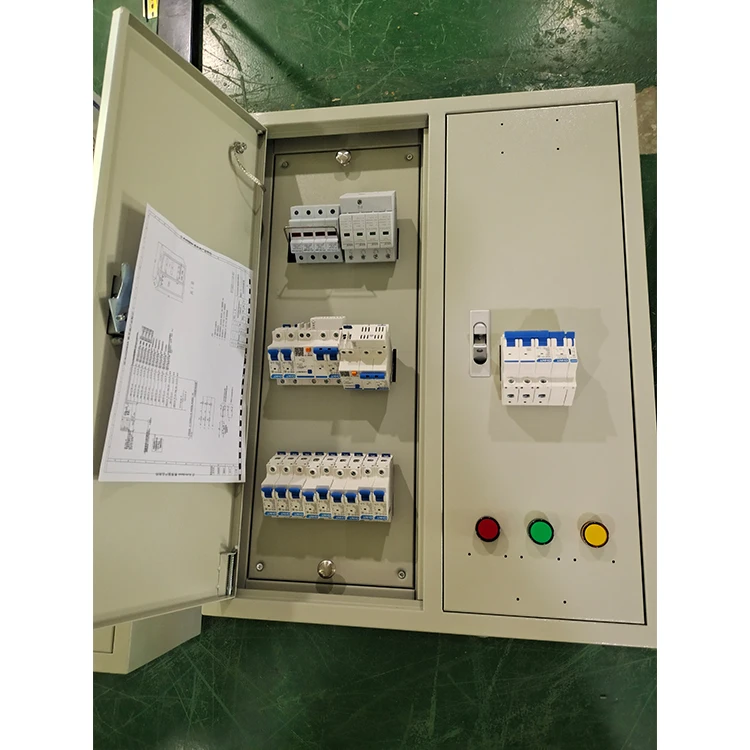

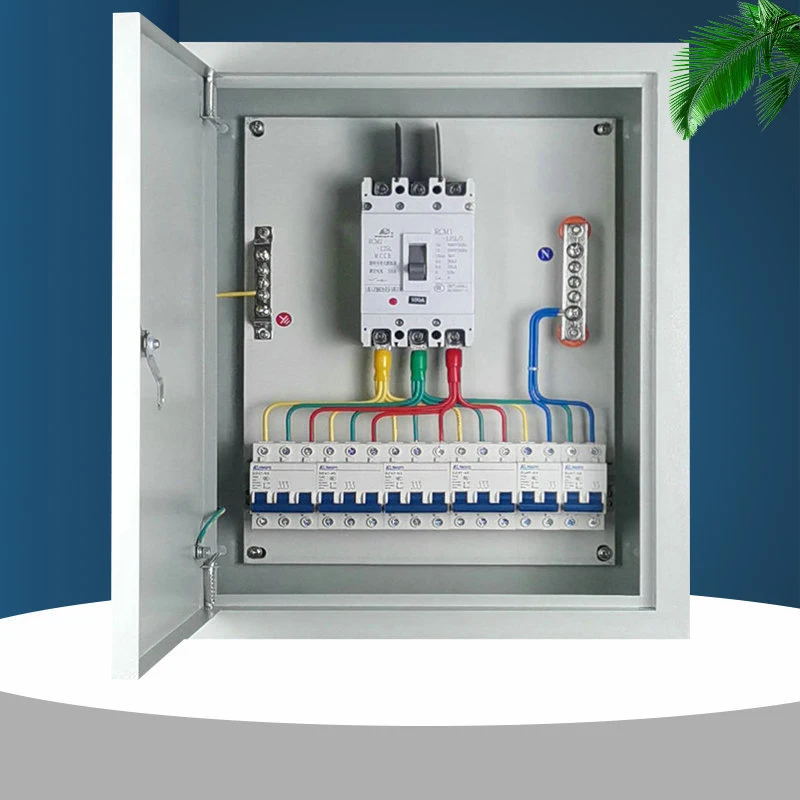

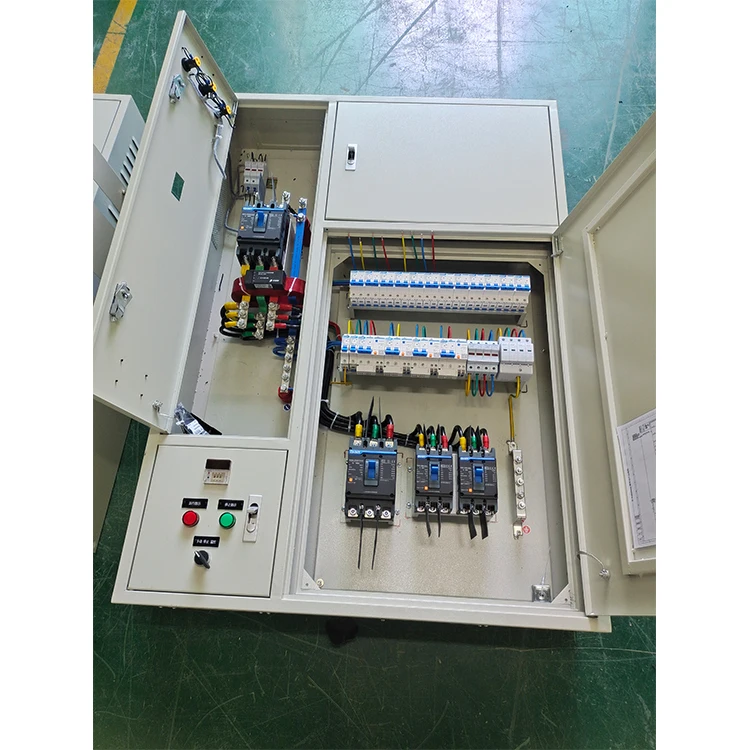

Power Distribution Panel Power Distribution Enclosure

power distribution panel is a flexible, reliable solution for electric power distribution in integrated breakers, metering and surge protection applications. It is designed to meet both safety and quality demands in distribution systems with a rated voltage of 380V, AC 50Hz. Its stainless-steel enclosure ensures the durability in a variety of conditions.

Normal Operating Conditions

• Ambient temperature: -50℃~+40℃, 24h average temperature ≤+36℃.


• Altitude: ≤ 2000m.


• Relative humidity: ≤50% at the highest temperature +40℃. Higher relative humidity is allowed at low temperature, for example, 90% at +20℃. Condensation may appear because of the temperature range, and this phenomenon should be considered.


• Gradient: ≤ 5°, vertical installation.


• Environments with no corrosion, severe vibration, or impact risks

Main Technical Parameters

Rated insulation voltage

Rated working current of horizontal bus

Breaking capacity
