25 tons 55000 lbs rescue truck heavy duty truck winch for hydraulic pulling winch
- Category: >>>
- Supplier: Jiangyin Zhongxin Engineering Equipment Co. Ltd.
Share on (1600409717645):
Product Overview
Description

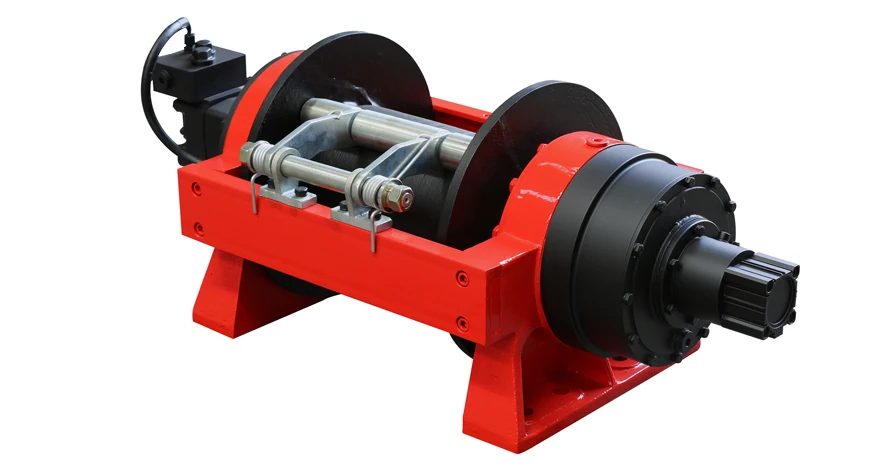

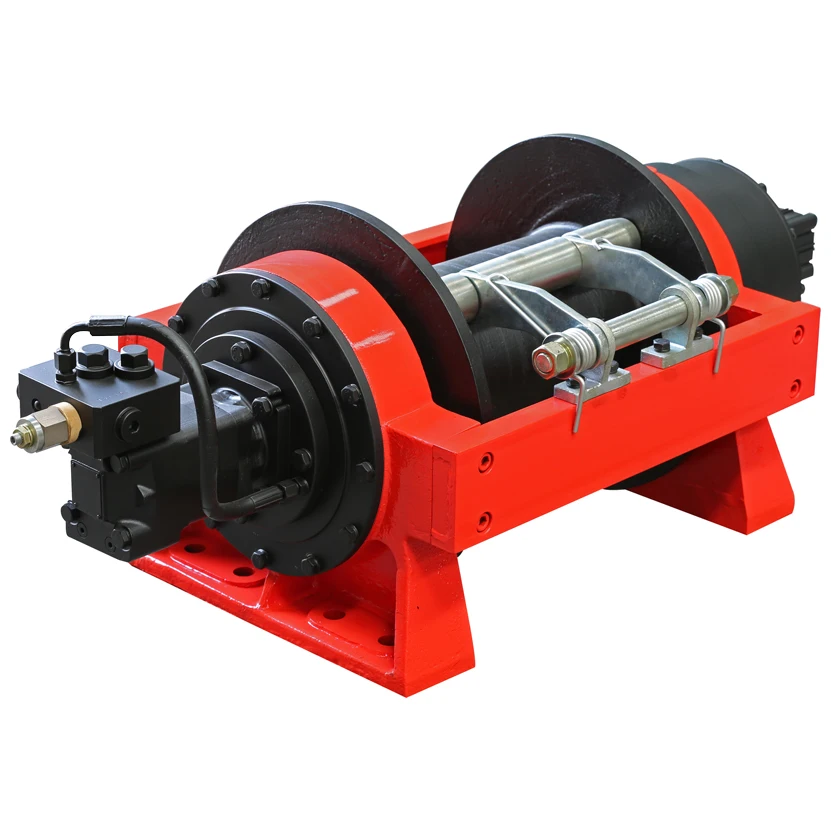

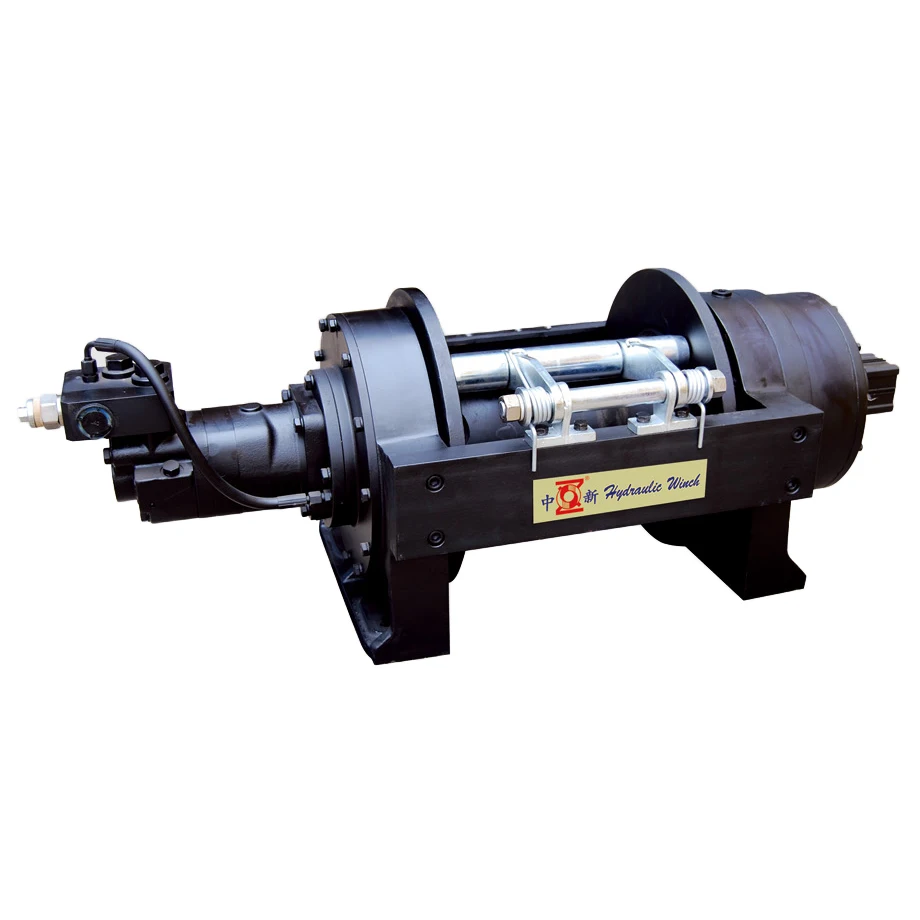

55000lbs rescue truck heavy duty truck winch for hydraulic pulling winch
Product Description
» Brief Introduction
The hydraulic winch is converted into mechanical energy by the hydraulic energy obtained by the hydraulic motor through the hydraulic system,and it is decelerated by the planetary reducer to increase the torsion,which produces a great torque on the drum,and achieves the purpose of dragging heavy objects by winding the steel wire rope on the drum.

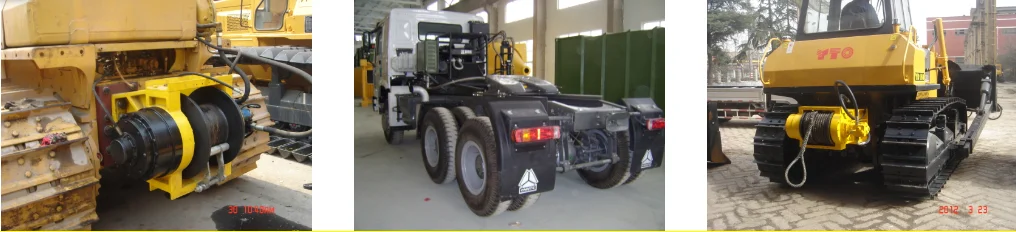

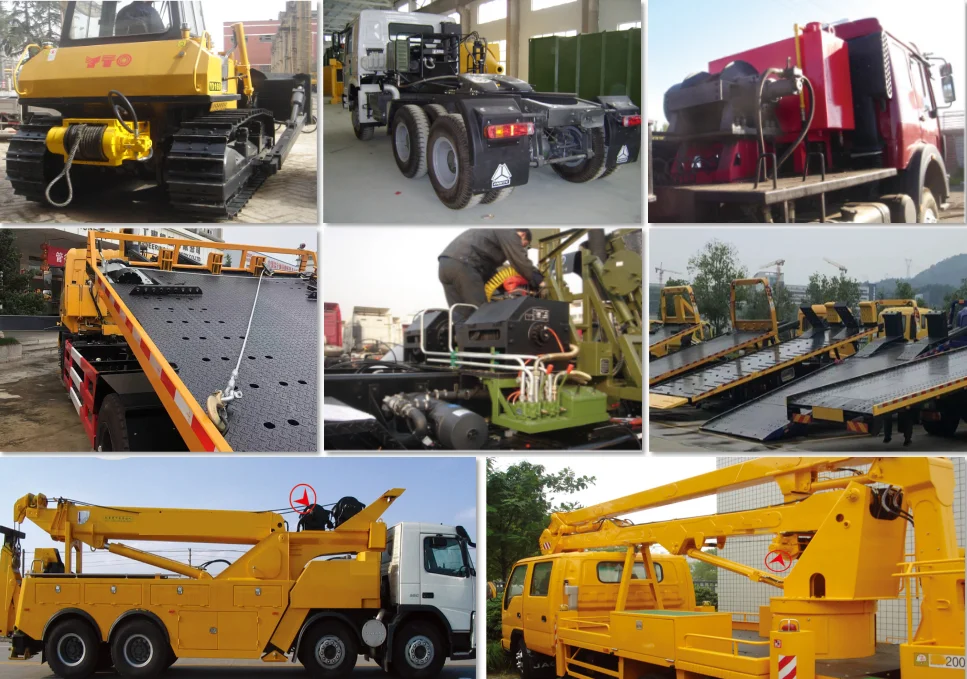

» Main Application
Hydraulic winch is a vehicle tool used in automobiles and special vehicles for self-rescue and self-discharge in off-road driving under difficult road conditions.
It can also be used for lifting and pulling heavy objests in construction site,such as engineering installation,oil field drilling,road clearing etc.
It is characterized by compact structure,small size,light weight,large pulling force,simple installation,flexible operation,convenient maintenance,and the hydraulic system of the car itself.

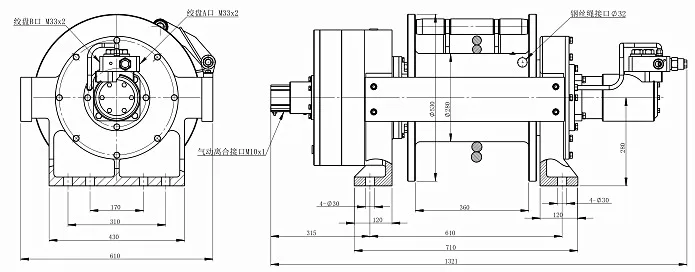

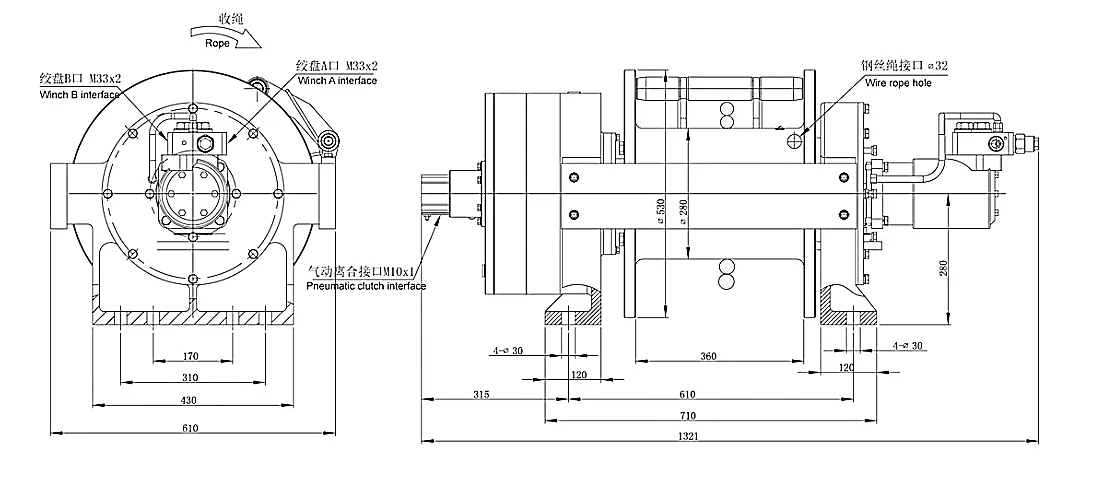

» Product structural drawing
»Performance parameters sheet
| Rated line pull (1st layer) | KN/Kgs/Lbs | 245/25000/55000 |
| Line speed(1st layer) | m/min | 5.5 |
| Response pressure of brake | Mpa/Bar | 2.5/25 |
| Oil pressure | Mpa/Bar | 18/180 |
| Oil flow | L/min | 120 |
| Drum diameterxBottom diameterxLengh(internal) | mm | 530x280x360 |
| Drum capacity | m | 55 |
| Suggested high-intensity wire rope diameter | mm | ∅30 |
| Net weight | Kg | 560 |
» Features of Hydraulic Winch
1. Full-float typed planetary gear reducer makes the operation more stable, the structure more reasonable.
2. Adopt multidisc-typed friction normally-closed arrester makes the brake torque larger, safer and more reliable.
3. The product is featured by its small size, compact construction and high transmission efficiency.
4. Adopt motor with long use life.
5. The installation bracket can be manufactured according to the customer's requirement.
6. According to the requirement of customers, manufacture the balance valve and shuffle valve.
Packaging & Shipping

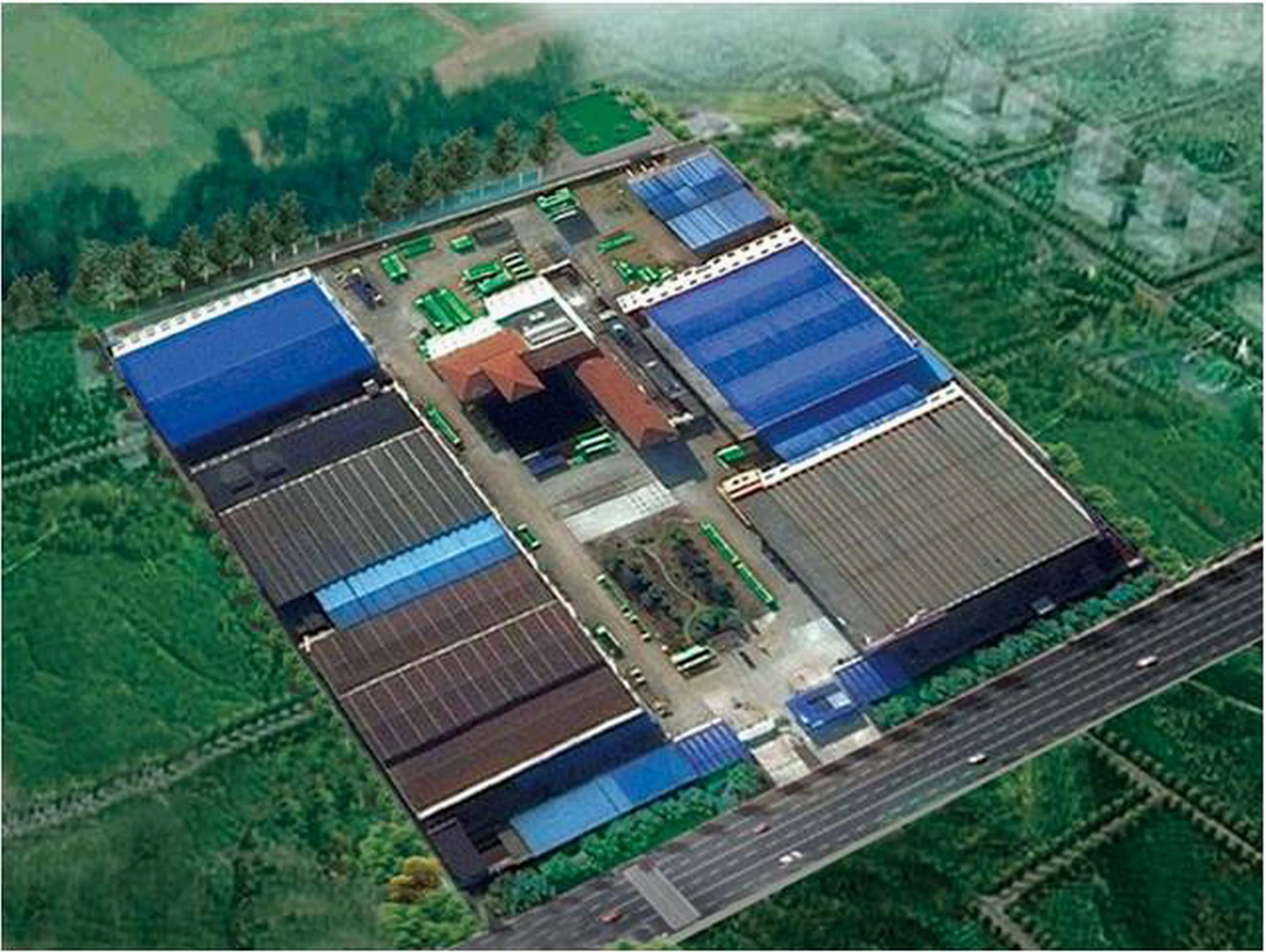

Company Information
FAQ
Q: Are you trading company or manufacturer ?
A: Yes.We are factory, established in 1998.
Q: What is your terms of payment?
A: T/T 30% in advance, 70% see the B/L copy.
100% Irrevocable LC
Q: What is your terms of delivery?
A: FOB, CFR ,CIF, DDU or as your requirement
Q:Do you supply customized service?
A: Sure! We are manufacturer, and we have our own engineer group. They can work out customized design according to your special requirement.
Q: How about your delivery time?
A: Generally it will take 3 to 25 days after receiving your advance payment. The specific delivery time depends on your purchase quantity.
Q: How about package?
A: Wooden box conforming to export standards.
Q:What information should I provide to you before you could recommend a suitable winch and quote for me?
A: 1. Intended application of the winch (including working condition)
2. Line pull (KN / kgs / lbs)
3. Line speed (m/min)
4. Drum capacity/rope length (m)
5. Rope diameter(if have)
6. Oil pressure and oil flow (if have)
7. Other special requirements
Reach out to us for a complimentary consultation.
