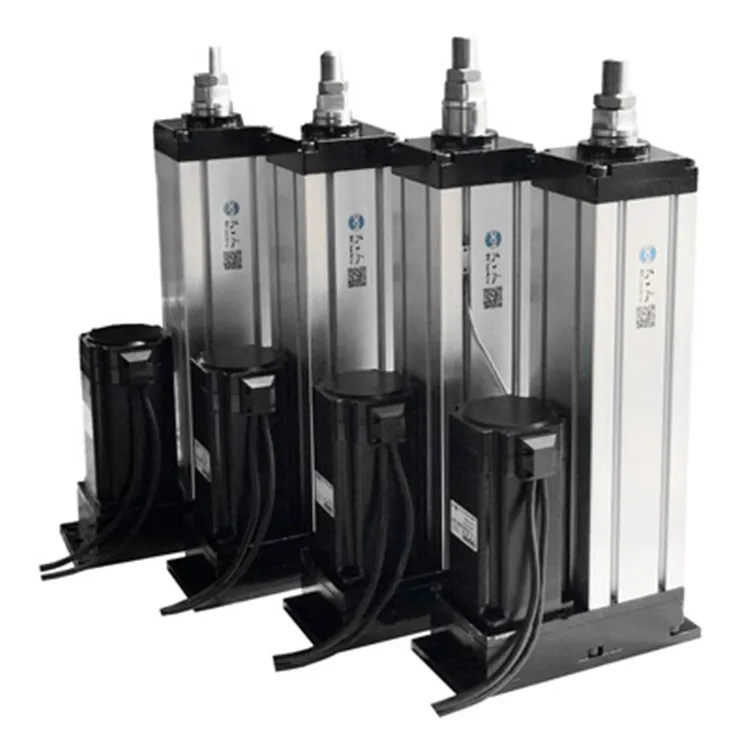

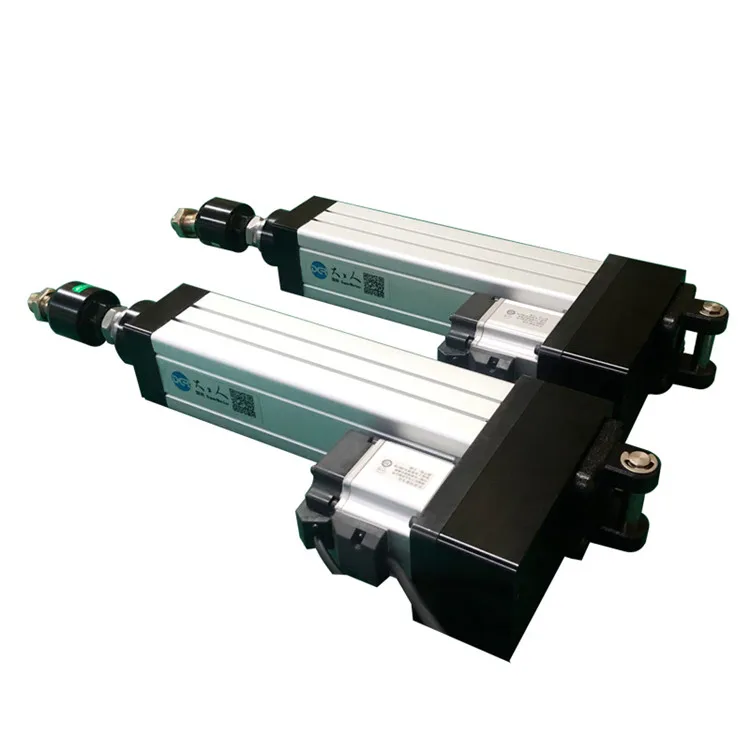

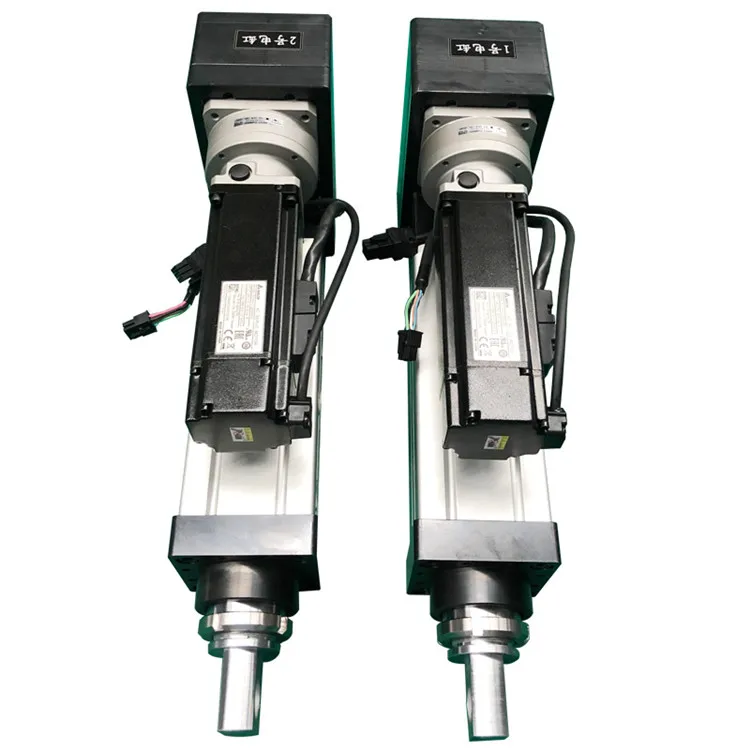

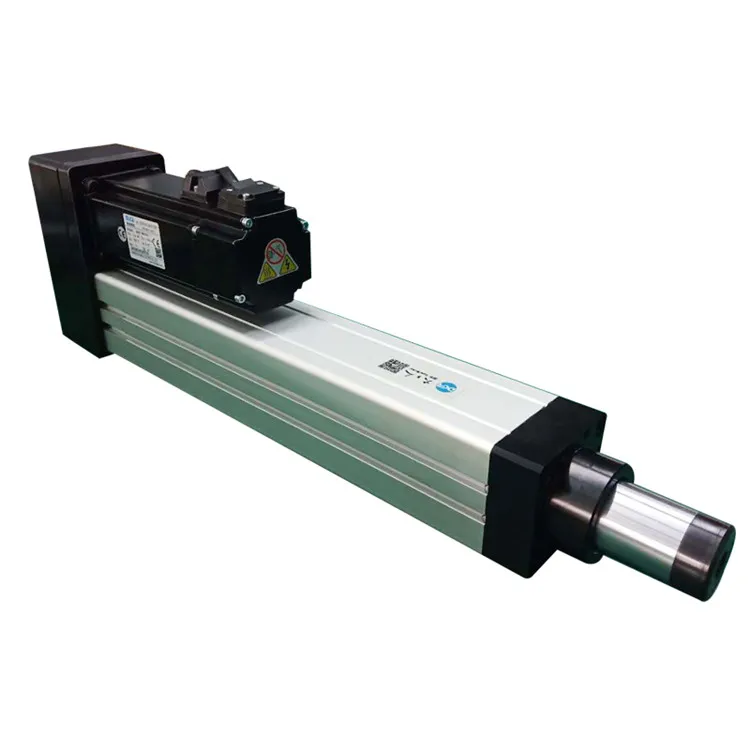

DC 12/24Volt Small Electric Lift Cylinder for Massage Chairs And Medical Equipment
- Category: >>>
- Supplier: Shenzhen Superworker Technology Co. Ltd.
Share on (1600409753952):
Product Overview
Description
Product Description
DGREC52 DC 12/24Volt Small Electric Lift Cylinder for Massage Chairs And Medical Equipment
DGREC52 DC 12/24Volt Small Electric Lift Cylinder for Massage Chairs And Medical Equipment Technical Data
Product Series | DGREC52 | ||
Screw lead / pitch (mm) | 5 | 10 | |
Max. Power of Motor (W) | 400 | ||
Max. Rated Thrust | 200(N)=44.9(lb) | ||
Max. Speed | 250(mm/s)=9.8(inch/s) | ||
Max. stroke | 800(mm)=31.5(inch) | ||
Rated Driving Torque (N.m) | 0.2 | 0.4 | |
Max. Ball Screw Diameter (mm) | 12 | 12 | |
Rated Dynamic Load of Ball Screw (kgf) | 661 | 642 | |
Axial Backlash (mm) | 0.02-0.05 | 0.02-0.06 | |
Lead Error Every 300mm (mm) | 0.023 | 0.023 | |
Repeatability Accuracy (mm) | 0.02 | 0.02 | |
Note:
1.If you need to know the ball screw life, please contact customer service for detailed consultation;
2.The max. thrust and the max. speed can not be reached at the same time. Different motor and gear boxes will be used.
3.If the Max. stroke exceeds 500mm, it is recommended to add a guiding device;
Note: If above parameters can not meet your needs, please contact us, we can customize according to your requirements with NO MOQ.
DGREC52 Trapezoidal lead screw Lifting electric cylinders Motor Selection List
Product Series | DGREC52 | ||||
Flange Size of Optional Servo Motor Series (mm) | 40 / 60 | ||||
Flange Size of Optional Stepper Motor Series (mm) | 42/ 57 | ||||
Flange Size of Optional Gear Box Series (mm) | 60 | ||||
Note:
1.DGREC52 electric lift cylinder servo motor brands include Panasonic, Mitsubishi, Yaskawa, Delta, Syntron, Motec, and Tuoda;
2. DGREC52 electric lift cylinder stepper motor brands include Japan Samsr, Leadshine, MOONS', etc;
3. The DGREC52 electric lift cylinder gear box brands include Nidec-Shimpo, Taiwan KunTai, Taiwan Li Ming, and Shanghai Jinmo;
4. The motor brands and gear box brands can be designated by the customers, please kindly contact our sales for more detailed information;
Recommend Products
Products Show
Features of DGREC52 Trapezoidal lead screw Lifting electric cylinders | ||
Accuracy | High precision, repeatability up to 0.02mm. | |
Service life | Run over a distance of 100,000 km | |
Material Selection | 1.Aluminum alloy, Carbon Steel,Stainless Steel optional for cylinder body | |
2. Various surface treatment options (including: coating, azotizing, oxidation) | ||
3.Selected internationally-famous brands of motor, ball screws, bearings and gears | ||
Features | Rigid connection between the screw nut and the piston rod | |
Excellent Service | 1.DGR Electric cylinders can be fully customized for customer's particular application and requirements. | |
2. 1 year warranty and lifetime technical services | ||
Duty Cycle | The duty cycle is ensured to be greater than 50% or even 100% continuous operation. | |
Complete Testing | Professional inspection: including appearance, mechanical properties, stability, noise decibels, IP testing, etc. | |
Applications
DGREC52 Automated equipment electric cylinders
DGR Electric Cylinder
Entertainment

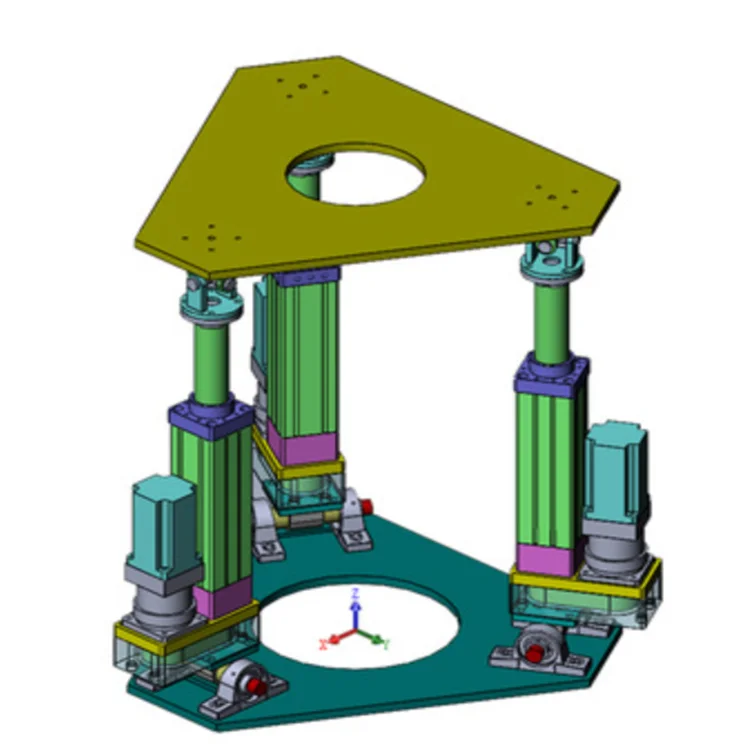

Six degrees of freedom motion platform widely used in a variety of simulation, entertainment equipment, robotic arms, dynamic seats in movie theaters.
VR Simulations
Multi-degree of freedom platforms can be applied to virtual reality motion seats, such as: VR gaming, racing simulator
Automobile industry
Electric cylinder servo press is widely used in: Automotive industry: Press-fitting of engine components (cylinder heads, liners, oil seals, etc.), press-fitting of steering gear assemblies (gears, pins, etc.), press-fitting of driveshaft assemblies, press-fitting of gearbox assemblies, brake disc assemblies Press-fitting, etc.;
3D Robotic Billboard
The motor controls the motion of each unit in the 3D robotic billboard, and constructs various static and dynamic patterns through matrix elevation changes to simulate three-dimensional topography, text patterns, wave motion, and the like. The 3D robotic billboard can also be combined with projection and digital image to realize the multimedia and digitization of the matrix, making it more ornamental and dynamic.
Automation Industry
The electric cylinders are widely used in the automation industry, such as automation production line, steel continuous casting, material handling, injection molding machine, valve control, precision machine tools, pharmaceutical machinery, precision machining, mechanical lifting platform, food industry, etc
Solar Tracking Systems
The solar tracking system maximizes the solar system's electricity production by moving the solar panels by electric cylinders to follow the sun throughout the day, which optimizes the angle at which your panels receive solar radiation. The electric cylinder includes: motor (DC brushless motor, stepper motor, servo motor Etc.), worm gears, push rod, sensor systems, etc.
Company Profile
Our Advantages
Certifications

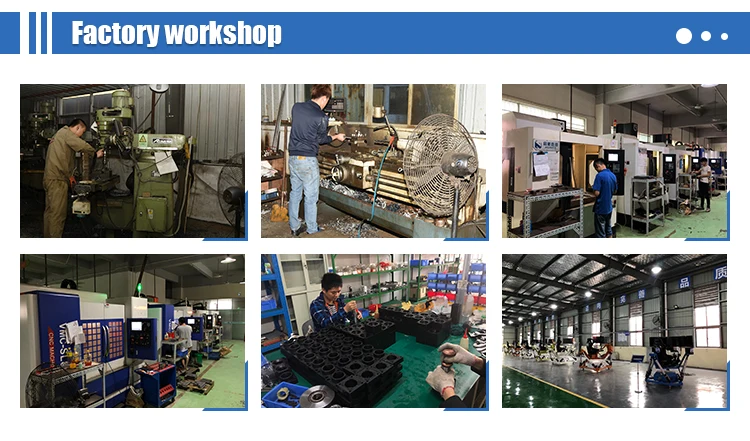

Our Factory
FAQ
Q1: What are your terms of packing?
A--Generally, we pack our goods in neutral white boxes and brown wooden cartons. If you have a legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2: What are your terms of payment?
A--T/T 70% as deposit, and 30% before shipping. We'll show you the photos of the products and packages before you pay the balance.
Q3: What are your terms of delivery?
A-- EXW, FOB, CFR, CIF.
Q4:How about your delivery time?
A--Generally, it Will take 10-25 days to produce the products, and 5 days by air, 25 days of the ship by sea.The specific delivery time depends on the items and the quantity of your order.
Q5: How is the warranty system?
A--1~5 years. (upon the deal)
Q6: Can you produce according to the samples?
A- Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q7: What is your sample policy?
A- We can suppy the sample, but the customers have to pay the sample cost and the courier cost.
Q8: Do you test all your goods before delivery?
A- Yes, we have a 100% test before delivery.
A--Generally, we pack our goods in neutral white boxes and brown wooden cartons. If you have a legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2: What are your terms of payment?
A--T/T 70% as deposit, and 30% before shipping. We'll show you the photos of the products and packages before you pay the balance.
Q3: What are your terms of delivery?
A-- EXW, FOB, CFR, CIF.
Q4:How about your delivery time?
A--Generally, it Will take 10-25 days to produce the products, and 5 days by air, 25 days of the ship by sea.The specific delivery time depends on the items and the quantity of your order.
Q5: How is the warranty system?
A--1~5 years. (upon the deal)
Q6: Can you produce according to the samples?
A- Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q7: What is your sample policy?
A- We can suppy the sample, but the customers have to pay the sample cost and the courier cost.
Q8: Do you test all your goods before delivery?
A- Yes, we have a 100% test before delivery.
Shipping&Payment
FAQ
Q1: What are your terms of packing?
A--Generally, we pack our goods in neutral white boxes and brown wooden cartons. If you have a legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2: What are your terms of payment?
A--T/T 70% as deposit, and 30% before shipping. We'll show you the photos of the products and packages before you pay the balance.
Q3: What are your terms of delivery?
A-- EXW, FOB, CFR, CIF.
Q4:How about your delivery time?
A--Generally, it Will take 10-25 days to produce the products, and 5 days by air, 25 days of the ship by sea.The specific delivery time depends on the items and the quantity of your order.
Q5: How is the warranty system?
A--1~5 years. (upon the deal)
Q6: Can you produce according to the samples?
A- Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q7: What is your sample policy?
A- We can suppy the sample, but the customers have to pay the sample cost and the courier cost.
Q8: Do you test all your goods before delivery?
A- Yes, we have a 100% test before delivery.
A--Generally, we pack our goods in neutral white boxes and brown wooden cartons. If you have a legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2: What are your terms of payment?
A--T/T 70% as deposit, and 30% before shipping. We'll show you the photos of the products and packages before you pay the balance.
Q3: What are your terms of delivery?
A-- EXW, FOB, CFR, CIF.
Q4:How about your delivery time?
A--Generally, it Will take 10-25 days to produce the products, and 5 days by air, 25 days of the ship by sea.The specific delivery time depends on the items and the quantity of your order.
Q5: How is the warranty system?
A--1~5 years. (upon the deal)
Q6: Can you produce according to the samples?
A- Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q7: What is your sample policy?
A- We can suppy the sample, but the customers have to pay the sample cost and the courier cost.
Q8: Do you test all your goods before delivery?
A- Yes, we have a 100% test before delivery.
