1389 high quality 12 pin SPI interface monochrome LCD display module for home appliance
- Category: >>>
- Supplier: Shenzhen Xinmeizhi Industrail Co. Ltd.
Share on (1600409846259):
Product Overview
Description
Product Discription

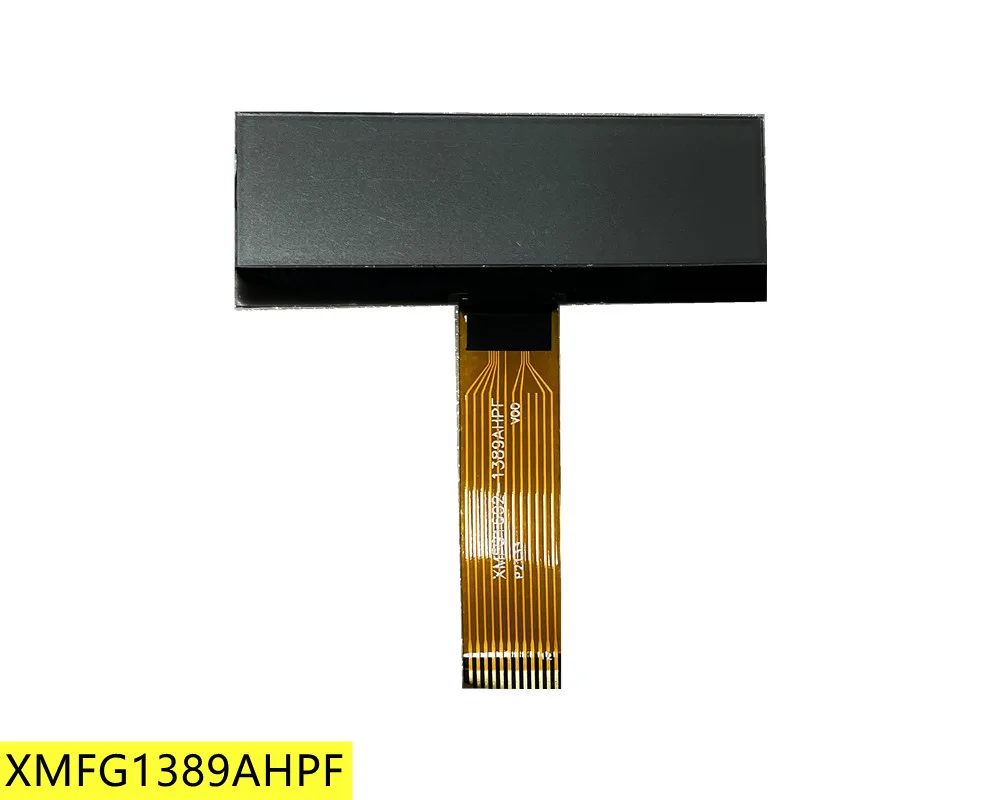

1389 high quality 12 pin SPI interface
monochrome lcd display module for home appliance
size | 1389 | part No. | XMFG1389AHPF |
display type | LCD | viewing direction | 12 o'clock |
controller IC | SPLC792 | display mode | Transflective /Positive |
overall size | 68.6*25.0*2.8mm | active area | 56.2*11.5mm |
interface type | SPI | pin No. | 12 |
pin pitch | 0.5 Pitch | input voltage | 3.3 V |
backlight type and color | LED backlight / White | backlight | 1LED Vled=3.0V Iled=20 mA |
life span | 50,000 hours | operating temperature | -20℃~70℃ |
storating temperature | -30℃~80℃ | certification | ISO:9001:2008 |
compliant | RoHS |
