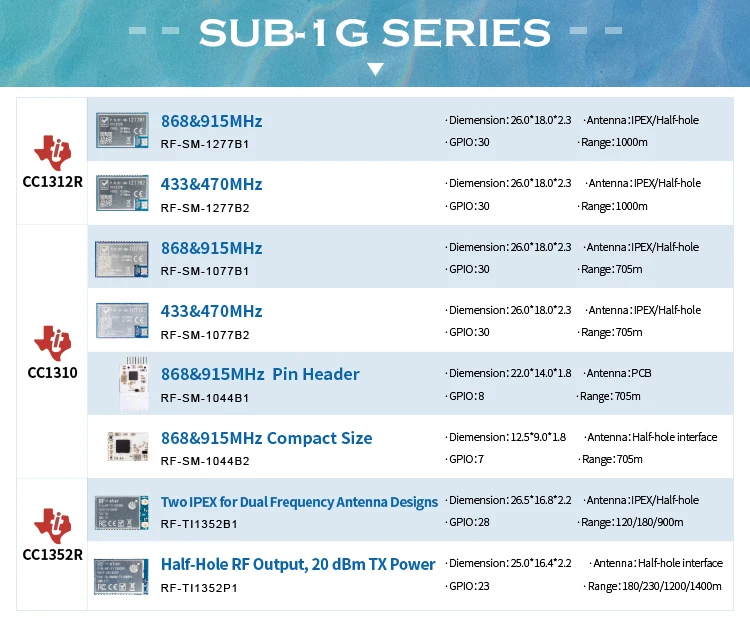

Sub-1G moudle
Product Description
Industry Automation RF-SM-1077B2 433mhz CC1310 rf transceiver module wireless
RF-SM-1077B2 Sub-1 GHz module is based on TI CC1310, which combines a flexible, very low-power RF transceiver with a powerful 48 MHz ARM® Cortex®-M3 microcontroller supporting multiple physical layers and RF standards and a dedicated radio controller Cortex®-M0 handling RF protocol commands that are stored in ROM or RAM. RF-SM-1077B2 integrates a 24.0 MHz crystal, a balun, a band pass filter, an antenna matching and an IPEX antenna matching which make the module low cost, low power consumption and long wireless communication in Sub-1 GHz.
RF-SM-1077B2 is flashed transparent transmission firmware with AT commands by default. The default values are as follows: 115200 baud rate, 8 data bit, no parity check bit,1 stop bit, 433 MHz operating frequency, 15 dBm TX power. When the module starts to work, the serial port will print “Application Start\\r\\n”, and start transparent transmission mode by default, serial port will transmit all the data except “+++”, please refer to the AT command in detail.
Parameters of RF-SM-1077B2
Chipset | CC1310F128RGZ |
Supply Power Voltage | 1.8 V ~ 3.8 V, recommended to 3.3 V |
Frequency | 433 MHz, 470 MHz |
Maximum Transmit Power | +15.0 dBm |
Receiving Sensitivity | -124.0 dBm (@long range mode) -110.0 dBm (@50 kpbs) |
GPIO | 30 |
Crystal | 24 MHz, 32.768 kHz |
RAM | 20 KB |
Flash | 128 KB |
Package | SMT Packaging |
Frequency Error | ±20 kHz |
Dimension | 26.0 mm x 18.0 mm x (2.3 ± 0.1) mm |
Type of Antenna | IPEX interface |
Operating Temperature | -40 ℃ ~ +85 ℃ |
Storage Temperature | -40 ℃ ~ +125 ℃ |
Pin Functions of RF-SM-1077B2
Pin | Name | Chip Pin | Pin Type | Description |
1 | P01 | DIO_1 | Digital I/O | GPIO, Sensor Controller |
2 | P02 | DIO_2 | Digital I/O | RX (GPIO, Sensor Controller) |
3 | P03 | DIO_3 | Digital I/O | TX (GPIO, Sensor Controller) |
4 | P04 | DIO_4 | Digital I/O | GPIO, Sensor Controller |
5 | P05 | DIO_5 | Digital I/O | GPIO, Sensor Controller |
6 | P06 | DIO_6 | Digital I/O | GPIO, Sensor Controller |
7 | P07 | DIO_7 | Digital I/O | GPIO, Sensor Controller |
8 | P08 | DIO_8 | Digital I/O | GPIO |
9 | P09 | DIO_9 | Digital I/O | GPIO |
10 | P10 | DIO_10 | Digital I/O | GPIO |
11 | P11 | DIO_11 | Digital I/O | GPIO |
12 | P12 | DIO_12 | Digital I/O | GPIO |
13 | P13 | DIO_13 | Digital I/O | GPIO |
14 | P14 | DIO_14 | Digital I/O | GPIO |
15 | P15 | DIO_15 | Digital I/O | GPIO |
16 | TMS | JTAG_TMSC | - | JTAG TMS |
17 | TCK | JTAG_TCKC | - | JTAG TCK |
18 | P16 | DIO_16 | Digital I/O | JTAG TDO |
19 | P17 | DIO_17 | Digital I/O | JTAG TDI |
20 | P18 | DIO_18 | Digital I/O | GPIO |
21 | P19 | DIO_19 | Digital I/O | GPIO |
22 | P20 | DIO_20 | Digital I/O | GPIO |
23 | P21 | DIO_21 | Digital I/O | GPIO |
24 | P22 | DIO_22 | Digital I/O | GPIO |
25 | RESET | RESET_N | - | Reset, active low. No internal pullup. |
26 | P23/ADC0 | DIO_23 | Digital or analog I/O | GPIO, Sensor Controller, analog |
27 | P24/ADC1 | DIO_24 | Digital or analog I/O | GPIO, Sensor Controller, analog |
28 | P25 | DIO_25 | Digital or analog I/O | GPIO, Sensor Controller, analog |
29 | P26 | DIO_26 | Digital or analog I/O | GPIO, Sensor Controller, analog |
30 | P27 | DIO_27 | Digital or analog I/O | GPIO, Sensor Controller, analog |
31 | P28 | DIO_28 | Digital or analog I/O | GPIO, Sensor Controller, analog |
32 | P29 | DIO_29 | Digital or analog I/O | GPIO, Sensor Controller, analog |
33 | P30 | DIO_30 | Digital or analog I/O | GPIO, Sensor Controller, analog |
34 | VCC | VCC | - | 1.8 V ~ 3.6 V, recommended to 3.3 V |
35 | ANT | - | - | External antenna pin |
36 | GND | GND | - | ground |
