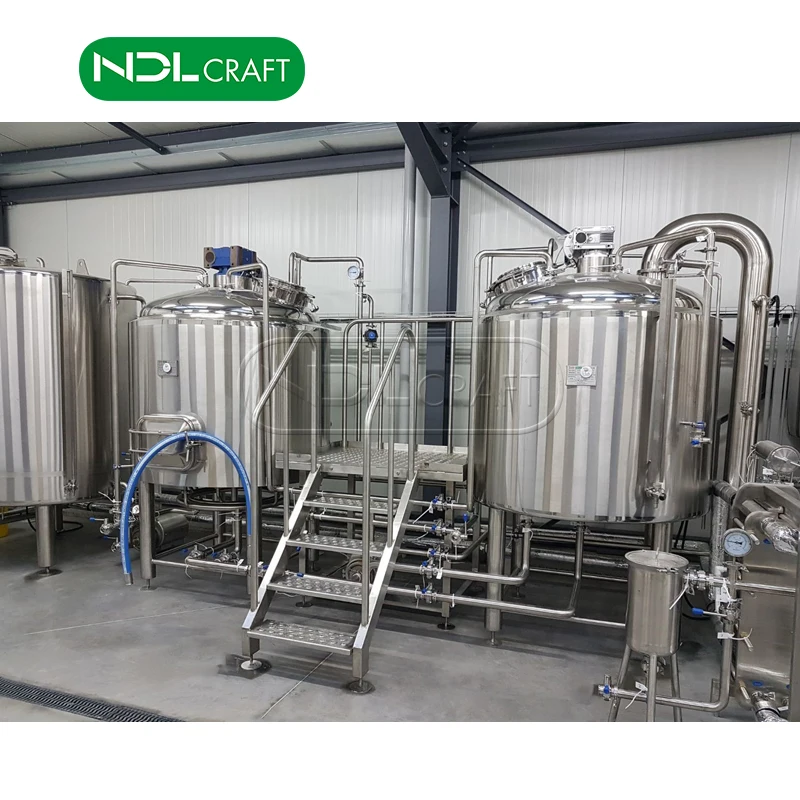

500L Beer Brewhouse System German Style Beer Brewing Equipment 2 Vessels

How to Brew Beer 1000L/Week?

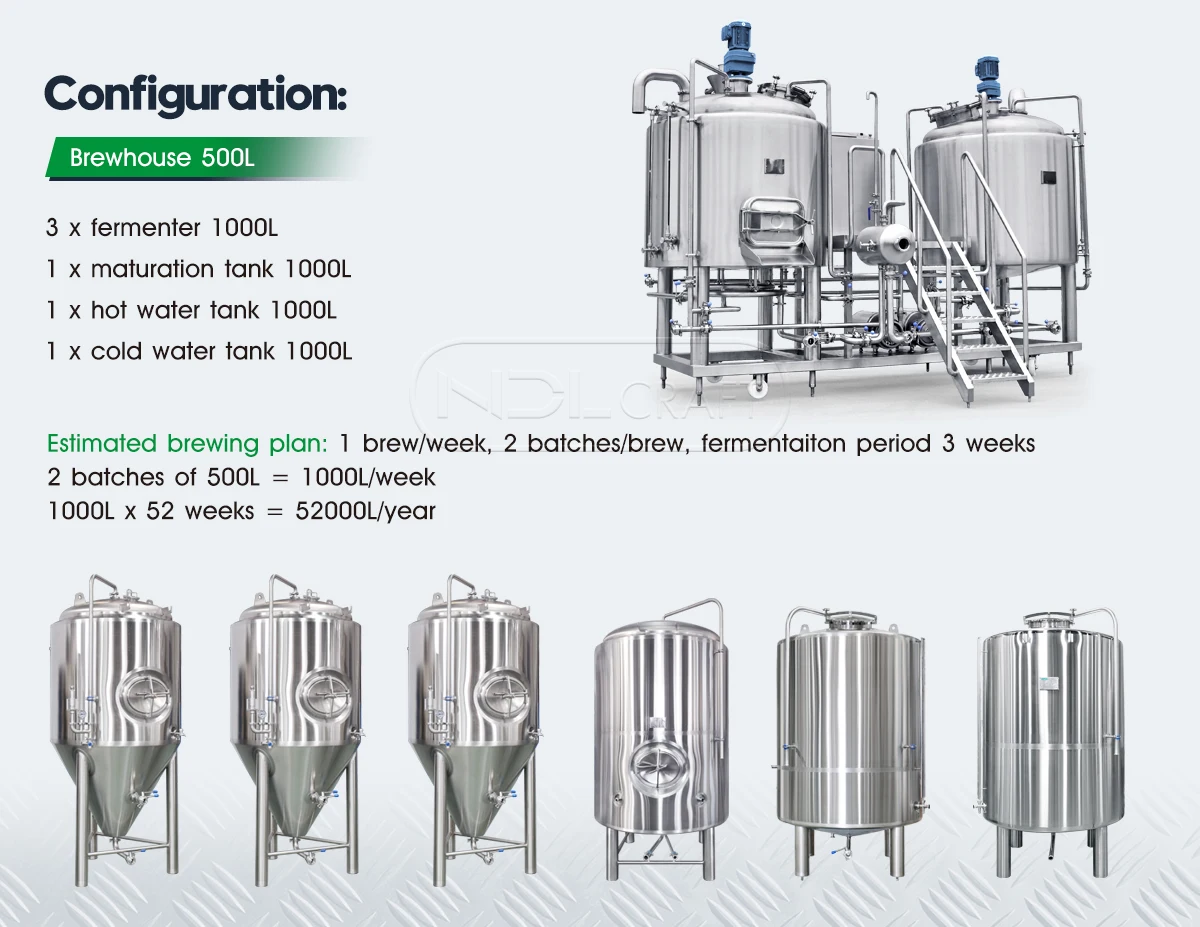

Below you will see one example of a brewery configuration in combination with 500L brewhouse

Configuration:
Brewhouse 500L
3 x fermenter 1000L
1 x maturation tank 1000L
1 x hot water tank 1000L
1 x cold water tank 1000L

 Estimated brewing plan: 1 brew/week, 2 batches/brew, fermentaiton period 3 weeks
2 batches of 500 L = 1000 L/week
1000 L x 52 weeks = 52,000 L/year

Setting up your own brewery can be a very demanding venture and a big investment, so it is important to set some goals and to have a very clear idea of what you want before you purchase your equipment.

What's Your Brewing Plan?

To offer you the suitable equipment with favorable price, would you please help confirming the following information:

1. What Is The Size Of This Project?

2. What Is Your Budget?

3. What Is Your Timeline?

4. Brewhouse Needed?

5. Fermentation Tanks Needed?

6. Brite Tanks Needed?

Product Details:

NDL - 500 is the best solution for starting your own brewery business. The brewery allows you to produce 500 liters of wort per brew.

The brewery consists of a brewing part, fermentation department, and auxiliary equipment.

1. Brewing part with 2-vessel brewhouse

Combination Mash Lauter Tuns are the first combination vessel in these smaller brewhouses line ups. This vessel should be sized to favor the Lauter operation, and have the mechanics for mixing mash and graining out.

Next inline is the combination of the Kettle and Whirlpool tanks. This combination vessel is designed and sized for being primarily a kettle, but is equipped with a tangential fitting.

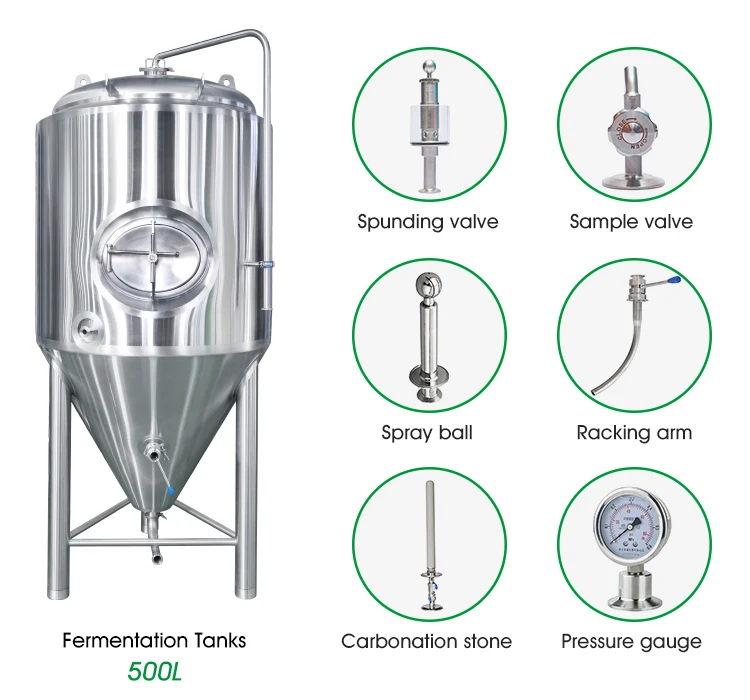

2. Fermentation department

Built with AISI 304 stainless steel
5-year limited manufacturer's warranty
Dished head and conical bottom
Insulated with Polyurethane foam
Double-acting air vent valve (below 100HL)
Pressure and anti-vacuum valve (100HL and above)
CIP with spray ball and blow-off arms
Temp, sensor, sample valve, and butterfly valves
Shadowless manway
2" bottom drain outlet
6" hop port
Rotating racking arm

3. Auxiliary equipment

NDL Craft, founded in 2011, is a brewing equipment manufacturer and brewing technology engineering company that provides many kinds of customized tanks and turnkey projects throughout the world. The company attaches great importance to the research and development of core technology. On the basis of maintaining the manufacturing cost of China, the company can design according to CE PED standards and ASME design codes, and institutes production and quality control methods according to both European and American quality standards.

We have established an ERP management system and have passed quality audits for internationally recognized certifications.

ISO 9001: Certification for the Quality Management System

ISO 14001: Certification for the Environmental Management System

ISO 18001: Certification for the Occupational Healthland Safety Management System

CE: Certification of Compliance

PED(TUV): Certification of Compliance, Certification of Conformity

SGS: Gold Plus Supplier Assessment Certificate

1. Pre-sales:
– Layout: Sent us your building floor plan, or the sketch, or tell us the size (length, width, height), we will offer you an equipment footprint according to your requirement.
– Technical Drawings : We will offer Technical Drawings of each tank based on the equipment layout .
– 3D effective sketch: We will 3D effective sketch to make sure ensure you have a more intuitive experience.

2. After-sale
– Installation by trained work team of the company NDL Craft;
– Regulation and launching the brewery at the client company;
– First brews of beer;
– Recipes and brew technologies for 4 different varieties of beer;
– Staff training;
– Warranty service: 5 years.
