Hot Sale SAGA double output High Frequency Generator for bending hot press machine wood Heat Treatment

Share on (1600409899088):


Price:$8,000.00

Quantity:


Product Overview

Description



Product Description




Radio Frequency RF Generator For Timber Drying 30KW
1.High frequency generator (Radio frequency generator, high frequency machines) is a plant which can turn normal electric power to
high frequency (electro-magnetic) power, suitable for fast curing of glue or water.
2.High frequency generator is suitable for curved plywood forming or wood panel jointing or hard wood drying, it is a core plant
for high frequency machinery.


Specification


                                           SPECIFICATIONS FOR HIGH FREQUENCY GENERATOR
HF15-SA
HF20-SA
HF30-SA
HF50-SA
POWER
380V 50HZ 3PHASE 4WIRE OR CUSTOMIZED
INPUT POWER
20KVA
30KVA
40KVA
75KVA
OUTPUT POWER
15KW
20KW
30KW
50KW
OSCILLIATION
6.78Mhz
PROTECTION
Overload protection,wind pressure detection ,filament protection,cooling fan protection
TUNNING MODE
Tunable vacuum capacitor
COOLING MODE
Forced wind cooling
OUTPUT
2 output
OVER SIZE
950x1000x1800mm
950x1000x1850mm
1000x1100x1850mm
1100x1200x1950mm
WEIGHT
500kg
600kg
650kg
980kg

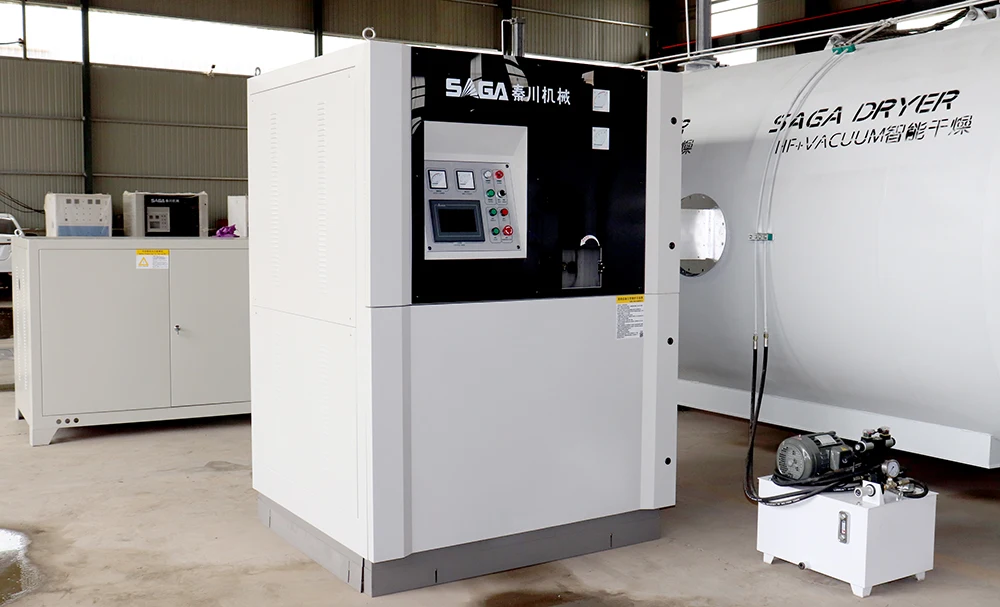

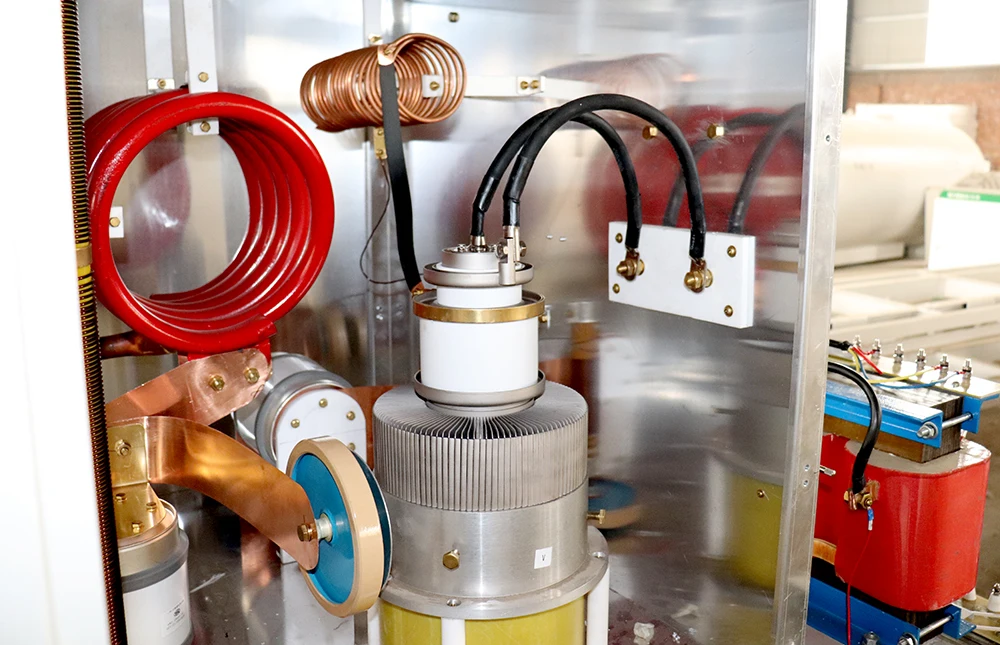

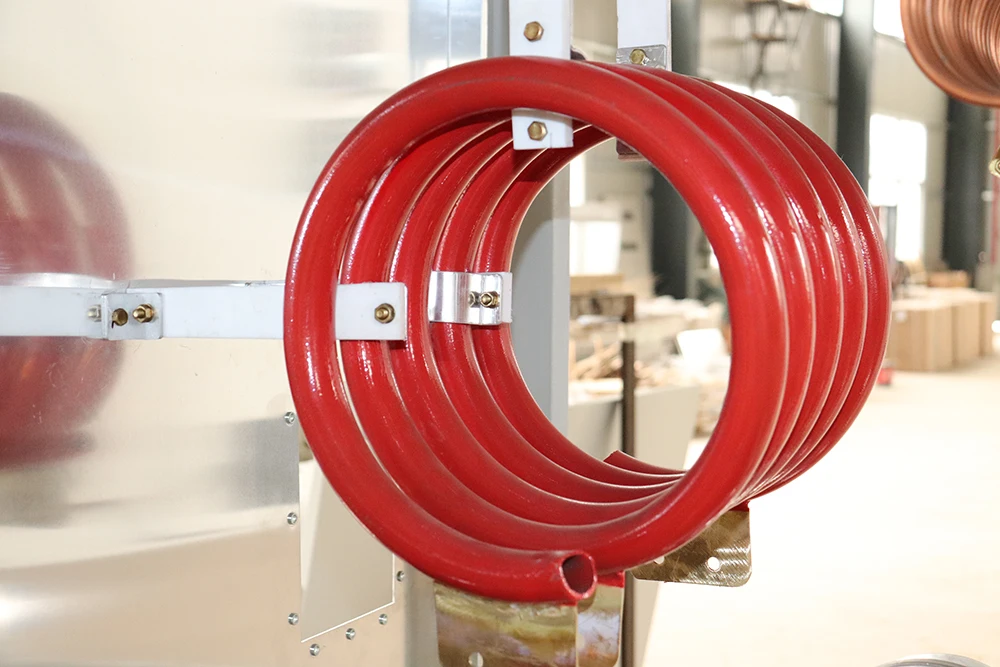

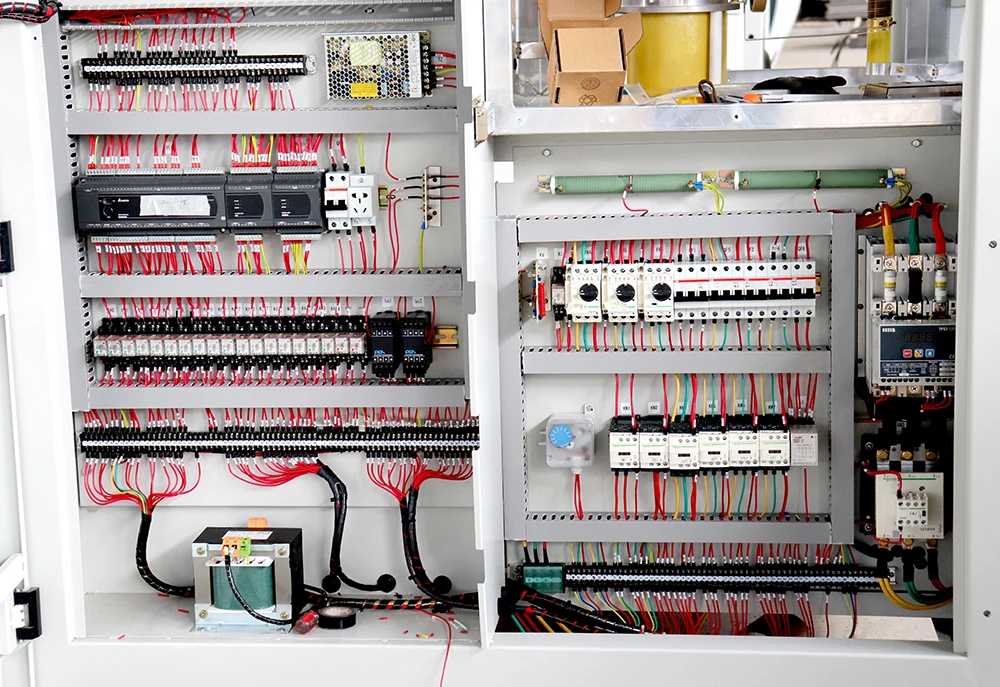

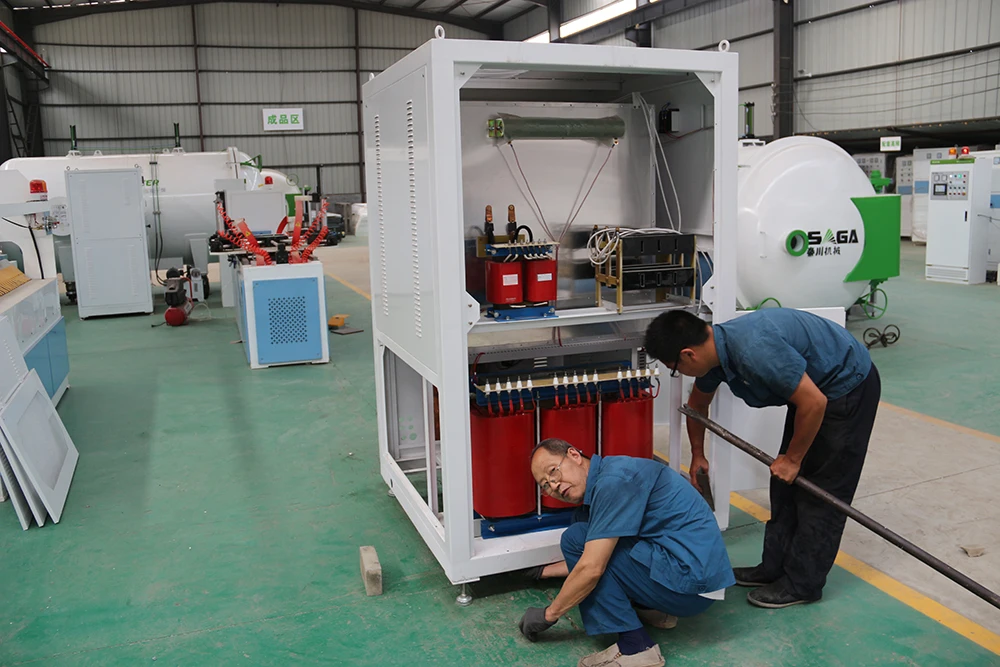

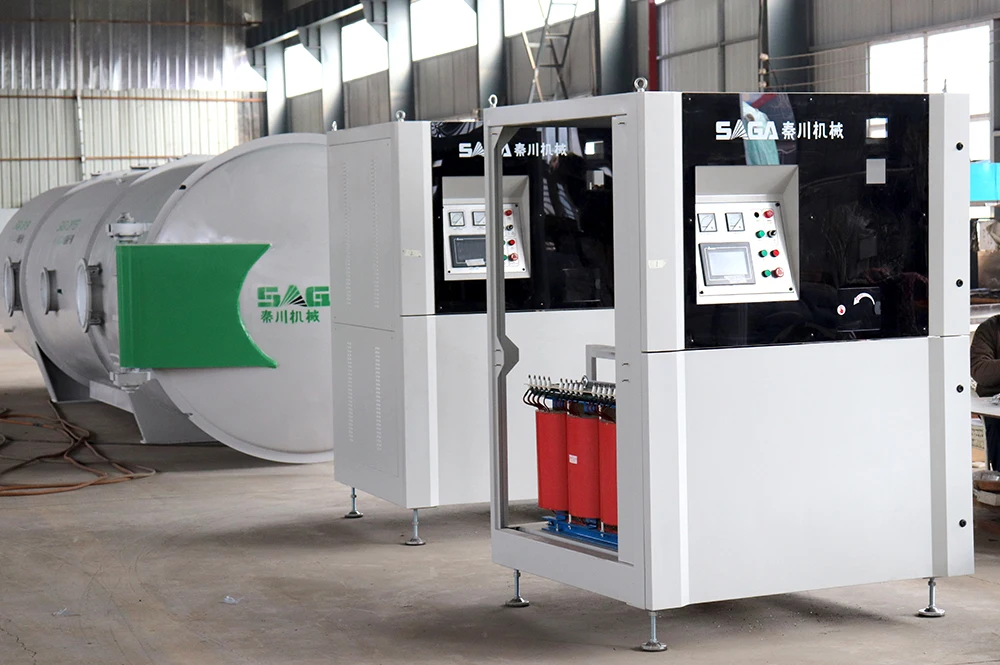

Details Images

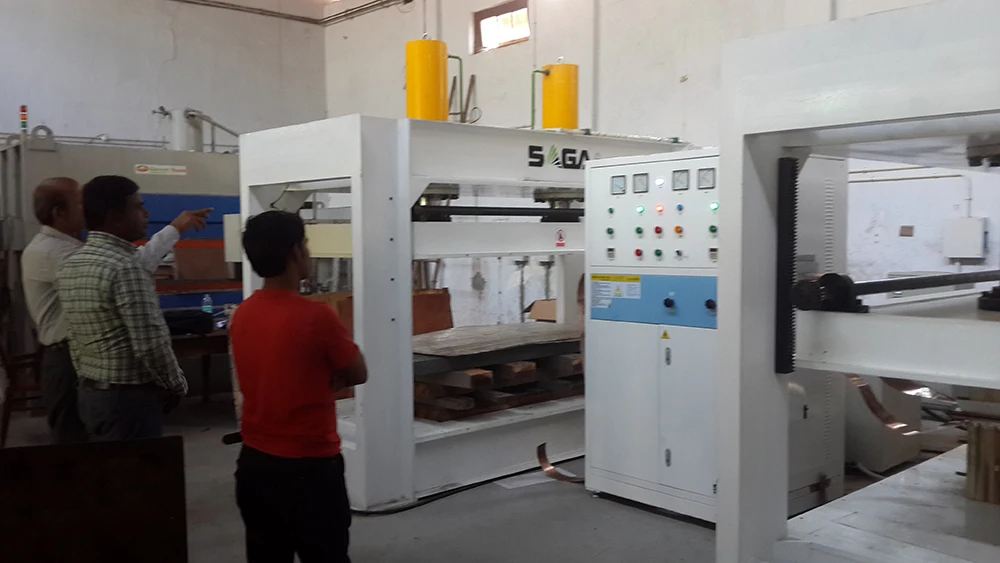

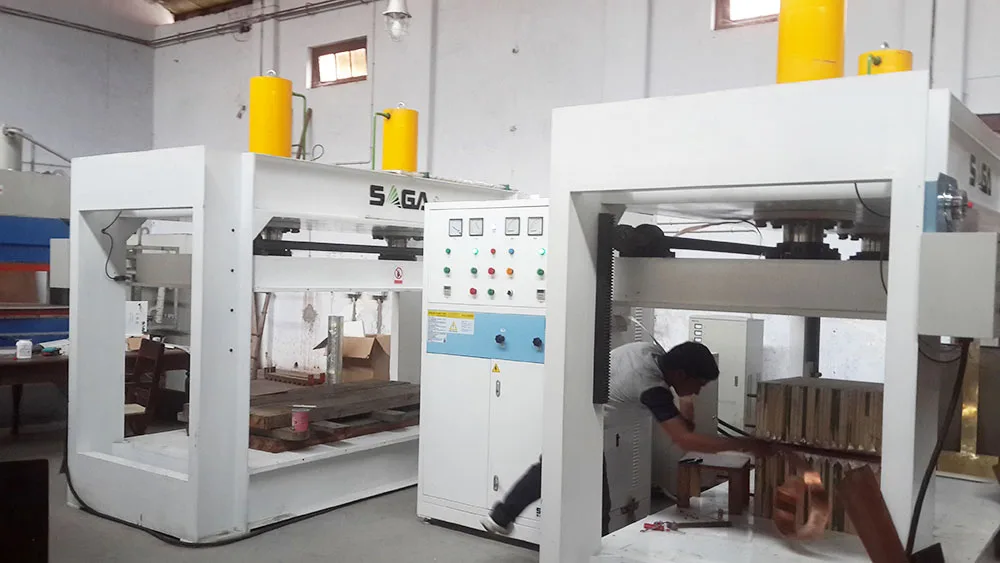

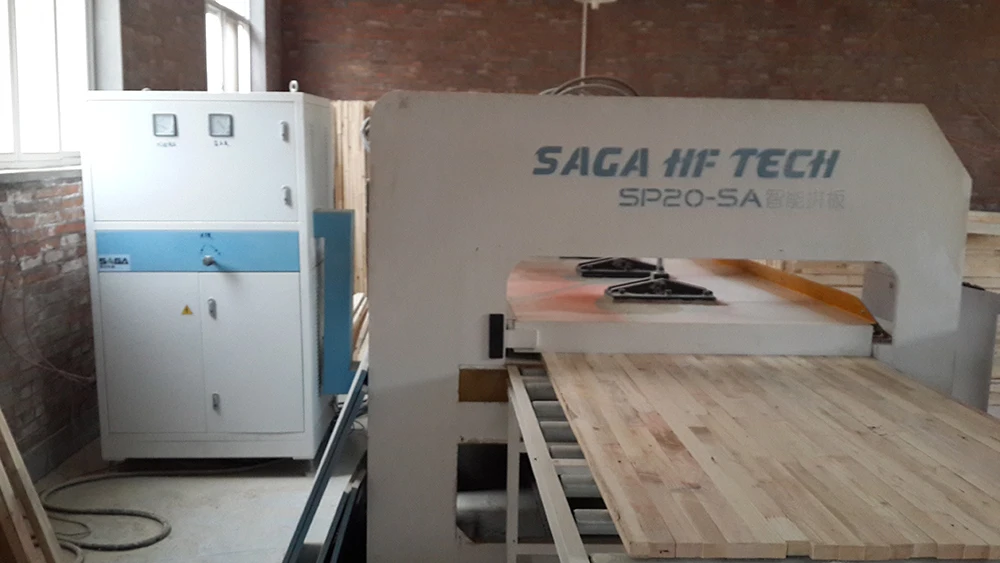

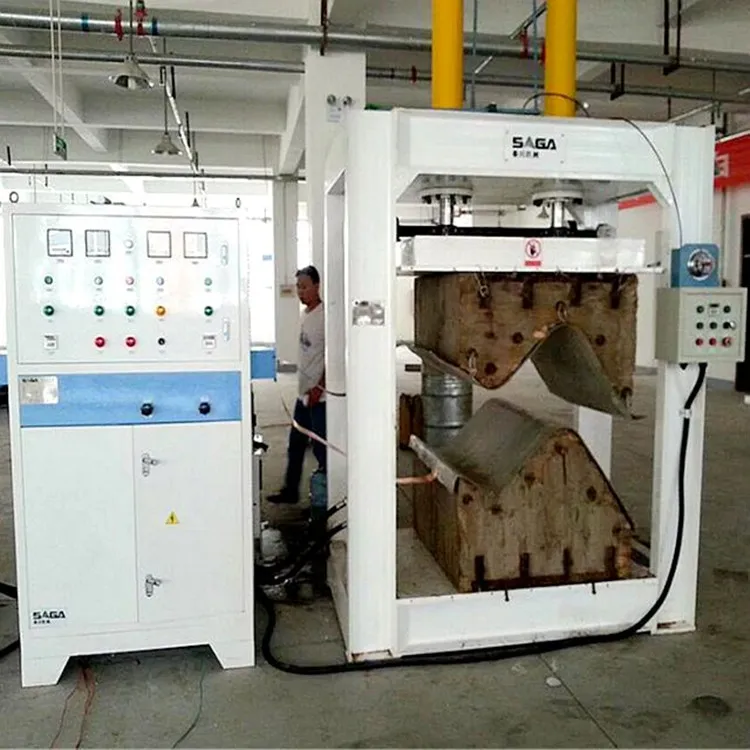

Customer Photos

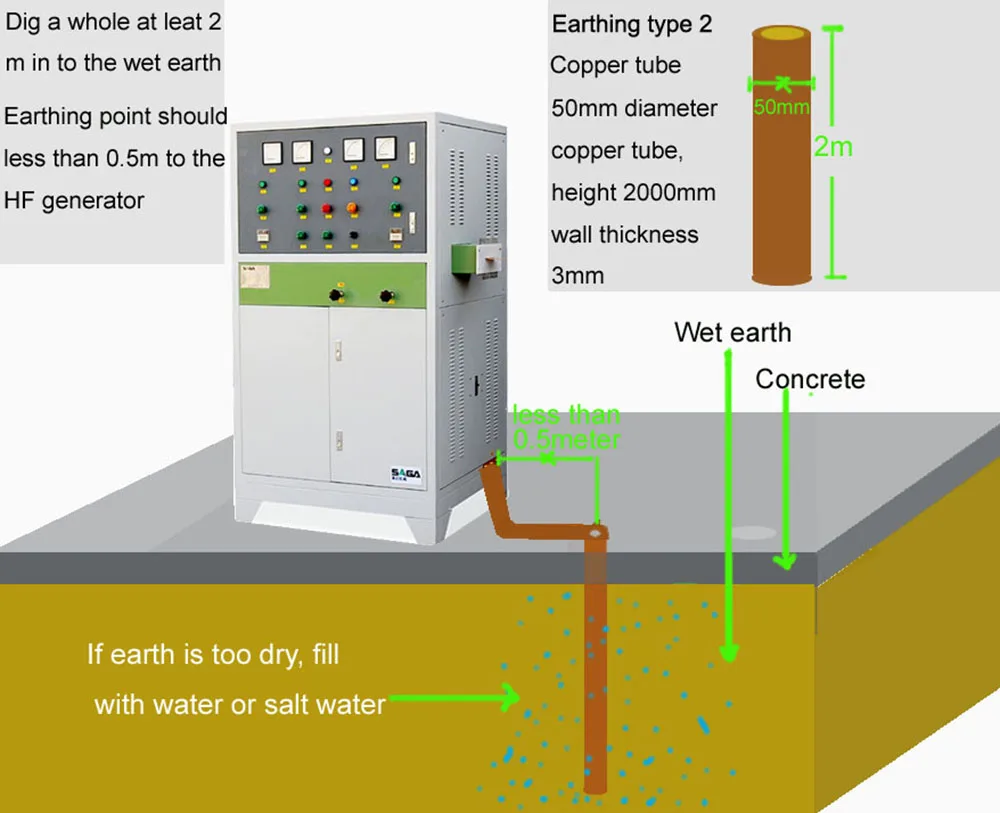

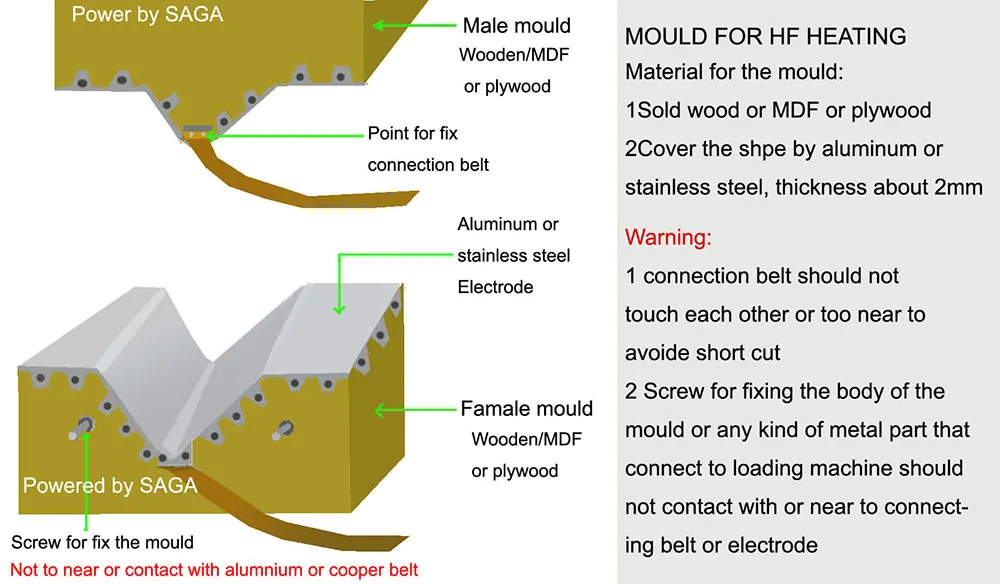

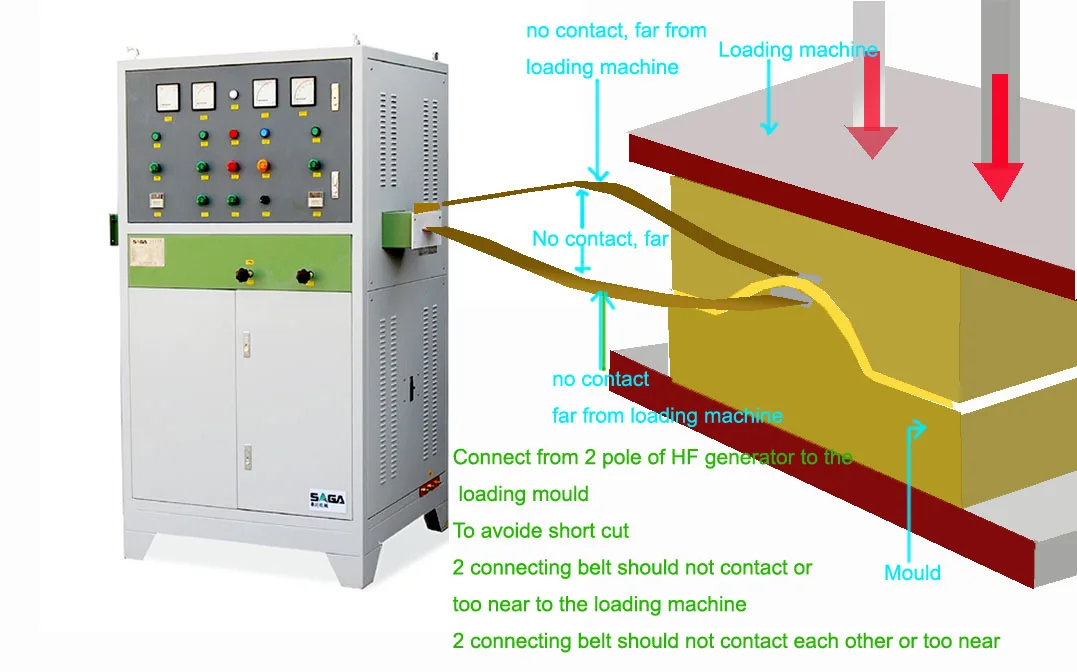

Installation Instructions




Packing & Delivery




Seaworthy packing,covered with plastic and foam, plastic pellet, wooden case


Company Profile






Saga Machinery Co., Ltd. is specialized in developing, designing and producing high frequency dielectric heating machinery. We are the main high frequency machinery manufacturer in China. There is a professional know-how engineering group and a service group. Various needs from our customers can be met. We have a strict quality control system to ensure the quality of every product.
Saga aims to provide you with humanistic high frequency technology and service to help you improve the quality of your products and increase your production efficiency to the maximum.

Not only focus on the quality but also on the safety and convenience of users. Our humanistic design assures you of comfortably using the machine and experiencing the perfect industrial design.

The spare parts we use for the products are mostly European standard or brand or at least national top brand plus various protection systems both for human and machine. You can use it and feel at ease. The user-centered cautious designs ensure you that we can use it more freely.

Saga got its customer and user internationally like: South east Asia, Middle east, Africa, Eastern Europe and South America, we got service senter at India and Turkey, we welcome specaillized wood working company abroad for cooperation.

Our productions cover with high frequency dielectric heating generator, high frequency vacuum wood dryer, high frequency curved plywood press, high frequency edge gluer, high frequency gluing press, high frequency wooden frame assembly machine, etc.




FAQ


1. who are we?
We are based in Hebei, China, start from 2010,sell to Eastern Asia(10.00%),Mid East(10.00%),Domestic Market(10.00%),Africa(10.00%),Southeast Asia(10.00%),South Asia(10.00%),Southern Europe(10.00%),Northern Europe(10.00%),Oceania(5.00%),Eastern Europe(5.00%),South America(5.00%),North America(5.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
high frequency generator,high frequency vacuum wood dryer,high frequency edge gluer,high frequency plywood curved press,high frequency frame assembly machine

4. why should you buy from us not from other suppliers?
We are first one which can make full-automatic control system for drying wood.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
