Product Overview
Description
Products Description

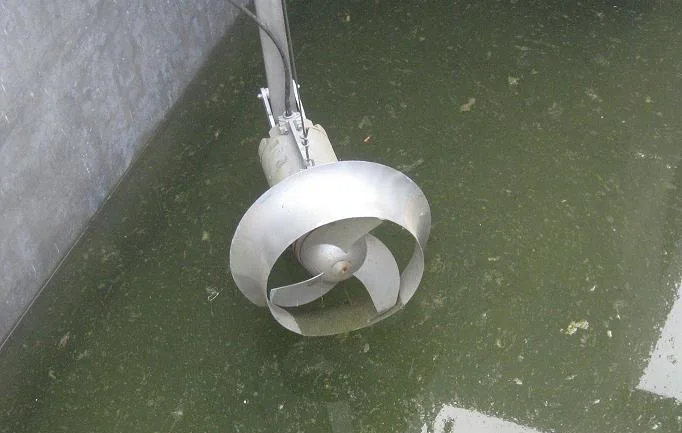

The submersible mixers are mainly used for the purposes of mixing, agitating and making ring flows in the process of municipal and industrial sewage treatment and can also be used as the maintenance equipment for the landscape water environment,through agitation, they can achieve the function of creating water flow,improving the quality of the waterbody,increasing the oxygen content in water and effectively preventing the sedimentation of the suspended substances.
Product Paramenters
Model | Motor Power (kw) | Rated current (A) | RPM of vane or propeller (r/min) | Diameter of vane or propeller (mm) | Weight (kg) |
QJB0.37/-220/3-980/S | 0.37 | 4 | 980 | 220 | 25/50 |
QJB0.85/8-260/3-740/S | 0.85 | 3.2 | 740 | 260 | 55/65 |
QJB1.5/6-260/3-980/S | 1.5 | 4 | 980 | 260 | 55/65 |
QJB2.2/8-320/3-740/S | 2.2 | 5.9 | 740 | 320 | 88/93 |
QJB4/6-320/3-960/S | 4 | 10.3 | 960 | 320 | 88/93 |
QJB1.5/8-400/3-740/S | 1.5 | 5.2 | 740 | 400 | 74/82 |
QJB2.5/8-400/3-740/S | 2.5 | 7 | 740 | 400 | 74/82 |
QJB3/8-400/3-740/S | 3 | 8.6 | 740 | 400 | 74/82 |
QJB4/6-400/3-980/S | 4 | 10.3 | 980 | 400 | 74/82 |
QJB4/12-620/3-480/S | 4 | 14 | 480 | 620 | 190/206 |
QJB5/12-620/3-480/S | 5 | 18.2 | 480 | 620 | 196/212 |
QJB7.5/12-620/3-480/S | 7.5 | 28 | 480 | 620 | 240/256 |
QJB10/12-620/3-480/S | 10 | 32 | 480 | 620 | 250/266 |
Application
1、In order to ensure the normal operation of the submersible mixer,please make correct selection of the operating environment and the operating modes.
2、The highest temperature of the media shall not exceed 40°C.
3、l The scope of the PH value of the media:5-9.
4、l The density of the media shall not exceed 1150kg/m3.
5、l The depth of submersion shall not exceed 10m.
2、The highest temperature of the media shall not exceed 40°C.
3、l The scope of the PH value of the media:5-9.
4、l The density of the media shall not exceed 1150kg/m3.
5、l The depth of submersion shall not exceed 10m.
