Charging pile 1000V multifunction one channel dc energy meter with CE certificate
- Category: Electrical Instruments >>>
- Supplier: Jiangsu Acrel Electrical Manufacturing Co. Ltd.
Share on (1600409965340):
Product Overview
Description

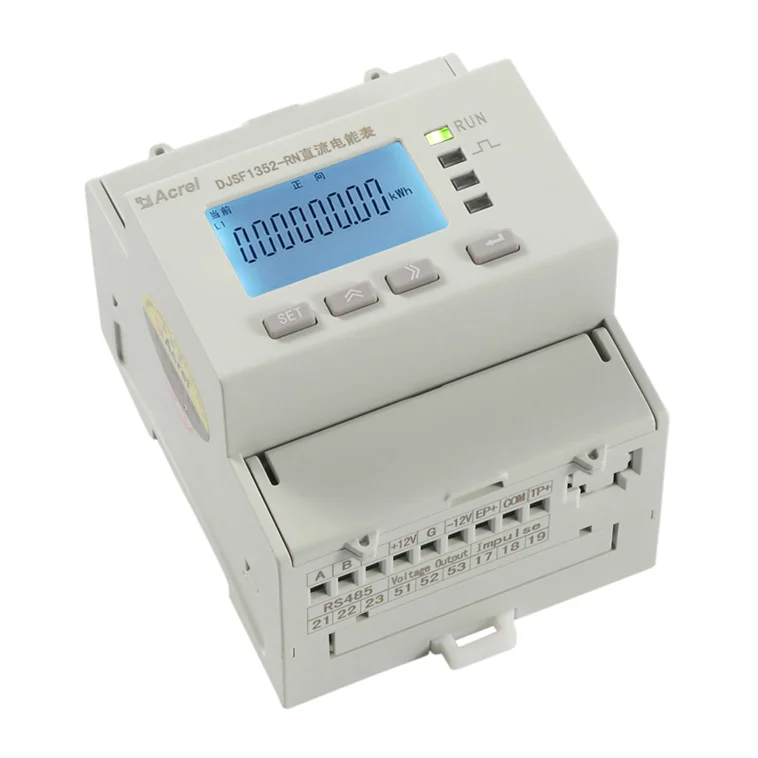

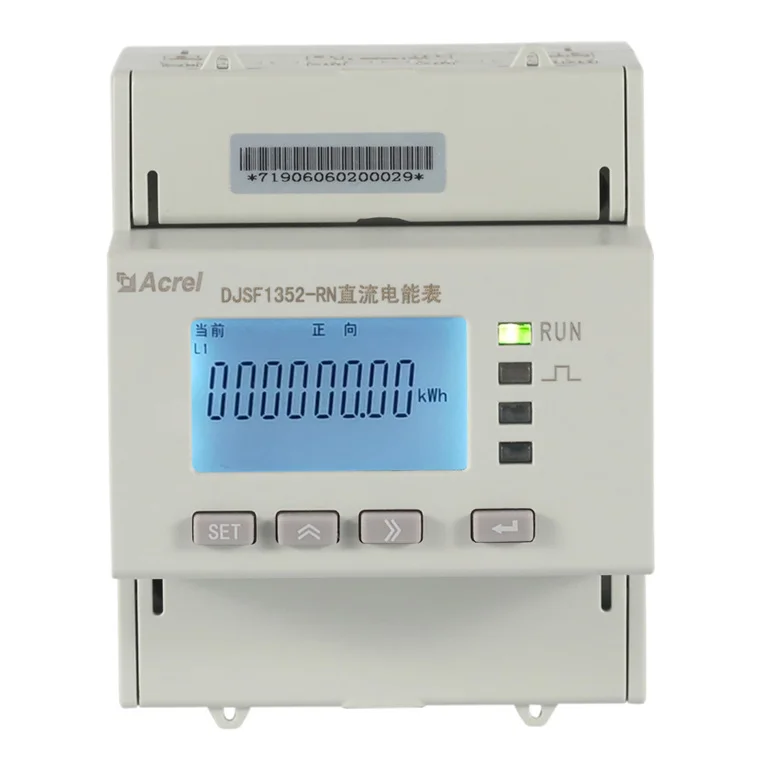

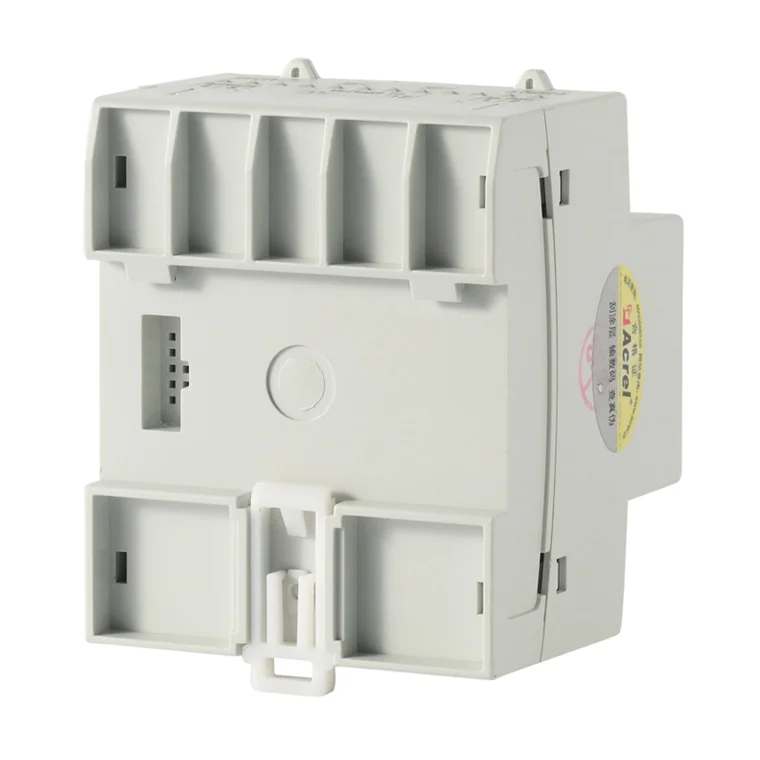

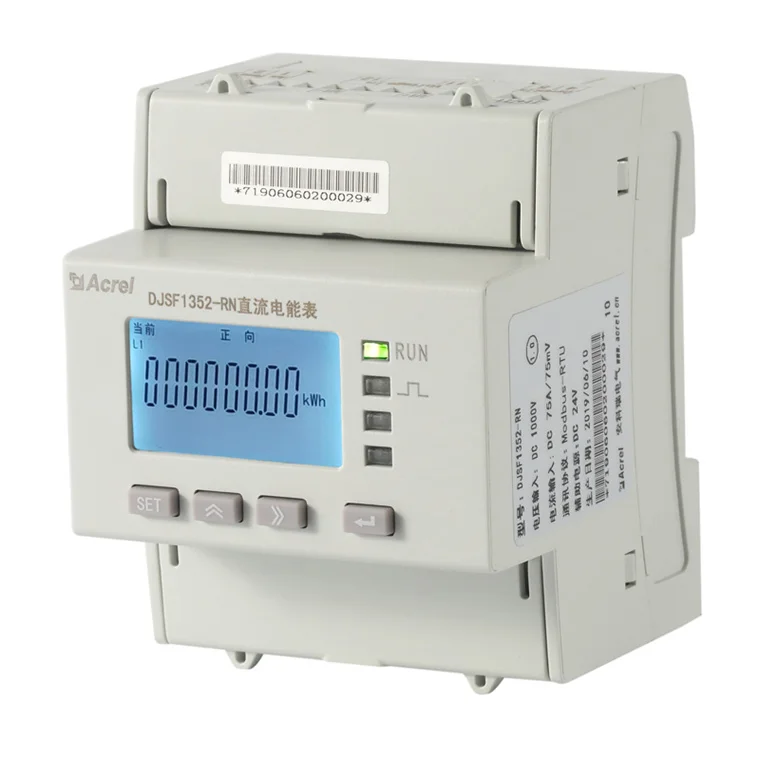

Charging pile 1000V multifunction one channel dc energy meter with CE certificate
DJSF1352-RN Charging pile 1000V multifunction one channel dc energy meter with CE certificate with double DC input channels, designed for telecommunications base stations, DC charging piles, solar photovoltaic and other applications, this series of meters can measure the voltage, current, power and forward and reverse energy and so on in the DC system.The actual use of the site, you can measure the total power, but also measure the energy within a specified period of time. The test results can be used for local display, but also with industrial control equipment,
computers to form a measurement and control system.
computers to form a measurement and control system.
Function
Accuracy
Class 1.0
Frequency
/
Power Supply(Self supply)
AC/DC 85-265V Or DC 24V (±10%）Or DC48V(±10%）
Pulse Output
Class 1.0
Frequency
/
Power Supply(Self supply)
AC/DC 85-265V Or DC 24V (±10%）Or DC48V(±10%）
Pulse Output
/
Input Consumption
Voltage:≤0.2VA Current：≤0.1VA<10VA
Voltage:≤0.2VA Current：≤0.1VA<10VA
Dimension
72*71*87.8mm
Installation
Standard Din 35mm rail mounted
Clock
/
Switch Relay
DC 30V/3A AC 220V/3A
Product Description
item | value |
Place of Origin | Jiangsu, China |
Brand Name | ACREL |
Model Number | DJSF1352-RN |
Display Type | Digital Only |
Phase | Three Phase |
Measuring Energy Range | 0-9999kwh |
Accuracy Class | CLASS 1 |
Output Voltage | Max 1000V |
Operating Temperature | -25~60℃ |
Dimensions | 72*87.5*71mm |
Measuring Voltage Range | 0~1000V |
Display | LCD Digital Display |
Communication | 2 channels RS485 Port MODBUS-RTU Protocol |
Application | Ev Charging |
Installation | DIN Rail 35mm |
Power Supply | 85~265V AC |
Measure parameters | Electrical Parameter Measurement |
optional function | 2DI/2DO |
function | SOE records |
accuracy | 1 class |
Company Profile
Acrel Energy Efficiency Management System includes various cloud platforms such as substation operation and maintenance, safety power management, environmental protection power supervision and prepaid management, and many kinds of monitoring and management systems such as intelligent transformer and distribution, power quality, building energy consumption, industrial energy, leakage fire alarm, fire power, fire door, emergency lighting and evacuation instructions, charging pile charge, data center power unit and environment variables, intelligent lighting and IT distribution insulation.
Acrel has set up branches and offices in major cities in China. Local sales and technical support teams are deployed to quickly respond to customers’ and provide users with high-quality product experience.By the end of 2018, Acrel have had 5 trademarks, 18 invention patents, 70 utility model patents, 93 appearance patents and 147 computer software copyrights, and participated in the formulation of national or industrial standards.Acrel has maintained a steady growth since its listing in 2012. With the concept of "innovation, efficiency, unity and integrity", the company will adhere to steady operation and continuous innovation to provide more high-quality solutions, products and services for the end users.
Exhibition
Shanghai Electric Power Exhibition
Indonesia Exhibition
Vietnam Exhibition
Certifications
Packing & Delivery
MINIMUM PACKAGE | Package dimensions(1 PC) 170*150*130mm | Net Weight(1 PC) 0.165KG | |||||
WHOLE BOX PACKAGE | Package dimensions(36 PCS) 540*480*280mm | Package Weight(36 PCS) 8.2KG | |||||
PRODUCT HS CODE | 9028309000 | ||||||
