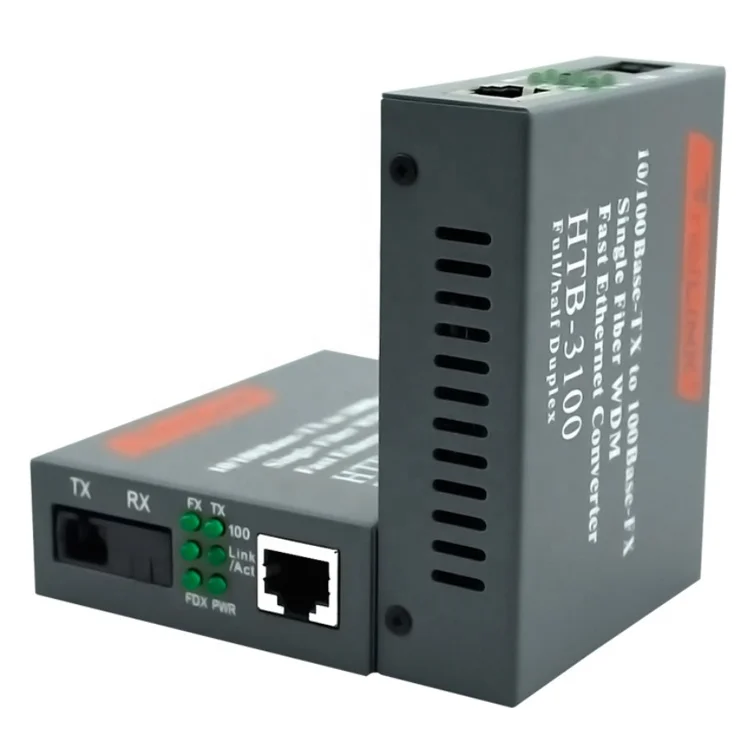

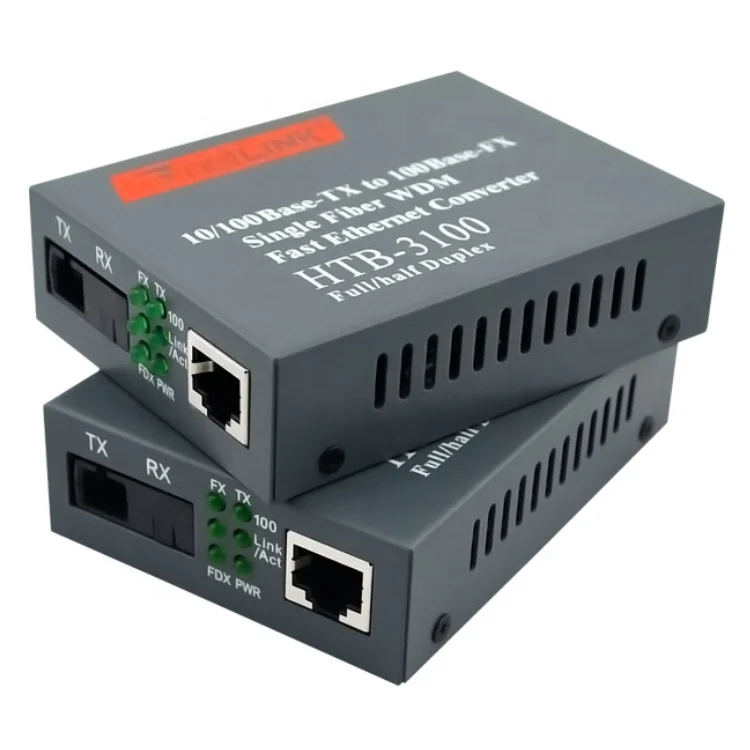

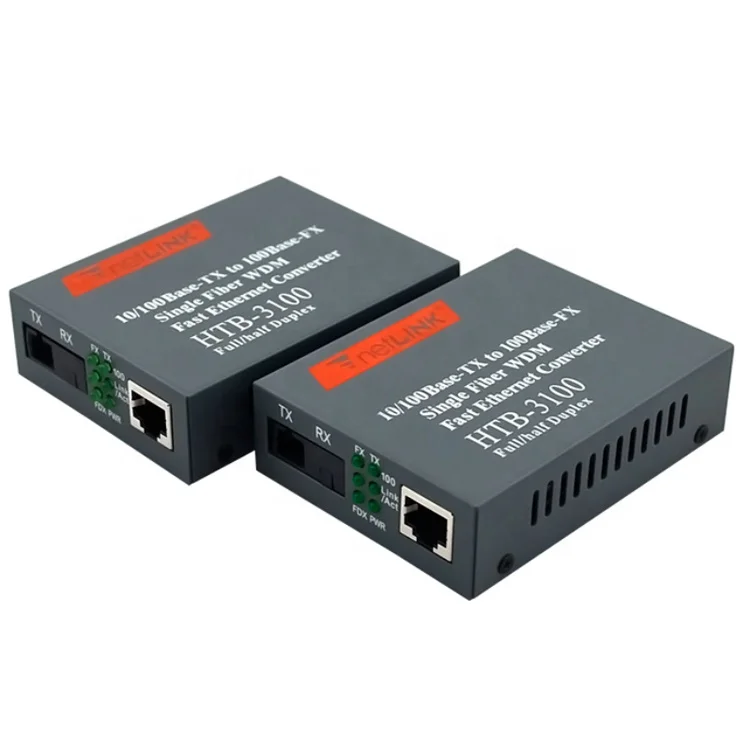

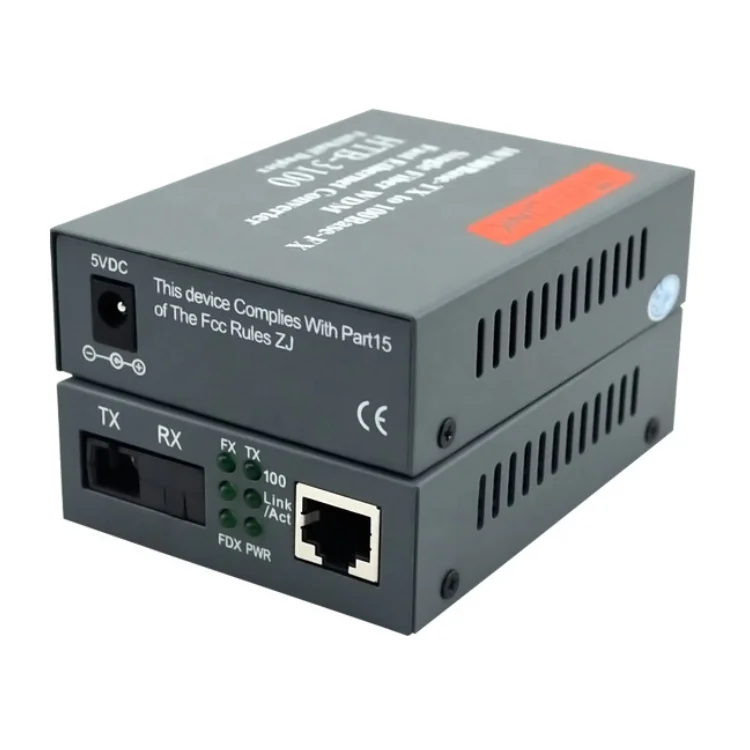

HTB 3100 Fast Ethernet to Fiber 10/100M WDM 1310nm 1550nm Single Mode Single Fiber Netlink BiDi Fiber Optic Media Converter
- Category: >>>
- Supplier: Shenzhen CREDEK Technology Co. LTD
Share on (1600410013978):
Product Overview
Description
Product Description
10/100M Fiber Media Converter, Single Mode, Single Fiber, BiDi, WDM 1310nm/1550nm, 25km, SC Port
CREDEK Fast Ethernet Media Converter extends the transmission distance of network from 100m via copper cable to 100km via fiber optical cables
Specification
Access mode | 10/100Mbps Gigabit Ethernet Media Converter |
Standard | IEEE802.3 10Base-T Ethernet,IEEE802.3u,100Base-TX/FX Fast Ethernet, IEEE802.3x Flow control,IEEE802.1q,IEEE802.1p QoS,IEEE802.1d Spanning Tree |
Wavelength | 850nm/1310nm/1550nm |
Transmission distance | multi-mode Dual-fiber: 0.55km(850nm), 2KM(1310nm) |
single mode Dual-fiber: 20/40/60/80 Km | |
single mode Single fiber: 20/40/60/80 Km | |
Category-5 twisted pairs: 100m | |
Port | One RJ45 port: for connecting with STP/UTP category-5 twisted pairs |
Optical port: | Multi-mode Dual-fiber: SC/LC/ST(SFP) (50, 62.5/125μm) |
Single mode Dual-fiber: SC/FC/ST/LC(SFP) (9/125μm) | |
Single mode Single fiber: SC/FC/ST/LC(SFP) (9/125μm) | |
Conversion means | Media conversion |
BER | <10-9 |
MTBF | 100,000 hours |
LED indicator | POWER (power supply), FX LINK (optical link action), TP LINK1000 (TP cable rate1000M), TP LINK100 (TP cable rate 100M), TP ACT (TP cable packet forwarding action) |
Power supply | AC90V-260V( internal power ) |
DC-48V,DC24V,DC12V,DC5V（external power） | |
Power consumption | 5W |
Operating temperature | -10~55ºC |
Operating humidity | 5%~90% |
Maintaining temperature | -40~70ºC |
Maintaining humidity | 5% ~ 90% non-condensing |
Dimensions | 71mm (W) * 94mm (D)*26 mm (H) (external power supply, ) |
