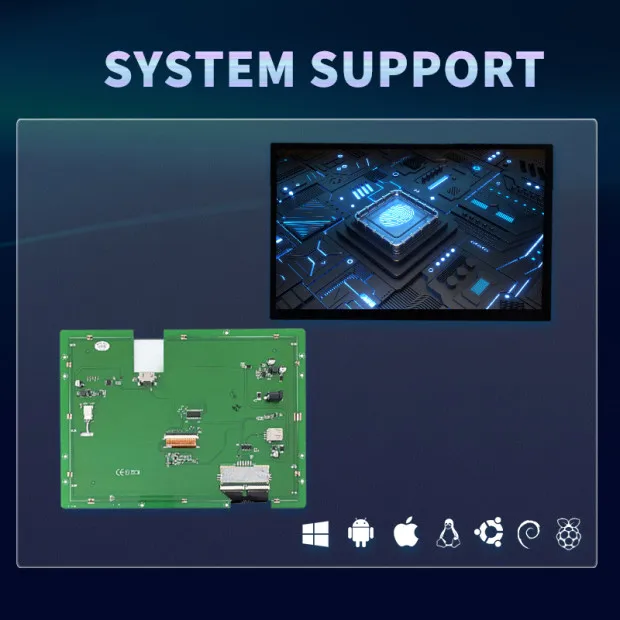

LCD 7 Inch IPS TFT LCD HD MI Industria Display Module Capacitive Touch Panel LCD Module Suitable for Windows Raspberry Linux
- Category: >>>
- Supplier: Beijing DWIN Technology Co. Ltd.
Share on (1600410013981):
Product Overview
Description
Product Details
Display
Item | Parameter | Description | ||
Color | 16.7M（16777216）colors | 24 bit color 8R8G8B | ||
Pannel Type | IPS | High contrast,good color reproduction,wide viewing angle(typical value is 85/85/85/85) | ||
Viewing Angle | 85/85/85/85(L/R/U/D) | - | ||
Active Area (A.A.) | 154.08mm(W)*85.92mm(H) | 1024*600 | ||
View Area(V.A.) | 154.08mm(W)*85.92mm(H) | 1024*600 | ||
Resolution | 1024*600 | Support 0°/90°/180°270°rotated display | ||
Backlight | LED | ≥20000H (Continuous working with maximum brightness, time of the brightness decays to 50%) | ||
Brightness | 300nit | - | ||
Notice:You can use dynamic screen saver wallpapers to avoid afterimages caused by fixed page display for a long time. | ||||
Voltage & Current
Item | Conditions | Min | Typ | Max | Unit |
Power Voltage | - | 6 | 12 | 36 | V |

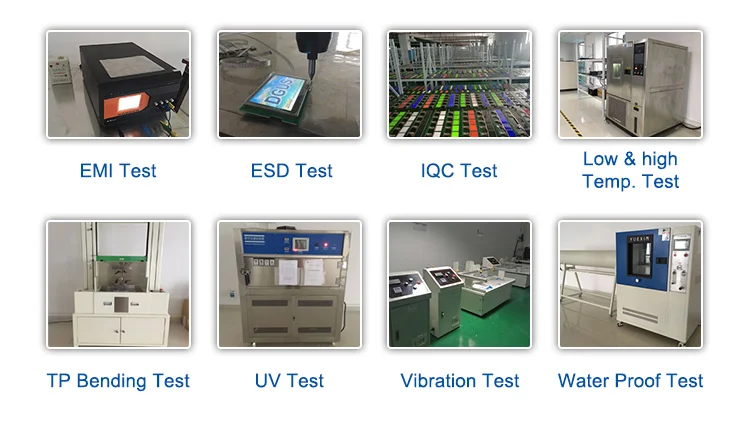

Reliability Test
Item | Conditions | Min | Typ | Max | Unit |
Working Temperature | 60%RH at 12V voltage | -20 | 25 | 70 | ℃ |
Storage Temperature | - | -30 | 25 | 80 | ℃ |
Working Humidity | 25℃ | 10% | 60% | 90% | RH |

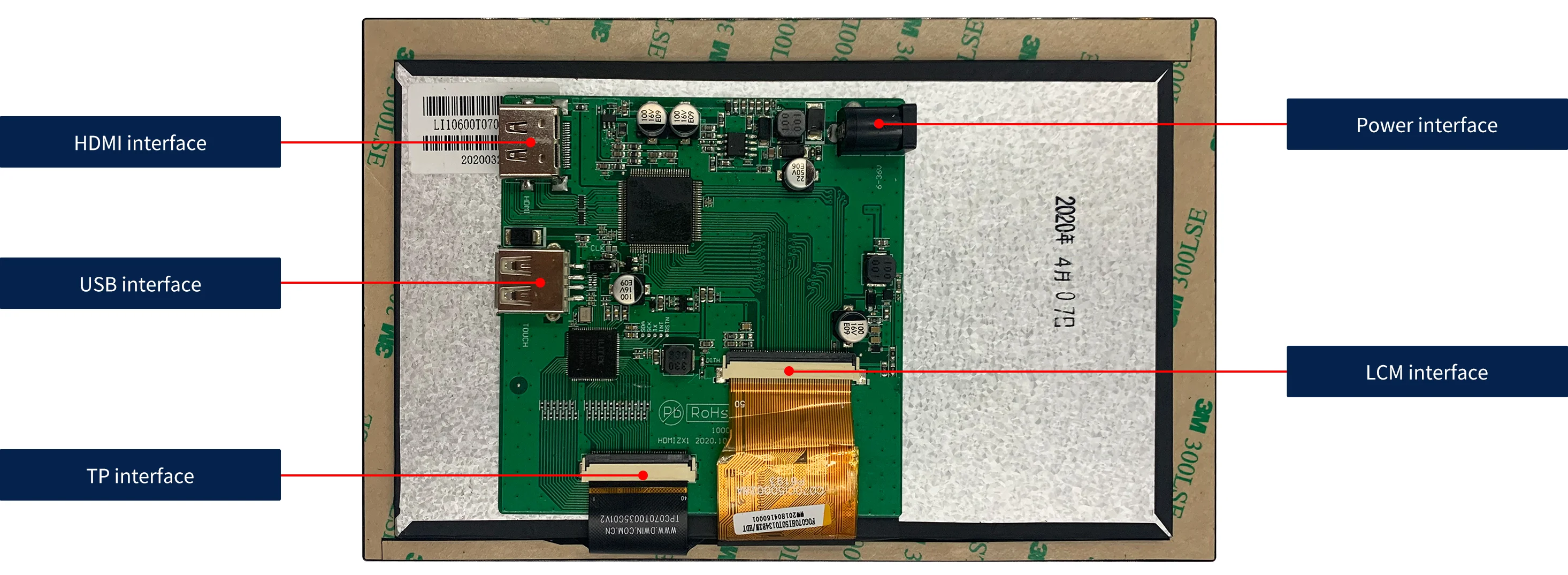

Interface
Item | Description | ||||||
Socket | HDMI interface，Power interface | ||||||
USB Interface | Yes | ||||||
SD Card Slot | None | ||||||
Peripheral

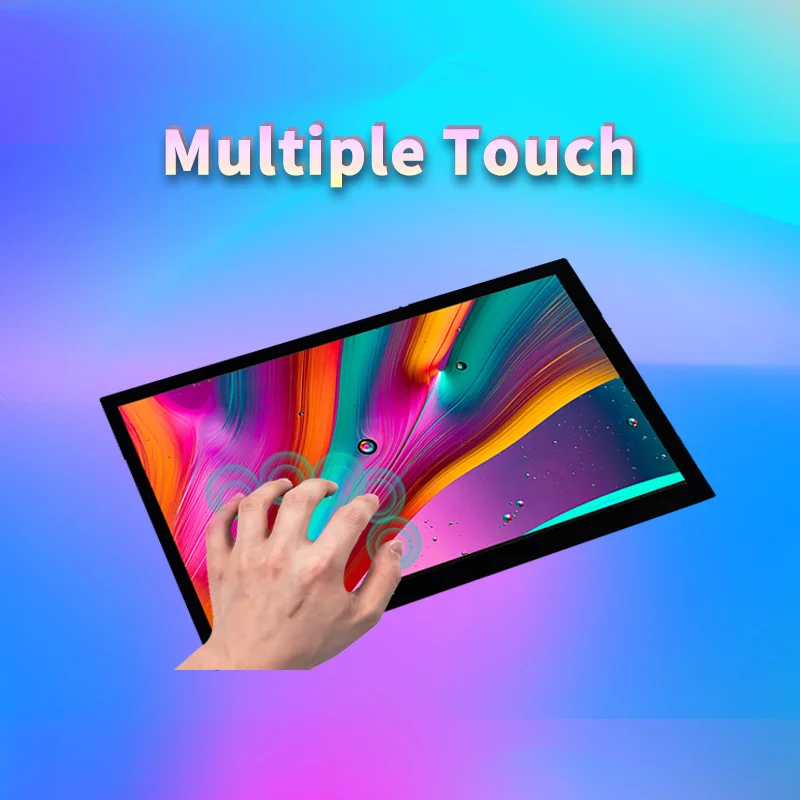

Peripheral | Capactive touch panel | ||||||

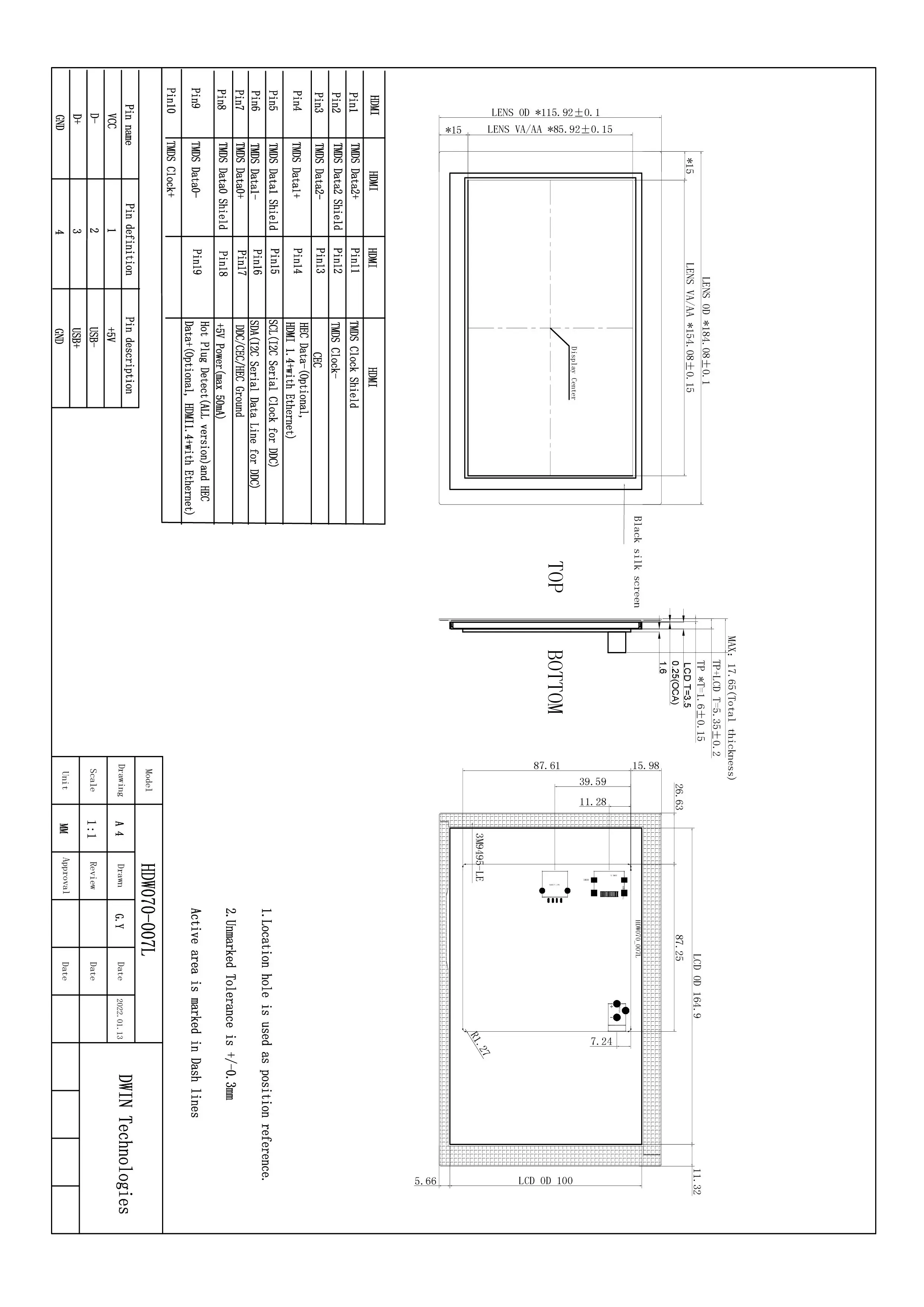

Packing Capacity & Dimension
Dimension | 184.08(W)×115.92 (H)× 17.75(T) mm | |||||||
Net Weight | 211g | |||||||
Packing Capacity | ||||||||
Model | Size | Layer | Quantity/Layer(Pcs) | Quantity(Pcs) | ||||
Carton1 | 220mm(L)×160mm(W)×47mm(H) | - | - | - | ||||
Carton2 | 250mm(L)×200mm(W)×80mm(H) | 2 | 1 | 2 | ||||
Carton3 | 320mm(L)×270mm(W)×80mm(H) | 2 | 2 | 4 | ||||
Carton4 | 450mm(L)×350mm(W)×300mm(H) | 1 | 20 | 20 | ||||
Carton5 | 600mm(L)×450mm(W)×300mm(H) | 1 | 34 | 34 | ||||

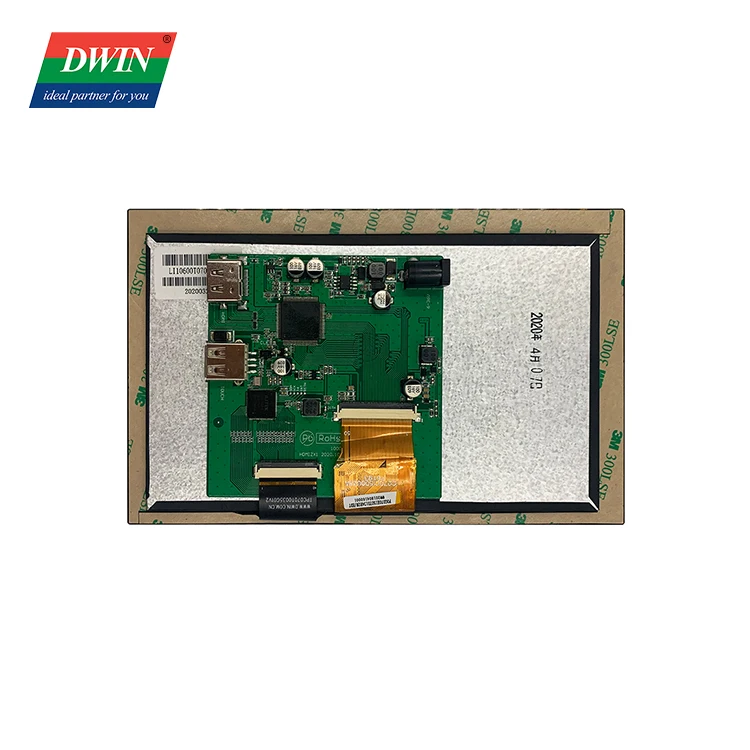

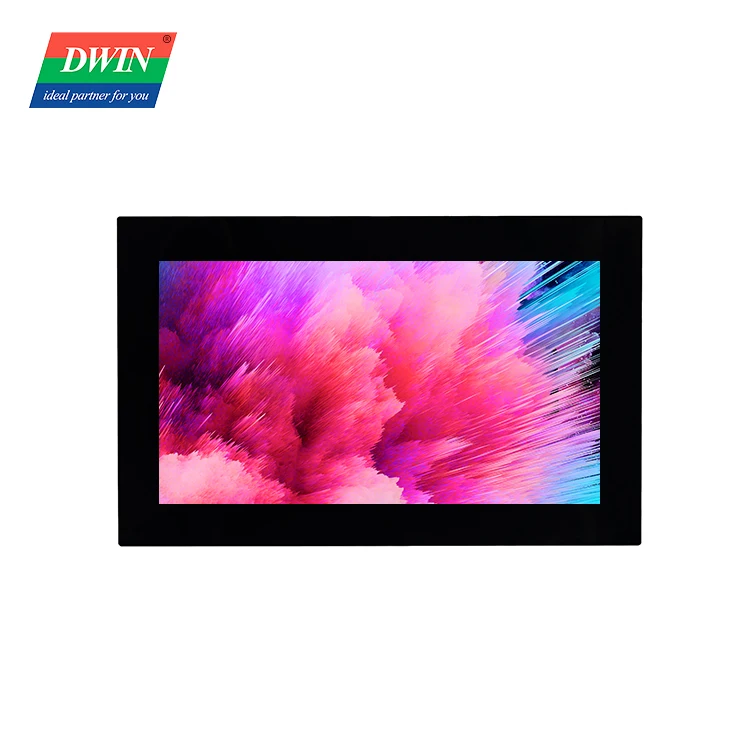

Product Show
Why Choose Us
Company introduction
By 2023,a manufacturing and service base with a total floor area of 400,000 square meters will be established in Hunan.It covers the whole process production from glass cleaning,cutting,IC bonding,laminating and backlight assembly.
AROUND 20-YEAR EXPERIENCE
DWIN technologies was founded in 2003 at ZHONGGUANCUN,Beijing.Absolutely,DWIN has become the top supplier of LCMs in China.DWIN has set up regional marketing and application support in China as well as overseas countries such as India,Poland,Brazil and the United States.
Size
Inch | LCD type | Brightness | Color | Resolution | Note |
4.3 | IPS | 250 | 16.7M | 480*800 | |
IPS | 250 | 16.7M | 480*800 | With shell | |
5.0 | TN | 250 | 65K | 800*480 | |
7 | IPS | 300 | 16.7M | 1024*600 | |
TN | 250 | 16.7M | 800*480 | ||
TN | 800 | 16.7M | 800*480 | ||
IPS | 600 | 16.7M | 1024*600 | ||
TN | 800 | 16.7M | 800*480 | ||
IPS | 600 | 16.7M | 1024*600 | ||
IPS | 250 | 16.7M | 1024*600 | With shell | |
IPS | 400 | 16.7M | 1024*768 | ||
IPS | 250 | 16.7M | 1024*768 | With shell | |
8.88 | IPS | 250 | 16.7M | 1920*480 | With shell |
IPS | 300 | 16.7M | 1024*600 | ||
IPS | 500 | 16.7M | 1024*600 | ||
IPS | 550 | 16.7M | 1024*600 | With shell | |
IPS | 300 | 16.7M | 1280*800 | ||
10.4 | IPS | 300 | 16.7M | 1024*768 | |
12.1 | TN | 300 | 16.7M | 1280*800 | |
15.6 | IPS | 250 | 16.7M | 1920*1080 | |
IPS | 190 | 16.7M | 1920*1080 | ||
IPS | 300 | 16.7M | 1920*1080 | With shell |

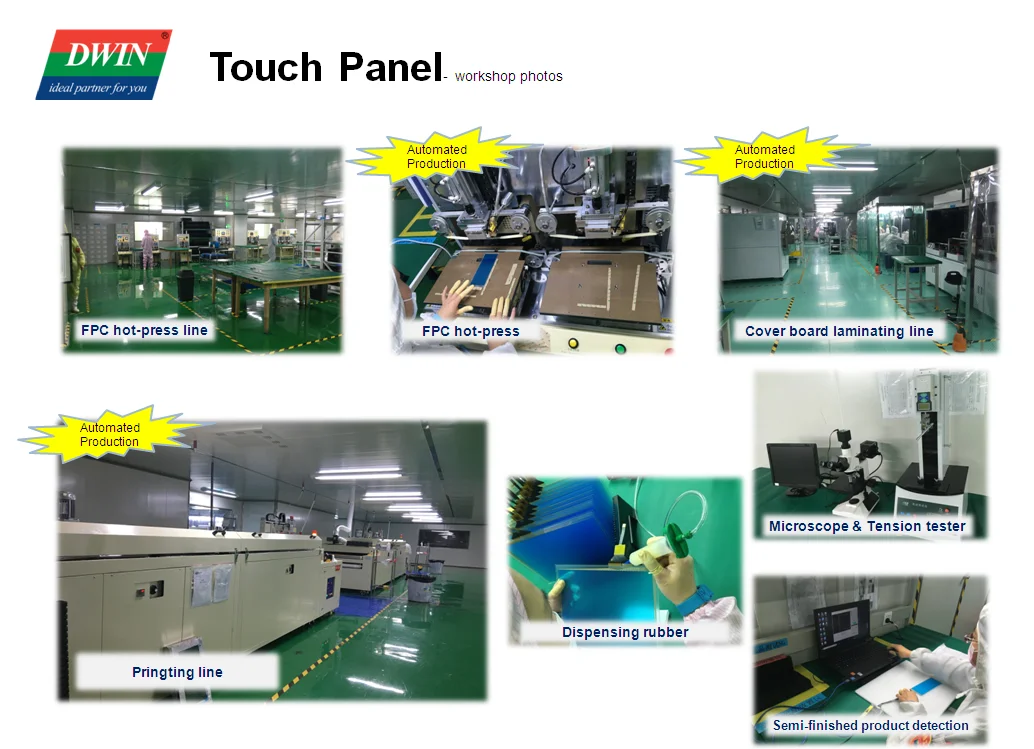

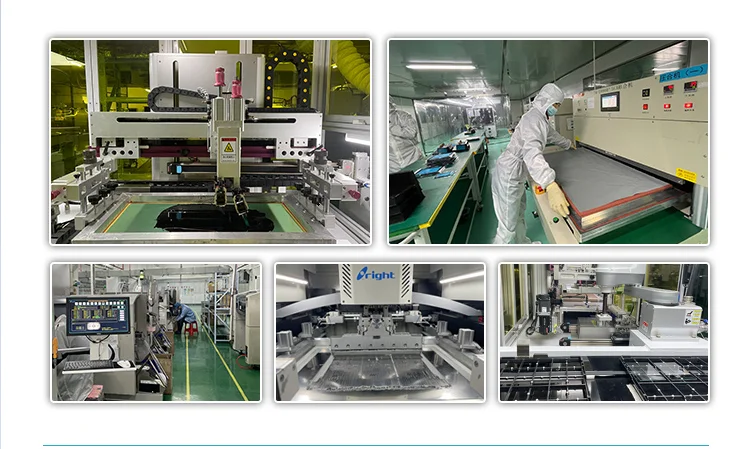

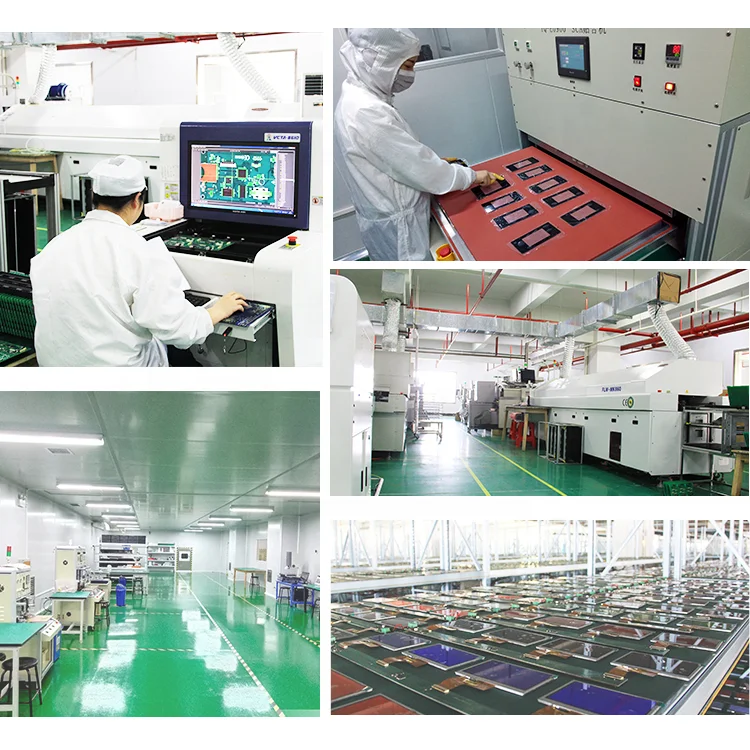

Factory View
