DVB receiver signal Digital satellite finder Signal Meter EMC9001

Product Overview

Description

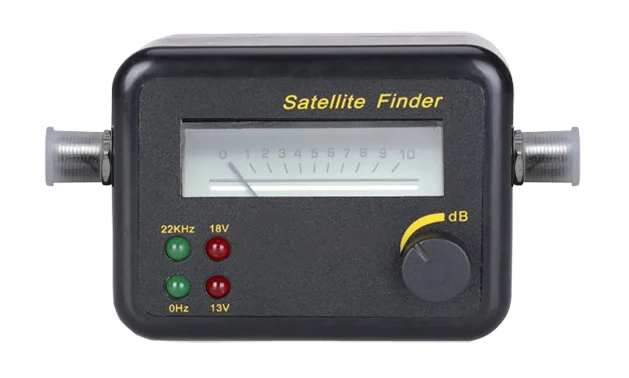

Satellite Finder EMC9001



Features:

  1.In-line IF signal strength meter



  2.Input Frequency: 950-2150MHz



  3.Supply Voltage: 13-18V DC



  4.Input Level Max: -10dBm



  5.Input Level Min: -40dBm

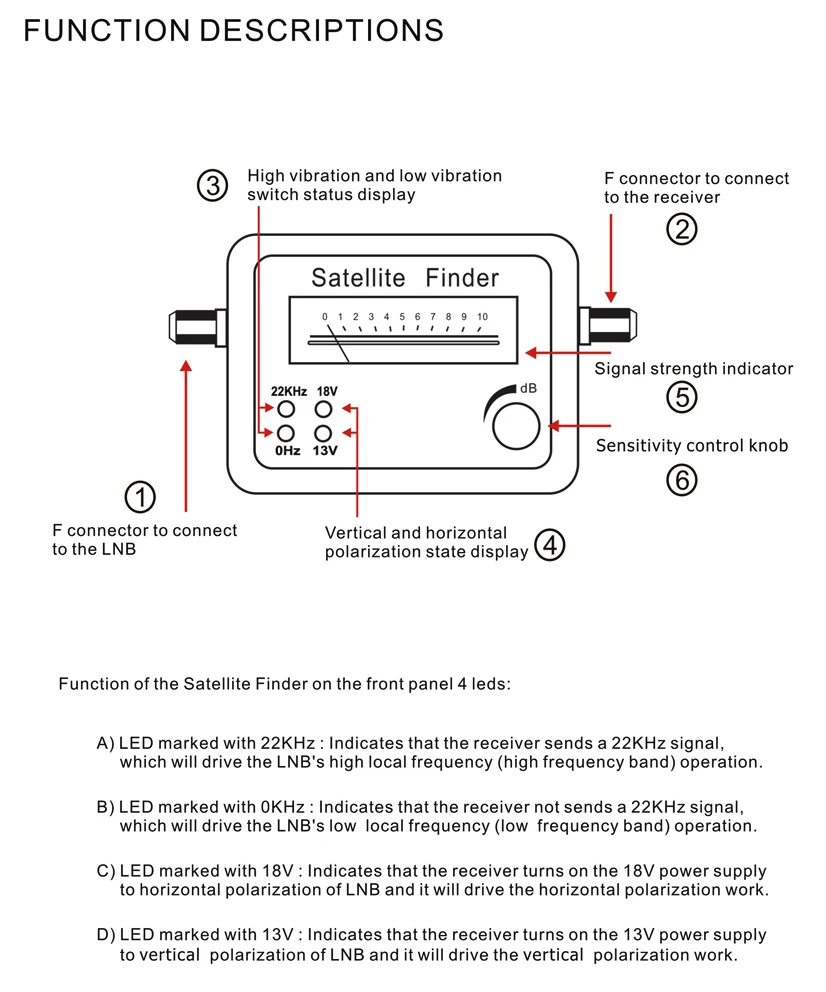

  5.Built-in 0Hz, 22KHz, 13V, 18V indicating LED



Specifications

Item  Model	EMC9001
Frequency Range	950-2150MHz
Input  Level  Max	-10dB
Input  Level  Min	-40dB
Supply  Voltage	13-18V  DC
Packing size	100PCS/CNT : 53 X 44 X 28CM  13Kg







Trade patterns:



1.Normal lead time: 3days for sample order;10~30 days for production order.



2.Payment: T/T,



3.DHL/ Fedex/ UPS/ TNT/ EMS /Air shipping/ Sea shipping is available



4.Shipping port: Guangzhou/ ShenZhen/ ZhuHai.



5.Payment condition: 30% before production, 70% before delivery.
